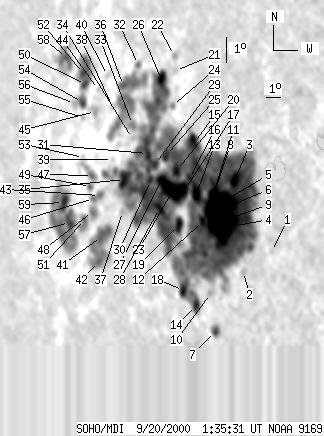

SOHO MDI 2000-09-20 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 437 | 3174 | 384 | 2790 | 10.53 | 77.86 | -56.25 | 82.08 | 0.8255 | 498.6 | 96.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-20 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 2 | 0 | 2 | 8.66 | 85.53 | -48.58 | 84.72 | 0.7469 | -460.0 | -384.5 | |
| 0 | 7 | 0 | 5 | 7.73 | 83.98 | -50.13 | 85.87 | 0.7648 | -272.0 | -213.7 | |
| 12 | 2413 | 9 | 2012 | 11.19 | 82.70 | -51.41 | 81.32 | 0.7779 | 1358.7 | 230.7 | |
| 53 | -3 | 42 | -3 | 9.32 | 82.55 | -51.56 | 83.73 | 0.7798 | 1612.0 | 999999 | |
| 53 | -3 | 42 | -3 | 10.36 | 82.26 | -51.85 | 82.39 | 0.7827 | 1550.8 | 999999 | |
| -5 | -3 | -5 | -3 | 9.93 | 81.91 | -52.21 | 82.93 | 0.7866 | 999999 | 999999 | |
| 4 | 13 | 4 | 10 | 5.23 | 82.58 | -51.53 | 88.97 | 0.7821 | -656.3 | -387.3 | |
| 16 | -3 | 13 | -3 | 10.61 | 81.55 | -52.56 | 82.06 | 0.7903 | 1120.0 | 999999 | |
| 13 | -3 | 11 | -3 | 9.36 | 81.71 | -52.41 | 83.65 | 0.7889 | 927.7 | 999999 | |
| 0 | 5 | 0 | 4 | 6.68 | 82.07 | -52.05 | 87.08 | 0.7864 | -467.0 | -420.8 | |
| 10 | -3 | 8 | -3 | 9.83 | 81.27 | -52.84 | 83.04 | 0.7933 | 817.6 | 999999 | |
| 5 | -3 | 4 | -3 | 9.41 | 81.04 | -53.07 | 83.56 | 0.7959 | 259.8 | 999999 | |
| 16 | -3 | 14 | -3 | 10.45 | 80.39 | -53.72 | 82.23 | 0.8024 | 999.7 | 999999 | |
| 7 | -3 | 6 | -3 | 6.12 | 81.24 | -52.87 | 87.71 | 0.7956 | -420.4 | 999999 | |
| 19 | -3 | 16 | -3 | 12.36 | 79.65 | -54.46 | 79.85 | 0.8097 | -500.8 | 999999 | |
| 5 | -3 | 4 | -3 | 10.98 | 79.77 | -54.34 | 81.56 | 0.8086 | 964.8 | 999999 | |
| 13 | -3 | 11 | -3 | 10.53 | 79.55 | -54.56 | 82.12 | 0.8109 | 952.5 | 999999 | |
| 9 | -3 | 8 | -3 | 6.62 | 80.30 | -53.81 | 87.00 | 0.8050 | -79.7 | 999999 | |
| 11 | -3 | 9 | -3 | 9.10 | 79.49 | -54.62 | 83.88 | 0.8119 | 498.4 | 999999 | |
| 9 | -3 | 7 | -3 | 11.21 | 78.81 | -55.30 | 81.27 | 0.8182 | 894.6 | 999999 | |
| 0 | 3 | 0 | 3 | 15.04 | 77.40 | -56.71 | 76.61 | 0.8320 | -284.0 | -267.4 | |
| 0 | 6 | 0 | 5 | 15.61 | 77.09 | -57.03 | 75.94 | 0.8351 | -602.0 | -507.7 | |
| 44 | -3 | 37 | -3 | 10.41 | 78.75 | -55.36 | 82.24 | 0.8189 | 919.0 | 999999 | |
| 0 | 5 | 0 | 5 | 13.68 | 77.71 | -56.40 | 78.26 | 0.8288 | 368.0 | 352.2 | |
| 6 | -3 | 5 | -3 | 11.71 | 77.87 | -56.24 | 80.65 | 0.8272 | 786.2 | 999999 | |
| 11 | -3 | 10 | -3 | 14.60 | 76.54 | -57.58 | 77.17 | 0.8399 | -807.2 | 999999 | |
| 10 | -3 | 9 | -3 | 10.75 | 77.87 | -56.24 | 81.80 | 0.8274 | 691.4 | 999999 | |
| 9 | -3 | 8 | -3 | 9.62 | 78.03 | -56.08 | 83.17 | 0.8262 | -103.6 | 999999 | |
| 7 | -3 | 7 | -3 | 11.28 | 77.21 | -56.91 | 81.15 | 0.8337 | 746.7 | 999999 | |
| 4 | -3 | 4 | -3 | 10.64 | 77.10 | -57.01 | 81.92 | 0.8348 | 369.8 | 999999 | |
| 9 | -3 | 8 | -3 | 11.65 | 76.57 | -57.54 | 80.69 | 0.8396 | 585.2 | 999999 | |
| 0 | 6 | 0 | 6 | 14.99 | 74.57 | -59.54 | 76.74 | 0.8576 | -446.0 | -376.7 | |
| 0 | 12 | 0 | 11 | 12.65 | 75.07 | -59.04 | 79.49 | 0.8531 | 320.0 | 298.8 | |
| 0 | 3 | 0 | 2 | 12.11 | 75.27 | -58.85 | 80.12 | 0.8514 | 438.0 | 349.8 | |
| 19 | -3 | 18 | -3 | 10.48 | 75.19 | -58.92 | 82.04 | 0.8525 | -850.8 | 999999 | |
| 4 | 153 | 4 | 150 | 14.07 | 73.77 | -60.34 | 77.82 | 0.8644 | -182.4 | -57.7 | |
| 0 | 4 | 0 | 3 | 9.23 | 75.39 | -58.72 | 83.51 | 0.8511 | -492.0 | -571.3 | |
| 0 | 3 | 0 | 3 | 13.17 | 73.25 | -60.86 | 78.85 | 0.8689 | -144.0 | -141.9 | |
| 0 | 2 | 0 | 2 | 11.15 | 74.02 | -60.09 | 81.22 | 0.8626 | -527.0 | -444.2 | |
| 0 | 3 | 0 | 3 | 14.31 | 72.31 | -61.80 | 77.54 | 0.8766 | -758.0 | -653.8 | |
| 8 | 110 | 8 | 107 | 8.10 | 74.04 | -60.07 | 84.75 | 0.8636 | -791.9 | -578.2 | |
| 4 | -41 | 4 | -41 | 7.12 | 74.11 | -60.00 | 85.89 | 0.8636 | -376.9 | 999999 | |
| 1 | 17 | 1 | 17 | 9.66 | 73.45 | -60.66 | 82.91 | 0.8680 | -801.1 | -686.2 | |
| 0 | 2 | 0 | 2 | 13.70 | 71.82 | -62.29 | 78.23 | 0.8806 | -342.0 | -396.5 | |
| 0 | 10 | 0 | 11 | 12.83 | 71.95 | -62.16 | 79.22 | 0.8796 | -433.0 | -595.3 | |
| 1 | -43 | 1 | -43 | 9.49 | 73.01 | -61.10 | 83.08 | 0.8718 | -728.0 | 999999 | |
| 1 | 24 | 2 | 24 | 10.37 | 72.65 | -61.46 | 82.06 | 0.8745 | -757.6 | -574.4 | |
| 1 | 16 | 1 | 16 | 8.99 | 73.08 | -61.03 | 83.67 | 0.8715 | -595.3 | -531.1 | |
| 1 | 7 | 2 | 7 | 9.93 | 72.63 | -61.49 | 82.56 | 0.8749 | -480.6 | -432.3 | |
| 6 | 61 | 7 | 66 | 13.77 | 70.63 | -63.48 | 78.13 | 0.8900 | -660.2 | -517.6 | |
| 1 | 17 | 1 | 18 | 8.61 | 72.52 | -61.59 | 84.06 | 0.8763 | -690.0 | -474.8 | |
| 3 | -50 | 4 | -50 | 14.17 | 70.24 | -63.87 | 77.68 | 0.8929 | -828.5 | 999999 | |
| 0 | 1 | 0 | 1 | 10.97 | 71.66 | -62.45 | 81.33 | 0.8824 | -424.0 | -381.7 | |
| 6 | 16 | 7 | 18 | 13.06 | 70.70 | -63.41 | 78.94 | 0.8895 | -637.7 | -442.8 | |
| 0 | 3 | 0 | 3 | 12.49 | 70.96 | -63.15 | 79.59 | 0.8876 | -218.0 | -274.5 | |
| 0 | 5 | 0 | 5 | 12.94 | 70.02 | -64.09 | 79.05 | 0.8948 | 231.0 | 267.3 | |
| 9 | 188 | 10 | 202 | 8.36 | 71.31 | -62.80 | 84.26 | 0.8863 | -599.6 | -36.2 | |
| 3 | 57 | 3 | 67 | 14.61 | 68.38 | -65.73 | 77.16 | 0.9066 | -489.7 | -151.7 | |
| 14 | -57 | 15 | -57 | 9.07 | 70.56 | -63.55 | 83.41 | 0.8919 | -409.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
