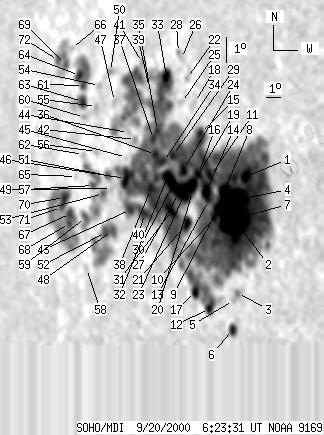

SOHO MDI 2000-09-20 06:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 476 | 3588 | 390 | 2950 | 10.30 | 78.05 | -53.43 | 82.42 | 0.7976 | 475.7 | 99.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-20 06:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9 | 2902 | 7 | 2295 | 11.24 | 82.68 | -48.79 | 81.25 | 0.7490 | 1417.0 | 226.2 | |
| 48 | -1 | 36 | -1 | 9.38 | 82.58 | -48.89 | 83.74 | 0.7502 | 1762.7 | 999999 | |
| 0 | 7 | 0 | 5 | 6.66 | 83.02 | -48.45 | 87.39 | 0.7465 | -704.0 | -620.7 | |
| 44 | -1 | 33 | -1 | 10.24 | 82.17 | -49.31 | 82.57 | 0.7548 | 1647.4 | 999999 | |
| 0 | 2 | 0 | 2 | 6.37 | 82.82 | -48.65 | 87.77 | 0.7490 | -447.0 | -387.6 | |
| 8 | 15 | 6 | 11 | 5.24 | 82.89 | -48.58 | 89.29 | 0.7492 | -644.9 | -387.5 | |
| 24 | -1 | 18 | -1 | 9.38 | 81.79 | -49.68 | 83.71 | 0.7592 | 1115.3 | 999999 | |
| 17 | -1 | 13 | -1 | 10.58 | 81.54 | -49.93 | 82.12 | 0.7618 | 1154.5 | 999999 | |
| 10 | -1 | 8 | -1 | 9.84 | 81.26 | -50.21 | 83.08 | 0.7649 | 897.8 | 999999 | |
| 7 | -1 | 5 | -1 | 9.48 | 81.15 | -50.32 | 83.56 | 0.7663 | 477.5 | 999999 | |
| 10 | -1 | 8 | -1 | 11.08 | 80.54 | -50.93 | 81.47 | 0.7727 | 746.9 | 999999 | |
| 6 | -1 | 4 | -1 | 5.93 | 81.42 | -50.05 | 88.23 | 0.7652 | -535.6 | 999999 | |
| 3 | -1 | 3 | -1 | 10.10 | 80.64 | -50.83 | 82.74 | 0.7717 | 859.1 | 999999 | |
| 14 | -1 | 11 | -1 | 10.48 | 80.43 | -51.04 | 82.25 | 0.7740 | 1080.6 | 999999 | |
| 7 | -1 | 6 | -1 | 12.64 | 79.49 | -51.99 | 79.46 | 0.7842 | -509.1 | 999999 | |
| 6 | -1 | 4 | -1 | 11.08 | 79.77 | -51.70 | 81.46 | 0.7810 | 1133.4 | 999999 | |
| 8 | -1 | 7 | -1 | 6.50 | 80.47 | -51.00 | 87.39 | 0.7752 | -120.0 | 999999 | |
| 0 | 8 | 0 | 6 | 13.80 | 78.74 | -52.74 | 78.01 | 0.7924 | 84.0 | 192.1 | |
| 8 | -1 | 7 | -1 | 10.71 | 79.54 | -51.93 | 81.94 | 0.7835 | 1119.5 | 999999 | |
| 3 | -1 | 2 | -1 | 10.35 | 79.56 | -51.91 | 82.39 | 0.7834 | 1041.1 | 999999 | |
| 11 | -1 | 9 | -1 | 9.08 | 79.46 | -52.02 | 84.01 | 0.7849 | 616.0 | 999999 | |
| 0 | 3 | 0 | 3 | 14.68 | 77.90 | -53.58 | 76.94 | 0.8013 | 279.0 | 251.4 | |
| 23 | -1 | 18 | -1 | 10.31 | 79.12 | -52.35 | 82.44 | 0.7881 | 1072.1 | 999999 | |
| 11 | -1 | 9 | -1 | 11.15 | 78.78 | -52.69 | 81.37 | 0.7916 | 886.8 | 999999 | |
| 0 | 5 | 0 | 4 | 13.72 | 77.89 | -53.59 | 78.14 | 0.8011 | 235.0 | 270.2 | |
| 0 | 2 | 0 | 2 | 15.42 | 77.28 | -54.20 | 76.05 | 0.8078 | -496.0 | -522.2 | |
| 9 | -1 | 7 | -1 | 10.19 | 78.69 | -52.78 | 82.58 | 0.7927 | 836.7 | 999999 | |
| 0 | 5 | 0 | 5 | 15.63 | 76.98 | -54.49 | 75.81 | 0.8108 | -612.0 | -514.7 | |
| 6 | -1 | 5 | -1 | 11.62 | 77.92 | -53.55 | 80.77 | 0.8005 | 897.0 | 999999 | |
| 25 | -1 | 20 | -1 | 10.46 | 78.22 | -53.25 | 82.23 | 0.7975 | 865.8 | 999999 | |
| 13 | -1 | 11 | -1 | 9.49 | 78.39 | -53.09 | 83.46 | 0.7960 | 48.5 | 999999 | |
| -30 | -1 | -30 | -1 | 10.77 | 77.81 | -53.66 | 81.83 | 0.8017 | 999999 | 999999 | |
| 11 | -1 | 9 | -1 | 14.62 | 76.53 | -54.95 | 77.07 | 0.8149 | -941.5 | 999999 | |
| 5 | -1 | 4 | -1 | 11.33 | 77.39 | -54.08 | 81.13 | 0.8060 | 769.7 | 999999 | |
| 4 | -1 | 4 | -1 | 12.48 | 76.63 | -54.84 | 79.70 | 0.8135 | 793.3 | 999999 | |
| 5 | -1 | 4 | -1 | 11.54 | 76.78 | -54.70 | 80.86 | 0.8121 | 704.2 | 999999 | |
| 6 | -1 | 5 | -1 | 12.15 | 76.46 | -55.02 | 80.11 | 0.8153 | 761.5 | 999999 | |
| 11 | -1 | 9 | -1 | 10.16 | 76.81 | -54.67 | 82.56 | 0.8120 | -604.9 | 999999 | |
| 0 | 3 | 0 | 3 | 14.04 | 75.53 | -55.95 | 77.80 | 0.8245 | -265.0 | -224.0 | |
| 7 | -1 | 6 | -1 | 9.20 | 76.63 | -54.85 | 83.75 | 0.8142 | -602.2 | 999999 | |
| 0 | 6 | 0 | 5 | 14.99 | 74.64 | -56.83 | 76.68 | 0.8331 | -412.0 | -449.4 | |
| 0 | 7 | 0 | 6 | 11.98 | 75.23 | -56.25 | 80.31 | 0.8273 | 634.0 | 515.6 | |
| 7 | -1 | 6 | -1 | 9.25 | 75.63 | -55.84 | 83.63 | 0.8240 | -771.9 | 999999 | |
| 0 | 3 | 0 | 3 | 12.20 | 74.64 | -56.83 | 80.04 | 0.8328 | 470.0 | 441.3 | |
| 0 | 1 | 0 | 1 | 11.23 | 74.81 | -56.67 | 81.21 | 0.8314 | -567.0 | -491.7 | |
| 18 | -1 | 16 | -1 | 10.41 | 74.97 | -56.50 | 82.20 | 0.8300 | -880.0 | 999999 | |
| 0 | 5 | 0 | 4 | 13.29 | 73.20 | -58.27 | 78.73 | 0.8461 | -67.0 | -34.5 | |
| 5 | 108 | 4 | 98 | 8.32 | 74.56 | -56.92 | 84.70 | 0.8348 | -731.5 | -616.0 | |
| 0 | 3 | 0 | 2 | 9.92 | 74.08 | -57.39 | 82.75 | 0.8386 | -653.0 | -453.9 | |
| 0 | 7 | 0 | 6 | 14.40 | 72.44 | -59.04 | 77.42 | 0.8531 | -724.0 | -593.6 | |
| 3 | 11 | 3 | 10 | 10.39 | 73.65 | -57.82 | 82.18 | 0.8425 | -788.4 | -633.0 | |
| 7 | -48 | 7 | -48 | 8.19 | 74.07 | -57.40 | 84.83 | 0.8394 | -824.6 | 999999 | |
| 2 | 73 | 2 | 69 | 9.67 | 73.55 | -57.92 | 83.03 | 0.8436 | -812.3 | -572.5 | |
| 0 | 4 | 0 | 4 | 13.78 | 71.83 | -59.65 | 78.15 | 0.8584 | -592.0 | -521.4 | |
| 0 | 6 | 0 | 6 | 12.95 | 71.92 | -59.55 | 79.12 | 0.8576 | -634.0 | -518.6 | |
| 0 | 4 | 0 | 4 | 11.23 | 72.55 | -58.92 | 81.15 | 0.8523 | -587.0 | -454.6 | |
| 3 | 34 | 2 | 32 | 9.90 | 72.73 | -58.74 | 82.72 | 0.8511 | -603.3 | -594.6 | |
| 0 | 4 | 0 | 4 | 6.65 | 72.97 | -58.50 | 86.56 | 0.8505 | -180.0 | -223.3 | |
| 4 | -53 | 4 | -53 | 8.61 | 72.46 | -59.01 | 84.22 | 0.8540 | -670.3 | 999999 | |
| 0 | 6 | 0 | 5 | 12.43 | 71.16 | -60.31 | 79.71 | 0.8643 | -435.0 | -437.8 | |
| 4 | 97 | 4 | 97 | 13.65 | 70.58 | -60.90 | 78.30 | 0.8691 | -763.4 | -412.9 | |
| 0 | 4 | 0 | 4 | 11.01 | 71.60 | -59.88 | 81.38 | 0.8608 | -421.0 | -361.5 | |
| 10 | -61 | 10 | -61 | 13.03 | 70.76 | -60.72 | 79.02 | 0.8676 | -651.9 | 999999 | |
| 8 | -61 | 8 | -61 | 14.00 | 70.08 | -61.39 | 77.90 | 0.8732 | -760.9 | 999999 | |
| 0 | 3 | 0 | 3 | 10.11 | 71.33 | -60.14 | 82.41 | 0.8634 | -237.0 | -245.2 | |
| 0 | 3 | 0 | 3 | 14.95 | 68.92 | -62.55 | 76.80 | 0.8826 | -386.0 | -366.8 | |
| 5 | 192 | 5 | 190 | 8.64 | 71.27 | -60.20 | 84.11 | 0.8645 | -726.4 | -99.6 | |
| 3 | -67 | 3 | -67 | 8.25 | 71.30 | -60.18 | 84.57 | 0.8645 | -598.8 | 999999 | |
| 3 | 55 | 3 | 58 | 14.29 | 68.73 | -62.74 | 77.55 | 0.8841 | -597.2 | -258.9 | |
| 9 | -67 | 9 | -67 | 9.21 | 70.63 | -60.84 | 83.42 | 0.8698 | -525.3 | 999999 | |
| 3 | -67 | 3 | -67 | 8.80 | 70.50 | -60.97 | 83.89 | 0.8711 | -326.3 | 999999 | |
| 3 | -69 | 3 | -69 | 14.38 | 68.05 | -63.42 | 77.44 | 0.8894 | -271.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
