group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	543	4111	394	2979	10.36	78.52	-47.28	82.44	0.7298	642.8	117.1

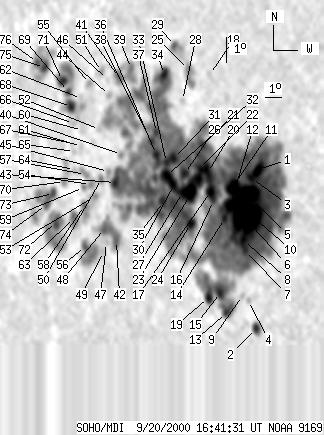

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-20 16:41:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	13	3267	9	2288	11.46	82.81	-42.99	80.75	0.6795	1158.6	273.1
2	9	17	6	11	5.28	83.55	-42.26	89.96	0.6720	-753.1	-410.6
3	7	-1	4	-1	11.08	82.50	-43.31	81.32	0.6832	1511.0	999999
4	0	4	0	3	6.33	83.02	-42.79	88.34	0.6777	-646.0	-490.7
5	45	-1	30	-1	10.44	82.40	-43.41	82.26	0.6844	1900.3	999999
6	74	-1	50	-1	9.47	82.51	-43.30	83.69	0.6830	1791.9	999999
7	6	-1	4	-1	8.26	82.63	-43.18	85.47	0.6816	1126.8	999999
8	9	-1	6	-1	8.64	82.47	-43.34	84.91	0.6836	1324.5	999999
9	0	4	0	3	6.50	82.68	-43.13	88.06	0.6820	-430.0	-394.7
10	5	-1	3	-1	9.91	82.16	-43.65	83.04	0.6873	1912.2	999999
11	19	-1	13	-1	10.68	81.53	-44.28	81.93	0.6953	1205.7	999999
12	23	-1	16	-1	9.98	81.54	-44.27	82.95	0.6950	1179.9	999999
13	7	-1	5	-1	5.77	81.89	-43.92	89.06	0.6926	-819.5	999999
14	6	-1	4	-1	9.40	81.30	-44.51	83.77	0.6980	668.0	999999
15	10	-1	7	-1	6.51	81.48	-44.33	87.94	0.6971	-343.5	999999
16	4	-1	2	-1	10.05	80.58	-45.23	82.85	0.7069	950.0	999999
17	13	-1	9	-1	10.38	80.34	-45.46	82.38	0.7097	1173.8	999999
18	0	6	0	4	14.92	79.23	-46.58	76.10	0.7254	188.0	256.4
19	9	-1	6	-1	6.26	80.84	-44.97	88.24	0.7052	-150.1	999999
20	18	-1	13	-1	11.11	80.03	-45.78	81.36	0.7136	1159.8	999999
21	7	-1	5	-1	12.13	79.53	-46.28	79.95	0.7200	-306.4	999999
22	5	-1	4	-1	11.22	79.55	-46.26	81.21	0.7194	1216.9	999999
23	39	-1	28	-1	10.46	79.41	-46.40	82.27	0.7209	1286.8	999999
24	10	-1	7	-1	9.05	79.44	-46.37	84.24	0.7208	890.6	999999
25	0	29	0	21	15.00	77.95	-47.86	76.11	0.7401	-252.0	174.1
26	12	-1	9	-1	10.95	78.73	-47.08	81.60	0.7291	1008.6	999999
27	12	-1	9	-1	10.21	78.76	-47.04	82.63	0.7286	1002.8	999999
28	0	5	0	4	13.77	77.94	-47.87	77.79	0.7393	67.0	197.7
29	4	26	3	19	15.86	76.82	-48.99	75.08	0.7535	-747.2	-668.1
30	11	-1	8	-1	10.43	78.19	-47.62	82.32	0.7354	1006.7	999999
31	8	-1	6	-1	11.48	77.97	-47.84	80.90	0.7381	1095.3	999999
32	14	-1	11	-1	10.78	77.70	-48.11	81.85	0.7410	1003.1	999999
33	5	-1	4	-1	11.28	77.59	-48.22	81.17	0.7424	994.3	999999
34	7	-1	5	-1	14.68	76.57	-49.23	76.67	0.7553	-1112.5	999999
35	8	-1	6	-1	9.76	77.73	-48.08	83.23	0.7408	-699.8	999999
36	7	-1	5	-1	11.54	76.93	-48.88	80.83	0.7500	893.9	999999
37	5	-1	4	-1	12.39	76.72	-49.09	79.70	0.7525	851.2	999999
38	4	-1	3	-1	12.01	76.51	-49.30	80.21	0.7548	861.5	999999
39	3	54	2	42	14.72	74.46	-51.34	76.75	0.7782	-487.8	-142.9
40	0	7	0	5	11.34	74.80	-51.01	81.12	0.7736	-500.0	-434.5
41	6	-39	5	-39	14.30	73.82	-51.99	77.33	0.7848	-156.9	999999
42	9	63	7	49	7.99	75.19	-50.62	85.48	0.7701	-329.5	-681.9
43	11	-1	9	-1	10.22	74.68	-51.13	82.56	0.7750	-999.1	999999
44	0	5	0	4	13.55	73.40	-52.41	78.31	0.7889	66.0	-43.0
45	0	8	0	6	10.61	74.15	-51.66	82.06	0.7807	-175.0	-105.4
46	0	3	0	2	14.15	73.07	-52.74	77.56	0.7925	-309.0	-325.7
47	0	2	0	2	7.85	74.58	-51.23	85.62	0.7769	-254.0	-334.8
48	9	-42	7	-42	8.38	74.36	-51.45	84.93	0.7790	-918.6	999999
49	0	4	0	3	7.49	74.45	-51.35	86.09	0.7785	-408.0	-393.6
50	1	7	1	6	10.29	73.77	-52.04	82.45	0.7848	-633.7	-705.9
51	0	7	0	6	14.42	72.58	-53.23	77.24	0.7977	-460.0	-585.4
52	0	2	0	2	12.17	73.15	-52.66	80.06	0.7913	-488.0	-492.2
53	0	10	0	8	9.56	73.48	-52.33	83.39	0.7880	-800.0	-755.9
54	0	10	0	8	9.99	73.12	-52.69	82.82	0.7917	-829.0	-719.0
55	0	8	0	7	13.88	71.94	-53.86	77.94	0.8040	-693.0	-627.5
56	5	52	4	42	7.57	73.28	-52.52	85.90	0.7910	-1018.3	-581.8
57	0	12	0	10	10.35	72.70	-53.10	82.36	0.7960	-775.0	-618.4
58	3	26	2	21	9.15	72.91	-52.89	83.88	0.7942	-852.4	-648.4
59	0	6	0	5	9.84	72.69	-53.11	83.01	0.7962	-566.0	-523.2
60	0	5	0	4	12.03	72.05	-53.75	80.25	0.8026	-507.0	-361.2
61	0	4	0	3	11.40	72.16	-53.65	81.03	0.8015	-577.0	-547.6
62	0	3	0	2	13.25	71.60	-54.20	78.73	0.8073	-415.0	-413.1
63	5	22	4	18	8.62	72.36	-53.45	84.52	0.8001	-835.6	-542.7
64	0	3	0	2	10.47	71.94	-53.87	82.19	0.8039	-390.0	-492.6
65	0	3	0	2	11.17	71.75	-54.06	81.32	0.8057	-412.0	-534.1
66	0	6	0	5	12.24	71.37	-54.43	79.99	0.8095	-666.0	-544.7
67	0	2	0	1	11.46	71.53	-54.27	80.96	0.8079	-376.0	-376.0
68	10	117	8	100	12.88	71.03	-54.78	79.20	0.8129	-949.9	-581.9
69	4	-68	4	-68	13.44	70.63	-55.17	78.52	0.8169	-761.2	999999
70	0	28	0	23	9.94	71.39	-54.42	82.83	0.8096	-631.0	-509.7
71	8	-68	7	-68	13.82	70.07	-55.74	78.06	0.8225	-888.5	999999
72	11	103	9	87	8.35	71.20	-54.61	84.80	0.8121	-742.8	-326.5
73	6	88	5	76	9.41	70.76	-55.05	83.47	0.8161	-687.8	-67.9
74	6	-73	5	-73	8.93	70.38	-55.43	84.03	0.8201	-600.0	999999
75	7	83	7	75	14.19	68.61	-57.20	77.64	0.8364	-882.8	-303.0
76	4	-75	4	-75	14.33	68.03	-57.78	77.49	0.8418	-411.6	999999

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
