SOHO MDI 2000-09-20 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 585 | 4097 | 419 | 2955 | 10.40 | 78.41 | -46.90 | 82.38 | 0.7254 | 639.6 | 111.5 | |
|
previous
or next observation for the same group /

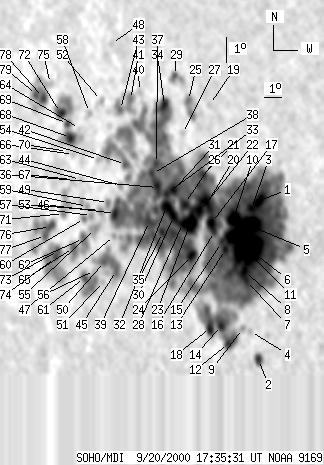

back to the solar disc SOHO MDI 2000-09-20 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 3260 | 9 | 2273 | 11.46 | 82.81 | -42.50 | 80.72 | 0.6732 | 1182.0 | 267.6 | |
| 8 | 15 | 5 | 10 | 5.28 | 83.58 | -41.73 | 90.01 | 0.6651 | -750.5 | -523.6 | |
| 5 | -1 | 3 | -1 | 11.12 | 82.44 | -42.87 | 81.25 | 0.6778 | 1469.5 | 999999 | |
| 0 | 4 | 0 | 3 | 6.34 | 83.06 | -42.25 | 88.38 | 0.6709 | -583.0 | -514.9 | |
| 39 | -1 | 26 | -1 | 10.45 | 82.40 | -42.92 | 82.25 | 0.6781 | 1919.4 | 999999 | |
| 91 | -1 | 61 | -1 | 9.55 | 82.49 | -42.82 | 83.57 | 0.6769 | 1728.9 | 999999 | |
| 5 | -1 | 3 | -1 | 8.30 | 82.62 | -42.70 | 85.43 | 0.6755 | 1132.1 | 999999 | |
| 10 | -1 | 7 | -1 | 8.64 | 82.46 | -42.85 | 84.92 | 0.6774 | 1315.8 | 999999 | |
| 0 | 6 | 0 | 4 | 6.42 | 82.63 | -42.69 | 88.22 | 0.6764 | -435.0 | -148.9 | |
| 23 | -1 | 16 | -1 | 10.65 | 81.54 | -43.77 | 81.97 | 0.6890 | 1229.2 | 999999 | |
| 25 | -1 | 17 | -1 | 9.94 | 81.55 | -43.76 | 83.00 | 0.6887 | 1149.8 | 999999 | |
| 7 | -1 | 5 | -1 | 5.77 | 81.94 | -43.38 | 89.10 | 0.6857 | -766.8 | 999999 | |
| 5 | -1 | 4 | -1 | 9.41 | 81.31 | -44.00 | 83.77 | 0.6918 | 623.5 | 999999 | |
| 7 | -1 | 5 | -1 | 6.44 | 81.49 | -43.82 | 88.08 | 0.6908 | -374.2 | 999999 | |
| 6 | -1 | 4 | -1 | 9.66 | 81.05 | -44.27 | 83.40 | 0.6950 | 626.7 | 999999 | |
| 4 | -1 | 3 | -1 | 10.06 | 80.59 | -44.72 | 82.84 | 0.7007 | 885.7 | 999999 | |
| 11 | -1 | 7 | -1 | 10.39 | 80.36 | -44.95 | 82.36 | 0.7035 | 1152.5 | 999999 | |
| 9 | -1 | 6 | -1 | 6.31 | 80.90 | -44.41 | 88.22 | 0.6983 | -131.3 | 999999 | |
| 0 | 3 | 0 | 2 | 14.96 | 79.19 | -46.12 | 76.00 | 0.7200 | 375.0 | 401.9 | |
| 20 | -1 | 14 | -1 | 11.10 | 79.94 | -45.37 | 81.35 | 0.7087 | 1277.2 | 999999 | |
| 6 | -1 | 4 | -1 | 12.21 | 79.54 | -45.78 | 79.81 | 0.7140 | -239.4 | 999999 | |
| 54 | -1 | 38 | -1 | 10.76 | 79.61 | -45.70 | 81.85 | 0.7127 | 1211.6 | 999999 | |
| -22 | -1 | -22 | -1 | 10.41 | 79.22 | -46.09 | 82.34 | 0.7173 | 999999 | 999999 | |
| 9 | -1 | 6 | -1 | 9.02 | 79.47 | -45.85 | 84.30 | 0.7145 | 885.9 | 999999 | |
| 3 | 32 | 2 | 23 | 15.01 | 77.94 | -47.38 | 76.06 | 0.7346 | -261.8 | 184.6 | |
| 14 | -1 | 10 | -1 | 11.00 | 78.70 | -46.61 | 81.53 | 0.7236 | 981.1 | 999999 | |
| 0 | 6 | 0 | 4 | 13.70 | 77.94 | -47.37 | 77.85 | 0.7335 | 214.0 | 233.0 | |
| -22 | -1 | -22 | -1 | 10.21 | 78.74 | -46.57 | 82.62 | 0.7231 | 999999 | 999999 | |
| 3 | 18 | 2 | 13 | 15.91 | 76.81 | -48.50 | 74.96 | 0.7482 | -722.6 | -627.2 | |
| 11 | -1 | 8 | -1 | 10.44 | 78.17 | -47.14 | 82.31 | 0.7298 | 1016.2 | 999999 | |
| 8 | -1 | 6 | -1 | 11.48 | 77.95 | -47.36 | 80.88 | 0.7325 | 1105.0 | 999999 | |
| 15 | -1 | 11 | -1 | 10.79 | 77.69 | -47.63 | 81.83 | 0.7355 | 971.9 | 999999 | |
| 6 | -1 | 4 | -1 | 11.29 | 77.58 | -47.74 | 81.15 | 0.7368 | 997.3 | 999999 | |
| 9 | -1 | 7 | -1 | 14.69 | 76.57 | -48.74 | 76.62 | 0.7498 | -1001.1 | 999999 | |
| 7 | -1 | 5 | -1 | 9.76 | 77.65 | -47.66 | 83.23 | 0.7359 | -801.2 | 999999 | |
| 15 | -1 | 11 | -1 | 11.47 | 77.00 | -48.32 | 80.91 | 0.7435 | 858.4 | 999999 | |
| 7 | -1 | 5 | -1 | 12.40 | 76.72 | -48.60 | 79.67 | 0.7470 | 876.9 | 999999 | |
| 7 | -1 | 5 | -1 | 11.99 | 76.57 | -48.74 | 80.23 | 0.7485 | 774.6 | 999999 | |
| 18 | -1 | 14 | -1 | 10.12 | 76.81 | -48.50 | 82.74 | 0.7456 | -402.0 | 999999 | |
| 0 | 7 | 0 | 6 | 15.09 | 74.88 | -50.43 | 76.22 | 0.7686 | -707.0 | -462.6 | |
| 3 | 53 | 2 | 42 | 14.73 | 74.42 | -50.89 | 76.72 | 0.7733 | -338.5 | -177.0 | |
| 4 | -1 | 3 | -1 | 12.19 | 74.85 | -50.46 | 80.01 | 0.7677 | 580.8 | 999999 | |
| 3 | -41 | 3 | -41 | 14.28 | 73.92 | -51.39 | 77.32 | 0.7785 | -38.6 | 999999 | |
| 0 | 5 | 0 | 4 | 11.35 | 74.75 | -50.56 | 81.11 | 0.7687 | -673.0 | -497.9 | |
| 7 | 90 | 6 | 69 | 8.04 | 75.19 | -50.13 | 85.45 | 0.7646 | -467.9 | -582.3 | |
| 7 | -1 | 5 | -1 | 10.23 | 74.70 | -50.62 | 82.55 | 0.7694 | -960.0 | 999999 | |
| 0 | 3 | 0 | 3 | 9.38 | 74.81 | -50.50 | 83.67 | 0.7683 | -621.0 | -564.8 | |
| 0 | 4 | 0 | 4 | 16.78 | 72.43 | -52.89 | 74.25 | 0.7955 | -586.0 | -431.5 | |
| 0 | 8 | 0 | 7 | 10.62 | 74.17 | -51.15 | 82.05 | 0.7752 | -241.0 | -169.6 | |
| 4 | -45 | 3 | -45 | 8.32 | 74.39 | -50.92 | 85.04 | 0.7733 | -771.5 | 999999 | |
| 0 | 3 | 0 | 2 | 7.54 | 74.46 | -50.85 | 86.05 | 0.7730 | -474.0 | -456.2 | |
| 0 | 6 | 0 | 5 | 14.52 | 72.59 | -52.72 | 77.10 | 0.7925 | -675.0 | -662.5 | |
| 0 | 8 | 0 | 6 | 10.26 | 73.74 | -51.58 | 82.50 | 0.7798 | -916.0 | -687.4 | |
| 0 | 4 | 0 | 3 | 12.22 | 73.11 | -52.20 | 80.00 | 0.7865 | -498.0 | -428.3 | |
| 0 | 17 | 0 | 13 | 9.54 | 73.58 | -51.74 | 83.43 | 0.7817 | -863.0 | -720.2 | |
| 0 | 4 | 0 | 3 | 7.91 | 73.83 | -51.48 | 85.53 | 0.7797 | -815.0 | -720.9 | |
| 0 | 6 | 0 | 5 | 10.01 | 73.21 | -52.10 | 82.81 | 0.7855 | -721.0 | -735.7 | |
| 0 | 6 | 0 | 5 | 13.98 | 71.97 | -53.35 | 77.80 | 0.7987 | -499.0 | -581.2 | |
| 0 | 13 | 0 | 10 | 10.34 | 72.88 | -52.44 | 82.39 | 0.7890 | -738.0 | -599.2 | |
| 1 | 6 | 1 | 5 | 9.86 | 72.79 | -52.52 | 83.00 | 0.7900 | -534.0 | -526.0 | |
| 6 | 56 | 5 | 45 | 7.58 | 73.25 | -52.07 | 85.92 | 0.7861 | -1022.9 | -585.0 | |
| 4 | 47 | 3 | 38 | 9.08 | 72.90 | -52.42 | 83.99 | 0.7891 | -906.6 | -616.1 | |
| 0 | 4 | 0 | 3 | 11.34 | 72.16 | -53.15 | 81.12 | 0.7964 | -705.0 | -557.0 | |
| 0 | 3 | 0 | 2 | 13.29 | 71.51 | -53.80 | 78.67 | 0.8032 | -425.0 | -554.6 | |
| 4 | -62 | 3 | -62 | 8.67 | 72.32 | -52.99 | 84.48 | 0.7953 | -875.1 | 999999 | |
| 0 | 4 | 0 | 4 | 12.25 | 71.43 | -53.89 | 79.97 | 0.8039 | -772.0 | -654.3 | |
| 0 | 6 | 0 | 5 | 11.28 | 71.57 | -53.74 | 81.19 | 0.8025 | -438.0 | -447.1 | |
| 12 | 51 | 10 | 43 | 12.89 | 71.02 | -54.29 | 79.18 | 0.8081 | -934.4 | -628.3 | |
| 4 | -68 | 3 | -68 | 13.41 | 70.65 | -54.67 | 78.54 | 0.8119 | -721.8 | 999999 | |
| 0 | 1 | 0 | 1 | 12.33 | 70.99 | -54.32 | 79.88 | 0.8083 | -562.0 | -445.9 | |
| 0 | 31 | 0 | 26 | 9.91 | 71.38 | -53.93 | 82.88 | 0.8047 | -602.0 | -506.1 | |
| 10 | 53 | 9 | 46 | 13.78 | 70.02 | -55.29 | 78.09 | 0.8181 | -820.3 | -520.1 | |
| 4 | 94 | 4 | 79 | 8.45 | 71.37 | -53.95 | 84.70 | 0.8053 | -794.4 | -325.9 | |
| 4 | -73 | 4 | -73 | 8.16 | 71.22 | -54.09 | 85.05 | 0.8070 | -755.2 | 999999 | |
| 0 | 4 | 0 | 4 | 14.83 | 68.90 | -56.41 | 76.85 | 0.8291 | -358.0 | -410.5 | |
| 9 | 83 | 7 | 70 | 9.33 | 70.63 | -54.68 | 83.58 | 0.8125 | -676.8 | -79.5 | |
| 5 | -76 | 4 | -76 | 8.95 | 70.37 | -54.94 | 84.04 | 0.8152 | -612.9 | 999999 | |
| 8 | 73 | 7 | 65 | 14.24 | 68.62 | -56.69 | 77.57 | 0.8317 | -883.8 | -324.3 | |
| 5 | -78 | 4 | -78 | 14.31 | 68.07 | -57.24 | 77.50 | 0.8368 | -510.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
