group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	555	4320	381	2953	10.38	78.74	-43.94	82.37	0.6895	691.7	154.2

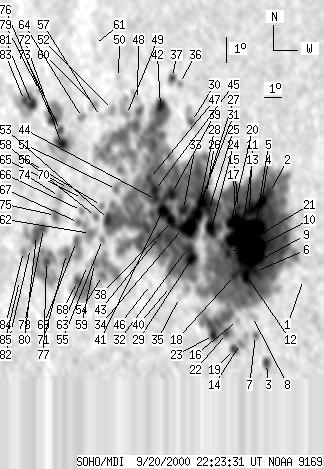

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-20 22:23:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	4	0	3	8.68	85.36	-37.31	84.96	0.6038	-662.0	-463.9
2	8	3428	5	2281	11.93	83.16	-39.51	79.78	0.6348	287.7	324.9
3	6	13	4	8	5.27	83.83	-38.84	90.40	0.6268	-786.1	-574.5
4	12	-2	8	-2	11.51	82.82	-39.85	80.47	0.6390	1172.8	999999
5	17	-2	11	-2	10.51	82.67	-40.00	82.04	0.6405	2097.8	999999
6	6	-2	4	-2	8.80	82.92	-39.76	84.73	0.6370	1565.3	999999
7	2	7	2	4	6.32	83.19	-39.48	88.66	0.6345	-439.8	-366.6
8	0	8	0	5	7.04	82.97	-39.71	87.50	0.6370	-319.0	-338.6
9	3	-2	2	-2	9.06	82.68	-40.00	84.32	0.6402	1547.9	999999
10	82	-2	53	-2	9.60	82.55	-40.12	83.48	0.6419	1775.5	999999
11	19	-2	13	-2	11.19	82.25	-40.42	81.01	0.6463	1373.8	999999
12	15	-2	10	-2	8.61	82.48	-40.20	85.02	0.6429	1417.7	999999
13	26	-2	17	-2	10.18	81.99	-40.68	82.58	0.6493	1721.6	999999
14	0	22	0	14	5.94	82.45	-40.22	89.17	0.6446	-310.0	129.2
15	4	-2	2	-2	11.22	81.66	-41.01	81.00	0.6540	887.4	999999
16	0	5	0	3	6.83	82.22	-40.46	87.78	0.6471	10.0	72.9
17	13	-2	9	-2	10.70	81.59	-41.08	81.79	0.6547	1332.2	999999
18	8	-2	5	-2	8.56	81.86	-40.82	85.08	0.6511	895.5	999999
19	5	10	3	7	5.68	82.12	-40.56	89.54	0.6494	-778.2	-652.4
20	4	-2	3	-2	10.56	81.35	-41.32	82.01	0.6578	1157.4	999999
21	6	-2	4	-2	9.39	81.43	-41.25	83.80	0.6566	685.8	999999
22	4	-2	2	-2	6.28	81.70	-40.98	88.59	0.6543	-381.5	999999
23	4	-2	3	-2	6.14	81.03	-41.64	88.72	0.6632	-542.8	999999
24	15	-2	10	-2	10.29	80.38	-42.29	82.46	0.6702	1210.3	999999
25	6	-2	4	-2	10.98	80.10	-42.57	81.44	0.6739	1287.1	999999
26	6	-2	4	-2	11.63	79.87	-42.80	80.49	0.6771	63.2	999999
27	8	-2	6	-2	11.25	79.67	-43.00	81.05	0.6795	1374.3	999999
28	17	-2	11	-2	10.81	79.53	-43.14	81.71	0.6811	1383.8	999999
29	12	-2	8	-2	9.04	79.50	-43.18	84.32	0.6814	1084.1	999999
30	3	31	2	21	14.36	78.44	-44.23	76.63	0.6970	795.6	388.1
31	22	-2	15	-2	10.24	79.25	-43.42	82.56	0.6845	1431.6	999999
32	13	-2	9	-2	9.41	79.22	-43.45	83.77	0.6848	828.3	999999
33	9	-2	6	-2	10.90	78.75	-43.93	81.60	0.6910	1091.7	999999
34	12	-2	8	-2	10.16	78.82	-43.85	82.67	0.6899	1040.2	999999
35	0	3	0	2	7.47	79.06	-43.61	86.60	0.6875	-439.0	-376.1
36	0	5	0	3	15.78	77.37	-45.30	74.75	0.7113	-731.0	-606.2
37	5	13	4	9	15.98	76.91	-45.76	74.53	0.7170	-742.2	-591.8
38	14	-2	9	-2	10.38	78.17	-44.50	82.36	0.6979	1080.4	999999
39	12	-2	8	-2	11.47	77.97	-44.71	80.81	0.7007	1160.5	999999
40	0	3	0	2	7.86	78.52	-44.16	86.01	0.6941	-80.0	-107.8
41	16	-2	11	-2	10.76	77.60	-45.08	81.82	0.7051	1043.5	999999
42	13	-2	9	-2	14.79	76.55	-46.13	76.23	0.7200	-1123.7	999999
43	7	-2	5	-2	9.74	77.61	-45.06	83.28	0.7048	-747.4	999999
44	8	-2	6	-2	11.16	77.12	-45.55	81.28	0.7109	813.0	999999
45	7	-2	5	-2	11.50	77.00	-45.68	80.80	0.7125	971.5	999999
46	0	2	0	1	7.84	77.41	-45.27	85.98	0.7079	-428.0	-338.2
47	5	-2	3	-2	11.94	76.61	-46.06	80.19	0.7173	817.2	999999
48	0	10	0	7	14.95	75.14	-47.53	76.16	0.7364	41.0	-275.8
49	0	28	0	21	14.31	74.66	-48.01	77.07	0.7413	325.0	-89.4
50	0	4	0	3	15.70	73.75	-48.93	75.28	0.7527	-264.0	-402.5
51	2	17	2	12	11.35	74.81	-47.86	81.07	0.7383	-402.8	-16.4
52	0	10	0	8	14.42	73.77	-48.90	76.98	0.7514	-150.0	-159.1
53	9	-2	7	-2	10.14	74.59	-48.09	82.70	0.7408	-1206.9	999999
54	3	84	2	62	7.94	74.62	-48.05	85.68	0.7410	-425.8	-687.0
55	0	8	0	6	9.34	74.38	-48.29	83.79	0.7433	-612.0	-552.2
56	0	6	0	5	10.65	74.06	-48.61	82.02	0.7469	-336.0	-236.7
57	0	3	0	2	14.09	73.13	-49.55	77.47	0.7584	-348.0	-345.4
58	1	8	1	6	10.19	73.80	-48.88	82.63	0.7499	-704.0	-471.2
59	3	-54	2	-54	8.37	74.08	-48.60	85.08	0.7472	-851.2	999999
60	0	10	0	8	14.52	72.62	-50.05	76.93	0.7642	-647.0	-627.3
61	0	3	0	2	16.84	71.83	-50.85	73.97	0.7745	-578.0	-589.8
62	3	19	2	14	9.50	73.63	-49.04	83.54	0.7519	-907.8	-706.5
63	0	6	0	4	8.25	73.68	-49.00	85.22	0.7518	-677.0	-669.3
64	0	10	0	7	13.95	72.04	-50.64	77.72	0.7702	-518.0	-518.5
65	0	6	0	4	10.81	72.87	-49.81	81.80	0.7604	-450.0	-583.5
66	0	6	0	4	10.34	72.91	-49.77	82.42	0.7599	-812.0	-746.9
67	1	11	1	8	9.86	72.82	-49.85	83.05	0.7609	-627.6	-670.9
68	6	73	5	55	7.58	73.18	-49.50	86.09	0.7578	-1022.6	-555.2
69	4	27	3	20	9.12	72.85	-49.82	84.03	0.7608	-898.3	-694.9
70	0	13	0	10	11.12	71.92	-50.76	81.40	0.7709	-664.0	-583.3
71	5	26	4	20	8.60	72.33	-50.35	84.70	0.7668	-848.4	-589.4
72	11	79	9	62	12.82	71.02	-51.65	79.22	0.7808	-999.0	-584.2
73	4	-72	3	-72	13.31	70.81	-51.87	78.59	0.7831	-699.5	999999
74	0	11	0	9	10.76	71.43	-51.24	81.86	0.7762	-636.0	-508.3
75	4	14	3	11	10.00	71.35	-51.32	82.84	0.7771	-715.1	-594.6
76	7	50	5	40	13.69	70.16	-52.51	78.13	0.7900	-928.8	-519.9
77	6	98	4	77	8.17	71.15	-51.53	85.19	0.7800	-732.4	-323.3
78	6	44	5	35	9.43	70.71	-51.97	83.56	0.7842	-728.2	-293.8
79	0	4	0	3	14.73	68.94	-53.74	76.87	0.8030	-402.0	-378.6
80	12	-78	9	-78	9.11	70.32	-52.35	83.94	0.7885	-696.5	999999
81	10	62	8	52	14.14	68.66	-54.01	77.62	0.8056	-901.2	-331.2
82	0	5	0	4	8.57	70.04	-52.64	84.62	0.7917	-191.0	-174.2
83	4	-81	3	-81	14.24	68.07	-54.60	77.51	0.8115	-642.6	999999
84	0	8	0	7	8.41	69.61	-53.07	84.80	0.7962	254.0	198.0
85	0	3	0	2	7.27	69.56	-53.12	86.23	0.7974	-230.0	-252.2

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
