group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	620	4359	421	2948	10.30	78.66	-43.13	82.46	0.6794	729.5	136.8

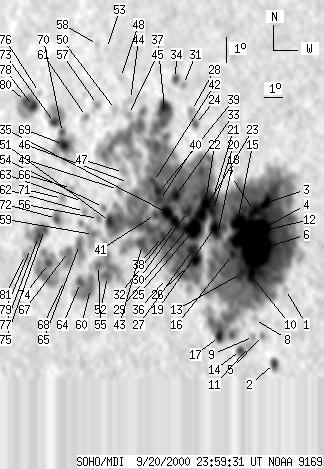

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-20 23:59:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	4	0	3	8.23	84.23	-37.56	85.69	0.6073	189.0	144.6
2	5	14	3	8	5.31	83.95	-37.84	90.47	0.6131	-801.5	-551.9
3	12	3454	8	2269	11.54	82.82	-38.98	80.36	0.6274	1218.1	315.2
4	33	-3	21	-3	10.51	82.77	-39.02	82.00	0.6274	2174.1	999999
5	0	6	0	4	6.35	83.27	-38.52	88.69	0.6214	-510.0	-425.7
6	142	-3	91	-3	9.63	82.59	-39.20	83.41	0.6296	1689.8	999999
7	15	-3	10	-3	11.14	82.26	-39.53	81.03	0.6345	1377.5	999999
8	0	5	0	3	6.94	82.81	-38.98	87.71	0.6273	-311.0	-169.6
9	0	7	0	4	6.28	82.82	-38.97	88.77	0.6276	284.0	323.5
10	18	-3	12	-3	8.68	82.41	-39.38	84.93	0.6320	1367.7	999999
11	0	11	0	7	5.87	82.65	-39.14	89.40	0.6302	198.0	-16.1
12	-6	-3	-6	-3	10.16	81.85	-39.95	82.58	0.6396	999999	999999
13	9	-3	6	-3	8.68	81.95	-39.84	84.92	0.6382	934.6	999999
14	7	13	4	8	5.68	82.21	-39.58	89.65	0.6363	-733.2	-579.9
15	23	-3	15	-3	10.68	81.45	-40.34	81.79	0.6450	1171.2	999999
16	4	-3	3	-3	9.38	81.39	-40.40	83.81	0.6456	704.2	999999
17	8	-3	6	-3	6.14	81.09	-40.70	88.81	0.6508	-442.7	999999
18	6	-3	4	-3	10.10	80.50	-41.30	82.73	0.6574	1142.0	999999
19	12	-3	8	-3	10.36	80.29	-41.50	82.34	0.6600	1193.5	999999
20	7	-3	5	-3	10.97	80.09	-41.71	81.41	0.6629	1302.1	999999
21	11	-3	7	-3	11.43	80.00	-41.79	80.71	0.6642	-159.4	999999
22	12	-3	8	-3	11.29	79.65	-42.14	80.95	0.6686	1350.2	999999
23	15	-3	10	-3	10.80	79.52	-42.27	81.68	0.6700	1427.7	999999
24	4	8	2	6	14.28	78.48	-43.32	76.64	0.6857	749.7	594.8
25	22	-3	15	-3	10.23	79.24	-42.55	82.55	0.6735	1432.6	999999
26	17	-3	11	-3	8.99	79.44	-42.36	84.40	0.6710	966.3	999999
27	11	-3	8	-3	9.41	79.27	-42.53	83.78	0.6731	885.7	999999
28	0	7	0	5	14.80	78.12	-43.67	75.92	0.6906	-130.0	-57.3
29	6	-3	4	-3	10.20	78.87	-42.92	82.60	0.6782	1110.1	999999
30	9	-3	6	-3	10.86	78.76	-43.04	81.63	0.6798	1088.2	999999
31	0	5	0	3	15.78	77.41	-44.38	74.62	0.7004	-836.0	-580.6
32	14	-3	9	-3	10.34	78.19	-43.60	82.41	0.6868	1073.4	999999
33	11	-3	8	-3	11.43	77.99	-43.80	80.83	0.6896	1164.9	999999
34	4	11	3	8	15.97	76.90	-44.89	74.41	0.7068	-785.6	-644.0
35	16	-3	11	-3	10.73	77.62	-44.17	81.86	0.6939	1051.7	999999
36	0	9	0	6	8.17	78.04	-43.76	85.58	0.6890	-278.0	-179.1
37	11	-3	8	-3	14.79	76.60	-45.20	76.12	0.7090	-1132.0	999999
38	6	-3	4	-3	9.78	77.57	-44.23	83.23	0.6945	-696.1	999999
39	12	-3	8	-3	11.51	77.08	-44.71	80.75	0.7008	963.4	999999
40	9	-3	6	-3	11.16	77.15	-44.64	81.25	0.6999	809.6	999999
41	4	-3	2	-3	10.60	77.03	-44.76	82.06	0.7012	526.1	999999
42	6	-3	4	-3	11.87	76.67	-45.13	80.26	0.7060	746.5	999999
43	11	-3	8	-3	9.37	76.52	-45.28	83.80	0.7075	-667.8	999999
44	0	10	0	7	14.93	74.56	-47.23	76.14	0.7329	-751.0	-429.6
45	0	9	0	7	14.34	74.61	-47.18	76.95	0.7318	240.0	233.8
46	0	3	0	2	11.71	75.27	-46.53	80.54	0.7228	419.0	403.7
47	0	13	0	9	12.07	74.89	-46.90	80.05	0.7273	525.0	403.2
48	0	5	0	4	15.74	73.72	-48.08	75.14	0.7433	-643.0	-487.0
49	0	10	0	7	11.38	74.75	-47.04	81.00	0.7287	-592.0	-414.3
50	0	9	0	7	14.47	73.80	-48.00	76.84	0.7413	-297.0	-237.9
51	7	-3	5	-3	10.10	74.49	-47.31	82.77	0.7317	-1138.8	999999
52	7	186	5	136	7.96	74.74	-47.05	85.71	0.7293	-535.1	-646.4
53	0	3	0	2	16.79	72.50	-49.29	73.88	0.7578	-393.0	-268.9
54	0	6	0	5	10.61	74.03	-47.76	82.07	0.7371	-382.0	-266.1
55	4	-52	3	-52	8.34	74.15	-47.64	85.17	0.7361	-764.5	999999
56	0	9	0	6	10.16	73.83	-47.97	82.68	0.7395	-533.0	-582.5
57	0	7	0	5	14.57	72.67	-49.13	76.80	0.7540	-884.0	-668.8
58	0	5	0	4	16.89	71.89	-49.90	73.81	0.7645	-638.0	-632.9
59	3	54	2	40	9.51	73.65	-48.14	83.56	0.7416	-923.9	-644.5
60	6	-52	4	-52	7.40	73.82	-47.97	86.41	0.7404	-623.8	999999
61	0	8	0	6	14.04	72.14	-49.65	77.54	0.7596	-525.0	-529.1
62	0	6	0	5	10.35	72.94	-48.85	82.41	0.7496	-957.0	-730.3
63	0	4	0	3	10.73	72.74	-49.05	81.91	0.7519	-792.0	-726.8
64	5	-52	4	-52	7.58	73.20	-48.59	86.13	0.7475	-999.5	999999
65	6	33	4	25	9.05	72.90	-48.89	84.16	0.7503	-895.9	-642.9
66	0	9	0	7	11.17	71.97	-49.83	81.33	0.7606	-755.0	-607.7
67	2	32	2	24	8.72	72.29	-49.50	84.57	0.7574	-898.0	-620.2
68	0	4	0	3	7.57	72.24	-49.55	86.09	0.7585	-628.0	-356.5
69	13	81	10	63	12.82	71.04	-50.75	79.18	0.7711	-956.6	-613.6
70	4	-69	3	-69	13.28	70.84	-50.95	78.59	0.7734	-744.7	999999
71	0	6	0	5	10.73	71.51	-50.29	81.90	0.7657	-723.0	-571.2
72	6	18	5	14	9.92	71.31	-50.48	82.96	0.7680	-639.8	-551.9
73	6	48	4	38	13.62	70.23	-51.57	78.18	0.7801	-918.7	-547.8
74	5	99	4	77	8.14	71.16	-50.64	85.28	0.7703	-757.5	-344.0
75	6	50	5	39	9.43	70.66	-51.13	83.58	0.7752	-804.6	-293.1
76	0	3	0	3	14.69	68.89	-52.91	76.88	0.7945	-409.0	-367.7
77	11	-75	9	-75	9.12	70.34	-51.45	83.97	0.7788	-664.1	999999
78	11	61	9	50	14.11	68.68	-53.11	77.62	0.7964	-937.9	-312.5
79	0	4	0	3	8.61	69.93	-51.86	84.60	0.7834	-316.0	-216.0
80	6	-78	5	-78	14.25	68.09	-53.71	77.46	0.8025	-526.9	999999
81	0	10	0	8	8.35	69.66	-52.14	84.93	0.7865	328.0	198.2

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
