group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	624	4540	412	2970	10.34	78.98	-41.05	82.33	0.6528	739.1	133.2

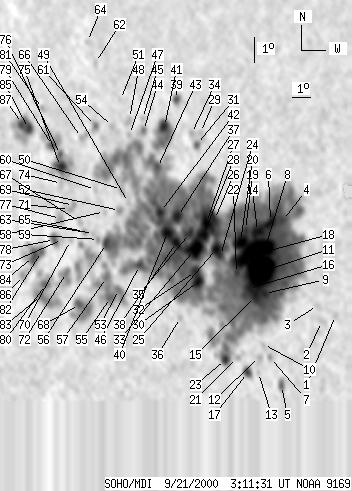

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-21 03:11:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	4	0	3	8.15	86.42	-33.61	85.90	0.5515	-583.0	-454.4
2	0	8	0	5	7.87	85.78	-34.25	86.39	0.5608	-754.0	-677.3
3	0	8	0	5	8.48	85.53	-34.50	85.30	0.5643	-474.0	-231.9
4	15	3504	9	2229	11.67	83.41	-36.62	79.91	0.5956	576.2	342.8
5	4	13	3	8	5.25	84.07	-35.97	90.83	0.5871	-887.5	-637.3
6	16	-4	10	-4	11.58	82.83	-37.21	80.11	0.6036	1248.2	999999
7	0	5	0	3	6.30	83.45	-36.58	88.97	0.5947	-293.0	-366.1
8	81	-4	51	-4	10.59	82.73	-37.31	81.76	0.6042	1855.5	999999
9	8	-4	5	-4	8.76	82.91	-37.12	84.80	0.6012	1573.5	999999
10	0	3	0	2	6.78	83.07	-36.97	88.13	0.5997	-208.0	-241.9
11	96	-4	60	-4	9.61	82.66	-37.37	83.40	0.6047	1832.3	999999
12	0	6	0	3	6.30	82.91	-37.12	88.92	0.6022	90.0	225.8
13	0	2	0	1	5.67	82.91	-37.12	89.96	0.6028	-271.0	-426.3
14	18	-4	11	-4	11.15	82.24	-37.79	80.88	0.6112	1428.6	999999
15	15	-4	9	-4	8.61	82.48	-37.55	85.05	0.6071	1399.2	999999
16	9	-4	6	-4	8.90	82.10	-37.94	84.58	0.6124	1142.7	999999
17	7	14	4	9	5.63	82.37	-37.66	89.96	0.6103	-770.7	-527.7
18	-8	-4	-8	-4	10.14	81.88	-38.15	82.55	0.6155	999999	999999
19	6	-4	4	-4	11.18	81.63	-38.41	80.88	0.6195	862.5	999999
20	24	-4	15	-4	10.70	81.45	-38.59	81.67	0.6217	1229.3	999999
21	0	4	0	2	6.18	81.83	-38.20	89.01	0.6172	-383.0	-366.9
22	5	-4	3	-4	9.44	81.42	-38.61	83.71	0.6216	862.2	999999
23	6	-4	4	-4	6.05	81.24	-38.80	89.15	0.6254	-603.4	999999
24	5	-4	3	-4	10.07	80.52	-39.52	82.71	0.6339	1182.3	999999
25	10	-4	6	-4	10.33	80.27	-39.76	82.31	0.6372	1292.4	999999
26	14	-4	9	-4	11.45	79.99	-40.05	80.57	0.6415	-393.9	999999
27	10	-4	6	-4	11.30	79.59	-40.44	80.83	0.6466	1370.9	999999
28	16	-4	10	-4	10.82	79.52	-40.52	81.58	0.6474	1479.6	999999
29	0	10	0	7	14.78	78.57	-41.46	75.63	0.6632	409.0	485.0
30	10	-4	7	-4	8.98	79.53	-40.50	84.44	0.6469	1156.2	999999
31	3	9	2	6	14.29	78.47	-41.57	76.38	0.6639	777.1	616.3
32	10	-4	7	-4	9.35	79.32	-40.71	83.86	0.6496	1013.5	999999
33	33	-4	22	-4	10.20	79.14	-40.89	82.55	0.6521	1432.0	999999
34	0	6	0	4	14.70	78.10	-41.93	75.82	0.6690	-99.0	-55.9
35	8	-4	5	-4	10.80	78.78	-41.25	81.64	0.6570	1162.8	999999
36	0	4	0	3	7.50	78.77	-41.26	86.68	0.6572	-122.0	-195.0
37	12	-4	8	-4	11.41	78.03	-42.00	80.76	0.6668	1219.2	999999
38	8	-4	5	-4	10.40	78.16	-41.88	82.28	0.6649	1200.7	999999
39	6	12	4	8	15.96	76.96	-43.07	74.14	0.6849	-831.4	-622.7
40	16	-4	11	-4	10.75	77.61	-42.42	81.77	0.6719	1149.8	999999
41	10	75	7	51	14.85	76.58	-43.46	75.81	0.6881	-1256.9	-634.8
42	11	-4	8	-4	11.53	77.09	-42.94	80.63	0.6789	986.5	999999
43	8	-4	5	-4	13.23	76.58	-43.46	78.18	0.6864	-87.5	999999
44	2	9	1	6	14.60	75.46	-44.57	76.31	0.7014	-514.3	-393.5
45	0	4	0	3	15.06	75.28	-44.75	75.68	0.7040	-282.0	-332.9
46	7	-4	5	-4	9.34	76.32	-43.71	83.86	0.6881	-807.4	999999
47	0	5	0	3	14.38	74.72	-45.32	76.71	0.7100	147.0	234.6
48	0	11	0	8	15.00	74.55	-45.48	75.86	0.7126	-540.0	-516.8
49	0	3	0	2	11.73	75.28	-44.76	80.42	0.7015	483.0	402.1
50	0	7	0	5	12.21	74.78	-45.25	79.78	0.7077	559.0	454.5
51	0	2	0	2	15.70	73.83	-46.21	74.97	0.7218	-227.0	-430.5
52	0	9	0	6	11.38	74.84	-45.19	80.94	0.7067	-22.0	-172.7
53	3	223	2	155	8.31	75.32	-44.72	85.32	0.7009	-625.1	-659.9
54	0	5	0	3	14.61	73.67	-46.37	76.50	0.7226	-388.0	-265.0
55	9	-53	6	-53	7.97	74.92	-45.11	85.80	0.7059	-499.0	999999
56	10	-4	7	-4	10.04	74.36	-45.67	82.85	0.7123	-1119.4	999999
57	5	-53	4	-53	8.72	74.58	-45.45	84.71	0.7098	-1179.4	999999
58	0	3	0	2	11.27	74.01	-46.03	81.13	0.7167	-375.0	-313.1
59	0	6	0	4	10.16	73.88	-46.15	82.69	0.7181	-732.0	-532.5
60	0	6	0	4	12.08	73.31	-46.73	80.03	0.7252	-503.0	-447.3
61	2	10	2	7	14.56	72.67	-47.36	76.66	0.7341	-676.7	-588.3
62	0	6	0	4	17.01	71.91	-48.12	73.44	0.7452	-766.0	-653.5
63	0	3	0	2	10.36	73.55	-46.48	82.40	0.7220	-446.0	-593.5
64	0	3	0	2	17.78	71.14	-48.90	72.51	0.7546	-521.0	-545.9
65	0	5	0	3	10.39	73.02	-47.01	82.36	0.7283	-526.0	-633.2
66	0	10	0	7	14.02	71.98	-48.05	77.45	0.7416	-572.0	-511.6
67	0	7	0	5	10.72	72.72	-47.31	81.91	0.7318	-877.0	-718.8
68	7	58	5	42	7.54	73.22	-46.82	86.30	0.7267	-1114.4	-601.4
69	0	8	0	6	11.34	72.18	-47.86	81.07	0.7383	-809.0	-677.2
70	0	4	0	3	9.97	72.28	-47.75	82.93	0.7370	-520.0	-444.2
71	0	1	0	1	11.17	71.98	-48.06	81.31	0.7406	-720.0	-713.2
72	2	152	2	113	8.71	72.28	-47.76	84.64	0.7373	-965.5	-451.1
73	0	1	0	1	9.97	71.81	-48.23	82.93	0.7425	-803.0	-726.3
74	0	4	0	3	12.13	71.27	-48.77	80.03	0.7488	-651.0	-550.3
75	13	117	10	88	12.78	71.04	-48.99	79.16	0.7516	-1023.9	-644.4
76	4	-75	3	-75	13.25	70.92	-49.12	78.55	0.7532	-700.9	999999
77	0	15	0	11	10.77	71.52	-48.51	81.85	0.7457	-723.0	-538.6
78	7	16	6	12	9.93	71.34	-48.70	82.98	0.7479	-791.4	-657.1
79	6	-75	4	-75	13.55	70.34	-49.70	78.18	0.7598	-889.1	999999
80	7	-72	5	-72	8.14	71.12	-48.91	85.37	0.7509	-778.5	999999
81	0	5	0	4	14.93	69.28	-50.75	76.44	0.7720	-523.0	-574.2
82	5	50	4	38	9.39	70.65	-49.38	83.68	0.7558	-785.9	-371.0
83	3	-72	2	-72	7.69	70.95	-49.08	85.96	0.7531	-44.5	999999
84	13	-82	10	-82	9.15	70.21	-49.83	83.98	0.7609	-692.0	999999
85	10	70	8	55	14.07	68.65	-51.38	77.59	0.7783	-965.1	-299.5
86	0	15	0	11	8.36	69.74	-50.30	85.00	0.7664	216.0	-13.4
87	9	-85	7	-85	14.23	68.21	-51.82	77.41	0.7830	-735.3	999999

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
