group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	598	4553	381	2900	10.31	79.10	-39.17	82.35	0.6281	853.3	144.3

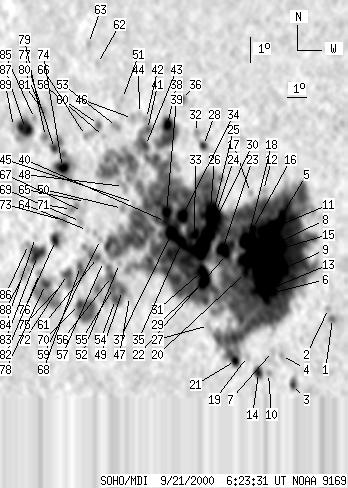

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-21 06:23:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	7	0	4	7.95	85.86	-32.42	86.28	0.5342	-980.0	-795.8
2	0	4	0	3	8.33	85.64	-32.64	85.57	0.5374	-248.0	-227.3
3	3	11	2	6	5.26	84.18	-34.10	91.07	0.5605	-829.1	-653.9
4	0	4	0	2	6.35	83.58	-34.70	89.06	0.5680	-509.0	-422.9
5	21	3553	12	2204	11.59	82.85	-35.42	79.89	0.5790	1268.9	349.0
6	7	-5	4	-5	8.77	82.97	-35.31	84.78	0.5758	1597.4	999999
7	0	2	0	1	6.48	83.14	-35.14	88.80	0.5742	-216.0	-171.5
8	75	-5	46	-5	10.59	82.65	-35.63	81.63	0.5809	1908.7	999999
9	129	-5	78	-5	9.42	82.65	-35.62	83.66	0.5803	1776.6	999999
10	0	3	0	2	5.61	83.01	-35.26	90.30	0.5768	-536.0	-422.7
11	11	-5	7	-5	11.12	82.23	-36.04	80.77	0.5871	1412.7	999999
12	0	7	0	4	12.71	81.94	-36.34	78.11	0.5929	362.0	279.3
13	-9	-5	-9	-5	8.78	82.48	-35.79	84.77	0.5826	999999	999999
14	7	15	5	9	5.61	82.53	-35.75	90.23	0.5836	-766.8	-506.0
15	-8	-5	-8	-5	10.10	81.83	-36.45	82.52	0.5921	999999	999999
16	5	-5	3	-5	11.19	81.63	-36.65	80.71	0.5956	820.6	999999
17	0	5	0	3	12.58	81.31	-36.97	78.41	0.6014	95.0	15.0
18	23	-5	14	-5	10.71	81.45	-36.82	81.54	0.5977	1323.0	999999
19	0	5	0	3	6.19	81.95	-36.33	89.16	0.5912	-284.0	-298.4
20	5	-5	3	-5	9.45	81.52	-36.76	83.64	0.5962	911.5	999999
21	7	-5	4	-5	6.00	81.38	-36.90	89.44	0.5994	-537.1	999999
22	6	-5	3	-5	10.08	80.49	-37.79	82.62	0.6106	1312.3	999999
23	12	-5	7	-5	10.30	80.25	-38.02	82.28	0.6138	1327.9	999999
24	8	-5	5	-5	11.72	79.73	-38.54	80.02	0.6218	-775.5	999999
25	10	-5	7	-5	11.35	79.54	-38.74	80.63	0.6241	1421.9	999999
26	18	-5	11	-5	10.83	79.46	-38.81	81.46	0.6248	1508.8	999999
27	0	4	0	2	7.26	79.92	-38.35	87.23	0.6185	118.0	65.2
28	4	11	3	7	14.24	78.58	-39.69	76.17	0.6398	724.8	548.6
29	25	-5	16	-5	8.91	79.43	-38.85	84.56	0.6247	1182.5	999999
30	31	-5	20	-5	10.22	79.20	-39.08	82.45	0.6281	1557.0	999999
31	-29	-5	-29	-5	9.33	79.32	-38.95	83.88	0.6262	999999	999999
32	0	8	0	5	14.72	78.16	-40.11	75.49	0.6460	-139.0	-93.9
33	7	-5	4	-5	10.78	78.75	-39.52	81.59	0.6342	1246.4	999999
34	16	-5	10	-5	11.43	78.02	-40.25	80.61	0.6442	1195.6	999999
35	12	-5	8	-5	10.38	78.14	-40.13	82.25	0.6422	1211.6	999999
36	4	10	2	7	15.94	77.02	-41.26	73.84	0.6625	-920.2	-799.4
37	17	-5	11	-5	10.69	77.57	-40.70	81.79	0.6498	1180.3	999999
38	11	79	7	53	14.91	76.51	-41.76	75.48	0.6672	-1275.0	-620.4
39	9	-5	6	-5	11.48	77.17	-41.10	80.59	0.6554	1083.0	999999
40	7	-5	5	-5	11.13	77.18	-41.09	81.13	0.6551	928.4	999999
41	2	36	2	24	14.63	75.49	-42.79	76.05	0.6796	-620.4	-109.4
42	0	6	0	4	15.05	75.33	-42.95	75.45	0.6821	-362.0	-260.5
43	5	-41	3	-41	14.00	75.53	-42.75	76.97	0.6784	-264.6	999999
44	0	2	0	1	15.22	74.89	-43.38	75.27	0.6876	-577.0	-518.9
45	0	3	0	2	11.73	75.35	-42.92	80.33	0.6788	427.0	310.7
46	0	9	0	6	14.99	74.56	-43.71	75.65	0.6914	-720.0	-587.7
47	0	3	0	2	8.06	75.73	-42.55	85.77	0.6737	-430.0	-347.9
48	0	12	0	8	12.30	74.68	-43.59	79.53	0.6874	552.0	381.8
49	2	119	2	80	8.26	75.32	-42.95	85.46	0.6788	-573.9	-686.6
50	0	8	0	6	11.45	74.80	-43.47	80.78	0.6855	-228.0	-228.3
51	0	4	0	2	15.72	73.80	-44.47	74.70	0.7015	-308.0	-376.4
52	0	3	0	2	9.30	75.01	-43.26	83.92	0.6825	-650.0	-666.5
53	0	9	0	6	14.60	73.76	-44.52	76.30	0.7007	-183.0	-281.6
54	6	-49	4	-49	7.88	74.99	-43.28	86.00	0.6831	-462.0	999999
55	3	-49	2	-49	8.34	74.82	-43.45	85.33	0.6851	-895.0	999999
56	5	-49	3	-49	8.76	74.65	-43.62	84.71	0.6871	-1198.4	999999
57	0	3	0	2	9.30	74.13	-44.14	83.91	0.6936	-676.0	-606.8
58	0	3	0	2	14.15	73.13	-45.14	77.01	0.7077	-700.0	-605.6
59	0	11	0	7	10.14	73.82	-44.45	82.70	0.6973	-716.0	-603.3
60	0	8	0	6	14.60	72.73	-45.55	76.43	0.7130	-544.0	-657.2
61	2	32	1	22	9.43	73.78	-44.50	83.72	0.6979	-928.7	-801.2
62	0	5	0	4	16.97	71.97	-46.30	73.23	0.7245	-653.0	-539.4
63	0	5	0	3	17.70	71.19	-47.08	72.35	0.7345	-753.0	-605.8
64	0	4	0	3	10.43	73.04	-45.23	82.29	0.7070	-554.0	-550.4
65	0	4	0	3	11.54	72.71	-45.57	80.72	0.7112	-665.0	-596.7
66	0	9	0	6	14.10	72.10	-46.17	77.18	0.7199	-481.0	-502.4
67	0	6	0	4	11.14	72.62	-45.66	81.29	0.7122	-589.0	-516.8
68	3	21	2	14	9.00	72.89	-45.38	84.32	0.7088	-858.7	-744.4
69	0	8	0	6	10.74	72.58	-45.69	81.85	0.7126	-701.0	-719.6
70	6	65	4	46	7.52	73.05	-45.22	86.42	0.7074	-980.3	-624.9
71	0	8	0	6	11.16	71.98	-46.29	81.28	0.7198	-709.0	-687.2
72	5	26	3	18	8.63	72.21	-46.06	84.82	0.7172	-974.4	-632.1
73	0	11	0	8	10.70	71.61	-46.66	81.93	0.7242	-797.0	-657.7
74	15	116	11	84	12.75	71.10	-47.18	79.12	0.7308	-1050.1	-633.0
75	0	4	0	3	8.17	71.88	-46.39	85.45	0.7213	-771.0	-717.0
76	8	25	6	18	9.88	71.30	-46.97	83.06	0.7278	-828.9	-668.6
77	5	-74	4	-74	13.44	70.44	-47.83	78.21	0.7387	-837.0	999999
78	7	79	5	57	8.13	71.02	-47.25	85.46	0.7316	-768.8	-310.8
79	0	9	0	7	13.86	69.79	-48.49	77.69	0.7464	-686.0	-567.2
80	0	8	0	6	14.60	69.57	-48.70	76.72	0.7493	-190.0	-285.2
81	0	8	0	6	14.89	69.30	-48.97	76.35	0.7526	-711.0	-585.6
82	0	9	0	7	8.52	70.61	-47.67	84.90	0.7363	-520.0	-452.6
83	12	33	9	25	9.21	70.37	-47.90	83.96	0.7389	-823.7	-587.0
84	0	3	0	2	9.90	70.12	-48.15	83.03	0.7416	-208.0	-184.5
85	0	4	0	3	14.50	68.92	-49.35	76.90	0.7565	-441.0	-405.1
86	0	9	0	7	9.59	69.76	-48.51	83.44	0.7458	-305.0	-112.4
87	22	55	17	42	14.06	68.49	-49.78	77.51	0.7610	-895.5	-427.8
88	0	14	0	10	8.40	69.68	-48.60	85.03	0.7472	76.0	-46.1
89	0	6	0	5	14.07	67.73	-50.54	77.54	0.7693	225.0	145.9

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
