group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	661	4217	417	2665	10.34	78.95	-38.45	82.25	0.6185	770.9	198.6

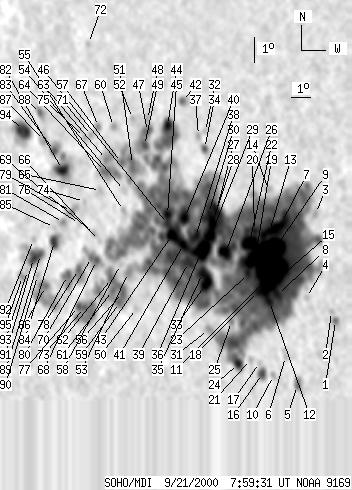

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-21 07:59:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	7	0	4	7.93	85.86	-31.53	86.33	0.5212	-940.0	-854.6
2	0	3	0	2	8.27	85.64	-31.75	85.68	0.5243	-211.0	-271.0
3	0	8	0	4	12.04	84.46	-32.93	78.72	0.5443	-469.0	-324.7
4	0	5	0	3	8.74	84.43	-32.96	84.81	0.5421	105.0	148.3
5	3	14	2	9	5.29	84.28	-33.11	91.17	0.5462	-851.5	-585.1
6	0	3	0	2	6.38	83.64	-33.75	89.10	0.5543	-532.0	-440.9
7	39	3153	23	1936	11.58	82.90	-34.50	79.79	0.5660	1439.1	445.5
8	7	-7	4	-7	8.76	83.05	-34.34	84.78	0.5621	1575.1	999999
9	72	-7	44	-7	10.54	82.70	-34.70	81.64	0.5678	1875.6	999999
10	0	5	0	3	5.60	83.13	-34.26	90.44	0.5625	-554.0	-374.6
11	115	-7	69	-7	9.52	82.63	-34.77	83.45	0.5682	1775.1	999999
12	7	-7	4	-7	8.47	82.70	-34.70	85.32	0.5671	1499.3	999999
13	-7	-7	-7	-7	11.19	82.37	-35.03	80.54	0.5730	999999	999999
14	0	6	0	4	12.82	82.07	-35.32	77.75	0.5791	394.0	284.9
15	-11	-7	-11	-7	8.92	82.46	-34.94	84.52	0.5706	999999	999999
16	7	16	4	10	5.64	82.60	-34.79	90.29	0.5700	-781.0	-531.3
17	0	4	0	3	6.06	82.43	-34.96	89.54	0.5721	-234.0	-305.1
18	7	-7	5	-7	8.81	82.08	-35.31	84.70	0.5759	1088.1	999999
19	-9	-7	-9	-7	10.17	81.82	-35.57	82.36	0.5799	999999	999999
20	5	-7	3	-7	11.18	81.64	-35.76	80.64	0.5832	729.5	999999
21	0	5	0	3	6.15	81.99	-35.40	89.34	0.5783	-405.0	-363.5
22	20	-7	12	-7	10.69	81.46	-35.94	81.49	0.5854	1359.7	999999
23	7	-7	4	-7	9.48	81.56	-35.83	83.56	0.5833	910.4	999999
24	7	-7	4	-7	5.95	81.42	-35.97	89.62	0.5864	-542.1	999999
25	0	6	0	3	7.56	80.94	-36.45	86.84	0.5921	827.0	662.1
26	20	-7	12	-7	10.22	80.33	-37.06	82.36	0.6006	1344.1	999999
27	12	-7	8	-7	11.82	79.64	-37.75	79.77	0.6112	-812.0	999999
28	10	-7	7	-7	11.34	79.52	-37.88	80.57	0.6125	1405.7	999999
29	18	-7	11	-7	10.82	79.50	-37.90	81.41	0.6124	1540.9	999999
30	4	-7	2	-7	11.67	79.26	-38.13	80.05	0.6162	1213.9	999999
31	0	11	0	7	7.16	79.85	-37.55	87.44	0.6075	87.0	-12.0
32	0	3	0	2	14.86	78.51	-38.89	75.05	0.6303	307.0	290.1
33	30	-7	19	-7	8.90	79.51	-37.89	84.56	0.6117	1183.6	999999
34	3	9	2	6	14.19	78.60	-38.80	76.09	0.6281	772.1	594.3
35	-33	-7	-33	-7	9.32	79.30	-38.09	83.88	0.6145	999999	999999
36	39	-7	24	-7	10.21	79.13	-38.26	82.44	0.6171	1539.8	999999
37	0	6	0	4	14.67	78.18	-39.21	75.40	0.6342	-80.0	-50.5
38	10	-7	6	-7	10.73	78.75	-38.64	81.62	0.6225	1191.2	999999
39	15	-7	10	-7	9.69	78.54	-38.85	83.29	0.6249	155.8	999999
40	13	-7	8	-7	11.43	78.07	-39.32	80.55	0.6319	1292.4	999999
41	12	-7	8	-7	10.37	78.19	-39.20	82.22	0.6298	1254.0	999999
42	3	11	2	7	15.94	77.05	-40.34	73.67	0.6510	-918.6	-793.5
43	8	-7	5	-7	10.67	77.52	-39.87	81.77	0.6388	1242.6	999999
44	10	73	6	48	14.94	76.48	-40.91	75.29	0.6565	-1295.7	-660.2
45	10	-7	6	-7	11.47	77.18	-40.21	80.54	0.6437	1146.2	999999
46	7	-7	4	-7	11.12	77.24	-40.15	81.08	0.6427	956.3	999999
47	6	45	4	30	14.62	75.48	-41.91	75.93	0.6687	-475.7	-49.3
48	0	5	0	3	15.09	75.37	-42.03	75.25	0.6708	-506.0	-377.5
49	5	-47	3	-47	14.06	75.45	-41.95	76.77	0.6684	-254.7	999999
50	0	6	0	4	7.70	76.11	-41.28	86.38	0.6575	28.0	162.9
51	8	80	5	54	13.27	74.97	-42.43	78.00	0.6736	-6.8	47.7
52	0	4	0	3	15.06	74.55	-42.84	75.41	0.6809	-658.0	-571.9
53	0	11	0	7	9.06	75.51	-41.89	84.29	0.6649	-646.0	-543.2
54	0	8	0	6	12.23	74.75	-42.64	79.58	0.6755	495.0	439.9
55	0	5	0	4	11.45	74.85	-42.55	80.73	0.6739	-313.0	-247.5
56	6	111	4	74	8.26	75.30	-42.10	85.49	0.6678	-598.7	-715.3
57	2	-51	2	-51	13.30	74.36	-43.04	78.02	0.6813	-189.8	999999
58	0	2	0	1	9.34	75.04	-42.35	83.87	0.6709	-695.0	-583.3
59	5	-56	4	-56	7.86	75.19	-42.20	86.09	0.6694	-434.2	999999
60	0	7	0	5	14.67	73.59	-43.80	76.12	0.6921	-339.0	-363.3
61	3	-56	2	-56	8.29	74.76	-42.64	85.42	0.6747	-766.1	999999
62	6	-56	4	-56	8.75	74.64	-42.75	84.73	0.6761	-1228.0	999999
63	0	9	0	6	13.35	73.52	-43.88	78.03	0.6917	-433.0	-526.4
64	5	29	3	20	12.88	73.57	-43.83	78.71	0.6907	-266.7	-152.1
65	0	6	0	4	12.12	73.45	-43.94	79.82	0.6917	-411.0	-495.7
66	0	3	0	2	10.17	73.76	-43.63	82.64	0.6871	-734.0	-547.7
67	0	8	0	5	14.60	72.76	-44.63	76.32	0.7021	-750.0	-639.2
68	4	43	3	29	9.38	73.73	-43.67	83.79	0.6876	-936.0	-742.6
69	0	5	0	4	10.38	73.45	-43.94	82.34	0.6911	-712.0	-734.6
70	1	-68	1	-68	9.48	73.44	-43.96	83.65	0.6912	-1026.3	999999
71	0	4	0	3	14.21	72.46	-44.93	76.90	0.7053	-584.0	-582.2
72	0	4	0	3	17.78	71.24	-46.16	72.08	0.7241	-577.0	-598.1
73	3	65	2	45	7.51	73.34	-44.06	86.51	0.6930	-1227.6	-597.7
74	0	4	0	2	11.62	72.66	-44.74	80.58	0.7012	-786.0	-659.3
75	0	4	0	3	14.10	72.09	-45.31	77.10	0.7097	-463.0	-378.8
76	0	6	0	4	10.74	72.55	-44.84	81.84	0.7023	-742.0	-735.1
77	4	-73	3	-73	7.52	73.01	-44.39	86.47	0.6972	-921.7	999999
78	5	25	3	17	8.95	72.80	-44.59	84.40	0.6992	-916.7	-686.8
79	0	14	0	10	11.17	72.01	-45.38	81.25	0.7089	-830.0	-707.1
80	6	25	4	17	8.67	72.23	-45.16	84.79	0.7063	-936.3	-669.4
81	0	6	0	4	10.70	71.65	-45.74	81.91	0.7132	-767.0	-698.4
82	14	57	10	41	12.75	71.15	-46.24	79.06	0.7199	-1081.9	-820.7
83	5	19	4	14	13.45	70.51	-46.88	78.14	0.7278	-853.4	-571.5
84	10	22	7	16	9.92	71.28	-46.11	83.01	0.7176	-771.4	-673.1
85	0	3	0	2	10.46	71.18	-46.21	82.25	0.7188	-302.0	-374.1
86	3	72	2	51	8.13	71.06	-46.33	85.50	0.7206	-822.2	-367.5
87	0	14	0	11	13.78	69.83	-47.57	77.73	0.7359	-696.0	-541.9
88	3	14	2	11	14.85	69.28	-48.11	76.33	0.7429	-751.6	-535.3
89	4	45	3	32	9.35	70.58	-46.82	83.80	0.7261	-970.3	-479.0
90	0	4	0	3	8.52	70.54	-46.85	84.94	0.7267	-476.0	-473.8
91	11	-89	8	-89	9.16	70.20	-47.19	84.05	0.7305	-795.0	999999
92	0	4	0	3	9.89	70.07	-47.33	83.04	0.7320	-346.0	-268.9
93	0	3	0	2	8.66	69.94	-47.46	84.72	0.7338	-417.0	-359.3
94	22	59	16	44	14.06	68.48	-48.92	77.45	0.7514	-925.1	-405.3
95	0	9	0	6	8.40	69.68	-47.71	85.06	0.7369	77.0	90.2

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
