group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	780	5025	459	2969	10.69	79.12	-32.99	81.17	0.5428	842.2	168.9

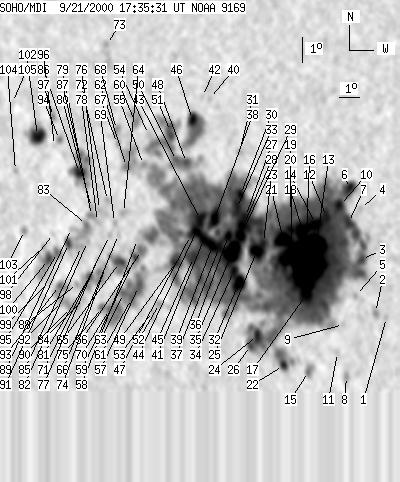

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-21 17:35:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	5	0	3	7.98	86.32	-25.79	86.23	0.4337	-721.0	-578.9
2	0	9	0	5	8.15	85.83	-26.29	85.85	0.4414	-912.0	-700.8
3	6	3801	3	2197	10.18	85.04	-27.07	81.38	0.4549	206.2	412.1
4	0	11	0	6	12.17	84.80	-27.32	77.12	0.4621	-605.0	-479.4
5	0	4	0	2	8.76	84.90	-27.22	84.52	0.4560	-45.0	-116.7
6	15	-3	8	-3	12.92	84.21	-27.90	75.71	0.4727	-228.2	999999
7	13	-3	7	-3	11.59	84.32	-27.80	78.48	0.4681	-133.2	999999
8	0	9	0	5	5.59	84.71	-27.41	91.47	0.4602	-723.0	-603.2
9	0	3	0	2	7.61	84.45	-27.66	87.06	0.4627	-268.0	-180.1
10	9	-3	5	-3	12.23	83.84	-28.27	77.26	0.4766	-26.3	999999
11	0	5	0	3	6.50	84.26	-27.86	89.44	0.4662	-359.0	-325.1
12	15	-3	8	-3	11.77	83.30	-28.81	78.36	0.4837	932.2	999999
13	220	-3	125	-3	10.69	82.97	-29.15	80.65	0.4870	1911.2	999999
14	33	-3	19	-3	11.47	82.84	-29.28	79.09	0.4901	1617.2	999999
15	0	15	0	8	5.68	83.01	-29.11	90.99	0.4861	-803.0	-597.8
16	-13	-3	-13	-3	10.00	82.54	-29.58	82.13	0.4927	999999	999999
17	23	-3	13	-3	8.64	82.66	-29.45	84.90	0.4900	1602.2	999999
18	-14	-3	-14	-3	11.16	82.28	-29.84	79.82	0.4980	999999	999999
19	5	-3	3	-3	11.17	81.77	-30.35	79.90	0.5055	657.3	999999
20	-13	-3	-13	-3	10.23	81.87	-30.24	81.74	0.5029	999999	999999
21	27	-3	15	-3	10.72	81.45	-30.66	80.84	0.5096	1240.5	999999
22	7	45	4	26	5.85	81.87	-30.25	90.49	0.5032	-358.3	-21.3
23	6	-3	3	-3	10.58	80.54	-31.58	81.22	0.5229	1298.9	999999
24	7	-3	4	-3	6.94	80.60	-31.51	88.22	0.5212	1235.7	999999
25	21	-3	12	-3	10.21	80.25	-31.86	81.97	0.5268	1512.2	999999
26	4	-3	3	-3	6.53	80.31	-31.81	88.98	0.5258	-404.9	999999
27	5	-3	3	-3	11.54	79.57	-32.54	79.55	0.5380	532.3	999999
28	14	-3	8	-3	11.18	79.52	-32.59	80.22	0.5383	1388.7	999999
29	15	-3	9	-3	10.78	79.43	-32.68	80.98	0.5392	1677.7	999999
30	7	-3	4	-3	12.38	79.22	-32.89	78.06	0.5443	-509.5	999999
31	0	5	0	3	14.06	78.92	-33.20	75.09	0.5518	746.0	525.1
32	20	-3	12	-3	8.91	79.55	-32.57	84.46	0.5364	1314.2	999999
33	19	-3	11	-3	11.82	79.11	-33.01	79.11	0.5451	915.3	999999
34	9	-3	5	-3	9.36	79.26	-32.85	83.63	0.5407	1261.5	999999
35	35	-3	21	-3	10.14	79.13	-32.98	82.21	0.5430	1705.8	999999
36	6	-3	4	-3	10.75	78.87	-33.25	81.11	0.5473	1323.4	999999
37	6	-3	3	-3	10.29	78.50	-33.62	81.98	0.5523	1355.1	999999
38	15	-3	9	-3	11.36	78.12	-34.00	80.09	0.5587	1486.6	999999
39	11	-3	6	-3	10.31	78.16	-33.96	81.98	0.5571	1365.7	999999
40	0	4	0	3	16.04	77.09	-35.03	72.16	0.5817	-640.0	-500.2
41	11	-3	7	-3	10.51	77.70	-34.41	81.65	0.5638	1285.7	999999
42	0	3	0	2	16.09	76.73	-35.39	72.17	0.5867	-618.0	-586.0
43	14	-3	8	-3	11.28	77.45	-34.66	80.32	0.5680	1248.1	999999
44	11	-3	7	-3	10.84	77.32	-34.80	81.11	0.5695	1176.4	999999
45	15	-3	9	-3	9.78	77.31	-34.81	82.98	0.5689	-616.2	999999
46	11	85	7	52	15.15	76.42	-35.70	73.83	0.5886	-1355.9	-641.3
47	4	-3	2	-3	10.62	77.06	-35.06	81.51	0.5730	853.5	999999
48	7	174	4	107	13.45	76.43	-35.68	76.71	0.5851	-184.7	-107.8
49	14	-3	9	-3	9.57	76.51	-35.61	83.39	0.5802	-1212.8	999999
50	4	-48	3	-48	13.50	75.93	-36.19	76.74	0.5921	-353.5	999999
51	13	-48	8	-48	14.61	75.42	-36.69	74.99	0.6009	-106.1	999999
52	0	6	0	4	7.87	75.87	-36.25	86.30	0.5892	-207.0	-210.4
53	0	10	0	6	7.54	75.56	-36.56	86.85	0.5936	158.0	233.2
54	0	3	0	2	14.41	74.34	-37.77	75.53	0.6150	-590.0	-548.6
55	0	9	0	6	13.22	74.32	-37.80	77.47	0.6135	-99.0	-36.6
56	3	36	2	22	9.87	74.74	-37.37	82.94	0.6048	-1001.3	-858.0
57	12	166	7	104	8.46	74.77	-37.35	85.28	0.6043	-894.2	-747.0
58	0	2	0	1	10.28	74.49	-37.63	82.27	0.6085	-753.0	-741.7
59	5	-56	3	-56	9.58	74.48	-37.63	83.44	0.6083	-1192.2	999999
60	0	28	0	18	14.83	73.59	-38.53	75.01	0.6256	-454.0	-647.5
61	5	-57	3	-57	7.97	74.47	-37.64	86.09	0.6085	-702.7	999999
62	0	51	0	32	13.08	73.47	-38.64	77.82	0.6245	-261.0	-443.4
63	4	-57	3	-57	8.13	74.06	-38.06	85.81	0.6142	-878.7	999999
64	0	8	0	5	11.28	73.63	-38.49	80.70	0.6207	-401.0	-424.5
65	10	47	6	29	9.32	73.71	-38.41	83.87	0.6188	-1063.1	-726.0
66	0	4	0	3	10.41	73.51	-38.61	82.12	0.6218	-685.0	-542.0
67	0	4	0	3	13.94	72.84	-39.28	76.55	0.6340	-788.0	-656.0
68	0	10	0	6	14.48	72.67	-39.44	75.73	0.6370	-657.0	-673.3
69	0	5	0	3	10.86	73.24	-38.88	81.41	0.6257	-680.0	-631.8
70	2	-57	2	-57	7.46	73.42	-38.69	86.87	0.6230	-1213.5	999999
71	0	6	0	4	10.33	73.06	-39.06	82.26	0.6278	-572.0	-512.2
72	0	6	0	4	11.69	72.74	-39.37	80.13	0.6329	-873.0	-738.0
73	0	33	0	22	17.77	71.34	-40.78	70.98	0.6602	-808.0	-662.1
74	0	2	0	1	9.11	73.03	-39.09	84.21	0.6281	-869.0	-882.7
75	3	-57	2	-57	7.51	73.06	-39.05	86.77	0.6279	-871.2	999999
76	0	12	0	8	11.30	72.39	-39.72	80.76	0.6372	-927.0	-841.6
77	0	3	0	2	9.35	72.58	-39.53	83.83	0.6340	-567.0	-578.3
78	0	6	0	4	10.83	72.37	-39.75	81.51	0.6373	-783.0	-731.2
79	0	8	0	5	11.04	72.02	-40.10	81.20	0.6420	-841.0	-758.8
80	0	4	0	3	11.35	71.97	-40.15	80.72	0.6428	-765.0	-668.7
81	4	33	3	21	8.66	72.26	-39.85	84.92	0.6383	-951.3	-751.7
82	0	3	0	2	10.01	71.97	-40.14	82.80	0.6422	-774.0	-802.5
83	0	22	0	14	10.67	71.82	-40.30	81.78	0.6445	-873.0	-875.7
84	0	6	0	4	7.78	72.06	-40.06	86.29	0.6412	-675.0	-508.9
85	0	6	0	4	9.79	71.69	-40.42	83.15	0.6459	-954.0	-823.6
86	12	80	8	52	12.66	71.10	-41.02	78.77	0.6552	-1170.4	-810.6
87	3	-86	2	-86	13.28	70.97	-41.14	77.83	0.6574	-775.6	999999
88	0	4	0	2	8.34	71.68	-40.43	85.41	0.6461	-459.0	-557.5
89	0	7	0	4	10.45	71.07	-41.05	82.15	0.6542	-440.0	-494.9
90	0	18	0	12	7.38	71.43	-40.68	86.88	0.6497	-76.0	-302.3
91	6	18	4	12	9.86	71.00	-41.11	83.06	0.6549	-771.5	-686.0
92	0	2	0	1	7.58	70.94	-41.18	86.55	0.6561	-80.0	-119.0
93	2	24	2	16	8.19	70.76	-41.36	85.61	0.6582	-793.5	-449.4
94	0	7	0	5	13.86	69.77	-42.35	77.11	0.6733	-816.0	-667.1
95	3	59	2	39	9.46	70.48	-41.64	83.67	0.6617	-949.2	-475.9
96	0	3	0	2	13.60	69.55	-42.56	77.51	0.6757	-623.0	-541.2
97	0	9	0	6	14.73	69.23	-42.88	75.90	0.6809	-766.0	-644.8
98	0	2	0	2	10.18	70.15	-41.96	82.59	0.6660	-296.0	-225.7
99	0	2	0	1	8.30	70.22	-41.90	85.42	0.6653	-328.0	-338.2
100	8	-95	5	-95	9.15	70.04	-42.07	84.14	0.6673	-842.5	999999
101	0	5	0	3	9.63	69.70	-42.41	83.41	0.6717	-422.0	-293.3
102	21	53	14	36	13.92	68.54	-43.58	77.17	0.6885	-981.8	-376.1
103	0	7	0	5	10.17	68.58	-43.53	82.63	0.6859	-672.0	-532.2
104	0	5	0	3	12.46	67.64	-44.47	79.36	0.6984	-465.0	-430.7
105	0	3	0	2	15.09	66.83	-45.29	75.70	0.7105	-455.0	-396.2

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
