group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	745	5197	429	3020	10.44	79.04	-31.31	81.45	0.5181	967.7	160.0

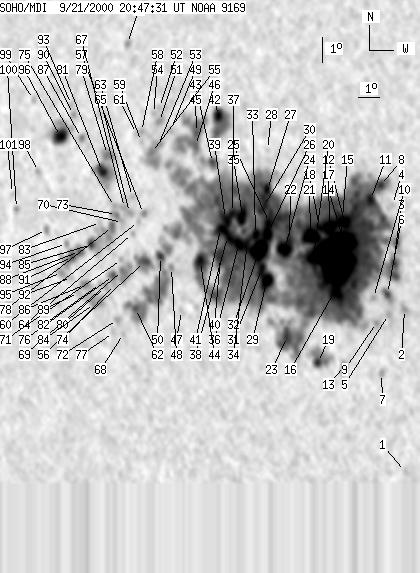

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-21 20:47:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	4	0	2	1.84	86.07	-24.29	100.99	0.4206	558.0	368.8
2	0	9	0	5	8.16	85.77	-24.58	85.77	0.4147	-843.0	-676.1
3	5	3993	3	2272	9.93	85.16	-25.19	81.62	0.4256	453.7	390.5
4	0	8	0	5	12.22	84.91	-25.45	76.36	0.4340	-603.0	-521.8
5	0	6	0	3	7.93	85.09	-25.26	86.34	0.4254	-567.0	-628.4
6	5	20	3	11	8.74	84.99	-25.36	84.43	0.4272	-14.9	-297.1
7	0	7	0	4	5.61	84.92	-25.44	91.76	0.4295	-818.0	-580.1
8	6	-3	3	-3	12.94	84.29	-26.06	74.98	0.4452	-518.5	999999
9	0	7	0	4	7.59	84.59	-25.76	87.13	0.4332	18.0	-238.8
10	0	5	0	3	8.56	84.39	-25.96	84.91	0.4365	739.0	612.5
11	10	-3	6	-3	12.37	83.91	-26.44	76.39	0.4494	-344.5	999999
12	20	-3	11	-3	11.45	82.85	-27.51	78.71	0.4635	1652.4	999999
13	0	8	0	5	5.84	83.29	-27.07	90.97	0.4546	-679.0	-554.1
14	205	-3	115	-3	10.70	82.88	-27.48	80.31	0.4618	1981.6	999999
15	-14	-3	-14	-3	9.83	82.74	-27.62	82.22	0.4629	999999	999999
16	-14	-3	-14	-3	8.86	82.73	-27.62	84.34	0.4623	999999	999999
17	24	-3	13	-3	11.21	82.20	-28.16	79.36	0.4730	1481.5	999999
18	7	-3	4	-3	11.15	81.75	-28.60	79.59	0.4796	510.0	999999
19	4	50	2	28	5.89	82.09	-28.27	90.69	0.4731	-485.4	-215.3
20	35	-3	19	-3	10.04	81.59	-28.76	81.93	0.4805	1454.8	999999
21	22	-3	13	-3	10.78	81.38	-28.97	80.44	0.4846	1234.3	999999
22	5	-3	3	-3	10.60	80.44	-29.91	80.95	0.4984	1342.4	999999
23	12	-3	7	-3	6.82	80.68	-29.67	88.60	0.4937	1082.3	999999
24	25	-3	14	-3	10.20	80.25	-30.10	81.78	0.5007	1547.3	999999
25	14	-3	8	-3	11.21	79.45	-30.91	79.91	0.5138	1376.7	999999
26	19	-3	11	-3	10.77	79.41	-30.95	80.76	0.5139	1681.5	999999
27	7	-3	4	-3	12.49	79.19	-31.16	77.48	0.5196	-388.5	999999
28	0	3	0	2	14.05	78.97	-31.39	74.58	0.5262	543.0	500.4
29	24	-3	14	-3	8.90	79.56	-30.80	84.41	0.5103	1344.4	999999
30	13	-3	7	-3	11.81	79.10	-31.26	78.80	0.5199	979.0	999999
31	11	-3	7	-3	9.35	79.28	-31.07	83.54	0.5146	1240.0	999999
32	39	-3	22	-3	10.13	79.11	-31.25	82.05	0.5177	1754.5	999999
33	6	-3	3	-3	10.70	78.86	-31.50	80.98	0.5219	1385.2	999999
34	9	-3	5	-3	10.40	78.52	-31.84	81.59	0.5266	1313.5	999999
35	21	-3	12	-3	11.40	78.16	-32.19	79.75	0.5328	1410.6	999999
36	14	-3	8	-3	10.26	78.11	-32.24	81.90	0.5324	1381.8	999999
37	7	-3	4	-3	11.49	77.68	-32.68	79.66	0.5399	1157.2	999999
38	26	-3	15	-3	10.54	77.56	-32.79	81.44	0.5406	1200.7	999999
39	14	-3	8	-3	11.23	77.38	-32.97	80.18	0.5439	1197.3	999999
40	14	-3	8	-3	9.74	77.32	-33.03	82.94	0.5435	-644.4	999999
41	-38	-3	-38	-3	10.83	77.20	-33.16	80.95	0.5462	999999	999999
42	12	84	7	50	15.23	76.42	-33.93	73.21	0.5648	-1372.4	-670.2
43	7	178	4	107	13.38	76.45	-33.91	76.47	0.5604	112.8	-102.5
44	18	-3	11	-3	9.48	76.40	-33.95	83.46	0.5567	-1260.7	999999
45	5	-43	3	-43	14.49	75.48	-34.88	74.75	0.5761	107.6	999999
46	4	-43	3	-43	13.98	75.52	-34.84	75.62	0.5745	-80.8	999999
47	0	6	0	4	7.51	75.69	-34.66	86.98	0.5668	54.0	221.2
48	0	5	0	3	9.15	75.04	-35.31	84.09	0.5759	-1106.0	-894.4
49	0	6	0	4	14.48	74.19	-36.17	75.07	0.5936	-614.0	-495.9
50	6	42	4	26	9.54	74.46	-35.89	83.44	0.5842	-1202.9	-821.1
51	0	7	0	4	14.80	73.57	-36.78	74.69	0.6025	-573.0	-486.8
52	0	2	0	1	15.34	73.46	-36.89	73.81	0.6050	-825.0	-777.3
53	0	14	0	9	13.90	73.70	-36.66	76.16	0.5992	-366.0	-447.7
54	0	4	0	3	15.09	73.21	-37.14	74.29	0.6079	-911.0	-849.1
55	0	45	0	28	13.56	73.41	-36.95	76.77	0.6025	-762.0	-449.3
56	10	40	6	24	9.29	73.71	-36.65	83.88	0.5947	-1126.0	-766.5
57	0	6	0	4	11.15	73.40	-36.95	80.77	0.5998	-645.0	-556.2
58	0	4	0	3	14.34	72.75	-37.60	75.61	0.6126	-861.0	-808.3
59	0	3	0	2	13.95	72.83	-37.53	76.23	0.6109	-780.0	-604.0
60	0	4	0	3	10.83	73.20	-37.15	81.34	0.6023	-844.0	-669.3
61	0	2	0	1	14.25	72.52	-37.84	75.81	0.6156	-649.0	-600.2
62	4	122	2	76	7.43	73.47	-36.89	87.01	0.5983	-1148.8	-787.5
63	0	4	0	3	11.78	72.76	-37.60	79.81	0.6091	-731.0	-692.5
64	0	5	0	3	10.34	72.97	-37.38	82.16	0.6052	-546.0	-459.9
65	0	8	0	5	11.14	72.70	-37.65	80.85	0.6093	-1069.0	-874.0
66	0	7	0	4	17.73	71.25	-39.11	70.59	0.6393	-675.0	-609.6
67	0	4	0	3	11.32	72.42	-37.93	80.59	0.6133	-1132.0	-1005.3
68	0	4	0	2	6.42	72.97	-37.39	88.66	0.6058	-736.0	-584.4
69	0	32	0	20	8.86	72.66	-37.69	84.61	0.6091	-997.0	-681.4
70	0	7	0	4	10.73	72.41	-37.94	81.55	0.6130	-834.0	-739.2
71	0	3	0	2	9.29	72.56	-37.79	83.91	0.6105	-668.0	-630.0
72	0	6	0	4	6.94	72.62	-37.73	87.77	0.6102	-722.0	-642.7
73	0	11	0	7	11.02	72.07	-38.29	81.11	0.6179	-1015.0	-778.2
74	0	6	0	4	8.29	72.33	-38.02	85.55	0.6137	-609.0	-455.7
75	0	4	0	2	11.32	71.92	-38.44	80.63	0.6201	-758.0	-748.0
76	3	11	2	7	8.63	72.24	-38.12	84.98	0.6149	-997.4	-812.0
77	0	6	0	4	6.42	72.47	-37.89	88.61	0.6127	-573.0	-526.0
78	4	58	3	37	10.53	71.94	-38.42	81.90	0.6194	-964.8	-800.4
79	0	15	0	10	13.32	71.21	-39.15	77.52	0.6316	-892.0	-809.1
80	0	5	0	3	8.18	71.89	-38.47	85.72	0.6197	-848.0	-754.4
81	12	54	8	34	12.64	71.07	-39.28	78.61	0.6325	-1252.2	-885.6
82	0	3	0	2	8.27	71.63	-38.73	85.55	0.6233	-654.0	-601.8
83	0	3	0	2	10.64	71.31	-39.05	81.76	0.6279	-343.0	-383.3
84	0	36	0	23	7.47	71.41	-38.94	86.83	0.6265	-298.0	-442.4
85	5	21	3	14	9.75	70.98	-39.38	83.19	0.6320	-834.1	-774.9
86	0	12	0	8	8.18	70.87	-39.48	85.69	0.6335	-960.0	-737.6
87	0	7	0	5	13.88	69.73	-40.63	76.86	0.6515	-810.0	-614.8
88	4	48	2	31	9.44	70.40	-39.95	83.70	0.6396	-959.8	-626.1
89	0	3	0	2	7.84	70.55	-39.80	86.21	0.6378	-77.0	-161.8
90	0	7	0	4	14.74	69.11	-41.25	75.63	0.6605	-625.0	-598.8
91	7	-88	5	-88	9.21	70.07	-40.29	84.05	0.6440	-895.3	999999
92	0	3	0	2	8.39	70.13	-40.23	85.33	0.6434	-572.0	-473.8
93	0	3	0	2	15.12	68.91	-41.44	75.09	0.6636	-544.0	-556.1
94	0	5	0	3	9.69	69.69	-40.67	83.30	0.6491	-437.0	-282.2
95	0	10	0	6	8.55	69.59	-40.77	85.07	0.6505	-198.0	-64.7
96	21	64	14	42	13.83	68.61	-41.74	77.08	0.6656	-1083.9	-429.5
97	0	8	0	6	10.15	68.56	-41.79	82.62	0.6638	-697.0	-537.0
98	0	6	0	4	12.37	67.73	-42.63	79.34	0.6754	-292.0	-318.1
99	0	6	0	4	15.15	66.81	-43.54	75.37	0.6896	-654.0	-406.2
100	0	5	0	4	10.84	66.82	-43.54	81.65	0.6861	-538.0	-527.1
101	0	3	0	2	11.40	66.49	-43.86	80.84	0.6904	-641.0	-442.4

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
