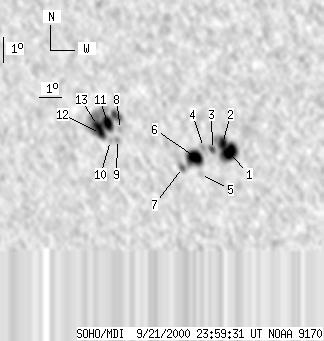

SOHO MDI 2000-09-21 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58 | 245 | 34 | 141 | -5.65 | 80.77 | -27.82 | 114.05 | 0.5101 | -443.2 | -60.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-21 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17 | 66 | 10 | 37 | -5.93 | 83.87 | -24.72 | 117.15 | 0.4694 | -1414.7 | -708.6 | |
| 6 | -1 | 3 | -1 | -5.59 | 83.59 | -25.01 | 116.21 | 0.4709 | -1229.2 | 999999 | |
| 0 | 8 | 0 | 4 | -5.85 | 83.14 | -25.46 | 116.29 | 0.4789 | -831.0 | -625.3 | |
| 0 | 4 | 0 | 3 | -5.79 | 82.75 | -25.84 | 115.83 | 0.4838 | -499.0 | -465.7 | |
| 0 | 5 | 0 | 3 | -6.88 | 82.56 | -26.03 | 117.65 | 0.4939 | -558.0 | -395.8 | |
| 16 | 38 | 9 | 21 | -6.21 | 82.38 | -26.22 | 116.26 | 0.4917 | -1149.6 | -620.8 | |
| 0 | 6 | 0 | 3 | -6.65 | 81.78 | -26.81 | 116.52 | 0.5027 | -793.0 | -544.9 | |
| 0 | 3 | 0 | 2 | -5.29 | 79.10 | -29.50 | 111.96 | 0.5307 | 959.0 | 793.9 | |
| 0 | 5 | 0 | 3 | -5.69 | 78.94 | -29.65 | 112.55 | 0.5352 | 783.0 | 717.3 | |
| 0 | 2 | 0 | 1 | -5.75 | 78.62 | -29.97 | 112.43 | 0.5399 | 643.0 | 565.0 | |
| 8 | 108 | 5 | 64 | -5.08 | 78.52 | -30.07 | 111.20 | 0.5375 | 1236.2 | 519.0 | |
| 11 | -11 | 7 | -11 | -5.50 | 78.18 | -30.41 | 111.69 | 0.5444 | 909.8 | 999999 | |
| -12 | -11 | -12 | -11 | -5.19 | 78.06 | -30.53 | 111.07 | 0.5444 | 999999 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
