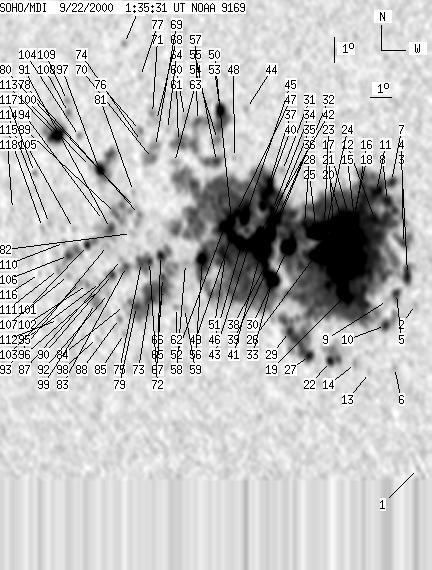

SOHO MDI 2000-09-22 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 799 | 5387 | 448 | 3038 | 10.57 | 79.29 | -28.43 | 80.69 | 0.4755 | 872.7 | 183.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-22 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | 1.85 | 86.26 | -21.45 | 102.63 | 0.3762 | 544.0 | 385.3 | |
| 0 | 8 | 0 | 4 | 8.25 | 85.91 | -21.80 | 85.37 | 0.3704 | -524.0 | -409.3 | |
| 10 | 29 | 6 | 16 | 9.40 | 85.50 | -22.22 | 82.34 | 0.3780 | -610.7 | -201.2 | |
| 5 | 30 | 3 | 16 | 10.60 | 85.24 | -22.48 | 79.26 | 0.3841 | -578.1 | -607.9 | |
| 4 | 23 | 2 | 12 | 8.64 | 85.08 | -22.64 | 84.41 | 0.3840 | -82.3 | -236.3 | |
| 0 | 4 | 0 | 2 | 5.75 | 85.15 | -22.57 | 91.97 | 0.3838 | -620.0 | -592.2 | |
| 5 | 4090 | 2 | 2268 | 13.00 | 84.51 | -23.21 | 73.54 | 0.4021 | -815.3 | 427.4 | |
| 9 | -7 | 5 | -7 | 12.25 | 84.41 | -23.31 | 75.42 | 0.4012 | -393.8 | 999999 | |
| 0 | 8 | 0 | 4 | 8.35 | 84.71 | -23.00 | 85.20 | 0.3897 | 497.0 | 327.7 | |
| 6 | 35 | 3 | 19 | 7.37 | 84.68 | -23.03 | 87.72 | 0.3900 | -362.8 | -306.4 | |
| 11 | -7 | 6 | -7 | 12.58 | 83.90 | -23.82 | 74.86 | 0.4101 | -364.4 | 999999 | |
| 11 | -7 | 6 | -7 | 11.52 | 83.91 | -23.81 | 77.42 | 0.4070 | 261.0 | 999999 | |
| 0 | 6 | 0 | 3 | 5.50 | 84.09 | -23.63 | 92.38 | 0.4010 | -595.0 | -459.5 | |
| 0 | 9 | 0 | 5 | 5.83 | 83.47 | -24.24 | 91.46 | 0.4103 | -453.0 | -405.8 | |
| 14 | -7 | 8 | -7 | 11.43 | 83.04 | -24.67 | 77.91 | 0.4202 | 1691.1 | 999999 | |
| 197 | -7 | 107 | -7 | 10.76 | 82.97 | -24.74 | 79.52 | 0.4199 | 1990.8 | 999999 | |
| 6 | -7 | 3 | -7 | 11.62 | 82.76 | -24.95 | 77.58 | 0.4249 | 1571.5 | 999999 | |
| -16 | -7 | -16 | -7 | 10.13 | 82.76 | -24.95 | 81.08 | 0.4221 | 999999 | 999999 | |
| 19 | -7 | 10 | -7 | 8.45 | 82.85 | -24.87 | 85.07 | 0.4193 | 1664.5 | 999999 | |
| 8 | -7 | 4 | -7 | 11.44 | 82.47 | -25.24 | 78.07 | 0.4290 | 1581.1 | 999999 | |
| 21 | -7 | 12 | -7 | 11.19 | 82.14 | -25.57 | 78.75 | 0.4336 | 1453.0 | 999999 | |
| 7 | 43 | 4 | 23 | 5.85 | 82.39 | -25.32 | 91.22 | 0.4274 | -449.6 | -224.0 | |
| 4 | -7 | 2 | -7 | 11.21 | 81.74 | -25.97 | 78.82 | 0.4397 | 857.4 | 999999 | |
| 24 | -7 | 13 | -7 | 10.03 | 81.67 | -26.04 | 81.52 | 0.4389 | 1554.2 | 999999 | |
| 28 | -7 | 16 | -7 | 10.84 | 81.42 | -26.29 | 79.74 | 0.4440 | 1230.4 | 999999 | |
| -24 | -7 | -24 | -7 | 9.90 | 81.42 | -26.30 | 81.86 | 0.4427 | 999999 | 999999 | |
| 6 | -7 | 3 | -7 | 6.03 | 81.47 | -26.25 | 90.65 | 0.4417 | -737.5 | 999999 | |
| 6 | -7 | 4 | -7 | 11.16 | 80.86 | -26.86 | 79.16 | 0.4532 | 268.0 | 999999 | |
| 5 | -7 | 3 | -7 | 6.92 | 80.54 | -27.18 | 88.56 | 0.4555 | 1160.1 | 999999 | |
| 26 | -7 | 15 | -7 | 10.23 | 80.23 | -27.48 | 81.33 | 0.4613 | 1625.2 | 999999 | |
| 0 | 4 | 0 | 2 | 13.18 | 79.64 | -28.07 | 75.21 | 0.4759 | -240.0 | -124.5 | |
| 12 | -7 | 7 | -7 | 11.34 | 79.72 | -28.00 | 79.06 | 0.4707 | 584.8 | 999999 | |
| 18 | -7 | 10 | -7 | 8.90 | 79.64 | -28.08 | 84.26 | 0.4693 | 1430.5 | 999999 | |
| 6 | -7 | 3 | -7 | 11.63 | 79.37 | -28.34 | 78.52 | 0.4765 | 701.6 | 999999 | |
| 7 | -7 | 4 | -7 | 11.16 | 79.38 | -28.34 | 79.51 | 0.4756 | 1446.5 | 999999 | |
| 14 | -7 | 8 | -7 | 10.69 | 79.38 | -28.34 | 80.50 | 0.4748 | 1834.2 | 999999 | |
| 24 | -7 | 13 | -7 | 12.44 | 79.05 | -28.67 | 76.93 | 0.4829 | -115.4 | 999999 | |
| 6 | -7 | 4 | -7 | 9.43 | 79.28 | -28.44 | 83.17 | 0.4751 | 1406.1 | 999999 | |
| 7 | -7 | 4 | -7 | 9.12 | 79.30 | -28.41 | 83.82 | 0.4745 | 1166.7 | 999999 | |
| 8 | -7 | 5 | -7 | 11.76 | 78.90 | -28.81 | 78.37 | 0.4837 | 1222.8 | 999999 | |
| 41 | -7 | 23 | -7 | 10.04 | 79.04 | -28.68 | 81.91 | 0.4792 | 1814.6 | 999999 | |
| 10 | -7 | 6 | -7 | 10.66 | 78.89 | -28.83 | 80.64 | 0.4823 | 1420.3 | 999999 | |
| 9 | -7 | 5 | -7 | 10.36 | 78.51 | -29.21 | 81.32 | 0.4876 | 1315.1 | 999999 | |
| 0 | 6 | 0 | 4 | 15.51 | 77.65 | -30.07 | 71.32 | 0.5117 | -660.0 | -533.7 | |
| 16 | -7 | 9 | -7 | 11.32 | 78.18 | -29.54 | 79.41 | 0.4938 | 1552.6 | 999999 | |
| 15 | -7 | 8 | -7 | 10.18 | 78.12 | -29.60 | 81.74 | 0.4933 | 1409.1 | 999999 | |
| 5 | -7 | 3 | -7 | 11.46 | 77.75 | -29.97 | 79.24 | 0.5004 | 1311.7 | 999999 | |
| 0 | 3 | 0 | 2 | 13.56 | 77.38 | -30.33 | 75.19 | 0.5099 | 531.0 | 436.7 | |
| 13 | -7 | 7 | -7 | 10.51 | 77.62 | -30.09 | 81.15 | 0.5009 | 1355.0 | 999999 | |
| 8 | -7 | 5 | -7 | 11.09 | 77.56 | -30.16 | 80.00 | 0.5026 | 1310.7 | 999999 | |
| 18 | -7 | 10 | -7 | 9.71 | 77.43 | -30.28 | 82.76 | 0.5031 | -477.0 | 999999 | |
| 5 | -7 | 3 | -7 | 10.84 | 77.27 | -30.45 | 80.55 | 0.5066 | 1152.1 | 999999 | |
| 10 | 54 | 6 | 31 | 15.36 | 76.45 | -31.27 | 72.08 | 0.5281 | -1382.5 | -816.1 | |
| 0 | 13 | 0 | 8 | 14.21 | 76.49 | -31.23 | 74.21 | 0.5243 | -442.0 | -358.4 | |
| 6 | 36 | 3 | 21 | 13.35 | 76.57 | -31.14 | 75.82 | 0.5211 | -82.3 | 103.7 | |
| 13 | -7 | 8 | -7 | 9.53 | 76.39 | -31.33 | 83.21 | 0.5185 | -1344.6 | 999999 | |
| 0 | 36 | 0 | 21 | 14.90 | 75.43 | -32.29 | 73.28 | 0.5411 | -297.0 | -217.7 | |
| 0 | 5 | 0 | 3 | 9.28 | 75.62 | -32.09 | 83.72 | 0.5296 | -754.0 | -704.7 | |
| 0 | 5 | 0 | 3 | 7.53 | 75.74 | -31.98 | 87.05 | 0.5278 | 286.0 | 283.9 | |
| 0 | 6 | 0 | 4 | 15.02 | 74.79 | -32.93 | 73.27 | 0.5504 | -848.0 | -685.9 | |
| 0 | 69 | 0 | 41 | 14.02 | 74.66 | -33.05 | 75.10 | 0.5497 | -302.0 | 14.8 | |
| 0 | 4 | 0 | 3 | 7.55 | 75.36 | -32.35 | 87.01 | 0.5333 | -288.0 | -338.1 | |
| 0 | 9 | 0 | 6 | 13.19 | 74.60 | -33.11 | 76.63 | 0.5488 | 164.0 | 156.3 | |
| 0 | 2 | 0 | 1 | 14.45 | 74.06 | -33.65 | 74.49 | 0.5591 | -342.0 | -360.1 | |
| 3 | 225 | 2 | 133 | 8.67 | 74.60 | -33.11 | 84.91 | 0.5443 | -1044.2 | -762.7 | |
| 5 | -65 | 3 | -65 | 8.20 | 74.65 | -33.07 | 85.77 | 0.5436 | -781.1 | 999999 | |
| 7 | -65 | 4 | -65 | 9.52 | 74.42 | -33.30 | 83.35 | 0.5472 | -1355.4 | 999999 | |
| 0 | 7 | 0 | 4 | 14.77 | 73.47 | -34.25 | 74.09 | 0.5680 | -523.0 | -527.9 | |
| 0 | 14 | 0 | 8 | 13.75 | 73.60 | -34.12 | 75.85 | 0.5641 | -654.0 | -684.3 | |
| 0 | 27 | 0 | 16 | 13.27 | 73.53 | -34.19 | 76.71 | 0.5641 | -329.0 | -537.5 | |
| 0 | 7 | 0 | 4 | 15.03 | 73.23 | -34.49 | 73.71 | 0.5720 | -906.0 | -766.7 | |
| 4 | 43 | 2 | 26 | 9.25 | 73.93 | -33.79 | 83.86 | 0.5542 | -1171.6 | -824.2 | |
| 10 | -65 | 6 | -65 | 7.77 | 74.07 | -33.64 | 86.54 | 0.5521 | -611.4 | 999999 | |
| 0 | 2 | 0 | 1 | 13.90 | 72.89 | -34.83 | 75.75 | 0.5742 | -775.0 | -701.9 | |
| 4 | -72 | 2 | -72 | 9.19 | 73.55 | -34.16 | 83.99 | 0.5596 | -1060.5 | 999999 | |
| 0 | 9 | 0 | 5 | 14.33 | 72.76 | -34.95 | 75.05 | 0.5767 | -875.0 | -708.1 | |
| 0 | 4 | 0 | 3 | 16.44 | 72.35 | -35.36 | 71.56 | 0.5873 | -725.0 | -719.9 | |
| 0 | 15 | 0 | 9 | 11.05 | 73.23 | -34.49 | 80.70 | 0.5653 | -857.0 | -675.2 | |
| 5 | -65 | 3 | -65 | 7.46 | 73.49 | -34.23 | 87.09 | 0.5607 | -1147.5 | 999999 | |
| 0 | 5 | 0 | 3 | 11.31 | 73.00 | -34.72 | 80.26 | 0.5688 | -902.0 | -787.3 | |
| 0 | 4 | 0 | 2 | 11.92 | 72.81 | -34.90 | 79.21 | 0.5721 | -554.0 | -597.3 | |
| 0 | 6 | 0 | 3 | 10.28 | 72.94 | -34.77 | 82.08 | 0.5688 | -432.0 | -350.5 | |
| 3 | 17 | 2 | 10 | 8.98 | 72.85 | -34.86 | 84.37 | 0.5695 | -986.0 | -826.4 | |
| 0 | 3 | 0 | 2 | 7.46 | 72.91 | -34.80 | 87.06 | 0.5689 | -559.0 | -616.9 | |
| 0 | 4 | 0 | 2 | 6.37 | 73.00 | -34.71 | 88.99 | 0.5682 | -667.0 | -577.2 | |
| 0 | 4 | 0 | 3 | 17.68 | 71.27 | -36.45 | 69.86 | 0.6051 | -684.0 | -605.6 | |
| 0 | 5 | 0 | 3 | 9.24 | 72.58 | -35.13 | 83.93 | 0.5734 | -690.0 | -641.0 | |
| 0 | 5 | 0 | 3 | 6.94 | 72.72 | -35.00 | 87.97 | 0.5719 | -798.0 | -615.5 | |
| 0 | 55 | 0 | 33 | 11.01 | 72.07 | -35.65 | 80.89 | 0.5816 | -825.0 | -855.9 | |
| 5 | 17 | 3 | 10 | 8.62 | 72.22 | -35.50 | 85.00 | 0.5785 | -912.0 | -650.4 | |
| 6 | 39 | 3 | 24 | 10.41 | 71.90 | -35.81 | 81.94 | 0.5835 | -1179.6 | -809.4 | |
| 0 | 10 | 0 | 6 | 7.87 | 72.10 | -35.62 | 86.31 | 0.5803 | -694.0 | -637.3 | |
| 0 | 3 | 0 | 2 | 9.73 | 71.84 | -35.87 | 83.10 | 0.5840 | -613.0 | -705.8 | |
| 0 | 2 | 0 | 1 | 10.69 | 71.52 | -36.20 | 81.48 | 0.5890 | -455.0 | -452.9 | |
| 0 | 3 | 0 | 2 | 8.27 | 71.67 | -36.05 | 85.61 | 0.5863 | -635.0 | -610.9 | |
| 0 | 3 | 0 | 2 | 8.00 | 71.65 | -36.07 | 86.08 | 0.5866 | -708.0 | -655.1 | |
| 12 | 68 | 7 | 42 | 12.66 | 71.02 | -36.70 | 78.21 | 0.5978 | -1172.1 | -852.2 | |
| 0 | 2 | 0 | 1 | 6.12 | 71.72 | -36.00 | 89.29 | 0.5866 | -441.0 | -445.4 | |
| 0 | 23 | 0 | 14 | 7.44 | 71.51 | -36.21 | 87.03 | 0.5888 | -342.0 | -517.3 | |
| 0 | 3 | 0 | 2 | 12.75 | 70.55 | -37.16 | 78.14 | 0.6043 | -328.0 | -350.4 | |
| 5 | 19 | 3 | 12 | 9.66 | 70.87 | -36.85 | 83.25 | 0.5976 | -708.0 | -781.5 | |
| 0 | 8 | 0 | 5 | 8.15 | 71.04 | -36.67 | 85.80 | 0.5950 | -739.0 | -642.2 | |
| 0 | 13 | 0 | 8 | 8.20 | 70.69 | -37.02 | 85.71 | 0.5999 | -762.0 | -382.3 | |
| 0 | 4 | 0 | 3 | 13.88 | 69.79 | -37.93 | 76.41 | 0.6161 | -900.0 | -685.7 | |
| 0 | 5 | 0 | 3 | 10.27 | 70.09 | -37.63 | 82.27 | 0.6085 | -400.0 | -354.4 | |
| 5 | 34 | 3 | 21 | 9.21 | 69.98 | -37.74 | 84.03 | 0.6097 | -800.7 | -708.6 | |
| 0 | 5 | 0 | 3 | 8.43 | 70.07 | -37.65 | 85.32 | 0.6085 | -486.0 | -418.0 | |
| 0 | 10 | 0 | 7 | 14.77 | 69.04 | -38.67 | 75.12 | 0.6275 | -693.0 | -555.1 | |
| 0 | 5 | 0 | 3 | 15.24 | 68.89 | -38.82 | 74.41 | 0.6303 | -697.0 | -519.1 | |
| 0 | 6 | 0 | 4 | 9.70 | 69.71 | -38.00 | 83.24 | 0.6134 | -355.0 | -214.8 | |
| 0 | 7 | 0 | 4 | 8.63 | 69.55 | -38.17 | 84.99 | 0.6156 | -31.0 | -59.0 | |
| 0 | 3 | 0 | 2 | 6.68 | 69.75 | -37.96 | 88.17 | 0.6136 | -518.0 | -520.2 | |
| 22 | 71 | 14 | 45 | 13.83 | 68.62 | -39.10 | 76.69 | 0.6316 | -1100.6 | -331.5 | |
| 0 | 3 | 0 | 2 | 10.38 | 68.86 | -38.86 | 82.16 | 0.6253 | -630.0 | -518.6 | |
| 0 | 8 | 0 | 5 | 10.20 | 68.52 | -39.19 | 82.47 | 0.6296 | -423.0 | -468.1 | |
| 0 | 3 | 0 | 2 | 8.40 | 68.61 | -39.10 | 85.34 | 0.6283 | -441.0 | -395.8 | |
| 0 | 4 | 0 | 3 | 12.30 | 67.76 | -39.95 | 79.20 | 0.6410 | -476.0 | -461.8 | |
| 0 | 4 | 0 | 3 | 10.78 | 66.88 | -40.84 | 81.63 | 0.6516 | -710.0 | -568.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
