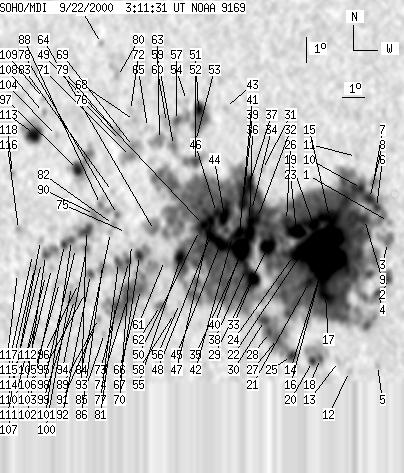

SOHO MDI 2000-09-22 03:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 828 | 5159 | 459 | 2896 | 10.52 | 79.17 | -27.67 | 80.65 | 0.4641 | 914.5 | 191.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-22 03:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | 11.43 | 85.37 | -21.47 | 76.69 | 0.3702 | -590.0 | -521.1 | |
| 4 | 19 | 2 | 10 | 9.20 | 85.49 | -21.35 | 82.69 | 0.3639 | -1053.0 | -447.5 | |
| 0 | 26 | 0 | 14 | 10.61 | 85.39 | -21.45 | 78.89 | 0.3678 | -806.0 | -638.0 | |
| 4 | 3751 | 2 | 2065 | 8.60 | 85.14 | -21.69 | 84.39 | 0.3689 | -372.2 | 462.0 | |
| 0 | 5 | 0 | 3 | 5.79 | 85.24 | -21.60 | 92.05 | 0.3680 | -599.0 | -420.1 | |
| 5 | -4 | 2 | -4 | 11.95 | 84.81 | -22.02 | 75.57 | 0.3805 | -790.9 | 999999 | |
| 0 | 9 | 0 | 5 | 12.92 | 84.59 | -22.24 | 73.19 | 0.3871 | -920.0 | -745.7 | |
| 10 | -4 | 5 | -4 | 12.29 | 84.48 | -22.36 | 74.86 | 0.3867 | -449.7 | 999999 | |
| 10 | -4 | 5 | -4 | 11.46 | 84.34 | -22.50 | 77.05 | 0.3865 | -287.7 | 999999 | |
| 5 | -4 | 3 | -4 | 12.66 | 84.10 | -22.74 | 74.11 | 0.3938 | -741.1 | 999999 | |
| 0 | 4 | 0 | 2 | 13.91 | 83.76 | -23.08 | 71.25 | 0.4035 | -573.0 | -466.1 | |
| 0 | 5 | 0 | 3 | 5.51 | 84.07 | -22.77 | 92.56 | 0.3873 | -616.0 | -481.3 | |
| 0 | 9 | 0 | 5 | 5.87 | 83.58 | -23.25 | 91.52 | 0.3946 | -588.0 | -420.8 | |
| 199 | -4 | 108 | -4 | 10.81 | 83.01 | -23.83 | 79.15 | 0.4058 | 2005.3 | 999999 | |
| 31 | -4 | 17 | -4 | 11.47 | 82.82 | -24.02 | 77.61 | 0.4101 | 1624.0 | 999999 | |
| -14 | -4 | -14 | -4 | 10.13 | 82.80 | -24.03 | 80.86 | 0.4078 | 999999 | 999999 | |
| 14 | -4 | 7 | -4 | 8.42 | 82.88 | -23.95 | 85.09 | 0.4048 | 1701.1 | 999999 | |
| 2 | 57 | 1 | 31 | 5.95 | 82.81 | -24.03 | 91.18 | 0.4068 | -853.5 | -219.7 | |
| 14 | -4 | 8 | -4 | 11.16 | 82.15 | -24.69 | 78.57 | 0.4199 | 1521.0 | 999999 | |
| 6 | -18 | 3 | -18 | 5.82 | 82.47 | -24.37 | 91.45 | 0.4124 | -487.5 | 999999 | |
| 5 | -4 | 3 | -4 | 8.93 | 82.15 | -24.68 | 83.90 | 0.4166 | 1135.1 | 999999 | |
| 21 | -4 | 11 | -4 | 10.08 | 81.76 | -25.08 | 81.22 | 0.4240 | 1589.8 | 999999 | |
| 25 | -4 | 14 | -4 | 10.85 | 81.43 | -25.41 | 79.50 | 0.4304 | 1270.8 | 999999 | |
| 14 | -4 | 8 | -4 | 9.91 | 81.38 | -25.46 | 81.70 | 0.4297 | 1327.5 | 999999 | |
| 8 | 145 | 4 | 80 | 6.01 | 81.55 | -25.28 | 90.85 | 0.4266 | -792.6 | 380.0 | |
| 14 | -4 | 7 | -4 | 11.25 | 80.95 | -25.89 | 78.70 | 0.4385 | -6.4 | 999999 | |
| 6 | -25 | 3 | -25 | 6.64 | 80.91 | -25.93 | 89.31 | 0.4362 | 653.3 | 999999 | |
| 6 | -25 | 3 | -25 | 6.85 | 80.55 | -26.29 | 88.78 | 0.4417 | 1038.5 | 999999 | |
| 28 | -4 | 16 | -4 | 10.24 | 80.25 | -26.59 | 81.15 | 0.4476 | 1585.6 | 999999 | |
| 8 | -25 | 5 | -25 | 7.31 | 80.30 | -26.54 | 87.74 | 0.4454 | 732.9 | 999999 | |
| 0 | 3 | 0 | 2 | 13.19 | 79.67 | -27.17 | 74.86 | 0.4625 | -141.0 | -123.3 | |
| 12 | -4 | 7 | -4 | 11.30 | 79.65 | -27.18 | 78.93 | 0.4583 | 909.2 | 999999 | |
| 24 | -4 | 13 | -4 | 8.87 | 79.65 | -27.18 | 84.25 | 0.4555 | 1381.1 | 999999 | |
| 7 | -4 | 4 | -4 | 11.56 | 79.36 | -27.48 | 78.45 | 0.4633 | 948.3 | 999999 | |
| 22 | -4 | 12 | -4 | 10.66 | 79.41 | -27.43 | 80.38 | 0.4611 | 1790.3 | 999999 | |
| 7 | -4 | 4 | -4 | 11.13 | 79.31 | -27.52 | 79.39 | 0.4632 | 1454.4 | 999999 | |
| 14 | -4 | 8 | -4 | 12.61 | 79.15 | -27.69 | 76.27 | 0.4687 | -922.6 | 999999 | |
| 12 | -4 | 6 | -4 | 9.25 | 79.31 | -27.52 | 83.47 | 0.4610 | 1271.7 | 999999 | |
| 24 | -4 | 13 | -4 | 12.01 | 78.95 | -27.89 | 77.60 | 0.4704 | 1001.6 | 999999 | |
| 40 | -4 | 22 | -4 | 10.01 | 79.06 | -27.77 | 81.83 | 0.4655 | 1855.2 | 999999 | |
| 10 | -4 | 5 | -4 | 10.67 | 78.91 | -27.92 | 80.45 | 0.4686 | 1464.6 | 999999 | |
| 4 | -4 | 2 | -4 | 10.50 | 78.61 | -28.22 | 80.87 | 0.4729 | 1237.8 | 999999 | |
| 0 | 5 | 0 | 3 | 15.52 | 77.66 | -29.18 | 70.92 | 0.4991 | -648.0 | -581.5 | |
| 20 | -4 | 11 | -4 | 11.26 | 78.17 | -28.66 | 79.37 | 0.4806 | 1552.4 | 999999 | |
| 17 | -4 | 9 | -4 | 10.19 | 78.10 | -28.73 | 81.59 | 0.4803 | 1401.8 | 999999 | |
| 6 | -4 | 3 | -4 | 11.39 | 77.79 | -29.04 | 79.17 | 0.4865 | 1311.8 | 999999 | |
| 12 | -4 | 7 | -4 | 11.07 | 77.60 | -29.23 | 79.88 | 0.4889 | 1286.1 | 999999 | |
| 16 | -4 | 9 | -4 | 10.48 | 77.62 | -29.22 | 81.07 | 0.4879 | 1323.7 | 999999 | |
| 9 | -4 | 5 | -4 | 10.89 | 77.26 | -29.58 | 80.30 | 0.4938 | 1137.0 | 999999 | |
| 5 | -4 | 3 | -4 | 10.64 | 77.10 | -29.74 | 80.82 | 0.4958 | 878.7 | 999999 | |
| 9 | 65 | 5 | 37 | 15.37 | 76.42 | -30.42 | 71.73 | 0.5162 | -1418.4 | -763.4 | |
| 8 | 31 | 5 | 18 | 13.33 | 76.59 | -30.25 | 75.61 | 0.5081 | 53.6 | 143.9 | |
| 0 | 9 | 0 | 5 | 14.11 | 76.47 | -30.36 | 74.13 | 0.5117 | -439.0 | -299.6 | |
| 0 | 5 | 0 | 3 | 15.69 | 75.80 | -31.04 | 71.37 | 0.5259 | -588.0 | -532.7 | |
| 13 | -4 | 8 | -4 | 9.54 | 76.34 | -30.49 | 83.12 | 0.5061 | -1492.1 | 999999 | |
| 0 | 4 | 0 | 2 | 7.75 | 76.46 | -30.38 | 86.68 | 0.5040 | 186.0 | 181.3 | |
| 4 | 28 | 2 | 16 | 14.88 | 75.46 | -31.37 | 73.02 | 0.5282 | -354.6 | -352.2 | |
| 0 | 4 | 0 | 2 | 7.35 | 76.26 | -30.58 | 87.47 | 0.5071 | 507.0 | 449.0 | |
| 0 | 23 | 0 | 14 | 13.89 | 75.47 | -31.36 | 74.86 | 0.5255 | 439.0 | 299.2 | |
| 0 | 15 | 0 | 9 | 14.77 | 75.00 | -31.83 | 73.37 | 0.5344 | -239.0 | -486.6 | |
| 0 | 12 | 0 | 7 | 9.38 | 75.62 | -31.22 | 83.49 | 0.5167 | -724.0 | -621.4 | |
| 0 | 12 | 0 | 7 | 7.62 | 75.59 | -31.24 | 86.91 | 0.5169 | -108.0 | 6.4 | |
| 0 | 23 | 0 | 14 | 14.08 | 74.78 | -32.05 | 74.71 | 0.5358 | -212.0 | -157.5 | |
| 0 | 29 | 0 | 17 | 10.52 | 75.03 | -31.80 | 81.35 | 0.5262 | -330.0 | -491.6 | |
| 0 | 3 | 0 | 2 | 14.51 | 74.14 | -32.70 | 74.10 | 0.5459 | -402.0 | -459.5 | |
| 5 | 259 | 3 | 152 | 8.18 | 74.62 | -32.22 | 85.81 | 0.5312 | -746.1 | -724.4 | |
| 8 | -66 | 5 | -66 | 9.50 | 74.44 | -32.39 | 83.33 | 0.5341 | -1356.2 | 999999 | |
| 0 | 4 | 0 | 2 | 14.75 | 73.47 | -33.36 | 73.88 | 0.5558 | -560.0 | -454.9 | |
| 0 | 14 | 0 | 8 | 13.73 | 73.59 | -33.24 | 75.67 | 0.5518 | -587.0 | -454.9 | |
| 0 | 4 | 0 | 2 | 9.90 | 74.02 | -32.81 | 82.61 | 0.5405 | -741.0 | -715.9 | |
| 0 | 25 | 0 | 15 | 13.33 | 73.51 | -33.32 | 76.41 | 0.5521 | -433.0 | -533.1 | |
| 0 | 6 | 0 | 4 | 15.13 | 73.21 | -33.62 | 73.29 | 0.5603 | -704.0 | -678.4 | |
| 3 | 42 | 2 | 25 | 9.23 | 73.95 | -32.88 | 83.86 | 0.5411 | -1079.0 | -850.9 | |
| 7 | -66 | 4 | -66 | 7.79 | 74.05 | -32.79 | 86.53 | 0.5397 | -623.1 | 999999 | |
| 0 | 5 | 0 | 3 | 10.35 | 73.73 | -33.10 | 81.80 | 0.5450 | -497.0 | -501.6 | |
| 0 | 5 | 0 | 3 | 13.92 | 72.93 | -33.90 | 75.49 | 0.5614 | -704.0 | -731.3 | |
| 5 | -73 | 3 | -73 | 9.16 | 73.49 | -33.35 | 84.00 | 0.5478 | -998.5 | 999999 | |
| 0 | 12 | 0 | 7 | 11.03 | 73.22 | -33.62 | 80.63 | 0.5529 | -488.0 | -683.7 | |
| 0 | 12 | 0 | 7 | 14.22 | 72.74 | -34.10 | 75.01 | 0.5648 | -871.0 | -699.5 | |
| 0 | 18 | 0 | 11 | 16.42 | 72.33 | -34.51 | 71.32 | 0.5759 | -451.0 | -617.5 | |
| 4 | -66 | 3 | -66 | 7.48 | 73.51 | -33.33 | 87.09 | 0.5476 | -1130.2 | 999999 | |
| 0 | 5 | 0 | 3 | 10.63 | 73.08 | -33.76 | 81.37 | 0.5545 | -876.0 | -690.5 | |
| 0 | 5 | 0 | 3 | 11.91 | 72.86 | -33.98 | 79.09 | 0.5590 | -488.0 | -455.8 | |
| 0 | 5 | 0 | 3 | 10.30 | 72.98 | -33.86 | 81.96 | 0.5558 | -542.0 | -386.4 | |
| 0 | 6 | 0 | 4 | 6.36 | 73.08 | -33.76 | 89.10 | 0.5545 | -506.0 | -482.7 | |
| 0 | 18 | 0 | 11 | 9.00 | 72.74 | -34.09 | 84.33 | 0.5585 | -1034.0 | -855.5 | |
| 0 | 5 | 0 | 3 | 17.66 | 71.26 | -35.58 | 69.60 | 0.5937 | -708.0 | -642.8 | |
| 0 | 26 | 0 | 16 | 11.36 | 72.36 | -34.48 | 80.14 | 0.5655 | -971.0 | -850.0 | |
| 0 | 4 | 0 | 2 | 6.92 | 72.75 | -34.09 | 88.06 | 0.5588 | -795.0 | -647.5 | |
| 0 | 23 | 0 | 14 | 10.95 | 72.12 | -34.71 | 80.89 | 0.5684 | -1070.0 | -870.3 | |
| 0 | 5 | 0 | 3 | 6.56 | 72.59 | -34.25 | 88.69 | 0.5614 | -677.0 | -549.9 | |
| 5 | 11 | 3 | 6 | 8.61 | 72.21 | -34.63 | 85.03 | 0.5661 | -830.7 | -641.7 | |
| 11 | 40 | 7 | 24 | 10.30 | 71.82 | -35.02 | 82.05 | 0.5722 | -1158.0 | -815.3 | |
| 3 | 10 | 2 | 6 | 9.60 | 71.91 | -34.93 | 83.28 | 0.5706 | -777.5 | -593.1 | |
| 0 | 4 | 0 | 3 | 7.89 | 72.04 | -34.79 | 86.30 | 0.5686 | -691.0 | -600.3 | |
| 0 | 2 | 0 | 1 | 8.22 | 71.67 | -35.16 | 85.71 | 0.5738 | -686.0 | -634.0 | |
| 11 | 62 | 7 | 38 | 12.65 | 71.04 | -35.80 | 78.09 | 0.5855 | -1241.3 | -837.7 | |
| 0 | 3 | 0 | 2 | 9.57 | 71.38 | -35.46 | 83.36 | 0.5781 | -713.0 | -722.9 | |
| 0 | 25 | 0 | 15 | 7.58 | 71.54 | -35.29 | 86.82 | 0.5758 | -722.0 | -508.3 | |
| 0 | 4 | 0 | 3 | 8.08 | 71.35 | -35.49 | 85.95 | 0.5784 | -663.0 | -560.7 | |
| 3 | 23 | 2 | 14 | 9.86 | 71.15 | -35.69 | 82.86 | 0.5815 | -954.4 | -735.6 | |
| 3 | -101 | 2 | -101 | 9.68 | 70.83 | -36.01 | 83.18 | 0.5859 | -772.9 | 999999 | |
| 0 | 11 | 0 | 7 | 8.19 | 70.75 | -36.08 | 85.74 | 0.5868 | -636.0 | -399.6 | |
| 0 | 3 | 0 | 2 | 13.90 | 69.77 | -37.06 | 76.22 | 0.6046 | -852.0 | -581.5 | |
| 0 | 5 | 0 | 3 | 8.71 | 70.30 | -36.53 | 84.86 | 0.5930 | -528.0 | -583.8 | |
| 5 | 29 | 3 | 18 | 9.19 | 69.95 | -36.89 | 84.05 | 0.5980 | -833.5 | -750.1 | |
| 0 | 4 | 0 | 3 | 8.41 | 70.04 | -36.80 | 85.35 | 0.5967 | -388.0 | -449.0 | |
| 0 | 4 | 0 | 3 | 14.75 | 68.94 | -37.89 | 75.00 | 0.6172 | -761.0 | -681.4 | |
| 0 | 4 | 0 | 3 | 15.30 | 68.83 | -38.01 | 74.14 | 0.6197 | -554.0 | -439.3 | |
| 0 | 4 | 0 | 3 | 8.90 | 69.79 | -37.05 | 84.53 | 0.6002 | -686.0 | -629.2 | |
| 0 | 5 | 0 | 3 | 9.76 | 69.63 | -37.21 | 83.11 | 0.6025 | -356.0 | -251.3 | |
| 0 | 5 | 0 | 3 | 6.67 | 69.82 | -37.02 | 88.26 | 0.6005 | -483.0 | -405.5 | |
| 21 | 58 | 13 | 37 | 13.86 | 68.66 | -38.17 | 76.49 | 0.6194 | -1133.8 | -416.2 | |
| 0 | 8 | 0 | 5 | 8.65 | 69.47 | -37.37 | 84.96 | 0.6046 | 27.0 | -104.9 | |
| 0 | 8 | 0 | 5 | 9.18 | 69.30 | -37.53 | 84.07 | 0.6069 | -546.0 | -435.9 | |
| 0 | 6 | 0 | 4 | 10.10 | 68.48 | -38.36 | 82.59 | 0.6184 | -577.0 | -473.5 | |
| 0 | 3 | 0 | 2 | 8.39 | 68.65 | -38.19 | 85.37 | 0.6159 | -451.0 | -372.7 | |
| 0 | 4 | 0 | 3 | 12.26 | 67.83 | -39.01 | 79.17 | 0.6285 | -500.0 | -458.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
