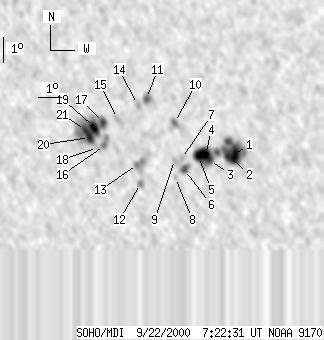

SOHO MDI 2000-09-22 07:22:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63 | 324 | 35 | 182 | -5.66 | 81.19 | -23.34 | 118.21 | 0.4489 | -350.3 | -65.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-22 07:22:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20 | 135 | 11 | 74 | -5.88 | 84.36 | -20.17 | 122.19 | 0.4071 | -1436.5 | -780.4 | |
| -1 | -1 | -1 | -1 | -5.97 | 84.15 | -20.38 | 122.10 | 0.4107 | 999999 | 999999 | |
| 3 | -1 | 2 | -1 | -6.16 | 83.35 | -21.19 | 121.48 | 0.4232 | -958.6 | 999999 | |
| 15 | -1 | 8 | -1 | -5.93 | 83.19 | -21.35 | 120.81 | 0.4234 | -1087.8 | 999999 | |
| -4 | -1 | -4 | -1 | -6.03 | 82.89 | -21.65 | 120.64 | 0.4282 | 999999 | 999999 | |
| 4 | 13 | 2 | 7 | -6.57 | 82.27 | -22.27 | 121.00 | 0.4410 | -542.9 | -473.1 | |
| 0 | 2 | 0 | 1 | -6.14 | 82.16 | -22.37 | 120.02 | 0.4389 | -504.0 | -438.0 | |
| 0 | 3 | 0 | 2 | -6.92 | 81.87 | -22.67 | 121.20 | 0.4491 | -435.0 | -273.7 | |
| 0 | 5 | 0 | 3 | -6.19 | 81.86 | -22.67 | 119.79 | 0.4434 | -294.0 | -314.4 | |
| 0 | 6 | 0 | 4 | -4.71 | 81.92 | -22.61 | 116.87 | 0.4314 | -756.0 | -549.0 | |
| 0 | 11 | 0 | 6 | -3.82 | 80.76 | -23.78 | 113.85 | 0.4417 | 1191.0 | 888.5 | |
| 0 | 5 | 0 | 3 | -7.23 | 80.35 | -24.18 | 120.12 | 0.4718 | 1060.0 | 769.9 | |
| 0 | 19 | 0 | 11 | -6.47 | 80.26 | -24.27 | 118.61 | 0.4672 | 564.0 | 548.3 | |
| 0 | 5 | 0 | 3 | -4.08 | 80.37 | -24.17 | 114.01 | 0.4490 | 770.0 | 636.9 | |
| 0 | 5 | 0 | 3 | -4.68 | 79.48 | -25.05 | 114.40 | 0.4654 | 395.0 | 453.5 | |
| 0 | 11 | 0 | 6 | -5.79 | 78.87 | -25.67 | 115.97 | 0.4813 | 1072.0 | 837.8 | |
| 4 | 99 | 2 | 56 | -4.87 | 78.87 | -25.67 | 114.23 | 0.4752 | 1048.8 | 531.2 | |
| 0 | 5 | 0 | 3 | -5.88 | 78.56 | -25.98 | 115.87 | 0.4862 | 531.0 | 499.5 | |
| 8 | -17 | 5 | -17 | -5.09 | 78.47 | -26.07 | 114.30 | 0.4822 | 1309.2 | 999999 | |
| 6 | -17 | 3 | -17 | -5.50 | 78.23 | -26.31 | 114.86 | 0.4882 | 1032.1 | 999999 | |
| 3 | -17 | 2 | -17 | -5.23 | 78.07 | -26.47 | 114.22 | 0.4887 | 1009.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
