group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	786	5904	412	3061	10.38	79.62	-16.66	77.15	0.2909	969.6	230.1

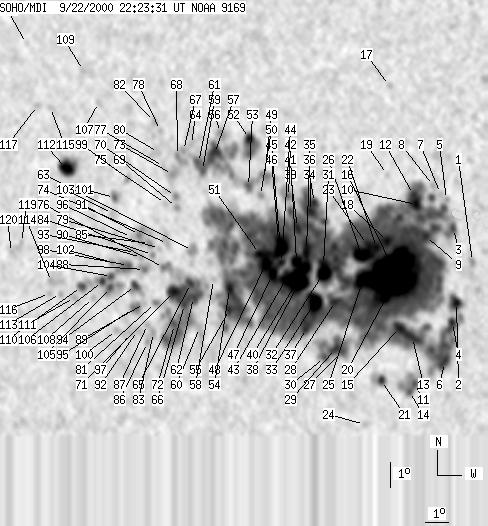

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-22 22:23:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	8	0	4	10.79	86.10	-10.18	68.65	0.1873	-930.0	-745.7
2	6	4550	3	2336	9.18	85.51	-10.77	77.78	0.1897	-213.6	480.3
3	3	-2	2	-2	12.07	85.28	-11.00	64.17	0.2082	-1003.9	999999
4	6	-2	3	-2	8.40	85.37	-10.91	81.99	0.1899	243.4	999999
5	0	4	0	2	13.20	84.95	-11.33	60.09	0.2217	-807.0	-733.0
6	11	-2	6	-2	6.83	85.09	-11.19	90.26	0.1936	-266.0	999999
7	0	4	0	2	13.42	84.69	-11.59	59.71	0.2273	-765.0	-655.5
8	0	5	0	2	13.73	84.39	-11.89	59.15	0.2342	-774.0	-557.0
9	5	-2	3	-2	11.73	84.16	-12.12	67.57	0.2234	62.2	999999
10	9	-2	4	-2	12.97	83.73	-12.55	63.27	0.2381	-660.2	999999
11	3	47	2	24	5.98	83.91	-12.37	94.07	0.2146	-902.9	-360.5
12	5	-2	3	-2	13.36	83.59	-12.69	62.05	0.2431	1250.6	999999
13	16	-2	8	-2	7.77	83.78	-12.50	85.69	0.2160	1538.5	999999
14	3	-11	2	-11	5.67	83.71	-12.57	95.43	0.2185	-851.8	999999
15	12	-2	6	-2	8.15	83.24	-13.04	84.13	0.2255	1666.0	999999
16	204	-2	104	-2	10.29	83.00	-13.28	75.05	0.2350	2126.2	999999
17	0	4	0	2	17.62	82.31	-13.97	50.81	0.2982	493.0	458.7
18	6	-2	3	-2	11.49	82.62	-13.66	70.61	0.2465	1629.8	999999
19	0	5	0	2	14.11	82.47	-13.81	61.24	0.2652	526.0	386.2
20	11	-2	6	-2	9.26	82.63	-13.64	79.61	0.2378	1761.7	999999
21	6	24	3	12	6.06	82.58	-13.70	93.19	0.2370	-810.7	-318.2
22	7	-2	4	-2	11.24	82.18	-14.10	72.06	0.2523	1543.4	999999
23	9	-2	5	-2	11.35	81.80	-14.48	72.04	0.2588	1091.8	999999
24	0	6	0	3	4.33	81.93	-14.35	99.88	0.2520	-693.0	-660.7
25	30	-2	15	-2	9.94	81.67	-14.61	77.53	0.2556	1688.5	999999
26	22	-2	11	-2	10.95	81.58	-14.70	73.75	0.2607	1516.4	999999
27	6	96	3	49	7.14	80.96	-15.32	88.55	0.2634	-917.9	59.2
28	10	-2	5	-2	9.08	80.60	-15.68	81.34	0.2711	1267.9	999999
29	9	-27	5	-27	7.25	80.67	-15.60	88.14	0.2682	-662.9	999999
30	4	-27	2	-27	6.89	80.24	-16.04	89.47	0.2756	981.2	999999
31	27	-2	14	-2	10.51	80.04	-16.24	76.54	0.2841	1880.1	999999
32	-31	-2	-31	-2	10.12	80.01	-16.26	77.92	0.2832	999999	999999
33	28	-2	15	-2	9.02	79.74	-16.54	81.91	0.2852	1711.6	999999
34	5	-2	2	-2	12.92	79.51	-16.77	68.99	0.3025	-1128.9	999999
35	11	-2	6	-2	12.56	79.37	-16.91	70.26	0.3030	-299.4	999999
36	13	-2	7	-2	11.03	79.30	-16.98	75.27	0.2977	1499.3	999999
37	4	-2	2	-2	7.99	79.46	-16.82	85.56	0.2887	-753.4	999999
38	54	-2	28	-2	10.33	79.34	-16.94	77.58	0.2948	2078.4	999999
39	9	-2	5	-2	11.92	78.87	-17.41	72.73	0.3079	1254.5	999999
40	-38	-2	-38	-2	9.85	78.99	-17.28	79.37	0.2992	999999	999999
41	9	-2	5	-2	10.59	78.91	-17.37	76.98	0.3025	1663.9	999999
42	0	23	0	12	13.12	78.41	-17.87	69.44	0.3206	644.0	309.3
43	14	-2	7	-2	9.87	78.50	-17.78	79.53	0.3073	1534.4	999999
44	3	-2	2	-2	10.53	78.29	-17.99	77.52	0.3123	1658.1	999999
45	32	-2	17	-2	11.03	78.22	-18.06	75.97	0.3150	1726.0	999999
46	-45	-2	-45	-2	11.38	78.11	-18.17	74.96	0.3179	999999	999999
47	11	-2	6	-2	10.04	77.94	-18.33	79.21	0.3167	1703.2	999999
48	11	-2	6	-2	10.42	77.63	-18.65	78.18	0.3227	1583.4	999999
49	0	14	0	7	13.90	77.33	-18.95	68.15	0.3411	28.0	1.4
50	0	8	0	4	13.11	77.23	-19.05	70.47	0.3388	620.0	492.0
51	4	-2	2	-2	10.84	77.35	-18.93	77.04	0.3284	1246.9	999999
52	8	54	4	29	15.33	76.56	-19.72	65.03	0.3605	-1334.8	-769.4
53	4	15	2	8	13.44	76.69	-19.59	69.97	0.3486	-189.6	-69.1
54	9	-2	5	-2	9.43	76.18	-20.10	81.69	0.3441	-1610.8	999999
55	9	-2	5	-2	8.61	76.23	-20.05	84.07	0.3423	-1183.3	999999
56	0	13	0	7	15.51	75.29	-20.99	65.73	0.3803	-921.0	-997.7
57	21	151	11	81	14.68	75.12	-21.16	67.96	0.3784	-667.6	-189.4
58	0	5	0	3	9.75	75.48	-20.80	80.97	0.3559	-507.0	-454.3
59	3	-57	2	-57	13.99	74.67	-21.61	70.04	0.3819	-10.4	999999
60	0	3	0	2	7.85	75.00	-21.27	86.35	0.3617	-701.0	-642.8
61	4	-57	2	-57	14.29	74.46	-21.82	69.42	0.3864	-406.8	999999
62	12	293	7	156	9.01	74.68	-21.60	83.20	0.3677	-692.4	-859.8
63	0	17	0	9	10.84	74.51	-21.77	78.31	0.3735	-502.0	-452.2
64	0	9	0	5	14.99	74.08	-22.19	67.99	0.3953	-845.0	-688.6
65	8	-62	4	-62	9.55	74.52	-21.76	81.77	0.3710	-1414.2	999999
66	6	-62	3	-62	8.72	74.32	-21.96	84.04	0.3733	-981.4	999999
67	0	7	0	4	14.74	73.76	-22.52	68.83	0.3989	-868.0	-804.3
68	0	14	0	8	14.53	73.52	-22.76	69.50	0.4015	-771.0	-486.2
69	0	6	0	3	12.49	73.68	-22.59	74.42	0.3911	-795.0	-718.7
70	0	6	0	3	12.92	73.60	-22.68	73.39	0.3938	-859.0	-754.0
71	16	-62	9	-62	9.21	73.86	-22.42	82.82	0.3811	-1366.5	999999
72	3	-62	1	-62	7.92	73.94	-22.34	86.20	0.3789	-1119.8	999999
73	0	21	0	11	13.77	73.38	-22.89	71.41	0.4003	-950.0	-739.4
74	0	17	0	9	11.07	73.42	-22.86	78.13	0.3912	-997.0	-817.7
75	0	5	0	3	12.62	73.19	-23.08	74.33	0.3991	-532.0	-463.6
76	0	16	0	9	10.12	73.32	-22.96	80.57	0.3909	-951.0	-903.2
77	0	3	0	2	14.07	72.96	-23.32	70.96	0.4079	-619.0	-592.4
78	0	4	0	2	15.48	72.67	-23.61	67.86	0.4185	-765.0	-666.0
79	0	3	0	2	10.86	73.09	-23.19	78.78	0.3959	-670.0	-599.5
80	0	15	0	8	14.61	72.68	-23.60	69.86	0.4144	-875.0	-665.3
81	0	6	0	3	8.74	73.08	-23.20	84.14	0.3931	-790.0	-682.8
82	0	6	0	3	15.82	72.36	-23.92	67.30	0.4246	-805.0	-702.5
83	0	8	0	4	7.57	73.06	-23.22	87.14	0.3929	-877.0	-744.0
84	0	4	0	2	10.61	72.81	-23.47	79.49	0.3998	-858.0	-722.6
85	0	7	0	4	11.03	72.64	-23.63	78.49	0.4033	-1128.0	-1008.0
86	0	5	0	3	7.17	72.83	-23.45	88.15	0.3968	-794.0	-642.6
87	0	4	0	2	7.87	72.79	-23.49	86.38	0.3973	-473.0	-522.0
88	0	12	0	7	10.01	72.51	-23.77	81.06	0.4035	-1146.0	-975.9
89	0	4	0	2	8.68	72.61	-23.67	84.35	0.4005	-738.0	-669.8
90	0	5	0	3	10.47	72.34	-23.93	79.97	0.4069	-889.0	-787.8
91	0	23	0	13	11.36	72.18	-24.10	77.84	0.4112	-1035.0	-857.4
92	0	9	0	5	7.62	72.37	-23.91	87.02	0.4039	-546.0	-580.6
93	0	10	0	5	10.65	72.07	-24.21	79.60	0.4115	-861.0	-779.9
94	5	23	3	13	9.36	72.17	-24.11	82.71	0.4080	-1059.2	-756.7
95	0	19	0	10	8.46	72.15	-24.13	84.93	0.4077	-971.0	-927.2
96	0	2	0	1	11.23	71.84	-24.44	78.28	0.4162	-820.0	-764.3
97	0	12	0	7	7.48	72.08	-24.20	87.34	0.4086	-568.0	-471.1
98	3	22	2	12	10.13	71.81	-24.47	80.92	0.4147	-1292.1	-1021.3
99	0	8	0	4	13.52	71.44	-24.84	73.07	0.4288	-873.0	-652.9
100	0	5	0	3	7.57	71.47	-24.81	87.12	0.4183	-586.0	-457.7
101	0	16	0	9	12.75	70.94	-25.33	75.05	0.4338	-1252.0	-883.2
102	0	6	0	3	10.21	71.10	-25.18	80.88	0.4259	-695.0	-599.1
103	0	9	0	5	12.12	70.92	-25.36	76.50	0.4324	-850.0	-733.4
104	3	51	2	28	9.66	71.10	-25.18	82.17	0.4251	-873.3	-728.7
105	4	-104	2	-104	9.23	71.09	-25.19	83.19	0.4248	-1060.0	999999
106	4	-104	2	-104	9.45	70.72	-25.55	82.73	0.4308	-858.1	999999
107	0	8	0	4	16.44	69.76	-26.52	67.65	0.4650	-451.0	-369.5
108	0	3	0	2	8.80	70.38	-25.90	84.26	0.4356	-443.0	-424.7
109	0	4	0	2	17.66	68.88	-27.40	65.71	0.4831	323.0	395.4
110	6	19	3	11	9.20	69.82	-26.46	83.40	0.4446	-922.2	-719.9
111	0	8	0	4	8.76	69.55	-26.73	84.43	0.4486	-729.0	-671.3
112	20	50	11	28	13.77	68.67	-27.60	73.75	0.4707	-1295.2	-777.3
113	0	4	0	2	8.88	68.92	-27.36	84.20	0.4584	-706.0	-617.7
114	0	21	0	12	9.33	68.48	-27.80	83.28	0.4654	-564.0	-580.9
115	0	10	0	5	16.12	67.60	-28.67	69.46	0.4943	-758.0	-649.0
116	0	4	0	2	8.85	68.43	-27.85	84.30	0.4658	-441.0	-485.1
117	0	7	0	4	16.17	66.99	-29.29	69.67	0.5031	-716.0	-597.9
118	0	3	0	2	18.58	66.04	-30.24	65.62	0.5262	-615.0	-579.6
119	0	10	0	6	10.77	66.98	-29.30	80.46	0.4894	-780.0	-640.6
120	0	2	0	1	10.35	66.57	-29.71	81.37	0.4951	-535.0	-523.8

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
