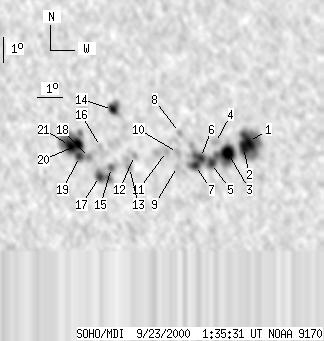

SOHO MDI 2000-09-23 01:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93 | 413 | 48 | 215 | -5.74 | 82.27 | -12.25 | 136.53 | 0.3062 | -468.6 | -138.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-23 01:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17 | 86 | 9 | 44 | -5.27 | 85.39 | -9.13 | 143.19 | 0.2649 | -1658.9 | -799.2 | |
| 10 | -1 | 5 | -1 | -5.51 | 85.19 | -9.33 | 143.13 | 0.2702 | -1454.3 | 999999 | |
| 18 | 125 | 9 | 65 | -5.77 | 84.59 | -9.93 | 141.95 | 0.2797 | -1539.3 | -822.6 | |
| 0 | 8 | 0 | 4 | -5.34 | 84.08 | -10.44 | 139.57 | 0.2795 | -78.0 | -176.9 | |
| 5 | -3 | 3 | -3 | -6.18 | 83.90 | -10.62 | 140.98 | 0.2923 | -1066.1 | 999999 | |
| 4 | -3 | 2 | -3 | -5.95 | 83.47 | -11.05 | 139.34 | 0.2939 | -1282.1 | 999999 | |
| 6 | -3 | 3 | -3 | -6.28 | 83.26 | -11.26 | 139.53 | 0.3003 | -944.7 | 999999 | |
| 0 | 4 | 0 | 2 | -4.97 | 82.65 | -11.87 | 135.01 | 0.2912 | -520.0 | -396.5 | |
| 0 | 4 | 0 | 2 | -6.33 | 82.54 | -11.98 | 137.87 | 0.3090 | -570.0 | -519.7 | |
| 0 | 7 | 0 | 4 | -5.77 | 82.55 | -11.97 | 136.66 | 0.3019 | -487.0 | -588.3 | |
| 0 | 21 | 0 | 11 | -5.75 | 82.11 | -12.41 | 135.55 | 0.3067 | -468.0 | -116.9 | |
| 0 | 4 | 0 | 2 | -5.94 | 80.82 | -13.70 | 133.13 | 0.3242 | 612.0 | 532.6 | |
| 0 | 14 | 0 | 7 | -6.43 | 80.60 | -13.92 | 133.75 | 0.3323 | 830.0 | 671.1 | |
| 6 | 21 | 3 | 11 | -4.13 | 79.97 | -14.55 | 127.08 | 0.3154 | 1086.4 | 748.3 | |
| 0 | 10 | 0 | 5 | -6.45 | 79.87 | -14.65 | 132.33 | 0.3413 | 1065.0 | 898.3 | |
| 0 | 5 | 0 | 3 | -5.63 | 79.45 | -15.07 | 129.67 | 0.3376 | 663.0 | 651.1 | |
| 5 | 27 | 3 | 14 | -6.83 | 79.37 | -15.14 | 132.17 | 0.3515 | 1070.0 | 857.3 | |
| 0 | 2 | 0 | 1 | -6.08 | 78.99 | -15.53 | 129.83 | 0.3482 | 1078.0 | 973.2 | |
| 4 | 75 | 2 | 40 | -6.05 | 78.58 | -15.93 | 129.03 | 0.3530 | 991.2 | 789.3 | |
| 7 | -19 | 3 | -19 | -5.58 | 78.56 | -15.96 | 127.91 | 0.3484 | 1525.2 | 999999 | |
| 11 | -19 | 6 | -19 | -5.63 | 78.19 | -16.33 | 127.39 | 0.3537 | 1295.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
