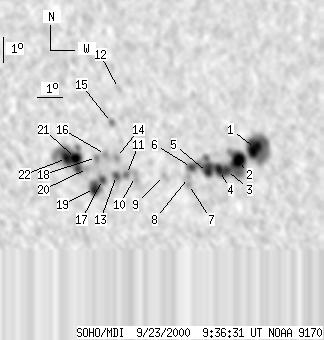

SOHO MDI 2000-09-23 09:36:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87 | 441 | 46 | 226 | -5.74 | 82.25 | -7.87 | 149.14 | 0.2625 | -315.7 | -91.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-23 09:36:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17 | 84 | 9 | 43 | -5.13 | 85.72 | -4.40 | 160.00 | 0.2242 | -1717.2 | -759.0 | |
| 14 | 141 | 7 | 72 | -5.61 | 85.04 | -5.07 | 158.03 | 0.2360 | -1664.1 | -842.7 | |
| 5 | -2 | 2 | -2 | -6.02 | 84.57 | -5.54 | 156.85 | 0.2454 | -1317.8 | 999999 | |
| 8 | -2 | 4 | -2 | -6.02 | 84.29 | -5.82 | 155.83 | 0.2474 | -1264.1 | 999999 | |
| 6 | -2 | 3 | -2 | -6.11 | 83.82 | -6.29 | 154.26 | 0.2521 | -1088.5 | 999999 | |
| 3 | -2 | 2 | -2 | -5.92 | 83.19 | -6.92 | 151.70 | 0.2540 | -1076.7 | 999999 | |
| 0 | 6 | 0 | 3 | -6.60 | 83.06 | -7.05 | 152.50 | 0.2652 | -669.0 | -607.5 | |
| 0 | 5 | 0 | 2 | -6.32 | 83.06 | -7.05 | 152.01 | 0.2610 | -692.0 | -668.2 | |
| 0 | 8 | 0 | 4 | -6.26 | 82.12 | -7.99 | 148.78 | 0.2679 | -231.0 | -110.5 | |
| 0 | 9 | 0 | 5 | -6.32 | 80.97 | -9.14 | 145.37 | 0.2792 | 624.0 | 609.7 | |
| 0 | 12 | 0 | 6 | -6.24 | 80.61 | -9.50 | 144.18 | 0.2817 | 1047.0 | 795.2 | |
| 0 | 5 | 0 | 3 | -2.83 | 80.34 | -9.77 | 134.89 | 0.2404 | 626.0 | 573.3 | |
| 3 | 10 | 2 | 5 | -6.29 | 80.21 | -9.90 | 143.15 | 0.2863 | 1082.0 | 885.8 | |
| 0 | 8 | 0 | 4 | -5.57 | 80.22 | -9.89 | 141.63 | 0.2765 | 885.0 | 870.2 | |
| 0 | 7 | 0 | 3 | -4.18 | 80.05 | -10.06 | 137.77 | 0.2605 | 997.0 | 818.9 | |
| 0 | 5 | 0 | 2 | -5.46 | 79.79 | -10.32 | 140.16 | 0.2797 | 941.0 | 910.4 | |
| 3 | 41 | 2 | 21 | -6.47 | 79.65 | -10.46 | 141.98 | 0.2943 | 1204.2 | 813.3 | |
| 0 | 7 | 0 | 4 | -5.59 | 79.43 | -10.68 | 139.47 | 0.2852 | 889.0 | 751.3 | |
| 11 | -17 | 6 | -17 | -6.83 | 79.32 | -10.79 | 141.88 | 0.3025 | 1090.0 | 999999 | |
| 0 | 7 | 0 | 4 | -6.04 | 79.06 | -11.05 | 139.51 | 0.2949 | 991.0 | 839.5 | |
| 7 | 86 | 4 | 45 | -5.65 | 78.59 | -11.52 | 137.44 | 0.2952 | 1541.4 | 688.8 | |
| 10 | -21 | 5 | -21 | -5.66 | 78.23 | -11.88 | 136.58 | 0.2994 | 1328.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
