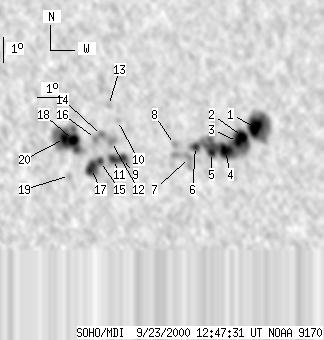

SOHO MDI 2000-09-23 12:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89 | 478 | 45 | 244 | -5.79 | 82.36 | -6.00 | 155.76 | 0.2488 | -325.1 | -103.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-23 12:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 239 | 9 | 121 | -5.08 | 85.81 | -2.55 | 168.02 | 0.2146 | -1722.9 | -801.7 | |
| 8 | -1 | 4 | -1 | -5.44 | 85.30 | -3.06 | 166.11 | 0.2226 | -1603.1 | 999999 | |
| 4 | -1 | 2 | -1 | -5.64 | 85.10 | -3.26 | 165.48 | 0.2268 | -1563.8 | 999999 | |
| 15 | -1 | 8 | -1 | -6.01 | 84.63 | -3.73 | 163.92 | 0.2349 | -1283.2 | 999999 | |
| 4 | -1 | 2 | -1 | -6.09 | 84.07 | -4.28 | 161.80 | 0.2390 | -1019.0 | 999999 | |
| 4 | -1 | 2 | -1 | -5.86 | 83.45 | -4.91 | 159.00 | 0.2388 | -930.1 | 999999 | |
| 0 | 28 | 0 | 15 | -6.30 | 83.21 | -5.15 | 158.74 | 0.2473 | -778.0 | -492.0 | |
| 0 | 6 | 0 | 3 | -5.79 | 82.62 | -5.74 | 155.73 | 0.2431 | -685.0 | -580.4 | |
| 4 | 29 | 2 | 15 | -6.38 | 80.56 | -7.80 | 149.63 | 0.2679 | 1287.2 | 952.6 | |
| 0 | 4 | 0 | 2 | -4.86 | 80.39 | -7.97 | 145.91 | 0.2478 | 582.0 | 477.9 | |
| 3 | -9 | 2 | -9 | -6.42 | 80.20 | -8.16 | 148.58 | 0.2717 | 1175.5 | 999999 | |
| 0 | 11 | 0 | 6 | -5.70 | 80.14 | -8.22 | 146.93 | 0.2620 | 1000.0 | 936.9 | |
| 0 | 5 | 0 | 2 | -4.27 | 80.04 | -8.32 | 143.35 | 0.2430 | 778.0 | 622.7 | |
| 0 | 6 | 0 | 3 | -5.47 | 79.74 | -8.62 | 145.19 | 0.2624 | 1005.0 | 979.7 | |
| 3 | 38 | 1 | 20 | -6.51 | 79.69 | -8.67 | 147.17 | 0.2775 | 1263.4 | 817.3 | |
| 0 | 8 | 0 | 4 | -5.60 | 79.50 | -8.86 | 144.71 | 0.2664 | 837.0 | 741.3 | |
| 11 | -15 | 6 | -15 | -6.80 | 79.32 | -9.03 | 146.65 | 0.2849 | 1118.1 | 999999 | |
| 8 | 99 | 4 | 51 | -5.69 | 78.63 | -9.73 | 142.33 | 0.2765 | 1555.1 | 700.9 | |
| 0 | 5 | 0 | 2 | -7.10 | 78.44 | -9.92 | 144.73 | 0.2973 | 437.0 | 390.9 | |
| 7 | -18 | 3 | -18 | -5.62 | 78.27 | -10.09 | 141.16 | 0.2792 | 1436.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
