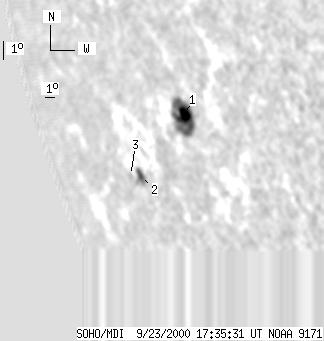

SOHO MDI 2000-09-23 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11 | 113 | 12 | 136 | -14.17 | 23.31 | -62.41 | 109.11 | 0.9100 | -724.3 | -157.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-23 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11 | 94 | 12 | 107 | -13.48 | 24.63 | -61.09 | 108.73 | 0.9007 | -751.1 | -253.1 | |
| 0 | 15 | 0 | 22 | -16.67 | 18.74 | -66.98 | 110.54 | 0.9430 | 506.0 | 343.4 | |
| 0 | 4 | 0 | 7 | -16.81 | 17.56 | -68.16 | 110.40 | 0.9494 | -349.0 | -277.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
