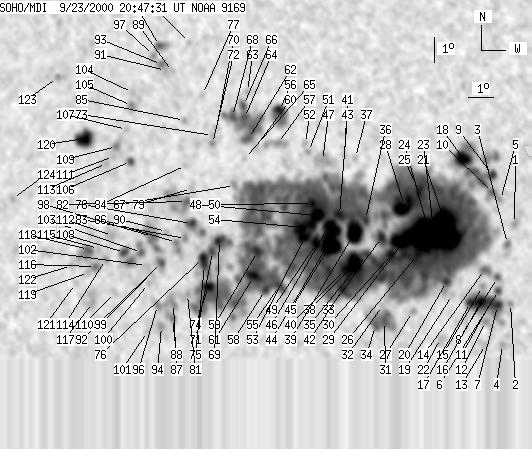

SOHO MDI 2000-09-23 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 742 | 6051 | 371 | 3022 | 10.25 | 79.55 | -4.41 | 53.06 | 0.0954 | 1095.9 | 270.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-23 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 8 | 0 | 4 | 10.55 | 86.28 | 2.32 | 327.43 | 0.0744 | -1027.0 | -815.3 | |
| 0 | 5 | 0 | 3 | 7.43 | 86.11 | 2.15 | 282.10 | 0.0381 | -812.0 | -600.4 | |
| 0 | 8 | 0 | 4 | 9.77 | 86.00 | 2.04 | 324.27 | 0.0604 | -553.0 | -365.3 | |
| 0 | 7 | 0 | 3 | 5.84 | 85.79 | 1.83 | 237.84 | 0.0376 | -863.0 | -637.1 | |
| 0 | 7 | 0 | 3 | 11.49 | 85.73 | 1.77 | 338.93 | 0.0847 | -65.0 | -44.8 | |
| 3 | 130 | 2 | 64 | 7.94 | 85.64 | 1.68 | 300.12 | 0.0336 | 313.1 | 526.3 | |
| 8 | -6 | 4 | -6 | 7.36 | 85.60 | 1.63 | 283.14 | 0.0292 | -367.6 | 999999 | |
| 3 | 7 | 1 | 4 | 8.45 | 85.60 | 1.64 | 312.20 | 0.0384 | 403.7 | 205.6 | |
| 4 | 4762 | 2 | 2368 | 12.47 | 85.42 | 1.46 | 345.42 | 0.0993 | -1212.3 | 466.7 | |
| 3 | 22 | 1 | 11 | 11.77 | 85.42 | 1.46 | 343.40 | 0.0875 | -662.4 | -278.5 | |
| 8 | -6 | 4 | -6 | 7.47 | 85.32 | 1.36 | 290.17 | 0.0252 | 653.1 | 999999 | |
| 0 | 11 | 0 | 6 | 6.73 | 85.12 | 1.16 | 257.99 | 0.0207 | -216.0 | -173.6 | |
| 0 | 13 | 0 | 6 | 5.84 | 85.12 | 1.16 | 225.29 | 0.0284 | -652.0 | -499.4 | |
| 0 | 14 | 0 | 7 | 8.76 | 85.09 | 1.13 | 327.98 | 0.0368 | 648.0 | 291.2 | |
| 0 | 8 | 0 | 4 | 8.10 | 85.01 | 1.05 | 317.19 | 0.0267 | -197.0 | -83.5 | |
| 13 | -6 | 7 | -6 | 7.48 | 84.93 | 0.97 | 297.33 | 0.0189 | 1588.2 | 999999 | |
| 7 | -6 | 4 | -6 | 7.48 | 84.53 | 0.57 | 311.06 | 0.0132 | 1501.4 | 999999 | |
| 21 | -9 | 11 | -9 | 13.10 | 84.26 | 0.30 | 357.23 | 0.1072 | -53.8 | 999999 | |
| 0 | 4 | 0 | 2 | 7.79 | 83.83 | -0.13 | 9.36 | 0.0143 | 587.0 | 542.2 | |
| 4 | -9 | 2 | -9 | 8.29 | 83.59 | -0.37 | 15.60 | 0.0239 | -119.6 | 999999 | |
| 213 | -9 | 106 | -9 | 10.67 | 83.51 | -0.45 | 6.87 | 0.0652 | 2218.0 | 999999 | |
| 0 | 12 | 0 | 6 | 6.07 | 83.36 | -0.60 | 146.51 | 0.0191 | -572.0 | -572.8 | |
| 3 | -9 | 1 | -9 | 9.70 | 83.15 | -0.81 | 16.32 | 0.0496 | 2180.8 | 999999 | |
| -21 | -9 | -21 | -9 | 10.17 | 82.92 | -1.05 | 17.91 | 0.0587 | 999999 | 999999 | |
| 8 | -9 | 4 | -9 | 11.80 | 82.51 | -1.45 | 16.40 | 0.0881 | 1077.8 | 999999 | |
| 7 | -9 | 3 | -9 | 9.34 | 82.44 | -1.52 | 32.32 | 0.0491 | 1749.8 | 999999 | |
| 0 | 5 | 0 | 2 | 7.12 | 82.26 | -1.70 | 85.12 | 0.0298 | 334.0 | 332.8 | |
| 30 | -9 | 15 | -9 | 11.26 | 81.92 | -2.04 | 25.11 | 0.0828 | 1758.9 | 999999 | |
| -21 | -9 | -21 | -9 | 9.81 | 81.85 | -2.11 | 36.30 | 0.0616 | 999999 | 999999 | |
| 7 | -9 | 4 | -9 | 9.34 | 81.42 | -2.54 | 46.70 | 0.0605 | 1737.8 | 999999 | |
| 6 | 80 | 3 | 40 | 6.73 | 81.16 | -2.80 | 95.04 | 0.0490 | -105.5 | -217.7 | |
| 0 | 5 | 0 | 3 | 7.35 | 81.08 | -2.89 | 82.47 | 0.0506 | -272.0 | -207.9 | |
| 10 | -9 | 5 | -9 | 10.00 | 81.02 | -2.95 | 43.76 | 0.0735 | 1593.0 | 999999 | |
| 5 | -31 | 2 | -31 | 6.57 | 80.81 | -3.16 | 97.30 | 0.0554 | -953.1 | 999999 | |
| 5 | -9 | 2 | -9 | 9.33 | 80.43 | -3.53 | 55.83 | 0.0738 | 1614.3 | 999999 | |
| 5 | -9 | 2 | -9 | 10.70 | 80.37 | -3.59 | 43.37 | 0.0900 | 1598.4 | 999999 | |
| 0 | 6 | 0 | 3 | 13.12 | 79.94 | -4.02 | 32.49 | 0.1277 | -595.0 | -434.2 | |
| 29 | -9 | 14 | -9 | 8.98 | 79.96 | -4.00 | 62.98 | 0.0778 | 2010.3 | 999999 | |
| 36 | -9 | 18 | -9 | 10.19 | 79.94 | -4.02 | 50.80 | 0.0894 | 1913.6 | 999999 | |
| 8 | -9 | 4 | -9 | 8.74 | 79.56 | -4.40 | 67.69 | 0.0823 | 1570.7 | 999999 | |
| 0 | 4 | 0 | 2 | 13.20 | 79.50 | -4.46 | 34.90 | 0.1330 | -196.0 | -191.0 | |
| 5 | -9 | 3 | -9 | 7.96 | 79.49 | -4.47 | 77.23 | 0.0795 | -264.6 | 999999 | |
| 9 | -9 | 5 | -9 | 10.89 | 79.34 | -4.62 | 49.14 | 0.1052 | 1641.9 | 999999 | |
| 12 | -9 | 6 | -9 | 10.22 | 79.19 | -4.77 | 55.19 | 0.1002 | 2010.7 | 999999 | |
| 35 | -9 | 18 | -9 | 9.71 | 79.00 | -4.96 | 60.59 | 0.0984 | 2211.5 | 999999 | |
| 13 | -9 | 7 | -9 | 10.49 | 78.95 | -5.02 | 54.34 | 0.1063 | 1765.1 | 999999 | |
| 0 | 42 | 0 | 21 | 12.99 | 78.62 | -5.34 | 40.77 | 0.1396 | 792.0 | 521.5 | |
| 15 | -9 | 8 | -9 | 10.84 | 78.46 | -5.50 | 54.23 | 0.1166 | 1917.9 | 999999 | |
| 7 | -9 | 4 | -9 | 9.74 | 78.44 | -5.52 | 62.78 | 0.1071 | 1805.4 | 999999 | |
| 6 | -9 | 3 | -9 | 11.30 | 78.25 | -5.71 | 52.08 | 0.1242 | 1548.9 | 999999 | |
| 0 | 4 | 0 | 2 | 13.34 | 78.05 | -5.91 | 42.00 | 0.1505 | 787.0 | 685.7 | |
| 0 | 6 | 0 | 3 | 13.65 | 77.92 | -6.04 | 41.22 | 0.1560 | 61.0 | 102.8 | |
| 13 | -9 | 6 | -9 | 9.97 | 77.96 | -6.00 | 62.83 | 0.1163 | 1819.9 | 999999 | |
| 25 | -9 | 12 | -9 | 10.36 | 77.95 | -6.01 | 59.92 | 0.1196 | 1828.9 | 999999 | |
| 7 | -9 | 4 | -9 | 8.09 | 77.00 | -6.96 | 80.44 | 0.1222 | 238.8 | 999999 | |
| 10 | 47 | 5 | 23 | 14.93 | 76.83 | -7.13 | 40.75 | 0.1846 | -1340.3 | -660.9 | |
| 0 | 29 | 0 | 15 | 13.63 | 76.79 | -7.17 | 46.10 | 0.1692 | -4.0 | 285.9 | |
| 5 | -9 | 3 | -9 | 7.92 | 76.45 | -7.51 | 82.31 | 0.1313 | 552.4 | 999999 | |
| 10 | -9 | 5 | -9 | 9.40 | 76.10 | -7.86 | 72.20 | 0.1424 | -931.8 | 999999 | |
| 0 | 6 | 0 | 3 | 13.50 | 75.90 | -8.06 | 49.91 | 0.1790 | 613.0 | 590.0 | |
| 15 | -9 | 7 | -9 | 8.42 | 75.96 | -8.00 | 79.17 | 0.1408 | -1307.5 | 999999 | |
| 6 | 136 | 3 | 69 | 13.81 | 75.61 | -8.35 | 49.57 | 0.1862 | 936.3 | -314.3 | |
| 0 | 4 | 0 | 2 | 15.66 | 75.50 | -8.47 | 42.97 | 0.2089 | -873.0 | -721.1 | |
| 7 | -62 | 3 | -62 | 14.63 | 75.41 | -8.55 | 46.92 | 0.1978 | -297.4 | 999999 | |
| 0 | 4 | 0 | 2 | 13.02 | 75.47 | -8.49 | 53.45 | 0.1798 | 641.0 | 402.9 | |
| 4 | -62 | 2 | -62 | 15.10 | 75.36 | -8.61 | 45.37 | 0.2039 | -1235.8 | 999999 | |
| 0 | 8 | 0 | 4 | 11.96 | 75.11 | -8.85 | 59.64 | 0.1753 | 52.0 | 100.3 | |
| 5 | -62 | 2 | -62 | 14.66 | 74.92 | -9.04 | 48.35 | 0.2043 | -1183.5 | 999999 | |
| 6 | -9 | 3 | -9 | 9.80 | 74.57 | -9.39 | 72.46 | 0.1694 | -1551.9 | 999999 | |
| 0 | 6 | 0 | 3 | 14.22 | 74.29 | -9.67 | 51.90 | 0.2079 | 393.0 | 302.0 | |
| 3 | -9 | 1 | -9 | 9.37 | 74.30 | -9.66 | 75.33 | 0.1719 | -1424.9 | 999999 | |
| 0 | 6 | 0 | 3 | 13.59 | 74.15 | -9.81 | 54.80 | 0.2035 | -901.0 | -721.0 | |
| 0 | 3 | 0 | 2 | 13.90 | 74.14 | -9.82 | 53.56 | 0.2067 | -756.0 | -612.9 | |
| 10 | -9 | 5 | -9 | 8.00 | 74.18 | -9.78 | 83.38 | 0.1702 | -1744.9 | 999999 | |
| 5 | -9 | 2 | -9 | 8.85 | 74.00 | -9.97 | 78.60 | 0.1752 | -1485.6 | 999999 | |
| 7 | -9 | 3 | -9 | 9.13 | 73.95 | -10.01 | 77.12 | 0.1769 | -1424.2 | 999999 | |
| 0 | 5 | 0 | 3 | 15.51 | 73.66 | -10.30 | 48.95 | 0.2296 | -872.0 | -700.5 | |
| 7 | 40 | 4 | 20 | 10.44 | 73.42 | -10.54 | 70.87 | 0.1912 | -1343.4 | -918.3 | |
| 0 | 11 | 0 | 6 | 11.81 | 73.37 | -10.59 | 64.40 | 0.2003 | -859.0 | -698.4 | |
| 0 | 4 | 0 | 2 | 17.55 | 73.01 | -10.96 | 44.33 | 0.2605 | -619.0 | -516.7 | |
| 0 | 8 | 0 | 4 | 7.67 | 73.35 | -10.61 | 85.59 | 0.1839 | -930.0 | -845.8 | |
| 2 | 65 | 1 | 33 | 11.30 | 73.19 | -10.77 | 67.12 | 0.1998 | -1441.6 | -1014.6 | |
| 0 | 7 | 0 | 4 | 9.85 | 73.20 | -10.76 | 74.16 | 0.1921 | -1172.0 | -1008.7 | |
| 0 | 5 | 0 | 2 | 12.70 | 73.09 | -10.87 | 61.03 | 0.2112 | -840.0 | -839.8 | |
| 0 | 5 | 0 | 2 | 14.47 | 72.97 | -10.99 | 54.35 | 0.2282 | -1002.0 | -820.7 | |
| 0 | 16 | 0 | 8 | 9.69 | 72.85 | -11.12 | 75.41 | 0.1973 | -1172.0 | -942.8 | |
| 0 | 20 | 0 | 10 | 7.31 | 72.80 | -11.17 | 87.63 | 0.1931 | -1168.0 | -976.1 | |
| 0 | 11 | 0 | 6 | 6.72 | 72.77 | -11.19 | 90.67 | 0.1937 | -943.0 | -900.1 | |
| 0 | 3 | 0 | 2 | 16.38 | 72.37 | -11.59 | 49.31 | 0.2554 | -772.0 | -670.0 | |
| 0 | 6 | 0 | 3 | 10.11 | 72.43 | -11.53 | 73.87 | 0.2058 | -989.0 | -872.8 | |
| 0 | 3 | 0 | 2 | 16.42 | 72.08 | -11.88 | 49.88 | 0.2595 | -972.0 | -969.2 | |
| 4 | 21 | 2 | 10 | 8.89 | 72.27 | -11.69 | 79.85 | 0.2044 | -1352.1 | -976.3 | |
| 0 | 8 | 0 | 4 | 16.65 | 71.90 | -12.06 | 49.58 | 0.2642 | -1153.0 | -999.3 | |
| 0 | 12 | 0 | 6 | 6.40 | 72.34 | -11.62 | 92.20 | 0.2013 | -985.0 | -845.9 | |
| 3 | 15 | 2 | 8 | 17.40 | 71.76 | -12.20 | 47.70 | 0.2738 | -975.9 | -815.6 | |
| 0 | 8 | 0 | 4 | 7.21 | 72.16 | -11.80 | 88.14 | 0.2040 | -882.0 | -795.1 | |
| 0 | 7 | 0 | 4 | 17.00 | 71.54 | -12.42 | 49.34 | 0.2724 | -846.0 | -673.6 | |
| 0 | 48 | 0 | 24 | 9.90 | 71.87 | -12.09 | 75.46 | 0.2142 | -1264.0 | -980.7 | |
| 0 | 7 | 0 | 3 | 8.45 | 71.88 | -12.08 | 82.20 | 0.2099 | -803.0 | -644.9 | |
| 0 | 2 | 0 | 1 | 8.06 | 71.77 | -12.19 | 84.11 | 0.2112 | -653.0 | -633.2 | |
| 0 | 5 | 0 | 3 | 6.19 | 71.78 | -12.18 | 93.02 | 0.2110 | -588.0 | -531.0 | |
| 0 | 8 | 0 | 4 | 8.76 | 71.67 | -12.29 | 80.87 | 0.2141 | -788.0 | -762.0 | |
| 2 | 19 | 1 | 10 | 9.26 | 71.45 | -12.51 | 78.72 | 0.2191 | -1102.2 | -832.3 | |
| 0 | 5 | 0 | 3 | 15.51 | 70.76 | -13.20 | 55.45 | 0.2683 | -837.0 | -767.7 | |
| 0 | 9 | 0 | 5 | 15.00 | 70.76 | -13.21 | 57.12 | 0.2639 | -995.0 | -907.2 | |
| 4 | 8 | 2 | 4 | 12.80 | 70.84 | -13.12 | 64.72 | 0.2459 | -898.2 | -742.9 | |
| 0 | 5 | 0 | 2 | 14.05 | 70.61 | -13.35 | 60.59 | 0.2584 | -898.0 | -786.7 | |
| 6 | 33 | 3 | 17 | 9.24 | 70.76 | -13.20 | 79.29 | 0.2305 | -1076.9 | -927.7 | |
| 0 | 17 | 0 | 9 | 13.38 | 70.23 | -13.73 | 63.57 | 0.2590 | -1135.0 | -866.1 | |
| 0 | 6 | 0 | 3 | 7.67 | 70.41 | -13.55 | 86.20 | 0.2338 | -755.0 | -658.8 | |
| 0 | 3 | 0 | 2 | 12.98 | 70.13 | -13.83 | 65.13 | 0.2579 | -870.0 | -744.8 | |
| 0 | 15 | 0 | 7 | 9.89 | 70.25 | -13.72 | 76.93 | 0.2409 | -843.0 | -659.1 | |
| 0 | 5 | 0 | 3 | 12.70 | 69.86 | -14.10 | 66.53 | 0.2603 | -926.0 | -795.3 | |
| 0 | 4 | 0 | 2 | 8.95 | 70.00 | -13.96 | 80.97 | 0.2424 | -684.0 | -546.0 | |
| 0 | 5 | 0 | 3 | 9.37 | 69.70 | -14.26 | 79.43 | 0.2484 | -856.0 | -817.8 | |
| 0 | 9 | 0 | 5 | 8.66 | 69.60 | -14.36 | 82.30 | 0.2485 | -1001.0 | -1012.9 | |
| 0 | 34 | 0 | 17 | 7.26 | 69.53 | -14.43 | 88.00 | 0.2485 | -833.0 | -716.7 | |
| 3 | 28 | 2 | 14 | 9.32 | 69.29 | -14.67 | 79.86 | 0.2550 | -986.8 | -924.7 | |
| 0 | 5 | 0 | 3 | 8.42 | 69.33 | -14.63 | 83.37 | 0.2527 | -800.0 | -678.7 | |
| 25 | 49 | 13 | 26 | 13.65 | 68.89 | -15.07 | 64.56 | 0.2810 | -1338.9 | -707.2 | |
| 0 | 4 | 0 | 2 | 7.98 | 68.82 | -15.15 | 85.24 | 0.2608 | -530.0 | -499.7 | |
| 0 | 4 | 0 | 2 | 8.67 | 68.62 | -15.34 | 82.63 | 0.2648 | -670.0 | -588.3 | |
| 0 | 10 | 0 | 5 | 16.01 | 67.58 | -16.38 | 59.18 | 0.3170 | -927.0 | -745.1 | |
| 0 | 5 | 0 | 3 | 11.20 | 66.05 | -17.91 | 75.25 | 0.3133 | -672.0 | -522.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
