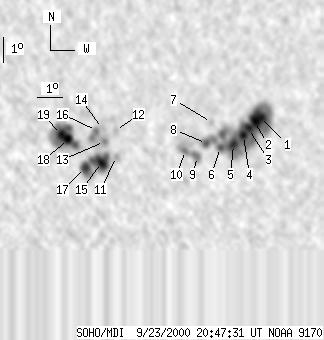

SOHO MDI 2000-09-23 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77 | 515 | 41 | 263 | -5.67 | 82.92 | -1.04 | 175.98 | 0.2268 | -147.0 | -135.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-23 20:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22 | 266 | 11 | 135 | -4.81 | 86.17 | 2.21 | 190.67 | 0.2088 | -1611.3 | -772.9 | |
| -1 | -1 | -1 | -1 | -5.01 | 85.94 | 1.98 | 189.41 | 0.2114 | 999999 | 999999 | |
| 5 | -1 | 3 | -1 | -5.29 | 85.71 | 1.75 | 188.13 | 0.2155 | -1506.5 | 999999 | |
| 5 | -1 | 3 | -1 | -5.56 | 85.51 | 1.55 | 187.07 | 0.2198 | -1451.0 | 999999 | |
| 7 | -1 | 4 | -1 | -5.92 | 85.12 | 1.16 | 185.15 | 0.2252 | -1408.9 | 999999 | |
| 1 | -1 | 0 | -1 | -6.04 | 84.61 | 0.65 | 182.87 | 0.2266 | -958.2 | 999999 | |
| 0 | 3 | 0 | 1 | -5.04 | 84.26 | 0.30 | 181.42 | 0.2093 | 168.0 | 168.1 | |
| 1 | -1 | 1 | -1 | -5.88 | 84.06 | 0.10 | 180.45 | 0.2236 | -1136.1 | 999999 | |
| 0 | 17 | 0 | 9 | -6.40 | 83.71 | -0.25 | 178.92 | 0.2326 | -983.0 | -689.2 | |
| 0 | 26 | 0 | 13 | -6.16 | 83.24 | -0.72 | 176.85 | 0.2288 | -876.0 | -673.8 | |
| 0 | 5 | 0 | 3 | -6.41 | 80.53 | -3.43 | 165.59 | 0.2401 | 588.0 | 570.9 | |
| 0 | 7 | 0 | 4 | -5.38 | 80.50 | -3.46 | 164.29 | 0.2231 | 523.0 | 521.5 | |
| 0 | 11 | 0 | 6 | -5.82 | 80.06 | -3.90 | 163.01 | 0.2324 | 1180.0 | 975.2 | |
| 0 | 4 | 0 | 2 | -5.30 | 79.99 | -3.97 | 162.01 | 0.2243 | 989.0 | 870.1 | |
| 13 | 75 | 7 | 38 | -6.66 | 79.94 | -4.02 | 163.52 | 0.2467 | 1485.1 | 832.2 | |
| 0 | 15 | 0 | 8 | -5.38 | 79.75 | -4.21 | 161.13 | 0.2269 | 943.0 | 1007.7 | |
| 8 | -15 | 4 | -15 | -6.87 | 79.31 | -4.65 | 161.37 | 0.2533 | 1080.1 | 999999 | |
| 8 | 86 | 4 | 44 | -5.75 | 78.65 | -5.31 | 157.27 | 0.2395 | 1559.4 | 737.3 | |
| 7 | -18 | 4 | -18 | -5.56 | 78.38 | -5.58 | 155.90 | 0.2383 | 1493.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
