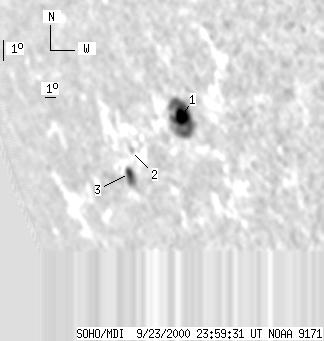

SOHO MDI 2000-09-23 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20 | 133 | 21 | 141 | -14.17 | 23.38 | -58.82 | 110.12 | 0.8845 | -473.7 | -157.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-23 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16 | 109 | 16 | 111 | -13.57 | 24.57 | -57.63 | 109.83 | 0.8748 | -791.7 | -292.1 | |
| 0 | 4 | 0 | 5 | -15.51 | 19.61 | -62.59 | 110.47 | 0.9148 | 264.0 | 226.8 | |
| 4 | 20 | 5 | 25 | -16.56 | 18.83 | -63.37 | 111.36 | 0.9217 | 514.4 | 361.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
