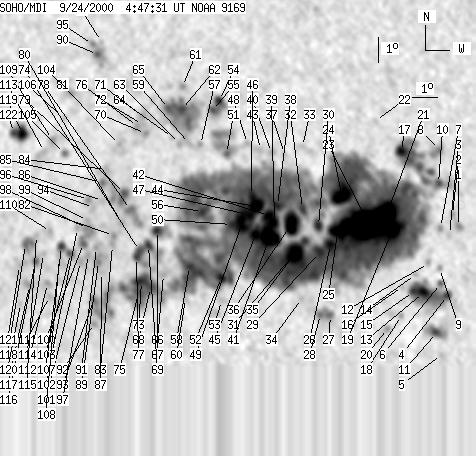

SOHO MDI 2000-09-24 04:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 667 | 5767 | 329 | 2868 | 10.17 | 79.49 | -0.08 | 1.39 | 0.0558 | 1250.5 | 313.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-24 04:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 10 | 0 | 5 | 9.99 | 86.52 | 6.96 | 294.18 | 0.1314 | -1119.0 | -856.8 | |
| 0 | 5 | 0 | 3 | 10.46 | 86.29 | 6.73 | 298.18 | 0.1313 | -749.0 | -634.6 | |
| 0 | 4 | 0 | 2 | 9.68 | 86.16 | 6.59 | 293.04 | 0.1236 | -487.0 | -376.8 | |
| 5 | 141 | 3 | 70 | 7.31 | 86.04 | 6.47 | 273.40 | 0.1126 | -794.3 | 443.9 | |
| 0 | 3 | 0 | 1 | 5.01 | 85.77 | 6.21 | 252.74 | 0.1134 | -740.0 | -707.3 | |
| 3 | 6 | 1 | 3 | 7.78 | 85.77 | 6.20 | 277.87 | 0.1086 | 438.8 | 312.2 | |
| 0 | 5 | 0 | 3 | 9.96 | 85.80 | 6.24 | 296.29 | 0.1200 | 207.0 | 215.1 | |
| 0 | 16 | 0 | 8 | 13.01 | 85.83 | 6.27 | 314.87 | 0.1508 | -1118.0 | -767.2 | |
| 0 | 5 | 0 | 2 | 8.36 | 85.74 | 6.17 | 283.23 | 0.1098 | 385.0 | 235.3 | |
| 2 | 4208 | 1 | 2090 | 11.68 | 85.76 | 6.20 | 308.07 | 0.1349 | -604.0 | 604.9 | |
| 7 | 35 | 3 | 17 | 5.87 | 85.58 | 6.02 | 259.94 | 0.1065 | -1240.2 | -892.3 | |
| 0 | 5 | 0 | 2 | 8.56 | 85.30 | 5.74 | 286.02 | 0.1034 | 666.0 | 552.3 | |
| 12 | -4 | 6 | -4 | 7.44 | 85.09 | 5.53 | 275.20 | 0.0964 | 1585.5 | 999999 | |
| 0 | 4 | 0 | 2 | 8.14 | 84.78 | 5.22 | 283.08 | 0.0929 | -239.0 | -155.8 | |
| 7 | -4 | 3 | -4 | 7.48 | 84.70 | 5.13 | 276.03 | 0.0896 | 1488.2 | 999999 | |
| 0 | 5 | 0 | 2 | 7.68 | 84.26 | 4.70 | 278.93 | 0.0826 | 456.0 | 577.0 | |
| 8 | -10 | 4 | -10 | 12.95 | 84.30 | 4.74 | 322.39 | 0.1326 | 276.7 | 999999 | |
| 0 | 4 | 0 | 2 | 6.55 | 84.21 | 4.65 | 265.07 | 0.0812 | 676.0 | 548.2 | |
| 192 | -10 | 95 | -10 | 9.90 | 83.90 | 4.33 | 304.69 | 0.0910 | 2283.0 | 999999 | |
| 0 | 14 | 0 | 7 | 6.05 | 83.66 | 4.10 | 257.47 | 0.0731 | -628.0 | -462.8 | |
| -19 | -10 | -19 | -10 | 10.49 | 83.67 | 4.10 | 311.26 | 0.0940 | 999999 | 999999 | |
| 0 | 5 | 0 | 2 | 14.17 | 83.28 | 3.72 | 333.42 | 0.1412 | 525.0 | 493.4 | |
| -19 | -10 | -19 | -10 | 10.15 | 82.95 | 3.38 | 313.74 | 0.0808 | 999999 | 999999 | |
| 33 | -10 | 16 | -10 | 11.28 | 81.89 | 2.32 | 332.18 | 0.0856 | 1894.5 | 999999 | |
| -19 | -10 | -19 | -10 | 9.80 | 81.72 | 2.15 | 323.19 | 0.0621 | 999999 | 999999 | |
| 11 | -10 | 5 | -10 | 9.33 | 81.44 | 1.87 | 322.01 | 0.0527 | 1819.8 | 999999 | |
| 0 | 27 | 0 | 14 | 6.57 | 81.42 | 1.86 | 257.85 | 0.0332 | 80.0 | 41.7 | |
| 1 | -27 | 0 | -27 | 6.61 | 81.03 | 1.47 | 256.17 | 0.0264 | -558.0 | 999999 | |
| 12 | -10 | 6 | -10 | 9.02 | 81.00 | 1.44 | 325.36 | 0.0438 | 1657.6 | 999999 | |
| 8 | -10 | 4 | -10 | 10.08 | 80.97 | 1.40 | 336.04 | 0.0596 | 1625.0 | 999999 | |
| 6 | -10 | 3 | -10 | 9.45 | 80.41 | 0.85 | 341.40 | 0.0460 | 1539.2 | 999999 | |
| 7 | -10 | 3 | -10 | 10.74 | 80.33 | 0.77 | 348.63 | 0.0674 | 1535.2 | 999999 | |
| 0 | 16 | 0 | 8 | 13.17 | 80.34 | 0.78 | 353.01 | 0.1093 | -323.0 | -339.5 | |
| 0 | 5 | 0 | 3 | 7.23 | 80.29 | 0.73 | 290.16 | 0.0134 | 517.0 | 418.2 | |
| 42 | -10 | 21 | -10 | 8.99 | 80.01 | 0.45 | 347.52 | 0.0362 | 1974.0 | 999999 | |
| 35 | -10 | 17 | -10 | 10.16 | 79.90 | 0.33 | 354.09 | 0.0562 | 1824.7 | 999999 | |
| 0 | 4 | 0 | 2 | 12.89 | 79.62 | 0.06 | 359.45 | 0.1037 | 357.0 | 244.0 | |
| 9 | -10 | 4 | -10 | 10.86 | 79.34 | -0.22 | 3.18 | 0.0683 | 1596.0 | 999999 | |
| 12 | -10 | 6 | -10 | 10.20 | 79.22 | -0.34 | 5.89 | 0.0569 | 1855.0 | 999999 | |
| 0 | 7 | 0 | 3 | 12.93 | 79.10 | -0.46 | 4.32 | 0.1047 | 732.0 | 601.0 | |
| 29 | -10 | 14 | -10 | 9.65 | 79.03 | -0.54 | 11.14 | 0.0479 | 2293.3 | 999999 | |
| 13 | -10 | 6 | -10 | 10.47 | 78.99 | -0.58 | 9.20 | 0.0621 | 1749.6 | 999999 | |
| 0 | 12 | 0 | 6 | 13.05 | 78.66 | -0.90 | 8.23 | 0.1075 | 676.0 | 607.5 | |
| 17 | -10 | 9 | -10 | 10.82 | 78.51 | -1.05 | 15.04 | 0.0699 | 1903.2 | 999999 | |
| 10 | -10 | 5 | -10 | 9.73 | 78.47 | -1.09 | 21.26 | 0.0519 | 1925.6 | 999999 | |
| 9 | -10 | 4 | -10 | 11.25 | 78.31 | -1.25 | 16.03 | 0.0780 | 1516.4 | 999999 | |
| 14 | -10 | 7 | -10 | 10.51 | 78.15 | -1.41 | 21.38 | 0.0666 | 2036.1 | 999999 | |
| 0 | 5 | 0 | 3 | 13.28 | 78.14 | -1.42 | 12.39 | 0.1132 | 708.0 | 597.9 | |
| 22 | -10 | 11 | -10 | 10.12 | 77.92 | -1.64 | 27.21 | 0.0621 | 1836.7 | 999999 | |
| 5 | -10 | 3 | -10 | 10.11 | 77.52 | -2.04 | 32.54 | 0.0655 | 1237.2 | 999999 | |
| 2 | 86 | 1 | 43 | 12.89 | 77.30 | -2.26 | 20.43 | 0.1107 | 1072.8 | 413.3 | |
| 7 | -10 | 4 | -10 | 8.05 | 77.14 | -2.42 | 65.71 | 0.0461 | 781.5 | 999999 | |
| 0 | 14 | 0 | 7 | 7.15 | 77.15 | -2.42 | 85.56 | 0.0422 | 484.0 | 347.6 | |
| 7 | 40 | 3 | 20 | 14.97 | 77.00 | -2.56 | 17.24 | 0.1465 | -1223.9 | -608.5 | |
| 3 | -54 | 2 | -54 | 14.57 | 76.72 | -2.84 | 19.91 | 0.1415 | -737.8 | 999999 | |
| 8 | -10 | 4 | -10 | 10.62 | 76.37 | -3.19 | 40.66 | 0.0845 | 1657.7 | 999999 | |
| 0 | 4 | 0 | 2 | 13.24 | 76.26 | -3.31 | 27.17 | 0.1235 | -543.0 | -360.0 | |
| 7 | -10 | 4 | -10 | 8.47 | 75.88 | -3.69 | 67.48 | 0.0692 | -1350.5 | 999999 | |
| 0 | 11 | 0 | 6 | 13.27 | 75.82 | -3.75 | 30.04 | 0.1277 | 516.0 | 537.8 | |
| 0 | 4 | 0 | 2 | 7.22 | 75.73 | -3.83 | 86.02 | 0.0668 | 428.0 | 444.5 | |
| 0 | 6 | 0 | 3 | 15.51 | 75.49 | -4.07 | 24.68 | 0.1645 | -917.0 | -814.4 | |
| 6 | 169 | 3 | 85 | 14.60 | 75.47 | -4.09 | 27.41 | 0.1507 | -227.4 | -209.4 | |
| 0 | 6 | 0 | 3 | 13.27 | 75.41 | -4.15 | 32.62 | 0.1312 | 703.0 | 583.6 | |
| 0 | 5 | 0 | 2 | 13.50 | 75.13 | -4.43 | 33.38 | 0.1373 | 422.0 | 355.2 | |
| 3 | -62 | 1 | -62 | 14.64 | 74.94 | -4.62 | 30.20 | 0.1556 | -330.7 | 999999 | |
| 0 | 6 | 0 | 3 | 8.15 | 74.85 | -4.71 | 75.56 | 0.0843 | -863.0 | -803.7 | |
| 8 | 35 | 4 | 17 | 9.86 | 74.59 | -4.97 | 59.22 | 0.0998 | -1191.9 | -886.7 | |
| 7 | 169 | 4 | 84 | 7.63 | 74.35 | -5.22 | 82.36 | 0.0914 | -475.7 | -661.6 | |
| 6 | 94 | 3 | 47 | 9.27 | 74.24 | -5.32 | 66.04 | 0.1006 | -1428.6 | -938.2 | |
| 0 | 6 | 0 | 3 | 13.65 | 74.04 | -5.52 | 38.68 | 0.1503 | -894.0 | -707.8 | |
| 0 | 7 | 0 | 4 | 14.31 | 73.90 | -5.66 | 36.67 | 0.1608 | -744.0 | -775.3 | |
| 0 | 2 | 0 | 1 | 14.00 | 73.91 | -5.65 | 37.86 | 0.1564 | -875.0 | -871.8 | |
| 16 | -68 | 8 | -68 | 7.86 | 73.99 | -5.58 | 80.46 | 0.0981 | -1546.7 | 999999 | |
| 6 | -69 | 3 | -69 | 9.07 | 73.89 | -5.67 | 69.11 | 0.1050 | -1290.5 | 999999 | |
| 8 | -68 | 4 | -68 | 7.43 | 73.87 | -5.69 | 84.95 | 0.0991 | -586.3 | 999999 | |
| 0 | 8 | 0 | 4 | 13.92 | 73.71 | -5.85 | 39.15 | 0.1575 | -1132.0 | -953.0 | |
| 5 | -69 | 3 | -69 | 8.80 | 73.78 | -5.79 | 71.94 | 0.1053 | -1205.4 | 999999 | |
| 0 | 33 | 0 | 16 | 10.67 | 73.50 | -6.06 | 57.88 | 0.1231 | -1283.0 | -1020.3 | |
| 5 | 47 | 3 | 23 | 11.29 | 73.25 | -6.31 | 54.81 | 0.1325 | -1495.3 | -1122.5 | |
| 0 | 5 | 0 | 3 | 10.15 | 73.15 | -6.41 | 62.87 | 0.1240 | -1082.0 | -962.2 | |
| 0 | 4 | 0 | 2 | 13.20 | 73.00 | -6.56 | 45.49 | 0.1567 | -842.0 | -675.7 | |
| 0 | 2 | 0 | 1 | 9.64 | 72.85 | -6.72 | 67.63 | 0.1253 | -1204.0 | -1131.0 | |
| 0 | 7 | 0 | 3 | 9.25 | 72.81 | -6.75 | 70.68 | 0.1235 | -852.0 | -854.0 | |
| 0 | 7 | 0 | 4 | 12.22 | 72.51 | -7.06 | 52.44 | 0.1522 | -1015.0 | -844.9 | |
| 0 | 9 | 0 | 5 | 11.70 | 72.36 | -7.20 | 55.78 | 0.1492 | -1043.0 | -916.2 | |
| 0 | 6 | 0 | 3 | 11.00 | 72.38 | -7.18 | 59.87 | 0.1426 | -669.0 | -672.3 | |
| 0 | 6 | 0 | 3 | 8.19 | 72.40 | -7.16 | 79.77 | 0.1260 | -796.0 | -758.8 | |
| 0 | 3 | 0 | 1 | 17.25 | 72.13 | -7.43 | 34.54 | 0.2188 | -639.0 | -583.3 | |
| 0 | 22 | 0 | 11 | 8.62 | 72.27 | -7.29 | 76.65 | 0.1296 | -1400.0 | -1038.7 | |
| 3 | 29 | 2 | 14 | 16.73 | 71.99 | -7.57 | 36.50 | 0.2131 | -1360.6 | -946.8 | |
| 0 | 5 | 0 | 3 | 9.16 | 72.18 | -7.38 | 72.79 | 0.1334 | -754.0 | -727.9 | |
| 0 | 6 | 0 | 3 | 6.20 | 72.15 | -7.41 | 95.52 | 0.1294 | -983.0 | -862.5 | |
| 0 | 63 | 0 | 31 | 7.10 | 72.10 | -7.46 | 88.56 | 0.1295 | -1025.0 | -1015.4 | |
| 0 | 8 | 0 | 4 | 10.72 | 72.02 | -7.54 | 62.71 | 0.1457 | -809.0 | -631.0 | |
| 0 | 10 | 0 | 5 | 17.12 | 71.77 | -7.79 | 36.15 | 0.2206 | -891.0 | -724.0 | |
| 0 | 6 | 0 | 3 | 11.03 | 71.82 | -7.75 | 61.47 | 0.1513 | -758.0 | -712.8 | |
| 0 | 6 | 0 | 3 | 8.89 | 71.87 | -7.69 | 75.37 | 0.1374 | -997.0 | -931.0 | |
| 0 | 18 | 0 | 9 | 9.90 | 71.80 | -7.76 | 68.56 | 0.1435 | -1095.0 | -1104.8 | |
| 0 | 5 | 0 | 2 | 10.21 | 71.80 | -7.77 | 66.56 | 0.1456 | -692.0 | -716.6 | |
| 3 | 11 | 1 | 5 | 9.31 | 71.66 | -7.90 | 72.80 | 0.1427 | -1118.1 | -952.3 | |
| 0 | 11 | 0 | 6 | 8.61 | 71.55 | -8.01 | 77.80 | 0.1416 | -1048.0 | -848.1 | |
| 0 | 5 | 0 | 3 | 9.89 | 71.41 | -8.16 | 69.52 | 0.1499 | -833.0 | -717.0 | |
| 3 | 26 | 1 | 13 | 8.91 | 71.15 | -8.41 | 76.31 | 0.1495 | -1163.9 | -853.9 | |
| 0 | 8 | 0 | 4 | 15.21 | 70.95 | -8.61 | 44.97 | 0.2055 | -1116.0 | -930.6 | |
| 0 | 7 | 0 | 4 | 12.81 | 70.80 | -8.77 | 55.22 | 0.1818 | -1070.0 | -669.6 | |
| 0 | 5 | 0 | 2 | 14.19 | 70.70 | -8.86 | 49.61 | 0.1969 | -602.0 | -662.0 | |
| 5 | -103 | 2 | -103 | 9.18 | 70.78 | -8.78 | 75.14 | 0.1566 | -1053.5 | 999999 | |
| 0 | 17 | 0 | 8 | 8.75 | 70.71 | -8.85 | 77.94 | 0.1562 | -879.0 | -754.8 | |
| 0 | 7 | 0 | 4 | 13.35 | 70.29 | -9.27 | 54.28 | 0.1940 | -999.0 | -798.2 | |
| 0 | 5 | 0 | 3 | 9.76 | 70.33 | -9.23 | 72.40 | 0.1667 | -1075.0 | -801.1 | |
| 0 | 6 | 0 | 3 | 7.22 | 70.35 | -9.21 | 87.85 | 0.1597 | -645.0 | -528.1 | |
| 0 | 6 | 0 | 3 | 7.73 | 70.26 | -9.30 | 84.72 | 0.1616 | -921.0 | -825.7 | |
| 0 | 9 | 0 | 4 | 12.88 | 69.98 | -9.58 | 57.19 | 0.1939 | -878.0 | -832.3 | |
| 0 | 3 | 0 | 2 | 8.89 | 70.07 | -9.49 | 77.80 | 0.1674 | -603.0 | -528.5 | |
| 0 | 6 | 0 | 3 | 9.59 | 69.77 | -9.79 | 74.20 | 0.1750 | -584.0 | -698.7 | |
| 2 | 9 | 1 | 4 | 8.58 | 69.76 | -9.80 | 79.97 | 0.1717 | -1213.0 | -898.6 | |
| 0 | 10 | 0 | 5 | 7.64 | 69.54 | -10.02 | 85.54 | 0.1737 | -977.0 | -895.4 | |
| 0 | 25 | 0 | 13 | 9.23 | 69.34 | -10.22 | 76.72 | 0.1808 | -1075.0 | -940.0 | |
| 12 | 39 | 6 | 20 | 13.56 | 69.06 | -10.50 | 56.60 | 0.2132 | -1456.3 | -832.3 | |
| 0 | 4 | 0 | 2 | 6.93 | 69.20 | -10.36 | 89.61 | 0.1794 | -766.0 | -635.8 | |
| 0 | 18 | 0 | 9 | 8.41 | 69.12 | -10.44 | 81.42 | 0.1821 | -878.0 | -696.6 | |
| 4 | -119 | 2 | -119 | 13.60 | 68.73 | -10.83 | 57.24 | 0.2182 | -1098.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
