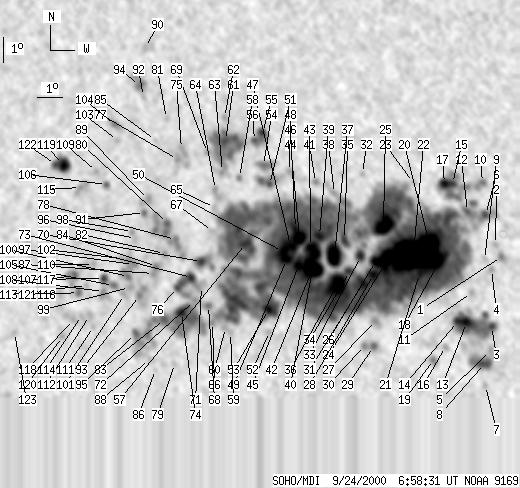

SOHO MDI 2000-09-24 06:58:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 622 | 5275 | 308 | 2622 | 10.27 | 79.79 | 1.42 | 336.83 | 0.0627 | 1426.1 | 324.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-24 06:58:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 8 | 0 | 4 | 10.01 | 86.56 | 8.20 | 291.13 | 0.1512 | -1188.0 | -894.1 | |
| 0 | 5 | 0 | 3 | 10.48 | 86.33 | 7.97 | 294.61 | 0.1506 | -845.0 | -621.8 | |
| 4 | 118 | 2 | 59 | 7.29 | 86.10 | 7.74 | 272.85 | 0.1344 | -881.2 | 462.5 | |
| 0 | 5 | 0 | 2 | 9.51 | 86.15 | 7.78 | 288.78 | 0.1418 | -457.0 | -401.5 | |
| 0 | 13 | 0 | 7 | 6.35 | 86.05 | 7.68 | 265.84 | 0.1339 | -819.0 | -708.6 | |
| 5 | 88 | 2 | 44 | 11.66 | 85.96 | 7.60 | 302.60 | 0.1544 | -321.4 | -365.0 | |
| 0 | 6 | 0 | 3 | 4.99 | 85.83 | 7.47 | 255.51 | 0.1344 | -604.0 | -595.3 | |
| 8 | 45 | 4 | 23 | 5.85 | 85.80 | 7.44 | 261.83 | 0.1308 | -1286.8 | -838.3 | |
| 0 | 5 | 0 | 2 | 9.90 | 85.88 | 7.51 | 292.07 | 0.1397 | 165.0 | 145.9 | |
| 0 | 15 | 0 | 8 | 12.91 | 85.88 | 7.51 | 309.37 | 0.1656 | -1145.0 | -629.9 | |
| 0 | 7 | 0 | 3 | 8.62 | 85.33 | 6.97 | 283.94 | 0.1242 | 578.0 | 366.2 | |
| 2 | -6 | 1 | -6 | 11.79 | 85.24 | 6.88 | 305.89 | 0.1454 | -382.2 | 999999 | |
| 7 | -3 | 4 | -3 | 7.46 | 85.11 | 6.75 | 274.60 | 0.1175 | 1610.8 | 999999 | |
| 7 | -3 | 3 | -3 | 7.50 | 84.76 | 6.40 | 275.20 | 0.1114 | 1637.1 | 999999 | |
| 4 | 88 | 2 | 44 | 12.89 | 84.67 | 6.31 | 314.14 | 0.1499 | -258.2 | -68.5 | |
| 0 | 6 | 0 | 3 | 6.53 | 84.27 | 5.91 | 266.12 | 0.1030 | 687.0 | 494.8 | |
| 9 | -15 | 5 | -15 | 12.89 | 84.35 | 5.98 | 315.63 | 0.1460 | 259.8 | 999999 | |
| 22 | 3642 | 11 | 1810 | 9.89 | 84.08 | 5.72 | 297.69 | 0.1114 | 1815.1 | 692.9 | |
| 0 | 8 | 0 | 4 | 6.03 | 83.79 | 5.43 | 260.49 | 0.0959 | -806.0 | -541.8 | |
| 168 | -18 | 84 | -18 | 10.55 | 83.70 | 5.34 | 304.61 | 0.1116 | 2262.7 | 999999 | |
| 7 | -18 | 3 | -18 | 9.39 | 83.28 | 4.92 | 296.77 | 0.0952 | 1652.1 | 999999 | |
| -20 | -18 | -20 | -18 | 10.21 | 83.06 | 4.69 | 305.28 | 0.0991 | 999999 | 999999 | |
| 0 | 4 | 0 | 2 | 12.95 | 83.10 | 4.74 | 322.40 | 0.1326 | -293.0 | -265.6 | |
| 16 | -18 | 8 | -18 | 9.75 | 81.90 | 3.54 | 308.75 | 0.0784 | 2311.2 | 999999 | |
| 33 | -18 | 17 | -18 | 11.31 | 81.88 | 3.52 | 321.65 | 0.0974 | 1860.0 | 999999 | |
| 8 | -18 | 4 | -18 | 9.87 | 81.54 | 3.18 | 312.91 | 0.0750 | 1935.0 | 999999 | |
| 0 | 11 | 0 | 5 | 7.57 | 81.53 | 3.16 | 281.11 | 0.0560 | 510.0 | 352.9 | |
| 11 | -18 | 6 | -18 | 9.36 | 81.46 | 3.10 | 308.23 | 0.0682 | 1823.7 | 999999 | |
| 0 | 13 | 0 | 7 | 6.56 | 81.44 | 3.08 | 262.59 | 0.0540 | 107.0 | 121.9 | |
| 0 | 6 | 0 | 3 | 6.60 | 81.09 | 2.72 | 262.45 | 0.0479 | -382.0 | -259.9 | |
| 9 | -18 | 4 | -18 | 9.02 | 81.02 | 2.66 | 308.05 | 0.0585 | 1700.6 | 999999 | |
| 0 | 4 | 0 | 2 | 13.31 | 81.06 | 2.70 | 337.49 | 0.1204 | -341.0 | -397.0 | |
| 8 | -18 | 4 | -18 | 10.07 | 80.95 | 2.59 | 320.64 | 0.0705 | 1558.0 | 999999 | |
| 5 | -18 | 3 | -18 | 9.49 | 80.51 | 2.15 | 319.96 | 0.0578 | 1581.9 | 999999 | |
| 6 | -18 | 3 | -18 | 10.74 | 80.32 | 1.96 | 332.94 | 0.0743 | 1552.8 | 999999 | |
| 32 | -18 | 16 | -18 | 8.94 | 80.00 | 1.63 | 320.78 | 0.0448 | 2060.1 | 999999 | |
| 34 | -18 | 17 | -18 | 10.11 | 79.92 | 1.56 | 333.97 | 0.0614 | 1815.3 | 999999 | |
| 0 | 17 | 0 | 9 | 12.54 | 79.94 | 1.57 | 344.56 | 0.1012 | 110.0 | 86.1 | |
| 9 | -18 | 5 | -18 | 10.90 | 79.33 | 0.97 | 346.36 | 0.0709 | 1600.9 | 999999 | |
| 11 | -18 | 5 | -18 | 10.19 | 79.17 | 0.81 | 346.13 | 0.0583 | 1905.6 | 999999 | |
| 0 | 6 | 0 | 3 | 12.97 | 79.18 | 0.82 | 352.43 | 0.1060 | 656.0 | 515.7 | |
| 31 | -18 | 15 | -18 | 9.61 | 79.05 | 0.69 | 345.57 | 0.0478 | 2245.7 | 999999 | |
| 12 | -18 | 6 | -18 | 10.47 | 78.97 | 0.61 | 350.24 | 0.0622 | 1830.5 | 999999 | |
| 17 | -18 | 8 | -18 | 10.82 | 78.54 | 0.18 | 357.42 | 0.0676 | 1870.4 | 999999 | |
| 8 | -18 | 4 | -18 | 9.73 | 78.50 | 0.14 | 357.21 | 0.0484 | 1995.4 | 999999 | |
| 4 | -18 | 2 | -18 | 11.17 | 78.38 | 0.02 | 359.76 | 0.0736 | 1572.7 | 999999 | |
| 14 | -18 | 7 | -18 | 10.51 | 78.18 | -0.18 | 2.87 | 0.0621 | 1997.5 | 999999 | |
| 0 | 8 | 0 | 4 | 13.40 | 78.14 | -0.22 | 1.93 | 0.1126 | 503.0 | 420.2 | |
| 9 | -18 | 5 | -18 | 9.96 | 78.02 | -0.34 | 6.35 | 0.0528 | 1900.8 | 999999 | |
| 11 | -18 | 6 | -18 | 10.27 | 77.86 | -0.50 | 8.42 | 0.0586 | 1879.1 | 999999 | |
| 3 | 31 | 1 | 15 | 12.89 | 77.34 | -1.02 | 9.55 | 0.1052 | 1114.1 | 685.7 | |
| 0 | 5 | 0 | 3 | 7.15 | 77.36 | -1.00 | 79.37 | 0.0178 | 625.0 | 599.3 | |
| 7 | -18 | 3 | -18 | 8.01 | 77.32 | -1.04 | 44.74 | 0.0258 | 698.2 | 999999 | |
| 0 | 19 | 0 | 9 | 13.63 | 77.10 | -1.26 | 10.47 | 0.1187 | 367.0 | 284.1 | |
| 6 | 34 | 3 | 17 | 14.93 | 77.05 | -1.31 | 9.07 | 0.1410 | -1163.1 | -594.9 | |
| 2 | -55 | 1 | -55 | 14.61 | 76.73 | -1.63 | 11.70 | 0.1366 | -725.0 | 999999 | |
| 11 | -18 | 5 | -18 | 10.58 | 76.40 | -1.96 | 28.10 | 0.0719 | 1694.0 | 999999 | |
| 0 | 6 | 0 | 3 | 13.16 | 76.14 | -2.22 | 19.28 | 0.1149 | -445.0 | -299.0 | |
| 0 | 3 | 0 | 1 | 7.11 | 75.83 | -2.54 | 86.63 | 0.0442 | 463.0 | 529.4 | |
| 0 | 5 | 0 | 2 | 7.30 | 75.63 | -2.73 | 82.79 | 0.0479 | 500.0 | 426.1 | |
| 7 | 122 | 4 | 61 | 14.61 | 75.56 | -2.80 | 19.56 | 0.1419 | -102.8 | -192.5 | |
| 0 | 4 | 0 | 2 | 15.51 | 75.51 | -2.85 | 17.87 | 0.1571 | -820.0 | -777.5 | |
| 0 | 10 | 0 | 5 | 13.39 | 75.45 | -2.91 | 23.76 | 0.1230 | 865.0 | 714.1 | |
| 0 | 7 | 0 | 4 | 12.68 | 75.18 | -3.18 | 28.45 | 0.1141 | -330.0 | -194.8 | |
| 0 | 5 | 0 | 3 | 11.98 | 75.15 | -3.21 | 32.02 | 0.1038 | 335.0 | 230.2 | |
| 0 | 3 | 0 | 1 | 7.49 | 75.12 | -3.25 | 80.51 | 0.0572 | 310.0 | 267.2 | |
| 0 | 6 | 0 | 3 | 11.04 | 75.08 | -3.28 | 38.23 | 0.0911 | 328.0 | 251.4 | |
| 0 | 10 | 0 | 5 | 8.15 | 74.95 | -3.41 | 70.41 | 0.0628 | -981.0 | -824.6 | |
| 0 | 6 | 0 | 3 | 14.13 | 74.84 | -3.52 | 25.47 | 0.1391 | -143.0 | -152.4 | |
| 8 | 43 | 4 | 21 | 9.87 | 74.66 | -3.70 | 51.36 | 0.0818 | -1228.7 | -764.5 | |
| 0 | 15 | 0 | 7 | 8.89 | 74.67 | -3.69 | 61.97 | 0.0724 | -928.0 | -869.6 | |
| 0 | 4 | 0 | 2 | 8.34 | 74.40 | -3.96 | 70.40 | 0.0729 | -1019.0 | -950.0 | |
| 7 | 67 | 3 | 33 | 9.24 | 74.27 | -4.09 | 60.41 | 0.0813 | -1381.4 | -1033.5 | |
| 9 | 134 | 4 | 67 | 7.87 | 73.89 | -4.47 | 78.16 | 0.0793 | -1640.3 | -735.1 | |
| 0 | 3 | 0 | 1 | 14.28 | 73.79 | -4.57 | 31.16 | 0.1499 | -972.0 | -914.1 | |
| 4 | -73 | 2 | -73 | 8.85 | 73.72 | -4.64 | 67.46 | 0.0869 | -1178.4 | 999999 | |
| 0 | 31 | 0 | 16 | 13.85 | 73.64 | -4.72 | 33.62 | 0.1450 | -1048.0 | -817.4 | |
| 0 | 35 | 0 | 17 | 10.72 | 73.62 | -4.75 | 51.00 | 0.1051 | -1134.0 | -950.1 | |
| 0 | 5 | 0 | 3 | 5.88 | 73.63 | -4.73 | 102.72 | 0.0844 | -650.0 | -518.4 | |
| 3 | 48 | 1 | 24 | 11.34 | 73.29 | -5.07 | 48.51 | 0.1163 | -1495.7 | -1157.0 | |
| 0 | 5 | 0 | 2 | 15.46 | 73.16 | -5.20 | 30.55 | 0.1728 | -694.0 | -731.6 | |
| 0 | 5 | 0 | 2 | 10.17 | 73.19 | -5.17 | 57.62 | 0.1056 | -1097.0 | -975.7 | |
| 3 | -74 | 2 | -74 | 7.59 | 73.22 | -5.14 | 82.67 | 0.0899 | -1363.6 | 999999 | |
| 0 | 5 | 0 | 2 | 9.66 | 72.88 | -5.48 | 63.26 | 0.1060 | -1221.0 | -1111.1 | |
| 0 | 3 | 0 | 1 | 14.58 | 72.73 | -5.63 | 35.48 | 0.1643 | -553.0 | -512.8 | |
| 0 | 3 | 0 | 2 | 5.64 | 72.89 | -5.47 | 103.38 | 0.0980 | -532.0 | -515.6 | |
| 0 | 8 | 0 | 4 | 9.38 | 72.76 | -5.60 | 66.08 | 0.1058 | -1116.0 | -950.0 | |
| 0 | 7 | 0 | 3 | 6.03 | 72.65 | -5.71 | 99.06 | 0.1007 | -755.0 | -673.3 | |
| 0 | 15 | 0 | 8 | 12.27 | 72.51 | -5.85 | 46.97 | 0.1370 | -1078.0 | -866.3 | |
| 0 | 19 | 0 | 10 | 18.25 | 72.21 | -6.15 | 27.38 | 0.2222 | -751.0 | -552.3 | |
| 0 | 7 | 0 | 3 | 11.76 | 72.36 | -6.00 | 50.57 | 0.1332 | -1062.0 | -928.3 | |
| 0 | 4 | 0 | 2 | 16.31 | 72.20 | -6.16 | 32.29 | 0.1938 | -919.0 | -767.2 | |
| 0 | 27 | 0 | 14 | 8.52 | 72.22 | -6.14 | 75.30 | 0.1099 | -1215.0 | -998.2 | |
| 0 | 26 | 0 | 13 | 16.74 | 72.02 | -6.34 | 31.81 | 0.2016 | -1412.0 | -944.9 | |
| 0 | 76 | 0 | 38 | 7.03 | 72.09 | -6.28 | 89.00 | 0.1090 | -1182.0 | -918.7 | |
| 0 | 6 | 0 | 3 | 10.74 | 72.02 | -6.34 | 58.49 | 0.1278 | -835.0 | -696.7 | |
| 0 | 17 | 0 | 8 | 9.72 | 71.96 | -6.40 | 66.04 | 0.1208 | -1222.0 | -1028.9 | |
| 0 | 5 | 0 | 3 | 11.01 | 71.90 | -6.47 | 57.19 | 0.1321 | -933.0 | -754.0 | |
| 0 | 9 | 0 | 5 | 8.82 | 71.82 | -6.54 | 73.58 | 0.1179 | -895.0 | -838.5 | |
| 0 | 15 | 0 | 7 | 9.25 | 71.77 | -6.59 | 70.25 | 0.1209 | -940.0 | -885.4 | |
| 0 | 11 | 0 | 5 | 8.55 | 71.63 | -6.73 | 76.23 | 0.1200 | -885.0 | -808.3 | |
| 0 | 5 | 0 | 2 | 9.95 | 71.48 | -6.88 | 65.86 | 0.1299 | -750.0 | -682.0 | |
| 0 | 4 | 0 | 2 | 14.56 | 71.20 | -7.17 | 42.20 | 0.1806 | -966.0 | -836.6 | |
| 0 | 12 | 0 | 6 | 15.19 | 71.05 | -7.31 | 40.45 | 0.1901 | -1235.0 | -953.7 | |
| 0 | 7 | 0 | 4 | 8.89 | 71.18 | -7.18 | 74.37 | 0.1288 | -1261.0 | -1036.5 | |
| 0 | 8 | 0 | 4 | 12.83 | 70.81 | -7.56 | 51.16 | 0.1654 | -919.0 | -599.3 | |
| 5 | 10 | 2 | 5 | 9.16 | 70.78 | -7.58 | 73.21 | 0.1367 | -1061.5 | -748.2 | |
| 0 | 12 | 0 | 6 | 8.65 | 70.79 | -7.57 | 76.84 | 0.1344 | -1005.0 | -831.9 | |
| 0 | 4 | 0 | 2 | 13.33 | 70.39 | -7.98 | 50.31 | 0.1763 | -973.0 | -850.7 | |
| 0 | 6 | 0 | 3 | 9.70 | 70.37 | -7.99 | 70.39 | 0.1462 | -723.0 | -652.8 | |
| 0 | 3 | 0 | 2 | 7.28 | 70.42 | -7.94 | 87.22 | 0.1379 | -679.0 | -604.1 | |
| 0 | 7 | 0 | 3 | 7.71 | 70.25 | -8.11 | 84.22 | 0.1411 | -943.0 | -843.0 | |
| 0 | 5 | 0 | 2 | 8.87 | 70.11 | -8.25 | 76.31 | 0.1466 | -495.0 | -508.8 | |
| 0 | 5 | 0 | 2 | 7.70 | 69.94 | -8.43 | 84.44 | 0.1466 | -894.0 | -809.5 | |
| 0 | 20 | 0 | 10 | 12.70 | 69.76 | -8.60 | 55.26 | 0.1784 | -1085.0 | -888.5 | |
| 0 | 7 | 0 | 4 | 8.60 | 69.80 | -8.56 | 78.57 | 0.1509 | -1270.0 | -985.4 | |
| 0 | 25 | 0 | 12 | 9.26 | 69.62 | -8.74 | 74.59 | 0.1563 | -1211.0 | -913.9 | |
| 0 | 13 | 0 | 6 | 7.54 | 69.62 | -8.74 | 85.66 | 0.1518 | -931.0 | -813.5 | |
| 13 | 41 | 6 | 21 | 13.59 | 69.04 | -9.32 | 53.43 | 0.1970 | -1511.8 | -821.6 | |
| 0 | 5 | 0 | 2 | 6.87 | 69.20 | -9.17 | 90.05 | 0.1589 | -620.0 | -678.3 | |
| 0 | 8 | 0 | 4 | 8.58 | 69.04 | -9.32 | 79.47 | 0.1637 | -648.0 | -668.5 | |
| 3 | -119 | 1 | -119 | 13.58 | 68.71 | -9.65 | 54.35 | 0.2014 | -1093.6 | 999999 | |
| 0 | 6 | 0 | 3 | 6.99 | 67.28 | -11.08 | 89.22 | 0.1917 | -585.0 | -444.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
