SOHO MDI 2000-09-24 11:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90 | 401 | 46 | 205 | -5.70 | 83.37 | 7.33 | 209.35 | 0.2587 | -339.2 | -183.7 | |
|
previous
or next observation for the same group /

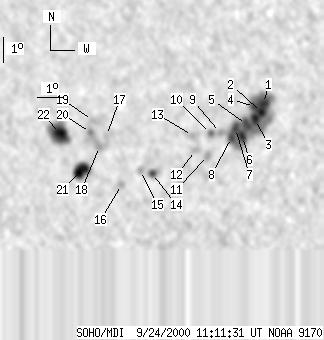

back to the solar disc SOHO MDI 2000-09-24 11:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10 | 207 | 5 | 107 | -4.54 | 86.56 | 10.51 | 222.66 | 0.2696 | -1510.4 | -798.4 | |
| 4 | -1 | 2 | -1 | -4.90 | 86.48 | 10.44 | 221.58 | 0.2733 | -1449.3 | 999999 | |
| 7 | -1 | 4 | -1 | -5.17 | 86.25 | 10.21 | 220.27 | 0.2742 | -1407.9 | 999999 | |
| 5 | -1 | 3 | -1 | -4.65 | 86.20 | 10.16 | 221.39 | 0.2670 | -1545.3 | 999999 | |
| 8 | -1 | 4 | -1 | -5.36 | 85.89 | 9.85 | 218.82 | 0.2729 | -1462.3 | 999999 | |
| 7 | -1 | 3 | -1 | -5.84 | 85.74 | 9.70 | 217.32 | 0.2777 | -1196.2 | 999999 | |
| 7 | -1 | 4 | -1 | -5.51 | 85.46 | 9.42 | 217.22 | 0.2704 | -1546.2 | 999999 | |
| 5 | -1 | 3 | -1 | -5.87 | 85.31 | 9.26 | 215.99 | 0.2737 | -1158.1 | 999999 | |
| 0 | 6 | 0 | 3 | -5.66 | 84.87 | 8.82 | 215.11 | 0.2666 | -1046.0 | -859.1 | |
| 0 | 7 | 0 | 4 | -5.70 | 84.47 | 8.43 | 213.81 | 0.2633 | -1056.0 | -817.8 | |
| 0 | 9 | 0 | 5 | -6.57 | 84.37 | 8.32 | 211.71 | 0.2748 | -864.0 | -684.0 | |
| 0 | 9 | 0 | 4 | -6.36 | 83.89 | 7.84 | 210.60 | 0.2677 | -799.0 | -604.5 | |
| 0 | 5 | 0 | 3 | -5.76 | 83.76 | 7.72 | 211.37 | 0.2578 | -665.0 | -586.8 | |
| 5 | 12 | 2 | 6 | -7.26 | 82.20 | 6.16 | 203.48 | 0.2683 | 638.3 | 426.0 | |
| 0 | 6 | 0 | 3 | -7.13 | 81.73 | 5.68 | 202.02 | 0.2632 | 578.0 | 436.1 | |
| 0 | 7 | 0 | 3 | -7.69 | 80.98 | 4.94 | 198.67 | 0.2677 | 582.0 | 552.6 | |
| 0 | 4 | 0 | 2 | -5.72 | 80.37 | 4.33 | 198.92 | 0.2327 | 653.0 | 674.6 | |
| 0 | 18 | 0 | 9 | -6.16 | 80.10 | 4.06 | 197.25 | 0.2384 | 1003.0 | 806.5 | |
| 0 | 7 | 0 | 3 | -5.11 | 79.82 | 3.78 | 197.43 | 0.2200 | 803.0 | 733.4 | |
| 0 | 11 | 0 | 5 | -5.59 | 79.74 | 3.70 | 196.48 | 0.2274 | 1129.0 | 924.8 | |
| 18 | 36 | 9 | 19 | -7.11 | 79.40 | 3.36 | 193.45 | 0.2509 | 1227.2 | 772.9 | |
| 14 | 57 | 7 | 29 | -5.62 | 78.57 | 2.52 | 191.38 | 0.2232 | 1582.6 | 882.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
