group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	602	5222	303	2605	10.12	79.48	6.07	298.10	0.1189	1417.7	347.4

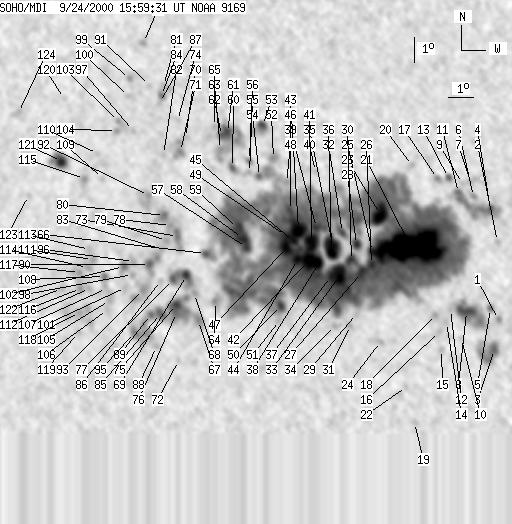

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-24 15:59:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	6	0	3	7.16	86.49	13.08	271.70	0.2258	-805.0	-668.4
2	0	4	0	2	10.20	86.56	13.15	284.93	0.2328	-721.0	-722.7
3	7	61	4	31	5.99	86.30	12.89	266.46	0.2234	-1462.5	-721.1
4	5	87	3	44	11.45	86.33	12.92	290.39	0.2349	-439.8	-111.3
5	0	7	0	4	7.59	86.18	12.78	273.70	0.2207	529.0	369.7
6	0	7	0	3	11.98	85.66	12.25	293.51	0.2275	-861.0	-638.3
7	0	10	0	5	12.57	85.56	12.16	296.06	0.2299	-362.0	-160.4
8	18	91	9	46	7.50	85.21	11.81	273.42	0.2042	1406.6	562.3
9	0	5	0	2	12.50	85.23	11.83	296.35	0.2244	-591.0	-478.1
10	0	5	0	2	6.46	84.98	11.58	268.21	0.2005	487.0	410.2
11	3	-4	1	-4	12.15	85.06	11.65	295.23	0.2193	-620.0	999999
12	0	3	0	2	7.60	84.57	11.17	274.02	0.1933	810.0	745.2
13	2	10	1	5	12.75	84.67	11.27	298.44	0.2178	302.8	59.8
14	0	6	0	3	7.09	84.40	11.00	271.41	0.1902	595.0	448.7
15	0	6	0	3	6.05	84.18	10.77	265.78	0.1872	-587.0	-508.9
16	0	5	0	3	6.75	84.11	10.71	269.54	0.1854	857.0	682.9
17	0	9	0	5	12.72	84.23	10.82	299.25	0.2109	-442.0	-172.7
18	0	5	0	3	7.41	83.97	10.56	273.18	0.1829	712.0	628.4
19	0	5	0	3	3.22	83.06	9.66	249.28	0.1799	-602.0	-422.6
20	0	5	0	2	13.25	83.23	9.83	303.84	0.2010	-433.0	-275.9
21	185	3765	93	1883	10.05	83.08	9.67	288.59	0.1754	2256.3	678.6
22	0	6	0	3	4.63	82.76	9.36	256.51	0.1674	-705.0	-556.6
23	29	-21	14	-21	11.36	81.87	8.47	298.40	0.1649	1804.1	999999
24	0	5	0	3	6.41	81.76	8.35	266.72	0.1453	86.0	159.2
25	4	-21	2	-21	9.92	81.51	8.11	290.85	0.1494	2013.4	999999
26	5	-21	3	-21	9.41	81.46	8.06	287.68	0.1458	1937.8	999999
27	10	-21	5	-21	9.11	81.06	7.65	286.38	0.1377	1777.5	999999
28	8	-21	4	-21	10.20	80.88	7.48	294.25	0.1411	1563.9	999999
29	0	8	0	4	7.51	80.83	7.42	274.80	0.1291	161.0	131.4
30	9	-21	5	-21	9.58	80.67	7.26	290.58	0.1338	1677.3	999999
31	0	5	0	3	7.05	80.58	7.18	271.20	0.1246	592.0	465.0
32	4	-21	2	-21	10.68	80.33	6.93	299.05	0.1362	1574.7	999999
33	24	-21	12	-21	9.00	80.18	6.77	287.44	0.1227	2125.2	999999
34	0	5	0	3	7.06	79.99	6.58	271.31	0.1143	-584.0	-534.4
35	18	-21	9	-21	10.25	79.92	6.52	297.57	0.1267	1651.7	999999
36	13	-21	7	-21	9.86	79.88	6.47	294.90	0.1230	1916.6	999999
37	9	-21	4	-21	8.97	79.82	6.42	288.02	0.1166	1853.2	999999
38	11	-21	6	-21	9.48	79.35	5.95	293.65	0.1121	2014.4	999999
39	8	-21	4	-21	10.89	79.30	5.90	304.47	0.1229	1467.0	999999
40	0	5	0	2	13.08	79.31	5.90	316.97	0.1475	648.0	502.8
41	20	-21	10	-21	10.30	79.09	5.69	301.20	0.1145	1991.0	999999
42	20	-21	10	-21	9.60	78.96	5.55	296.12	0.1068	2469.4	999999
43	23	-21	12	-21	10.82	78.58	5.18	307.45	0.1122	1933.9	999999
44	8	-21	4	-21	9.65	78.52	5.12	298.36	0.1004	2105.7	999999
45	6	-21	3	-21	10.35	78.37	4.97	305.02	0.1046	2275.5	999999
46	9	-21	5	-21	11.56	78.28	4.87	314.16	0.1165	1165.2	999999
47	16	-21	8	-21	10.12	78.09	4.69	304.66	0.0983	2131.6	999999
48	0	6	0	3	12.66	78.13	4.73	321.13	0.1288	367.0	207.9
49	8	-21	4	-21	10.59	78.06	4.66	308.64	0.1026	1815.8	999999
50	7	-21	3	-21	7.86	77.83	4.42	281.97	0.0785	1358.4	999999
51	0	7	0	3	7.28	77.78	4.38	274.53	0.0763	799.0	616.1
52	0	13	0	7	13.60	77.63	4.23	328.34	0.1371	386.0	292.3
53	7	25	3	13	14.90	77.21	3.81	335.16	0.1534	-1023.5	-583.4
54	2	31	1	16	12.90	77.06	3.65	329.13	0.1216	992.7	703.8
55	0	8	0	4	13.06	76.66	3.26	332.58	0.1207	765.0	416.5
56	0	7	0	3	13.53	76.67	3.26	334.27	0.1280	550.0	602.7
57	6	-21	3	-21	10.13	76.51	3.10	316.24	0.0774	1726.1	999999
58	13	-21	6	-21	10.48	76.35	2.95	320.70	0.0802	1808.0	999999
59	16	-21	8	-21	10.88	76.16	2.75	325.48	0.0836	1502.6	999999
60	4	18	2	9	13.26	75.98	2.58	338.31	0.1190	-697.4	-319.3
61	10	65	5	33	14.64	75.79	2.39	343.22	0.1404	-438.6	-383.1
62	4	-61	2	-61	14.52	75.55	2.15	344.61	0.1373	-513.3	999999
63	0	28	0	14	13.97	75.51	2.10	343.77	0.1279	161.0	367.6
64	0	15	0	8	8.03	75.27	1.86	300.44	0.0375	-1064.0	-810.8
65	0	3	0	2	14.88	75.27	1.87	347.13	0.1421	-888.0	-772.4
66	4	23	2	12	9.91	74.88	1.48	333.77	0.0577	-1199.0	-746.4
67	0	13	0	6	7.30	74.60	1.19	286.22	0.0216	-233.0	-207.3
68	0	5	0	3	8.35	74.44	1.04	323.66	0.0304	-787.0	-824.4
69	6	57	3	28	9.05	74.13	0.72	341.17	0.0388	-1384.2	-1098.7
70	0	9	0	4	14.45	74.10	0.70	354.83	0.1316	-926.0	-729.8
71	0	24	0	12	13.90	73.90	0.50	356.03	0.1218	-1189.0	-960.6
72	0	4	0	2	5.74	73.81	0.41	198.38	0.0224	-599.0	-483.6
73	0	27	0	13	10.57	73.77	0.37	354.24	0.0637	-1204.0	-1016.2
74	0	5	0	2	15.12	73.78	0.38	357.43	0.1428	-682.0	-502.9
75	8	118	4	58	7.92	73.73	0.33	341.40	0.0179	-1420.5	-771.5
76	3	-75	2	-75	7.61	73.73	0.33	333.59	0.0128	-625.1	999999
77	5	-69	3	-69	8.89	73.62	0.21	353.86	0.0342	-1256.5	999999
78	0	5	0	3	11.00	73.50	0.09	358.70	0.0709	-1237.0	-1142.7
79	0	7	0	3	10.42	73.34	-0.07	1.06	0.0607	-1181.0	-1086.3
80	3	26	1	13	11.39	73.26	-0.14	1.83	0.0778	-1376.6	-1142.0
81	0	12	0	6	16.50	73.22	-0.19	1.09	0.1666	-733.0	-624.9
82	0	5	0	3	13.78	73.22	-0.19	1.52	0.1195	-926.0	-733.3
83	0	11	0	6	10.06	73.18	-0.22	4.04	0.0547	-989.0	-941.4
84	0	8	0	4	16.10	73.13	-0.27	1.63	0.1598	-1187.0	-954.6
85	6	-75	3	-75	7.57	73.10	-0.30	25.77	0.0120	-1363.7	999999
86	0	5	0	2	8.86	73.10	-0.30	8.90	0.0338	-369.0	-435.0
87	0	5	0	2	15.82	73.05	-0.35	2.18	0.1551	-808.0	-623.0
88	0	5	0	2	6.28	72.95	-0.46	145.86	0.0142	-679.0	-656.8
89	2	-75	1	-75	7.53	72.71	-0.69	49.95	0.0157	-1262.5	999999
90	5	17	3	8	9.48	72.67	-0.74	16.04	0.0461	-1373.9	-1188.8
91	0	3	0	2	16.50	72.65	-0.76	4.37	0.1670	-700.0	-696.9
92	0	38	0	19	12.17	72.62	-0.78	8.35	0.0924	-1180.0	-955.1
93	0	51	0	25	8.50	72.43	-0.97	31.74	0.0320	-1397.0	-973.5
94	0	4	0	2	18.20	72.39	-1.01	4.91	0.1966	-849.0	-687.6
95	0	55	0	27	6.83	72.08	-1.32	95.38	0.0231	-1116.0	-972.8
96	0	9	0	4	9.59	72.04	-1.37	27.05	0.0520	-1134.0	-943.7
97	0	4	0	2	14.72	72.01	-1.40	9.88	0.1379	-813.0	-716.9
98	0	5	0	2	9.09	72.00	-1.41	33.03	0.0447	-693.0	-624.7
99	0	6	0	3	16.77	71.83	-1.57	8.76	0.1734	-981.0	-764.5
100	0	5	0	2	16.06	71.80	-1.61	9.66	0.1613	-775.0	-736.0
101	0	11	0	5	8.58	71.72	-1.68	45.55	0.0408	-965.0	-839.8
102	0	21	0	10	9.40	71.64	-1.76	35.39	0.0526	-1472.0	-1014.8
103	0	9	0	4	15.07	71.40	-2.00	13.43	0.1460	-982.0	-840.1
104	0	7	0	3	14.72	71.32	-2.08	14.56	0.1403	-813.0	-783.8
105	0	14	0	7	8.07	71.10	-2.31	63.82	0.0446	-1017.0	-865.9
106	0	4	0	2	7.72	71.02	-2.38	71.89	0.0436	-773.0	-666.5
107	0	10	0	5	8.54	70.98	-2.43	56.48	0.0505	-1017.0	-833.2
108	0	8	0	4	9.00	70.89	-2.51	50.30	0.0565	-1054.0	-937.2
109	0	5	0	2	12.83	70.78	-2.62	23.52	0.1124	-430.0	-406.1
110	0	3	0	1	13.81	70.57	-2.84	21.89	0.1294	-687.0	-584.8
111	0	7	0	3	9.67	70.41	-2.99	47.29	0.0703	-1078.0	-978.9
112	0	5	0	2	8.53	70.30	-3.10	62.56	0.0605	-928.0	-817.2
113	0	10	0	5	10.05	70.29	-3.11	44.57	0.0765	-665.0	-699.6
114	0	9	0	4	9.35	70.22	-3.19	52.52	0.0694	-984.0	-856.5
115	0	9	0	4	12.83	70.06	-3.34	29.01	0.1178	-926.0	-867.4
116	0	13	0	6	8.53	69.95	-3.45	65.02	0.0660	-1176.0	-986.3
117	0	11	0	5	9.15	69.90	-3.50	57.34	0.0719	-1021.0	-823.4
118	0	70	0	35	7.60	69.92	-3.49	79.25	0.0616	-1078.0	-757.9
119	0	5	0	2	6.82	69.89	-3.52	92.02	0.0613	-684.0	-551.4
120	0	3	0	1	15.96	69.20	-4.20	24.18	0.1728	-672.0	-547.4
121	9	35	4	18	13.49	69.13	-4.28	32.43	0.1358	-1477.6	-894.7
122	0	7	0	3	8.53	69.20	-4.20	69.05	0.0780	-735.0	-584.1
123	0	4	0	2	12.14	67.83	-5.57	46.22	0.1321	-696.0	-554.8
124	0	9	0	5	15.39	67.35	-6.06	34.61	0.1800	-1008.0	-891.5

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
