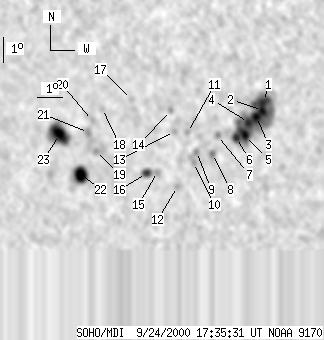

SOHO MDI 2000-09-24 17:35:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78 | 375 | 40 | 195 | -5.71 | 83.47 | 10.94 | 220.13 | 0.2927 | 15.6 | -238.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-24 17:35:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9 | 186 | 5 | 97 | -4.49 | 86.67 | 14.15 | 231.37 | 0.3133 | -1324.5 | -848.2 | |
| 6 | -1 | 3 | -1 | -4.85 | 86.64 | 14.11 | 230.42 | 0.3166 | -1359.7 | 999999 | |
| 5 | -1 | 2 | -1 | -5.08 | 86.40 | 13.88 | 229.38 | 0.3162 | -1479.7 | 999999 | |
| 5 | -1 | 3 | -1 | -5.31 | 86.08 | 13.56 | 228.16 | 0.3147 | -1644.2 | 999999 | |
| 7 | -1 | 4 | -1 | -5.83 | 85.98 | 13.45 | 226.73 | 0.3192 | -1110.9 | 999999 | |
| 5 | -1 | 3 | -1 | -5.90 | 85.62 | 13.09 | 225.79 | 0.3157 | -1101.6 | 999999 | |
| 0 | 6 | 0 | 3 | -5.79 | 84.85 | 12.33 | 224.27 | 0.3056 | -958.0 | -748.7 | |
| 0 | 6 | 0 | 3 | -6.51 | 84.67 | 12.14 | 222.25 | 0.3122 | -786.0 | -644.0 | |
| 0 | 5 | 0 | 3 | -6.41 | 84.02 | 11.50 | 220.90 | 0.3039 | -786.0 | -617.7 | |
| 0 | 9 | 0 | 5 | -6.85 | 83.91 | 11.39 | 219.69 | 0.3083 | -888.0 | -631.8 | |
| 0 | 4 | 0 | 2 | -5.64 | 83.65 | 11.12 | 221.66 | 0.2901 | -916.0 | -757.0 | |
| 0 | 6 | 0 | 3 | -7.80 | 83.30 | 10.77 | 216.25 | 0.3145 | -614.0 | -559.7 | |
| 0 | 5 | 0 | 3 | -5.59 | 83.13 | 10.60 | 220.41 | 0.2838 | -498.0 | -453.9 | |
| 0 | 5 | 0 | 3 | -4.75 | 82.95 | 10.43 | 221.93 | 0.2712 | -763.0 | -544.9 | |
| 0 | 6 | 0 | 3 | -7.18 | 82.48 | 9.96 | 215.30 | 0.2982 | 325.0 | 385.3 | |
| 5 | 13 | 2 | 7 | -7.25 | 82.05 | 9.52 | 213.96 | 0.2951 | 780.4 | 537.8 | |
| 0 | 5 | 0 | 3 | -4.28 | 81.40 | 8.88 | 218.52 | 0.2482 | 507.0 | 391.6 | |
| 0 | 5 | 0 | 2 | -4.62 | 80.26 | 7.74 | 213.93 | 0.2415 | 237.0 | 298.9 | |
| 0 | 11 | 0 | 5 | -6.33 | 80.01 | 7.48 | 209.50 | 0.2640 | 1125.0 | 864.8 | |
| 0 | 4 | 0 | 2 | -5.09 | 79.87 | 7.35 | 211.53 | 0.2447 | 791.0 | 703.2 | |
| 0 | 8 | 0 | 4 | -5.57 | 79.72 | 7.19 | 210.01 | 0.2503 | 870.0 | 726.0 | |
| 16 | 35 | 8 | 18 | -7.24 | 79.43 | 6.90 | 206.01 | 0.2731 | 1385.1 | 701.8 | |
| 20 | 56 | 10 | 29 | -5.63 | 78.58 | 6.05 | 205.79 | 0.2423 | 1484.1 | 799.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
