group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	603	4901	302	2455	10.13	79.44	7.80	292.81	0.1460	1518.5	354.3

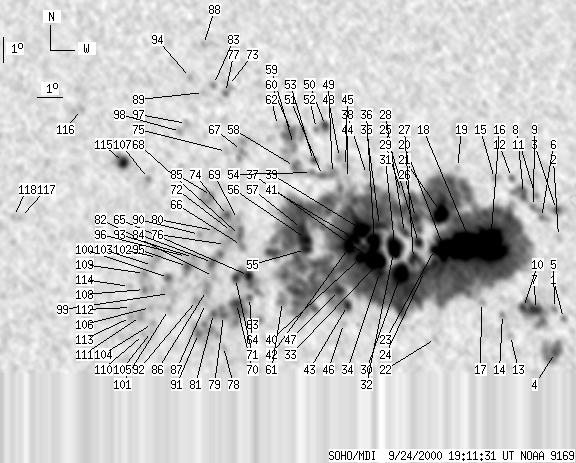

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-24 19:11:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	5	0	2	7.13	86.63	14.99	271.63	0.2578	-591.0	-529.6
2	0	8	0	4	10.33	86.56	14.91	283.98	0.2621	-926.0	-704.6
3	3	20	2	10	11.39	86.53	14.88	287.91	0.2658	-465.5	-411.9
4	4	59	2	30	5.82	86.27	14.62	266.39	0.2528	-1314.7	-711.4
5	0	10	0	5	7.53	86.28	14.63	273.22	0.2520	456.0	291.4
6	0	7	0	4	11.09	85.90	14.25	287.45	0.2544	75.0	71.3
7	12	85	6	43	7.52	85.51	13.86	273.23	0.2390	1234.1	572.4
8	0	5	0	3	11.96	85.70	14.05	290.94	0.2555	-838.0	-635.4
9	0	15	0	8	11.53	85.59	13.95	289.46	0.2516	289.0	-55.2
10	4	-7	2	-7	7.61	85.02	13.38	273.68	0.2309	1288.6	999999
11	6	32	3	16	12.05	85.21	13.56	291.91	0.2484	19.9	-164.5
12	0	8	0	4	12.69	84.75	13.11	295.00	0.2452	582.0	283.7
13	0	6	0	3	6.53	84.47	12.82	268.89	0.2216	569.0	456.9
14	0	5	0	3	7.36	84.17	12.52	272.66	0.2163	919.0	766.5
15	0	10	0	5	12.67	84.05	12.41	296.05	0.2344	-149.0	-135.1
16	194	3569	98	1793	10.18	83.78	12.14	285.90	0.2161	2178.8	678.2
17	0	5	0	3	7.85	83.34	11.69	275.17	0.2025	210.0	142.6
18	-16	-16	-16	-16	10.04	83.05	11.40	286.11	0.2036	999999	999999
19	0	6	0	3	13.14	82.56	10.92	300.79	0.2157	271.0	136.2
20	-16	-16	-16	-16	9.95	81.92	10.27	287.15	0.1847	999999	999999
21	34	-16	17	-16	11.43	81.81	10.16	294.84	0.1914	1755.9	999999
22	0	5	0	2	6.49	81.47	9.82	267.87	0.1704	-491.0	-315.2
23	9	-16	5	-16	9.95	81.52	9.87	287.80	0.1781	1836.8	999999
24	10	-16	5	-16	9.10	81.09	9.45	283.61	0.1675	1725.9	999999
25	8	-16	4	-16	10.24	80.88	9.24	290.47	0.1694	1520.3	999999
26	7	-16	4	-16	11.22	80.79	9.15	295.97	0.1742	1436.1	999999
27	9	-16	5	-16	9.62	80.66	9.02	287.28	0.1626	1656.6	999999
28	6	-16	3	-16	10.64	80.33	8.69	293.89	0.1631	1458.1	999999
29	0	16	0	8	12.20	80.26	8.61	302.41	0.1742	711.0	343.1
30	37	-16	19	-16	9.00	80.13	8.48	284.32	0.1511	2049.3	999999
31	14	-16	7	-16	10.22	79.92	8.27	292.36	0.1539	1752.5	999999
32	12	-16	6	-16	9.87	79.87	8.23	290.30	0.1510	1904.7	999999
33	16	-16	8	-16	9.56	79.34	7.70	289.47	0.1408	1954.3	999999
34	8	-16	4	-16	9.10	79.29	7.65	286.35	0.1376	1804.3	999999
35	10	-16	5	-16	10.93	79.34	7.69	298.21	0.1499	1379.5	999999
36	22	-16	11	-16	10.27	79.12	7.48	294.72	0.1416	1970.5	999999
37	19	-16	9	-16	9.61	78.99	7.34	290.61	0.1352	2543.9	999999
38	0	10	0	5	12.93	78.87	7.23	310.63	0.1623	604.0	487.0
39	19	-16	10	-16	10.78	78.61	6.97	299.63	0.1378	1982.3	999999
40	10	-16	5	-16	9.69	78.55	6.91	292.36	0.1288	2200.7	999999
41	12	-16	6	-16	10.48	78.25	6.60	298.87	0.1297	2137.9	999999
42	13	-16	6	-16	10.13	78.12	6.48	296.86	0.1251	2202.6	999999
43	5	-16	2	-16	7.83	78.00	6.36	278.36	0.1114	1429.3	999999
44	0	6	0	3	12.79	78.10	6.46	313.05	0.1508	328.0	295.1
45	0	7	0	3	13.26	78.03	6.39	315.60	0.1555	777.0	618.7
46	0	5	0	3	7.13	77.83	6.19	272.08	0.1075	624.0	504.9
47	9	-16	5	-16	8.42	77.69	6.05	284.17	0.1080	432.1	999999
48	0	16	0	8	13.61	77.80	6.16	318.24	0.1572	379.0	302.5
49	0	5	0	2	12.99	77.50	5.86	316.78	0.1460	1101.0	880.3
50	5	11	3	5	14.88	77.27	5.62	325.63	0.1686	-927.3	-784.1
51	0	10	0	5	12.92	77.10	5.46	318.43	0.1403	965.0	813.1
52	0	4	0	2	14.76	76.90	5.26	327.00	0.1635	-758.0	-644.5
53	3	10	1	5	13.51	76.75	5.11	322.96	0.1444	672.9	507.2
54	0	6	0	3	13.04	76.66	5.02	321.35	0.1371	736.0	564.4
55	9	-16	4	-16	10.03	76.37	4.73	303.74	0.0980	1479.9	999999
56	26	-16	13	-16	10.46	76.38	4.73	307.24	0.1024	1709.9	999999
57	-56	-16	-56	-16	10.85	76.22	4.58	311.13	0.1046	999999	999999
58	0	20	0	10	13.28	75.98	4.34	326.34	0.1335	-820.0	-280.0
59	0	27	0	14	14.14	75.96	4.32	329.84	0.1459	440.0	478.4
60	0	63	0	32	14.65	75.89	4.24	331.95	0.1530	-182.0	-369.2
61	0	18	0	9	8.01	75.44	3.79	286.05	0.0685	-1131.0	-956.2
62	0	3	0	1	14.90	75.33	3.68	335.85	0.1525	-768.0	-643.3
63	0	9	0	4	7.32	74.53	2.88	277.54	0.0505	-188.0	-216.9
64	2	11	1	5	8.18	74.14	2.49	296.59	0.0484	-996.2	-804.0
65	6	68	3	34	9.03	74.10	2.46	310.75	0.0562	-1336.6	-1015.3
66	0	12	0	6	10.21	73.84	2.19	326.53	0.0685	-1084.0	-827.1
67	0	49	0	25	13.92	73.87	2.22	342.80	0.1278	-1237.0	-890.0
68	0	11	0	5	10.60	73.76	2.11	330.35	0.0736	-1187.0	-1098.0
69	0	2	0	1	11.22	73.68	2.04	334.92	0.0827	-1079.0	-1058.7
70	8	101	4	50	7.95	73.62	1.98	297.06	0.0386	-1442.6	-762.6
71	5	-65	3	-65	8.92	73.59	1.95	315.79	0.0483	-1219.4	999999
72	0	13	0	6	10.75	73.44	1.80	335.11	0.0736	-1243.0	-1124.1
73	0	11	0	5	16.48	73.36	1.72	350.15	0.1690	-753.0	-617.9
74	3	19	1	9	11.38	73.29	1.64	340.02	0.0826	-1407.5	-1143.2
75	0	8	0	4	13.88	73.26	1.62	347.21	0.1245	-810.0	-650.4
76	0	18	0	9	10.25	73.20	1.56	335.09	0.0638	-1013.0	-910.0
77	0	6	0	3	16.21	73.24	1.60	350.57	0.1639	-1085.0	-831.8
78	0	6	0	3	6.27	73.11	1.46	245.15	0.0281	-798.0	-691.8
79	3	-70	1	-70	7.48	73.11	1.47	290.16	0.0272	-1180.3	999999
80	0	6	0	3	10.79	72.77	1.12	343.98	0.0701	-873.0	-822.4
81	2	-70	1	-70	7.56	72.72	1.07	299.88	0.0215	-1129.1	999999
82	0	5	0	2	9.00	72.72	1.08	332.59	0.0406	-962.0	-937.4
83	0	6	0	3	16.52	72.76	1.11	353.63	0.1682	-1043.0	-809.1
84	3	27	1	13	9.55	72.68	1.04	338.46	0.0490	-1443.4	-1097.5
85	0	29	0	14	12.16	72.65	1.01	349.27	0.0930	-1341.0	-1077.7
86	0	18	0	9	8.46	72.45	0.80	332.29	0.0299	-1169.0	-1069.0
87	0	3	0	2	7.95	72.41	0.76	323.06	0.0220	-901.0	-863.5
88	0	5	0	3	18.11	72.36	0.71	356.52	0.1948	-584.0	-587.5
89	0	5	0	2	16.21	72.35	0.70	355.81	0.1621	-683.0	-549.7
90	0	5	0	2	10.64	72.17	0.53	351.99	0.0653	-849.0	-740.1
91	0	71	0	35	6.78	72.13	0.48	250.81	0.0089	-1305.0	-876.4
92	0	12	0	6	8.07	72.05	0.41	340.20	0.0208	-1202.0	-970.7
93	0	19	0	9	9.74	71.93	0.29	354.16	0.0492	-924.0	-919.3
94	0	5	0	3	16.80	71.82	0.18	359.01	0.1720	-758.0	-553.5
95	3	19	1	9	9.39	71.70	0.05	358.78	0.0428	-1223.4	-974.5
96	0	9	0	4	9.78	71.66	0.01	359.74	0.0497	-671.0	-572.6
97	0	6	0	3	14.99	71.66	0.01	359.91	0.1405	-815.0	-744.7
98	0	7	0	3	14.67	71.42	-0.23	1.64	0.1351	-665.0	-628.7
99	0	22	0	11	8.34	70.99	-0.66	25.02	0.0269	-840.0	-825.4
100	3	11	1	5	8.96	70.95	-0.70	18.86	0.0373	-925.5	-778.4
101	0	6	0	3	7.72	70.95	-0.69	41.88	0.0181	-831.0	-719.2
102	0	16	0	8	9.74	70.51	-1.13	21.79	0.0527	-1178.0	-787.9
103	0	17	0	8	9.43	70.32	-1.33	27.86	0.0492	-1014.0	-897.7
104	0	5	0	2	7.17	70.32	-1.32	80.38	0.0233	-882.0	-874.5
105	0	4	0	2	6.86	70.28	-1.36	93.78	0.0237	-657.0	-567.5
106	0	6	0	3	7.79	70.24	-1.40	58.68	0.0285	-577.0	-664.9
107	0	5	0	3	12.83	70.14	-1.50	14.03	0.1061	-886.0	-774.8
108	0	14	0	7	8.49	70.00	-1.64	46.38	0.0393	-1145.0	-893.5
109	0	12	0	6	9.12	70.00	-1.64	36.80	0.0475	-1070.0	-871.3
110	0	3	0	2	6.74	69.97	-1.67	97.07	0.0294	-690.0	-600.7
111	0	12	0	6	7.44	69.85	-1.79	74.45	0.0324	-1028.0	-993.1
112	0	6	0	3	7.79	69.49	-2.15	68.34	0.0402	-662.0	-628.7
113	0	5	0	2	7.40	69.46	-2.19	78.12	0.0389	-915.0	-840.7
114	0	4	0	2	8.61	69.41	-2.23	53.00	0.0485	-582.0	-518.1
115	10	31	5	16	13.45	69.13	-2.51	20.60	0.1216	-1409.6	-857.8
116	0	18	0	9	15.52	67.41	-4.24	25.47	0.1662	-917.0	-716.4
117	0	3	0	2	11.26	65.05	-6.59	56.01	0.1365	-852.0	-746.0
118	0	3	0	2	11.29	64.77	-6.88	56.87	0.1408	-787.0	-640.5

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
