SOHO MDI 2000-09-24 20:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79 | 346 | 43 | 179 | -5.69 | 83.38 | 12.61 | 224.28 | 0.3112 | -45.2 | -135.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-24 20:47:31 UT |

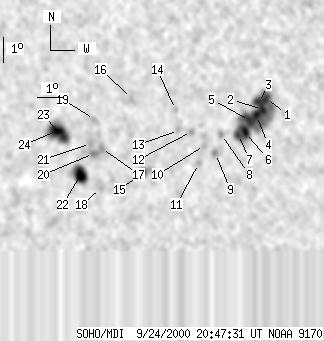

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6 | 168 | 3 | 88 | -4.43 | 86.81 | 16.04 | 235.05 | 0.3377 | -1209.8 | -795.4 | |
| 6 | -1 | 3 | -1 | -4.87 | 86.70 | 15.93 | 233.81 | 0.3404 | -1265.1 | 999999 | |
| 5 | -1 | 3 | -1 | -4.58 | 86.53 | 15.76 | 234.20 | 0.3354 | -1395.3 | 999999 | |
| 7 | -1 | 4 | -1 | -5.10 | 86.46 | 15.69 | 232.85 | 0.3396 | -1443.7 | 999999 | |
| 9 | -1 | 5 | -1 | -5.29 | 86.18 | 15.42 | 231.89 | 0.3379 | -1585.1 | 999999 | |
| 5 | -1 | 3 | -1 | -5.76 | 86.03 | 15.27 | 230.53 | 0.3409 | -1189.7 | 999999 | |
| 2 | -1 | 1 | -1 | -5.83 | 85.75 | 14.98 | 229.83 | 0.3381 | -1197.9 | 999999 | |
| 0 | 5 | 0 | 2 | -5.81 | 85.06 | 14.29 | 228.53 | 0.3293 | -817.0 | -655.6 | |
| 0 | 5 | 0 | 3 | -6.56 | 84.84 | 14.07 | 226.40 | 0.3350 | -830.0 | -572.1 | |
| 0 | 6 | 0 | 3 | -6.23 | 84.38 | 13.62 | 226.19 | 0.3258 | -770.0 | -634.0 | |
| 0 | 4 | 0 | 2 | -6.95 | 84.16 | 13.40 | 224.16 | 0.3316 | -663.0 | -663.3 | |
| 0 | 5 | 0 | 3 | -5.66 | 83.85 | 13.08 | 226.32 | 0.3128 | -771.0 | -610.6 | |
| 0 | 5 | 0 | 3 | -5.60 | 83.32 | 12.56 | 225.27 | 0.3060 | -492.0 | -462.6 | |
| 0 | 4 | 0 | 2 | -4.76 | 83.19 | 12.42 | 226.97 | 0.2945 | -669.0 | -525.2 | |
| 3 | 10 | 2 | 5 | -7.25 | 81.92 | 11.15 | 218.31 | 0.3110 | 908.3 | 658.9 | |
| 0 | 4 | 0 | 2 | -4.28 | 81.42 | 10.66 | 223.76 | 0.2679 | 666.0 | 501.0 | |
| 0 | 8 | 0 | 4 | -6.25 | 80.26 | 9.50 | 215.90 | 0.2810 | 968.0 | 847.1 | |
| 0 | 13 | 0 | 7 | -7.85 | 80.26 | 9.49 | 212.77 | 0.3032 | 749.0 | 704.7 | |
| 0 | 8 | 0 | 4 | -5.08 | 79.97 | 9.20 | 217.59 | 0.2623 | 727.0 | 668.4 | |
| 0 | 7 | 0 | 3 | -6.44 | 79.95 | 9.18 | 214.59 | 0.2806 | 1061.0 | 969.2 | |
| 0 | 8 | 0 | 4 | -6.04 | 79.82 | 9.06 | 215.04 | 0.2739 | 880.0 | 794.6 | |
| 15 | 34 | 8 | 18 | -7.27 | 79.45 | 8.68 | 211.51 | 0.2878 | 1387.5 | 721.9 | |
| 5 | 52 | 3 | 26 | -5.78 | 78.75 | 7.98 | 212.24 | 0.2602 | 1219.7 | 843.9 | |
| 16 | -23 | 8 | -23 | -5.50 | 78.51 | 7.74 | 212.03 | 0.2540 | 1429.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
