group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	536	4834	269	2459	10.08	79.71	12.46	285.06	0.2217	1528.0	379.8

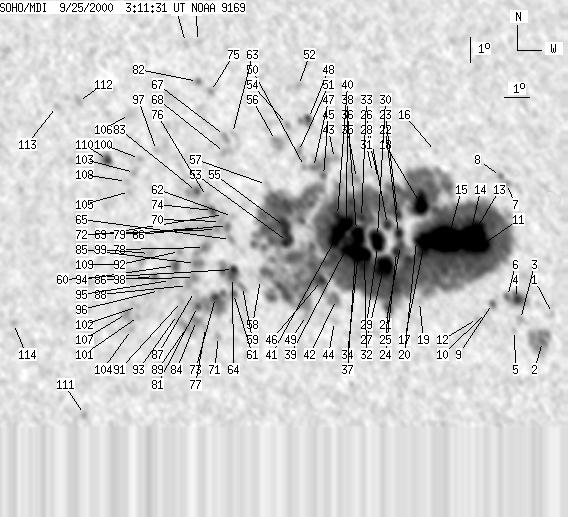

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-25 03:11:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	5	0	3	6.99	86.99	19.75	271.36	0.3369	-603.0	-430.5
2	0	70	0	37	5.91	86.53	19.29	268.07	0.3302	-1374.0	-671.3
3	0	10	0	5	6.81	85.66	18.41	270.71	0.3150	386.0	209.5
4	10	40	5	21	7.63	85.57	18.32	273.33	0.3135	1173.1	824.7
5	0	4	0	2	6.39	85.39	18.15	269.33	0.3109	633.0	517.5
6	1	-4	0	-4	7.72	85.16	17.91	273.66	0.3067	1144.0	999999
7	0	9	0	5	12.13	85.37	18.12	287.58	0.3204	-78.0	-24.2
8	0	7	0	3	12.41	85.14	17.89	288.63	0.3180	219.0	109.0
9	0	8	0	4	7.47	84.53	17.28	272.87	0.2962	944.0	778.8
10	0	3	0	1	7.13	84.27	17.02	271.70	0.2919	526.0	467.6
11	24	3761	13	1919	9.71	84.10	16.85	280.61	0.2920	1755.7	636.7
12	0	3	0	2	6.91	83.89	16.64	270.92	0.2857	517.0	515.2
13	45	-11	23	-11	10.23	83.87	16.63	282.48	0.2897	1870.1	999999
14	5	-11	2	-11	9.57	83.55	16.31	280.39	0.2828	1745.4	999999
15	83	-11	43	-11	9.99	82.79	15.55	282.31	0.2714	2163.5	999999
16	0	4	0	2	13.48	82.50	15.25	294.78	0.2830	-297.0	-170.6
17	47	-11	24	-11	9.94	81.85	14.60	282.76	0.2557	2134.5	999999
18	33	-11	17	-11	11.47	81.76	14.51	288.62	0.2603	1619.4	999999
19	0	4	0	2	7.65	81.55	14.31	273.76	0.2465	294.0	310.8
20	-17	-11	-17	-11	10.03	81.52	14.28	283.34	0.2507	999999	999999
21	3	-11	1	-11	9.85	80.86	13.62	283.15	0.2393	1631.5	999999
22	7	-11	4	-11	10.32	80.80	13.56	285.13	0.2400	1432.3	999999
23	6	-11	3	-11	11.06	80.80	13.55	288.12	0.2430	1431.4	999999
24	7	-11	3	-11	9.62	80.69	13.45	282.33	0.2357	1717.7	999999
25	4	-11	2	-11	7.45	80.29	13.05	273.08	0.2252	-590.6	999999
26	7	-11	4	-11	10.68	80.37	13.12	287.06	0.2345	1464.7	999999
27	40	-11	20	-11	9.01	80.14	12.90	280.09	0.2249	2006.1	999999
28	0	5	0	2	12.45	80.09	12.84	294.53	0.2396	597.0	445.3
29	9	-11	4	-11	9.84	79.93	12.68	283.89	0.2239	1861.9	999999
30	19	-11	10	-11	10.23	79.95	12.70	285.58	0.2256	1542.2	999999
31	0	4	0	2	12.73	79.86	12.61	295.99	0.2380	429.0	378.9
32	8	-11	4	-11	9.54	79.39	12.15	283.04	0.2140	2246.6	999999
33	4	-11	2	-11	10.98	79.33	12.08	289.61	0.2191	1383.7	999999
34	22	-11	11	-11	10.09	79.21	11.96	285.76	0.2130	1934.5	999999
35	0	35	0	18	12.51	79.19	11.95	296.27	0.2264	294.0	343.1
36	-34	-11	-34	-11	10.48	79.10	11.86	287.67	0.2130	999999	999999
37	8	-11	4	-11	9.59	79.03	11.78	283.61	0.2081	2762.1	999999
38	18	-11	9	-11	10.76	78.71	11.46	289.50	0.2081	1940.2	999999
39	9	-11	4	-11	9.75	78.63	11.39	284.81	0.2022	2261.8	999999
40	6	-11	3	-11	11.09	78.36	11.11	291.52	0.2042	1560.1	999999
41	30	-11	15	-11	10.27	78.29	11.04	287.74	0.1988	2276.8	999999
42	0	21	0	11	7.81	78.21	10.97	275.30	0.1901	1211.0	730.3
43	0	3	0	1	13.32	78.33	11.09	301.20	0.2198	836.0	840.2
44	0	6	0	3	6.96	78.11	10.86	270.77	0.1880	431.0	360.8
45	0	5	0	3	12.66	77.85	10.61	299.54	0.2074	1028.0	1000.3
46	8	-11	4	-11	8.57	77.63	10.39	279.67	0.1817	526.4	999999
47	0	18	0	9	12.98	77.46	10.22	301.81	0.2043	1098.0	776.0
48	4	22	2	11	14.91	77.34	10.10	309.67	0.2211	-938.0	-611.9
49	0	8	0	4	7.21	77.00	9.75	272.25	0.1690	646.0	604.6
50	0	4	0	2	13.03	77.10	9.85	302.91	0.1995	771.0	678.9
51	0	17	0	9	13.62	76.88	9.63	305.98	0.2019	594.0	582.5
52	0	7	0	4	16.22	77.00	9.75	315.06	0.2313	-671.0	-542.8
53	11	-11	5	-11	10.11	76.31	9.07	290.14	0.1660	1641.9	999999
54	0	6	0	3	14.69	76.48	9.23	311.33	0.2076	-896.0	-678.7
55	20	-11	10	-11	10.70	76.21	8.96	293.67	0.1679	1611.3	999999
56	0	20	0	10	14.07	75.96	8.72	310.51	0.1942	155.0	340.7
57	0	5	0	3	12.35	75.54	8.29	304.18	0.1711	216.0	100.4
58	0	5	0	3	8.65	75.20	7.95	282.80	0.1409	-767.0	-613.7
59	0	6	0	3	8.39	74.48	7.23	281.93	0.1279	-735.0	-672.3
60	6	46	3	23	9.06	74.13	6.89	287.73	0.1249	-1208.8	-1125.3
61	2	126	1	63	8.12	74.12	6.87	280.31	0.1209	-876.0	-741.9
62	0	6	0	3	11.12	74.14	6.89	302.11	0.1397	-824.0	-690.3
63	0	7	0	3	14.37	74.23	6.98	317.90	0.1765	-855.0	-701.2
64	3	-60	1	-60	8.75	74.09	6.84	285.40	0.1227	-1417.6	999999
65	0	7	0	4	10.23	74.04	6.79	296.59	0.1308	-1147.0	-966.3
66	0	8	0	4	10.78	73.93	6.68	300.66	0.1335	-1100.0	-1051.4
67	0	9	0	4	14.30	73.90	6.66	318.95	0.1718	-883.0	-866.6
68	0	15	0	7	13.63	73.88	6.64	316.27	0.1632	-879.0	-758.3
69	0	7	0	3	11.21	73.78	6.53	303.98	0.1353	-1020.0	-940.4
70	0	3	0	1	10.94	73.65	6.41	302.75	0.1309	-1147.0	-1111.3
71	0	6	0	3	6.46	73.50	6.25	265.94	0.1090	-538.0	-586.9
72	0	7	0	3	10.63	73.49	6.24	301.33	0.1257	-1199.0	-1106.1
73	6	-61	3	-61	7.98	73.40	6.16	280.06	0.1084	-1421.1	999999
74	4	19	2	10	11.37	73.34	6.10	306.82	0.1307	-1481.0	-1199.3
75	0	5	0	3	16.04	73.39	6.14	327.10	0.1901	-934.0	-713.9
76	0	8	0	4	11.92	73.12	5.87	311.16	0.1335	-885.0	-849.0
77	0	5	0	2	6.81	72.99	5.74	269.10	0.0999	-675.0	-541.5
78	0	25	0	12	9.93	73.00	5.75	298.15	0.1125	-1373.0	-1066.9
79	0	49	0	25	10.71	72.93	5.69	304.30	0.1184	-1138.0	-930.3
80	0	1	0	1	18.02	72.96	5.71	333.86	0.2158	-751.0	-673.4
81	2	-61	1	-61	7.63	72.69	5.44	277.71	0.0953	-1310.0	999999
82	0	7	0	4	16.44	72.87	5.62	330.44	0.1913	-1051.0	-926.3
83	3	25	1	12	12.12	72.72	5.47	314.26	0.1308	-1475.6	-1094.6
84	0	19	0	9	7.09	72.64	5.39	271.96	0.0938	-1256.0	-1026.6
85	0	29	0	14	9.31	72.63	5.38	294.37	0.1021	-1429.0	-1074.3
86	0	11	0	6	8.76	72.58	5.34	289.43	0.0979	-1176.0	-1028.8
87	0	4	0	2	8.22	72.57	5.33	283.99	0.0952	-876.0	-839.9
88	0	11	0	5	8.46	72.30	5.06	287.20	0.0917	-1153.0	-1028.3
89	0	8	0	4	6.82	72.24	5.00	268.96	0.0869	-1195.0	-1022.3
90	0	6	0	3	17.99	72.42	5.18	335.94	0.2114	-676.0	-405.3
91	0	8	0	4	7.84	72.06	4.81	280.97	0.0850	-736.0	-817.2
92	0	5	0	2	9.78	72.00	4.76	301.51	0.0963	-1045.0	-904.9
93	0	7	0	4	7.33	71.89	4.65	275.17	0.0811	-924.0	-813.1
94	6	14	3	7	9.24	71.84	4.59	297.19	0.0892	-1385.1	-1046.9
95	0	20	0	10	8.66	71.63	4.39	291.90	0.0819	-1027.0	-850.7
96	0	3	0	2	8.27	71.19	3.95	289.10	0.0724	-975.0	-880.7
97	0	6	0	3	13.74	71.15	3.90	330.91	0.1365	-730.0	-615.2
98	0	9	0	4	8.82	71.00	3.76	297.09	0.0730	-811.0	-828.9
99	0	38	0	19	9.72	70.81	3.57	308.48	0.0787	-1252.0	-825.4
100	0	5	0	2	13.43	70.46	3.21	334.30	0.1263	-712.0	-631.9
101	0	3	0	2	7.26	70.36	3.11	276.27	0.0544	-896.0	-829.4
102	0	8	0	4	7.65	70.32	3.08	283.45	0.0549	-985.0	-829.5
103	0	8	0	4	12.89	70.25	3.01	333.78	0.1163	-862.0	-707.1
104	0	3	0	2	6.76	70.08	2.83	266.59	0.0494	-849.0	-873.4
105	0	4	0	2	12.14	70.04	2.80	332.29	0.1031	-810.0	-715.7
106	0	17	0	9	15.16	70.08	2.83	341.57	0.1517	-879.0	-767.3
107	0	15	0	7	7.38	69.89	2.64	279.87	0.0466	-1224.0	-955.6
108	0	5	0	3	12.53	69.93	2.68	334.93	0.1083	-895.0	-794.2
109	0	10	0	5	9.29	69.74	2.50	313.84	0.0599	-858.0	-747.7
110	6	18	3	9	13.40	69.18	1.93	343.78	0.1179	-1343.5	-880.7
111	0	5	0	2	3.45	68.23	0.98	195.77	0.0634	-802.0	-624.9
112	0	8	0	4	15.68	68.02	0.78	355.09	0.1533	-992.0	-820.6
113	0	6	0	3	15.49	67.13	-0.11	0.73	0.1494	-725.0	-645.6
114	0	5	0	2	7.00	65.45	-1.80	87.87	0.0313	-793.0	-659.2

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
