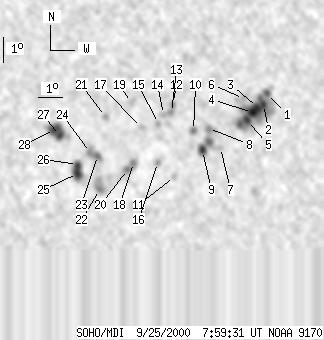

SOHO MDI 2000-09-25 07:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52 | 379 | 28 | 203 | -5.88 | 83.55 | 18.94 | 235.81 | 0.3913 | -132.3 | -130.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-25 07:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2 | 136 | 1 | 74 | -4.48 | 87.20 | 22.59 | 243.79 | 0.4287 | -1020.3 | -709.5 | |
| 4 | -1 | 2 | -1 | -4.91 | 87.05 | 22.44 | 242.73 | 0.4297 | -994.3 | 999999 | |
| 5 | -1 | 3 | -1 | -5.01 | 86.80 | 22.19 | 242.24 | 0.4270 | -1305.2 | 999999 | |
| 7 | -1 | 4 | -1 | -5.20 | 86.59 | 21.98 | 241.62 | 0.4256 | -1491.2 | 999999 | |
| 5 | -1 | 3 | -1 | -5.51 | 86.39 | 21.79 | 240.75 | 0.4252 | -1215.7 | 999999 | |
| 0 | 12 | 0 | 7 | -4.63 | 86.19 | 21.59 | 242.37 | 0.4157 | -1060.0 | -831.0 | |
| 0 | 6 | 0 | 3 | -6.54 | 85.30 | 20.69 | 237.31 | 0.4189 | -527.0 | -486.7 | |
| 0 | 12 | 0 | 6 | -5.76 | 84.77 | 20.16 | 238.23 | 0.4050 | -1130.0 | -883.6 | |
| 5 | 31 | 3 | 17 | -6.63 | 84.55 | 19.94 | 236.14 | 0.4097 | -1027.8 | -935.6 | |
| 0 | 5 | 0 | 3 | -5.81 | 84.14 | 19.54 | 237.29 | 0.3971 | -565.0 | -514.2 | |
| 0 | 6 | 0 | 3 | -7.63 | 83.43 | 18.82 | 232.55 | 0.4045 | -727.0 | -542.9 | |
| 0 | 8 | 0 | 4 | -4.74 | 83.24 | 18.63 | 238.38 | 0.3755 | -1071.0 | -789.3 | |
| 0 | 4 | 0 | 2 | -5.06 | 83.21 | 18.60 | 237.62 | 0.3778 | -1062.0 | -927.6 | |
| 0 | 5 | 0 | 3 | -5.13 | 82.88 | 18.27 | 237.00 | 0.3740 | -765.0 | -495.2 | |
| 0 | 5 | 0 | 3 | -5.48 | 82.68 | 18.08 | 235.93 | 0.3745 | 492.0 | 311.9 | |
| 0 | 4 | 0 | 2 | -7.04 | 82.70 | 18.09 | 232.62 | 0.3895 | 552.0 | 399.5 | |
| 0 | 5 | 0 | 3 | -5.61 | 81.99 | 17.38 | 234.56 | 0.3665 | -371.0 | -309.9 | |
| 0 | 11 | 0 | 6 | -7.00 | 81.71 | 17.10 | 231.11 | 0.3766 | 983.0 | 838.1 | |
| 0 | 8 | 0 | 4 | -4.60 | 81.55 | 16.94 | 236.18 | 0.3512 | 696.0 | 575.3 | |
| 0 | 6 | 0 | 3 | -7.27 | 81.47 | 16.87 | 230.15 | 0.3765 | 1146.0 | 967.4 | |
| 0 | 4 | 0 | 2 | -5.12 | 80.50 | 15.90 | 233.19 | 0.3422 | 841.0 | 737.2 | |
| 0 | 21 | 0 | 11 | -8.04 | 80.36 | 15.75 | 226.64 | 0.3713 | 747.0 | 843.7 | |
| 0 | 11 | 0 | 6 | -6.67 | 80.22 | 15.62 | 229.22 | 0.3547 | 1105.0 | 940.9 | |
| 0 | 12 | 0 | 6 | -6.54 | 79.93 | 15.33 | 228.96 | 0.3497 | 1054.0 | 893.9 | |
| 6 | 29 | 3 | 15 | -7.36 | 79.43 | 14.83 | 226.25 | 0.3528 | 1157.3 | 856.6 | |
| 4 | -25 | 2 | -25 | -7.00 | 79.42 | 14.81 | 226.98 | 0.3486 | 1174.6 | 999999 | |
| 6 | 38 | 3 | 20 | -5.82 | 78.66 | 14.05 | 228.06 | 0.3262 | 1218.3 | 924.7 | |
| 8 | -27 | 4 | -27 | -5.57 | 78.45 | 13.84 | 228.19 | 0.3209 | 1473.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
