group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	480	4443	254	2345	10.13	79.04	19.71	281.13	0.3404	1438.0	407.0

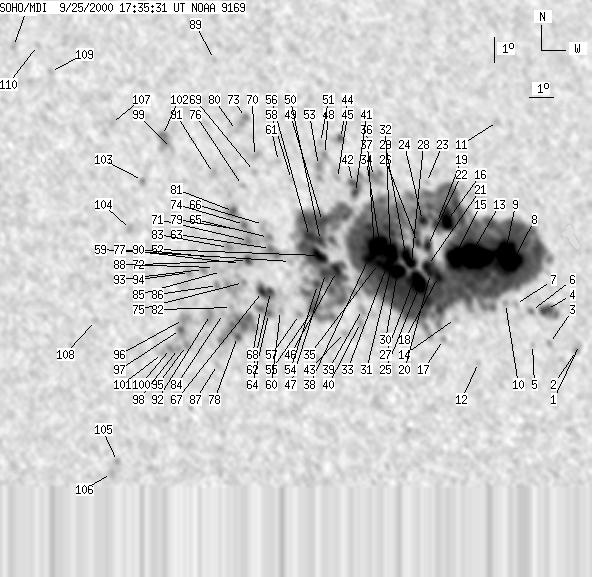

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-25 17:35:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	1	0	1	6.31	87.11	27.78	270.40	0.4653	-830.0	-828.7
2	0	6	0	3	6.08	86.97	27.64	269.89	0.4632	-923.0	-761.7
3	0	6	0	3	6.42	85.80	26.47	270.50	0.4448	370.0	319.4
4	8	36	4	20	7.75	85.75	26.42	273.50	0.4435	1104.8	672.3
5	0	3	0	2	6.42	85.05	25.72	270.43	0.4332	657.0	527.7
6	0	6	0	3	7.74	85.09	25.76	273.50	0.4333	629.0	520.0
7	0	6	0	3	8.01	84.41	25.08	274.14	0.4227	-51.0	-79.9
8	30	2748	16	1467	9.62	84.35	25.02	277.95	0.4229	1618.9	726.4
9	33	-8	18	-8	10.10	84.13	24.80	279.14	0.4201	1665.8	999999
10	0	5	0	3	8.07	83.98	24.65	274.30	0.4159	-139.0	-39.8
11	0	6	0	3	15.19	84.31	24.98	290.80	0.4378	180.0	194.3
12	0	4	0	2	5.83	82.70	23.37	268.69	0.3964	-719.0	-625.9
13	96	-8	51	-8	9.98	82.56	23.23	279.22	0.3952	1987.9	999999
14	0	6	0	3	7.59	81.80	22.48	273.15	0.3812	501.0	492.7
15	-13	-8	-13	-8	10.01	81.92	22.59	279.46	0.3851	999999	999999
16	18	-8	10	-8	11.39	81.68	22.35	283.11	0.3845	1447.6	999999
17	0	4	0	2	6.80	81.25	21.92	271.02	0.3724	-687.0	-506.4
18	7	-8	4	-8	9.26	81.18	21.85	277.66	0.3723	1579.9	999999
19	6	-8	3	-8	11.33	81.25	21.92	283.14	0.3775	1474.9	999999
20	4	-8	2	-8	9.39	80.85	21.52	278.09	0.3672	1517.6	999999
21	7	-8	4	-8	9.71	80.74	21.41	278.99	0.3660	1705.1	999999
22	8	-8	4	-8	10.49	80.80	21.47	281.08	0.3683	1138.6	999999
23	0	4	0	2	12.95	80.96	21.63	287.51	0.3783	288.0	197.8
24	7	-8	4	-8	11.47	80.66	21.33	283.79	0.3687	1326.7	999999
25	32	-8	17	-8	8.94	80.36	21.03	276.97	0.3586	1853.6	999999
26	4	-8	2	-8	10.62	80.38	21.05	281.61	0.3620	1199.4	999999
27	-25	-8	-25	-8	9.34	80.21	20.88	278.11	0.3568	999999	999999
28	9	-8	5	-8	9.85	80.08	20.75	279.59	0.3555	1441.2	999999
29	10	-8	5	-8	10.21	79.85	20.52	280.68	0.3526	1501.3	999999
30	18	-8	10	-8	9.53	79.46	20.13	278.84	0.3451	2115.1	999999
31	9	-8	5	-8	10.08	79.33	20.00	280.49	0.3440	2067.9	999999
32	11	-8	6	-8	10.39	79.22	19.90	281.45	0.3430	1915.2	999999
33	10	-8	5	-8	9.74	79.01	19.69	279.61	0.3382	2387.7	999999
34	29	-8	15	-8	10.69	78.78	19.45	282.50	0.3367	2166.8	999999
35	6	-8	3	-8	9.87	78.69	19.36	280.12	0.3332	2247.6	999999
36	-34	-8	-34	-8	10.42	78.55	19.22	281.82	0.3323	999999	999999
37	0	30	0	16	13.27	78.72	19.39	289.97	0.3453	576.0	634.3
38	14	-8	7	-8	10.08	78.28	18.95	280.92	0.3271	2186.5	999999
39	0	10	0	5	8.10	77.92	18.59	274.89	0.3182	613.0	599.1
40	0	9	0	5	7.60	77.82	18.49	273.31	0.3162	748.0	641.3
41	4	49	2	26	12.68	77.91	18.58	288.91	0.3301	1137.8	788.9
42	2	-41	1	-41	13.07	77.82	18.49	290.15	0.3305	1119.1	999999
43	0	6	0	3	7.24	77.14	17.81	272.14	0.3050	720.0	608.6
44	2	10	1	5	14.82	77.45	18.12	295.47	0.3346	-703.8	-505.0
45	0	17	0	9	13.25	77.20	17.87	291.23	0.3219	804.0	430.2
46	14	743	7	385	9.62	76.92	17.59	280.05	0.3040	1529.2	328.8
47	11	-46	6	-46	9.56	76.46	17.13	280.05	0.2964	706.3	999999
48	0	11	0	6	14.21	76.73	17.40	294.54	0.3201	-474.0	-244.0
49	11	-46	6	-46	11.59	76.46	17.13	286.75	0.3026	395.1	999999
50	5	-46	3	-46	10.85	76.33	17.00	284.43	0.2978	1382.5	999999
51	0	5	0	3	14.69	76.60	17.27	296.08	0.3211	-572.0	-440.0
52	14	-46	7	-46	10.27	76.25	16.92	282.54	0.2947	1723.4	999999
53	0	27	0	14	13.79	76.44	17.11	293.61	0.3132	316.0	490.1
54	3	-46	2	-46	9.14	76.11	16.78	278.77	0.2897	-527.2	999999
55	4	-46	2	-46	8.14	75.86	16.53	275.34	0.2842	-1186.6	999999
56	13	-46	7	-46	11.03	75.88	16.55	285.32	0.2912	1168.0	999999
57	0	6	0	3	8.00	75.32	15.99	274.94	0.2751	-879.0	-760.4
58	0	4	0	2	13.28	75.28	15.95	293.34	0.2925	330.0	326.5
59	0	5	0	3	10.08	75.05	15.72	282.60	0.2745	-214.0	-254.0
60	0	5	0	3	8.18	74.55	15.22	275.78	0.2624	60.0	-144.3
61	0	5	0	3	14.00	74.78	15.45	296.27	0.2896	-637.0	-522.4
62	4	34	2	17	8.93	74.17	14.85	278.81	0.2573	-1130.4	-972.1
63	0	23	0	12	10.61	74.25	14.92	285.13	0.2634	-1140.0	-935.6
64	0	36	0	18	8.08	74.06	14.73	275.51	0.2541	-573.0	-639.1
65	0	11	0	5	11.04	74.19	14.86	286.78	0.2641	-1135.0	-932.5
66	0	13	0	7	11.56	74.01	14.68	288.85	0.2636	-907.0	-813.7
67	5	-62	3	-62	8.94	73.85	14.52	279.00	0.2519	-1426.5	999999
68	2	-64	1	-64	8.25	73.74	14.41	276.25	0.2489	-1112.5	999999
69	0	6	0	3	13.64	73.76	14.43	296.50	0.2719	-842.0	-715.1
70	0	9	0	5	14.23	73.80	14.47	298.40	0.2766	-781.0	-709.3
71	0	35	0	18	10.95	73.37	14.04	287.24	0.2505	-1337.0	-1010.3
72	5	20	2	10	10.17	73.29	13.96	284.25	0.2461	-1212.5	-974.4
73	0	16	0	8	15.77	73.53	14.20	303.70	0.2851	-930.0	-832.7
74	0	12	0	6	11.58	73.23	13.91	289.80	0.2514	-1416.0	-1135.3
75	0	60	0	31	9.32	73.09	13.76	280.93	0.2402	-965.0	-955.7
76	0	6	0	3	13.10	73.24	13.91	295.43	0.2604	-735.0	-577.0
77	0	8	0	4	10.06	73.00	13.67	284.05	0.2410	-881.0	-850.1
78	2	112	1	57	7.22	72.77	13.45	272.14	0.2319	-972.5	-806.2
79	0	7	0	4	11.39	72.94	13.61	289.43	0.2457	-1220.0	-1003.2
80	0	4	0	2	15.27	73.12	13.79	302.88	0.2751	-698.0	-752.0
81	3	24	1	13	12.10	72.81	13.48	292.32	0.2475	-1276.5	-1005.8
82	0	4	0	2	8.36	72.57	13.24	277.13	0.2294	-895.0	-924.6
83	0	9	0	4	10.70	72.54	13.21	287.11	0.2360	-1319.0	-1109.6
84	0	3	0	2	8.13	72.24	12.91	276.26	0.2235	-970.0	-894.6
85	0	3	0	2	9.77	72.22	12.89	283.51	0.2271	-849.0	-823.4
86	0	6	0	3	9.23	72.03	12.70	281.28	0.2224	-1199.0	-920.0
87	0	5	0	3	6.15	71.94	12.61	267.26	0.2183	-677.0	-511.0
88	0	5	0	3	9.93	71.94	12.61	284.48	0.2231	-658.0	-727.8
89	0	3	0	2	18.10	72.41	13.08	312.48	0.2929	-749.0	-614.1
90	0	13	0	7	10.32	71.91	12.58	286.21	0.2243	-938.0	-772.8
91	0	6	0	3	13.61	72.07	12.74	299.12	0.2465	-1048.0	-899.6
92	0	16	0	8	8.11	71.71	12.38	276.34	0.2146	-1162.0	-1012.6
93	0	6	0	3	9.87	71.49	12.16	284.63	0.2155	-1148.0	-996.4
94	0	7	0	4	9.76	70.92	11.59	284.75	0.2057	-1055.0	-909.0
95	0	8	0	4	6.92	70.72	11.39	270.74	0.1969	-1163.0	-915.0
96	0	17	0	9	7.94	70.62	11.29	275.94	0.1959	-1238.0	-972.7
97	0	9	0	4	7.55	70.49	11.16	273.99	0.1933	-1434.0	-1152.8
98	0	7	0	4	6.81	70.39	11.06	270.14	0.1914	-1117.0	-916.3
99	0	4	0	2	14.63	70.40	11.07	306.29	0.2316	-830.0	-687.4
100	0	5	0	2	6.82	70.07	10.75	270.15	0.1860	-1173.0	-1015.4
101	0	6	0	3	6.63	69.75	10.42	269.07	0.1805	-912.0	-803.1
102	0	26	0	13	15.15	70.06	10.73	308.95	0.2321	-1147.0	-973.9
103	0	6	0	3	13.40	69.16	9.83	304.62	0.2028	-766.0	-573.8
104	0	8	0	4	11.49	68.60	9.27	297.26	0.1785	-959.0	-748.1
105	0	5	0	2	2.46	67.91	8.58	242.89	0.1683	-744.0	-644.6
106	0	8	0	4	1.99	67.67	8.34	239.78	0.1686	-650.0	-437.4
107	0	4	0	2	15.66	67.99	8.66	316.61	0.2121	-990.0	-936.1
108	0	5	0	3	7.97	67.11	7.78	278.28	0.1362	-440.0	-284.2
109	0	6	0	3	17.75	65.57	6.24	331.25	0.2163	-686.0	-571.4
110	0	5	0	2	18.79	65.07	5.74	335.35	0.2282	-714.0	-621.8
111	0	9	0	4	18.76	64.08	4.75	339.14	0.2212	-821.0	-597.2

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
