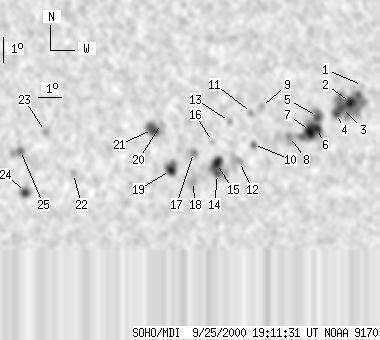

SOHO MDI 2000-09-25 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75 | 404 | 42 | 226 | -6.13 | 82.86 | 24.41 | 241.75 | 0.4669 | -82.0 | -77.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-25 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -4.40 | 87.57 | 29.12 | 249.54 | 0.5199 | -476.0 | -440.7 | |
| 11 | 108 | 6 | 62 | -5.05 | 87.06 | 28.61 | 248.01 | 0.5165 | -1113.4 | -542.8 | |
| 4 | -2 | 2 | -2 | -5.22 | 86.67 | 28.22 | 247.40 | 0.5121 | -1306.7 | 999999 | |
| 5 | -2 | 3 | -2 | -5.45 | 86.46 | 28.01 | 246.83 | 0.5105 | -993.0 | 999999 | |
| 5 | 76 | 3 | 43 | -5.52 | 85.62 | 27.17 | 246.03 | 0.4995 | -1274.0 | -981.1 | |
| 5 | -5 | 3 | -5 | -6.00 | 85.60 | 27.15 | 245.14 | 0.5022 | -1206.2 | 999999 | |
| 9 | -5 | 5 | -5 | -6.11 | 85.34 | 26.89 | 244.73 | 0.4994 | -1499.1 | 999999 | |
| 0 | 11 | 0 | 6 | -6.26 | 84.43 | 25.98 | 243.65 | 0.4880 | -1044.0 | -774.1 | |
| 0 | 6 | 0 | 4 | -4.99 | 83.16 | 24.71 | 244.87 | 0.4618 | -536.0 | -255.5 | |
| 0 | 7 | 0 | 4 | -6.49 | 82.88 | 24.43 | 241.72 | 0.4686 | 676.0 | 446.8 | |
| 0 | 5 | 0 | 3 | -5.21 | 82.74 | 24.29 | 244.05 | 0.4574 | 363.0 | 195.8 | |
| 0 | 20 | 0 | 11 | -7.15 | 82.31 | 23.87 | 239.90 | 0.4659 | 695.0 | 638.6 | |
| 0 | 5 | 0 | 3 | -5.52 | 81.81 | 23.36 | 242.49 | 0.4468 | 692.0 | 546.1 | |
| 3 | 44 | 2 | 25 | -7.58 | 81.40 | 22.95 | 238.07 | 0.4573 | 1072.1 | 894.8 | |
| 10 | -14 | 6 | -14 | -7.18 | 81.33 | 22.88 | 238.76 | 0.4531 | 1232.3 | 999999 | |
| 0 | 4 | 0 | 2 | -6.29 | 81.12 | 22.67 | 240.23 | 0.4431 | -311.0 | -280.6 | |
| 0 | 11 | 0 | 6 | -6.69 | 80.33 | 21.88 | 238.53 | 0.4358 | 1080.0 | 880.9 | |
| 0 | 11 | 0 | 6 | -7.85 | 80.35 | 21.90 | 236.31 | 0.4459 | 1015.0 | 790.9 | |
| 7 | 23 | 4 | 12 | -7.37 | 79.39 | 20.94 | 236.04 | 0.4292 | 1109.9 | 849.8 | |
| 0 | 4 | 0 | 2 | -5.47 | 78.93 | 20.48 | 239.30 | 0.4069 | 624.0 | 672.1 | |
| 10 | 27 | 5 | 15 | -5.69 | 78.57 | 20.12 | 238.36 | 0.4037 | 1322.4 | 851.7 | |
| 0 | 5 | 0 | 2 | -7.33 | 75.36 | 16.91 | 230.15 | 0.3774 | -534.0 | -521.7 | |
| 0 | 5 | 0 | 3 | -5.60 | 74.16 | 15.71 | 231.78 | 0.3445 | -893.0 | -662.9 | |
| 6 | 15 | 3 | 8 | -8.03 | 73.42 | 14.98 | 225.24 | 0.3619 | 949.6 | 643.6 | |
| 0 | 14 | 0 | 7 | -6.33 | 73.16 | 14.72 | 228.27 | 0.3398 | -860.0 | -634.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
