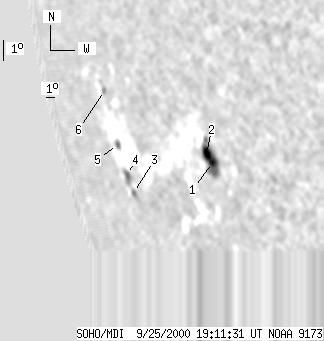

SOHO MDI 2000-09-25 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10 | 84 | 11 | 112 | -12.35 | 352.81 | -65.64 | 106.39 | 0.9261 | -487.9 | -148.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-25 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3 | 58 | 3 | 66 | -12.12 | 356.89 | -61.56 | 107.10 | 0.9013 | -778.6 | -386.2 | |
| 7 | -1 | 8 | -1 | -11.80 | 356.51 | -61.94 | 106.65 | 0.9034 | -452.0 | 999999 | |
| 0 | 4 | 0 | 8 | -14.38 | 347.76 | -70.69 | 107.33 | 0.9589 | 269.0 | 172.6 | |
| 0 | 12 | 0 | 20 | -13.67 | 347.53 | -70.91 | 106.55 | 0.9592 | 372.0 | 273.6 | |
| 0 | 6 | 0 | 11 | -12.50 | 347.09 | -71.36 | 105.26 | 0.9602 | 139.0 | 84.4 | |
| 0 | 4 | 0 | 7 | -10.36 | 346.75 | -71.70 | 103.00 | 0.9598 | 191.0 | 155.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
