SOHO MDI 2000-09-25 22:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83 | 432 | 48 | 245 | -6.21 | 82.75 | 26.06 | 243.26 | 0.4897 | -167.2 | -52.3 | |
|
previous
or next observation for the same group /

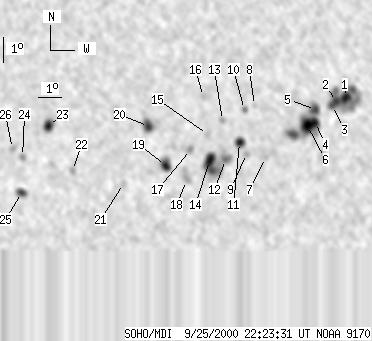

back to the solar disc SOHO MDI 2000-09-25 22:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 101 | 4 | 59 | -5.05 | 87.19 | 30.50 | 249.35 | 0.5424 | -1017.2 | -502.5 | |
| 5 | -1 | 3 | -1 | -5.18 | 86.79 | 30.10 | 248.85 | 0.5376 | -1296.0 | 999999 | |
| 3 | -1 | 2 | -1 | -5.33 | 86.62 | 29.93 | 248.47 | 0.5361 | -986.7 | 999999 | |
| 7 | 96 | 4 | 56 | -5.96 | 85.88 | 29.19 | 246.84 | 0.5298 | -1048.8 | -913.6 | |
| 5 | -4 | 3 | -4 | -5.44 | 85.86 | 29.17 | 247.73 | 0.5263 | -1206.5 | 999999 | |
| 12 | -4 | 7 | -4 | -6.06 | 85.53 | 28.84 | 246.40 | 0.5256 | -1438.1 | 999999 | |
| 0 | 2 | 0 | 1 | -7.24 | 83.74 | 27.05 | 242.85 | 0.5090 | -539.0 | -498.0 | |
| 0 | 3 | 0 | 2 | -5.13 | 83.14 | 26.45 | 246.17 | 0.4870 | -321.0 | -220.4 | |
| 0 | 5 | 0 | 3 | -7.03 | 82.89 | 26.20 | 242.45 | 0.4962 | 249.0 | 213.4 | |
| 0 | 5 | 0 | 3 | -5.26 | 82.71 | 26.02 | 245.54 | 0.4818 | 341.0 | 161.5 | |
| 6 | 14 | 4 | 8 | -6.57 | 82.56 | 25.87 | 242.97 | 0.4886 | 781.3 | 513.4 | |
| 0 | 20 | 0 | 11 | -7.22 | 81.98 | 25.29 | 241.24 | 0.4855 | 1118.0 | 776.5 | |
| 0 | 5 | 0 | 3 | -5.65 | 81.77 | 25.08 | 243.96 | 0.4715 | 383.0 | 439.8 | |
| 10 | 54 | 6 | 30 | -7.23 | 81.29 | 24.60 | 240.53 | 0.4763 | 1280.3 | 863.9 | |
| 0 | 7 | 0 | 4 | -6.18 | 81.15 | 24.46 | 242.35 | 0.4666 | -285.0 | -260.6 | |
| 0 | 4 | 0 | 2 | -4.65 | 80.91 | 24.22 | 245.10 | 0.4527 | 536.0 | 499.5 | |
| 0 | 7 | 0 | 4 | -6.74 | 80.45 | 23.76 | 240.55 | 0.4613 | 766.0 | 708.1 | |
| 0 | 17 | 0 | 9 | -7.98 | 80.35 | 23.66 | 238.14 | 0.4698 | 756.0 | 828.0 | |
| 7 | 20 | 4 | 11 | -7.33 | 79.41 | 22.72 | 238.28 | 0.4522 | 1176.6 | 801.7 | |
| 7 | 20 | 4 | 11 | -5.74 | 78.61 | 21.92 | 240.50 | 0.4286 | 1218.2 | 929.3 | |
| 0 | 5 | 0 | 3 | -7.98 | 77.66 | 20.97 | 234.92 | 0.4350 | 574.0 | 605.6 | |
| 0 | 5 | 0 | 3 | -7.36 | 75.50 | 18.81 | 233.10 | 0.4016 | -717.0 | -597.6 | |
| 8 | 19 | 4 | 10 | -5.52 | 74.44 | 17.75 | 235.38 | 0.3704 | -1013.2 | -541.0 | |
| 0 | 5 | 0 | 3 | -6.72 | 73.41 | 16.72 | 231.10 | 0.3688 | 590.0 | 431.1 | |
| 6 | 14 | 3 | 7 | -8.17 | 73.43 | 16.74 | 228.18 | 0.3842 | 809.8 | 544.6 | |
| 0 | 4 | 0 | 2 | -6.39 | 72.99 | 16.30 | 231.10 | 0.3601 | -686.0 | -542.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
