group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	420	3859	227	2082	10.07	79.16	23.35	279.75	0.3976	1465.9	450.5

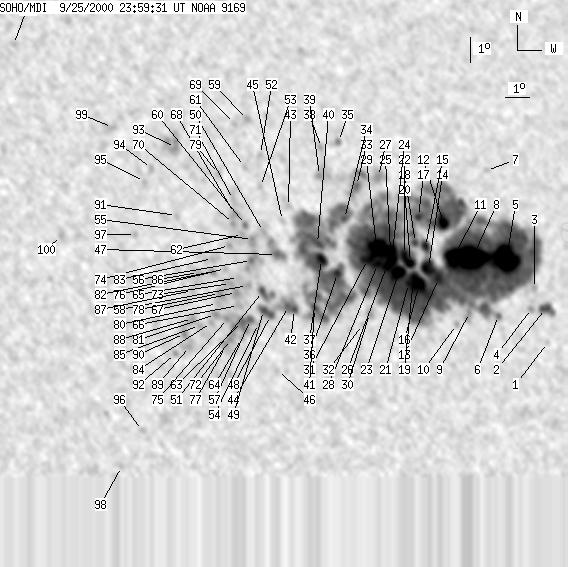

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-25 23:59:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	4	0	2	6.44	85.94	30.13	270.92	0.5008	430.0	344.3
2	8	26	4	15	7.77	85.94	30.13	273.58	0.5004	1092.9	680.9
3	0	7	0	4	8.57	85.51	29.70	275.22	0.4939	330.0	328.0
4	0	6	0	3	7.80	85.31	29.50	273.65	0.4908	385.0	409.9
5	56	2408	31	1320	9.81	84.35	28.54	277.87	0.4773	1623.7	743.5
6	0	10	0	6	7.61	83.81	28.00	273.24	0.4681	-586.0	-250.6
7	0	5	0	3	13.29	83.83	28.02	285.29	0.4759	607.0	551.7
8	60	-5	33	-5	9.93	82.84	27.03	278.36	0.4544	1822.5	999999
9	0	14	0	8	7.80	82.54	26.73	273.65	0.4484	-181.0	5.7
10	0	5	0	3	7.37	81.94	26.13	272.65	0.4391	665.0	511.1
11	34	-5	18	-5	9.98	82.00	26.19	278.61	0.4416	1998.1	999999
12	16	-5	9	-5	11.36	81.69	25.88	281.82	0.4391	1363.2	999999
13	11	-5	6	-5	9.20	81.28	25.47	276.92	0.4295	1521.4	999999
14	19	-5	11	-5	9.65	80.88	25.07	278.04	0.4237	1531.2	999999
15	7	-5	4	-5	10.47	80.82	25.01	280.00	0.4239	1156.9	999999
16	20	-5	11	-5	8.93	80.39	24.58	276.40	0.4153	1793.7	999999
17	4	-5	2	-5	11.65	80.62	24.81	282.84	0.4233	1287.7	999999
18	3	-5	2	-5	10.65	80.40	24.59	280.53	0.4177	1116.2	999999
19	7	-5	4	-5	9.33	80.20	24.39	277.39	0.4127	1914.3	999999
20	11	-5	6	-5	9.88	80.11	24.30	278.75	0.4120	1361.2	999999
21	4	-5	2	-5	9.07	79.97	24.16	276.79	0.4087	1976.4	999999
22	8	-5	4	-5	10.20	79.88	24.07	279.59	0.4088	1424.1	999999
23	14	-5	7	-5	9.51	79.57	23.76	277.96	0.4029	2001.7	999999
24	20	-5	11	-5	10.00	79.30	23.49	279.22	0.3994	2165.2	999999
25	16	-5	8	-5	10.39	79.29	23.48	280.21	0.3999	1834.5	999999
26	-24	-5	-24	-5	9.77	79.07	23.26	278.72	0.3954	999999	999999
27	0	19	0	10	13.30	79.03	23.22	287.48	0.4040	718.0	664.1
28	5	-5	2	-5	9.87	78.69	22.88	279.05	0.3895	2146.0	999999
29	27	-5	15	-5	10.57	78.70	22.89	280.85	0.3910	2104.7	999999
30	0	9	0	5	7.98	78.22	22.41	274.20	0.3802	816.0	721.5
31	15	-5	8	-5	10.08	78.28	22.47	279.72	0.3834	2188.5	999999
32	0	5	0	3	7.56	77.90	22.09	273.11	0.3750	639.0	618.0
33	0	66	0	35	12.99	78.05	22.24	287.28	0.3879	1011.0	716.0
34	3	653	1	346	11.72	77.42	21.61	284.36	0.3738	1227.8	389.4
35	0	6	0	3	14.75	77.44	21.63	292.08	0.3864	-781.0	-554.0
36	5	-34	3	-34	9.59	76.96	21.15	278.77	0.3616	1566.8	999999
37	14	-34	7	-34	10.17	76.32	20.51	280.58	0.3524	1600.8	999999
38	0	5	0	3	14.54	76.69	20.88	292.17	0.3741	-451.0	-389.6
39	0	30	0	16	13.45	76.50	20.69	289.48	0.3660	826.0	527.8
40	7	-34	4	-34	10.80	76.20	20.39	282.41	0.3519	1351.7	999999
41	3	-34	2	-34	8.27	75.92	20.11	275.23	0.3431	-1100.6	999999
42	3	38	1	20	8.27	75.08	19.27	275.32	0.3294	297.4	-283.5
43	0	4	0	2	12.29	75.08	19.27	287.30	0.3393	115.0	161.0
44	3	-42	2	-42	8.39	74.84	19.02	275.75	0.3256	52.1	999999
45	0	4	0	2	11.75	74.79	18.98	285.94	0.3326	-122.0	-143.2
46	0	3	0	2	5.92	74.27	18.46	267.99	0.3166	-633.0	-595.6
47	0	45	0	24	10.44	74.45	18.64	282.18	0.3230	-1149.0	-810.0
48	3	23	2	12	8.07	74.07	18.26	274.86	0.3128	-852.8	-863.4
49	4	-48	2	-48	8.28	73.79	17.98	275.56	0.3083	-1143.0	999999
50	0	9	0	5	11.35	73.97	18.16	285.28	0.3181	-902.0	-883.1
51	4	29	2	15	9.02	73.79	17.98	277.97	0.3092	-1064.7	-851.7
52	0	3	0	2	14.37	74.07	18.26	294.11	0.3339	-707.0	-657.1
53	0	5	0	2	13.12	73.97	18.15	290.60	0.3256	-586.0	-469.6
54	0	4	0	2	7.78	73.56	17.75	273.96	0.3042	-549.0	-434.1
55	0	15	0	8	11.06	73.49	17.68	284.67	0.3094	-1088.0	-1036.9
56	0	22	0	11	10.24	73.40	17.59	282.10	0.3054	-1065.0	-923.8
57	3	33	1	17	7.94	73.24	17.43	274.56	0.2989	-1041.2	-806.2
58	0	9	0	5	9.27	73.18	17.37	279.02	0.2996	-968.0	-942.6
59	0	6	0	3	15.76	73.64	17.83	298.44	0.3366	-949.0	-756.5
60	0	7	0	3	11.65	73.23	17.42	286.74	0.3076	-982.0	-937.8
61	0	4	0	2	13.92	73.35	17.54	293.57	0.3206	-907.0	-737.0
62	0	4	0	2	11.27	73.08	17.27	285.62	0.3037	-1182.0	-1098.7
63	3	-57	2	-57	7.88	72.91	17.10	274.37	0.2934	-1084.5	999999
64	0	3	0	2	7.22	72.84	17.03	272.11	0.2920	-815.0	-584.8
65	0	3	0	1	9.60	72.82	17.01	280.25	0.2945	-926.0	-917.8
66	0	3	0	2	8.51	72.77	16.96	276.56	0.2917	-959.0	-908.1
67	0	12	0	6	9.02	72.71	16.90	278.32	0.2915	-1317.0	-1099.5
68	0	10	0	5	12.10	72.80	16.99	288.51	0.3027	-1237.0	-1099.4
69	0	4	0	2	15.63	73.07	17.26	298.76	0.3275	-684.0	-582.3
70	0	7	0	3	11.71	72.74	16.93	287.32	0.3000	-1084.0	-1049.6
71	0	10	0	5	12.65	72.80	16.99	290.25	0.3052	-721.0	-653.5
72	0	8	0	4	7.19	72.39	16.58	272.03	0.2845	-1163.0	-980.1
73	0	12	0	6	9.37	72.48	16.67	279.65	0.2884	-1182.0	-1116.1
74	0	5	0	2	10.86	72.52	16.71	284.67	0.2932	-1019.0	-929.0
75	0	5	0	2	8.02	72.30	16.49	274.95	0.2833	-1215.0	-1072.0
76	0	4	0	2	9.97	72.31	16.50	281.78	0.2869	-861.0	-817.8
77	0	18	0	9	6.93	72.17	16.36	271.08	0.2810	-698.0	-686.0
78	0	11	0	6	9.00	72.01	16.20	278.52	0.2799	-1043.0	-938.3
79	0	5	0	3	13.69	72.25	16.44	294.08	0.3025	-735.0	-718.7
80	0	7	0	3	8.61	71.91	16.10	277.17	0.2776	-866.0	-856.4
81	0	7	0	3	8.19	71.81	16.00	275.66	0.2754	-1178.0	-1058.7
82	0	6	0	3	9.87	71.76	15.95	281.74	0.2778	-1131.0	-975.0
83	0	5	0	3	10.37	71.79	15.98	283.52	0.2798	-829.0	-874.5
84	0	5	0	2	7.88	71.64	15.83	274.57	0.2722	-1061.0	-854.8
85	0	7	0	3	7.78	71.14	15.33	274.27	0.2639	-992.0	-873.5
86	0	9	0	5	9.85	71.19	15.38	282.01	0.2683	-973.0	-874.3
87	0	6	0	3	9.15	70.91	15.10	279.57	0.2620	-834.0	-696.1
88	0	14	0	7	8.06	70.87	15.06	275.40	0.2595	-1164.0	-921.7
89	0	16	0	8	6.98	70.71	14.90	271.19	0.2564	-978.0	-884.5
90	0	10	0	5	7.49	70.52	14.71	273.21	0.2533	-1151.0	-938.9
91	0	6	0	3	12.10	70.40	14.59	290.95	0.2650	-750.0	-679.0
92	0	4	0	2	6.72	70.13	14.32	270.12	0.2468	-974.0	-839.5
93	0	40	0	21	14.76	70.53	14.72	299.77	0.2843	-1010.0	-835.7
94	0	6	0	3	13.97	69.48	13.67	298.83	0.2630	-797.0	-617.3
95	0	5	0	3	13.47	69.16	13.35	297.60	0.2546	-429.0	-413.2
96	0	5	0	3	3.76	68.74	12.93	256.93	0.2302	-794.0	-627.5
97	0	4	0	2	11.40	68.69	12.88	290.44	0.2342	-868.0	-848.7
98	0	2	0	1	2.38	67.88	12.07	249.95	0.2235	-663.0	-563.5
99	0	16	0	8	15.62	67.97	12.16	307.23	0.2559	-937.0	-810.4
100	0	8	0	4	11.43	65.69	9.88	295.64	0.1874	-945.0	-698.5
101	0	6	0	3	18.99	64.05	8.24	327.23	0.2515	-629.0	-546.1

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
