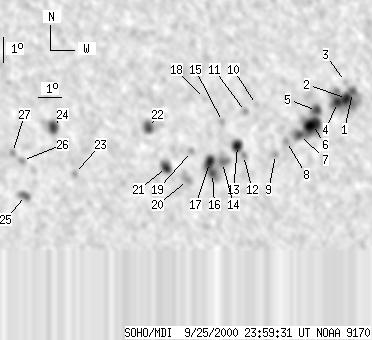

SOHO MDI 2000-09-25 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95 | 408 | 53 | 238 | -6.16 | 82.66 | 26.85 | 244.02 | 0.4999 | -237.0 | -79.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-25 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4 | 92 | 2 | 54 | -4.81 | 87.53 | 31.72 | 250.54 | 0.5579 | -672.4 | -486.6 | |
| 9 | -1 | 5 | -1 | -5.03 | 87.27 | 31.46 | 250.00 | 0.5554 | -985.9 | 999999 | |
| 0 | 3 | 0 | 2 | -4.35 | 87.19 | 31.38 | 251.11 | 0.5509 | -667.0 | -568.3 | |
| 7 | -1 | 4 | -1 | -5.17 | 86.86 | 31.05 | 249.51 | 0.5506 | -1218.3 | 999999 | |
| 6 | 89 | 3 | 53 | -5.43 | 85.92 | 30.11 | 248.44 | 0.5392 | -1206.4 | -879.9 | |
| 20 | -5 | 12 | -5 | -5.97 | 85.77 | 29.96 | 247.39 | 0.5402 | -1307.2 | 999999 | |
| 4 | -5 | 2 | -5 | -6.38 | 85.21 | 29.40 | 246.28 | 0.5350 | -1159.2 | 999999 | |
| 0 | 5 | 0 | 3 | -6.58 | 84.64 | 28.83 | 245.49 | 0.5286 | -758.0 | -732.8 | |
| 0 | 4 | 0 | 3 | -7.08 | 84.18 | 28.37 | 244.27 | 0.5256 | -498.0 | -328.3 | |
| 0 | 3 | 0 | 2 | -5.03 | 83.22 | 27.41 | 247.15 | 0.4997 | -244.0 | -247.0 | |
| 0 | 6 | 0 | 4 | -5.28 | 82.75 | 26.94 | 246.30 | 0.4947 | 183.0 | 184.1 | |
| 0 | 6 | 0 | 4 | -7.04 | 82.76 | 26.95 | 243.12 | 0.5063 | 356.0 | 289.4 | |
| 7 | 20 | 4 | 11 | -6.62 | 82.47 | 26.66 | 243.61 | 0.4996 | 867.2 | 511.3 | |
| 0 | 17 | 0 | 10 | -7.27 | 81.85 | 26.04 | 241.88 | 0.4958 | 1059.0 | 765.9 | |
| 0 | 5 | 0 | 3 | -5.62 | 81.76 | 25.95 | 244.81 | 0.4832 | 597.0 | 398.5 | |
| 3 | 38 | 2 | 22 | -7.69 | 81.44 | 25.63 | 240.74 | 0.4934 | 1071.6 | 943.2 | |
| 8 | -16 | 5 | -16 | -7.24 | 81.28 | 25.47 | 241.39 | 0.4880 | 1381.2 | 999999 | |
| 0 | 4 | 0 | 2 | -4.66 | 80.94 | 25.13 | 245.92 | 0.4655 | 432.0 | 431.2 | |
| 0 | 5 | 0 | 3 | -6.75 | 80.47 | 24.66 | 241.48 | 0.4736 | 634.0 | 609.7 | |
| 0 | 15 | 0 | 9 | -7.91 | 80.37 | 24.56 | 239.25 | 0.4810 | 974.0 | 853.4 | |
| 6 | 19 | 3 | 11 | -7.34 | 79.43 | 23.62 | 239.28 | 0.4641 | 1152.4 | 773.1 | |
| 8 | 17 | 5 | 9 | -5.70 | 78.58 | 22.77 | 241.52 | 0.4400 | 1258.8 | 886.3 | |
| 0 | 4 | 0 | 2 | -7.40 | 75.54 | 19.73 | 234.35 | 0.4138 | -746.0 | -653.8 | |
| 8 | 31 | 4 | 17 | -5.53 | 74.59 | 18.78 | 236.91 | 0.3842 | -1114.0 | -510.6 | |
| 5 | 15 | 2 | 8 | -8.21 | 73.54 | 17.73 | 229.76 | 0.3966 | 696.0 | 512.8 | |
| 0 | 5 | 0 | 3 | -6.80 | 73.36 | 17.55 | 232.31 | 0.3800 | 829.0 | 612.4 | |
| 0 | 5 | 0 | 3 | -6.46 | 72.94 | 17.13 | 232.34 | 0.3712 | -456.0 | -354.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
