group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	392	4084	217	2232	10.07	79.80	24.87	279.39	0.4216	1488.8	423.4

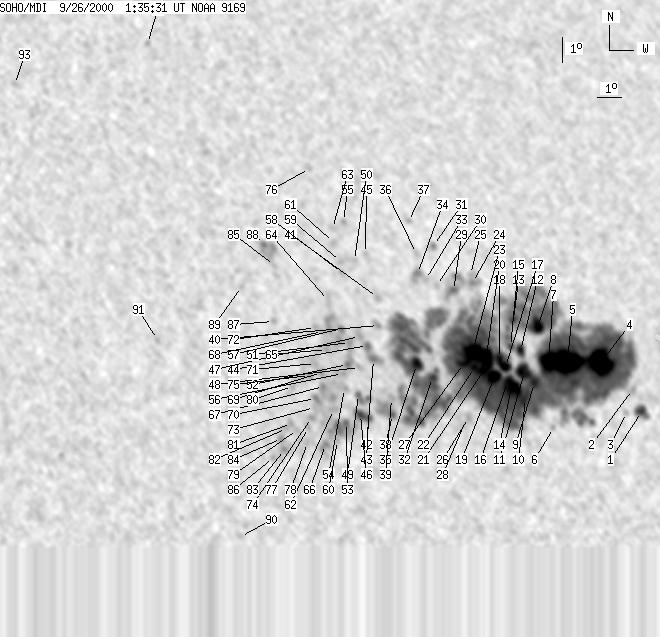

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-26 01:35:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	8	22	5	13	7.78	86.02	31.09	273.63	0.5148	1119.6	676.9
2	0	9	0	5	8.66	85.69	30.75	275.36	0.5098	446.0	304.4
3	0	5	0	3	7.78	85.34	30.40	273.63	0.5045	456.0	356.0
4	54	3279	31	1808	9.80	84.33	29.40	277.74	0.4902	1600.8	634.6
5	59	-4	33	-4	9.92	82.85	27.92	278.20	0.4680	1773.5	999999
6	0	4	0	2	7.39	82.03	27.10	272.74	0.4542	644.0	465.3
7	35	-4	19	-4	9.97	82.01	27.08	278.43	0.4551	1988.9	999999
8	13	-4	7	-4	11.36	81.65	26.72	281.57	0.4519	1376.2	999999
9	11	-4	6	-4	9.18	81.32	26.39	276.78	0.4438	1513.8	999999
10	14	-4	8	-4	8.58	80.88	25.95	275.45	0.4365	647.7	999999
11	22	-4	12	-4	9.63	80.92	25.99	277.86	0.4380	1544.2	999999
12	8	-4	4	-4	10.46	80.81	25.88	279.77	0.4375	1121.6	999999
13	5	-4	3	-4	11.68	80.62	25.69	282.62	0.4369	1281.7	999999
14	25	-4	14	-4	9.08	80.31	25.37	276.67	0.4279	1861.4	999999
15	3	-4	2	-4	10.64	80.39	25.46	280.28	0.4312	1190.6	999999
16	-14	-4	-14	-4	9.28	80.15	25.22	277.17	0.4256	999999	999999
17	10	-4	6	-4	9.87	80.11	25.17	278.56	0.4256	1344.4	999999
18	6	-4	3	-4	10.20	79.87	24.94	279.37	0.4224	1402.8	999999
19	12	-4	7	-4	9.51	79.60	24.67	277.78	0.4172	2018.0	999999
20	17	-4	9	-4	10.38	79.32	24.39	279.95	0.4141	1782.2	999999
21	15	-4	8	-4	9.88	79.23	24.30	278.75	0.4120	2229.8	999999
22	5	-4	3	-4	9.90	78.76	23.83	278.91	0.4046	2222.5	999999
23	25	-4	13	-4	10.53	78.72	23.79	280.46	0.4051	2171.8	999999
24	0	11	0	6	13.22	78.97	24.04	286.85	0.4162	883.0	754.9
25	0	5	0	3	13.53	78.92	23.99	287.63	0.4165	340.0	424.1
26	0	8	0	4	7.97	78.37	23.44	274.12	0.3966	841.0	709.1
27	12	-4	6	-4	10.08	78.30	23.37	279.46	0.3976	2206.3	999999
28	0	5	0	3	7.66	78.14	23.20	273.36	0.3929	804.0	684.9
29	0	61	0	33	12.94	78.12	23.19	286.65	0.4022	1143.0	733.4
30	0	7	0	4	13.17	77.40	22.47	287.61	0.3921	401.0	372.6
31	0	5	0	3	14.74	77.43	22.50	291.44	0.3993	-582.0	-525.4
32	5	-4	3	-4	9.59	76.93	22.00	278.56	0.3752	1538.1	999999
33	0	6	0	3	13.43	76.95	22.02	288.53	0.3863	605.0	526.8
34	0	16	0	9	13.68	76.63	21.70	289.37	0.3824	480.0	467.2
35	15	-4	8	-4	10.13	76.29	21.36	280.18	0.3659	1644.1	999999
36	0	6	0	3	14.46	76.66	21.73	291.31	0.3865	-675.0	-468.9
37	0	4	0	2	15.73	76.45	21.52	294.59	0.3900	-559.0	-512.6
38	2	42	1	22	8.22	75.16	20.23	275.08	0.3451	484.1	-327.6
39	0	6	0	3	8.85	75.15	20.22	276.90	0.3455	-1029.0	-871.7
40	0	9	0	5	11.72	74.79	19.86	285.29	0.3464	-30.0	-161.7
41	0	6	0	3	12.81	74.84	19.91	288.32	0.3513	-304.0	-331.5
42	0	16	0	9	10.40	74.49	19.56	281.64	0.3377	-1141.0	-775.8
43	3	31	2	16	8.11	74.15	19.22	274.86	0.3285	-877.7	-695.5
44	0	8	0	4	10.95	74.27	19.34	283.37	0.3358	-1127.0	-935.1
45	0	5	0	3	14.55	74.48	19.55	293.36	0.3543	-495.0	-428.0
46	8	-43	4	-43	8.28	73.82	18.89	275.42	0.3233	-1132.2	999999
47	0	13	0	7	11.32	73.96	19.03	284.62	0.3319	-936.0	-829.6
48	0	5	0	3	10.11	73.88	18.95	281.04	0.3272	-797.0	-723.3
49	0	24	0	12	9.06	73.78	18.85	277.85	0.3235	-1187.0	-853.8
50	0	2	0	1	14.30	73.99	19.06	293.12	0.3455	-592.0	-514.7
51	0	6	0	3	11.10	73.53	18.60	284.23	0.3243	-1173.0	-1047.4
52	0	12	0	6	10.24	73.39	18.46	281.68	0.3196	-978.0	-943.6
53	0	59	0	31	7.99	73.23	18.30	274.59	0.3133	-1025.0	-674.5
54	0	14	0	7	9.31	73.21	18.28	278.83	0.3147	-974.0	-880.6
55	0	5	0	3	15.85	73.66	18.73	297.62	0.3502	-727.0	-696.6
56	0	6	0	3	9.90	73.16	18.23	280.71	0.3151	-1071.0	-924.2
57	0	69	0	36	11.66	73.23	18.30	286.12	0.3215	-1141.0	-961.5
58	0	3	0	2	13.85	73.40	18.47	292.43	0.3342	-857.0	-790.9
59	0	5	0	2	14.28	73.39	18.46	293.66	0.3365	-699.0	-657.7
60	0	4	0	2	7.30	72.83	17.90	272.40	0.3064	-742.0	-652.8
61	0	9	0	5	15.04	73.16	18.23	296.00	0.3376	-695.0	-599.2
62	0	5	0	3	8.51	72.72	17.78	276.39	0.3053	-992.0	-986.2
63	0	4	0	2	15.59	73.17	18.24	297.49	0.3413	-704.0	-562.7
64	0	10	0	5	12.77	72.76	17.83	289.86	0.3190	-723.0	-743.2
65	0	9	0	4	10.86	72.55	17.62	284.09	0.3079	-1048.0	-948.1
66	0	17	0	9	7.16	72.33	17.40	271.94	0.2981	-1095.0	-868.2
67	0	34	0	17	9.42	72.35	17.42	279.51	0.3007	-1113.0	-1064.0
68	0	3	0	2	11.57	72.43	17.50	286.42	0.3085	-951.0	-873.3
69	0	8	0	4	9.97	72.29	17.36	281.34	0.3011	-881.0	-795.3
70	0	12	0	6	8.97	71.99	17.06	278.11	0.2941	-988.0	-898.9
71	0	13	0	7	10.33	72.07	17.13	282.66	0.2984	-909.0	-809.2
72	0	6	0	3	11.74	72.15	17.22	287.17	0.3047	-821.0	-744.3
73	0	12	0	6	8.62	71.94	17.01	276.94	0.2926	-746.0	-957.1
74	0	7	0	3	8.23	71.80	16.86	275.65	0.2898	-1035.0	-993.2
75	0	5	0	3	9.87	71.79	16.86	281.27	0.2927	-1123.0	-947.3
76	0	8	0	4	17.99	72.42	17.49	304.67	0.3490	-500.0	-352.2
77	0	4	0	2	7.85	71.66	16.72	274.33	0.2872	-891.0	-794.5
78	0	5	0	2	7.27	71.59	16.66	272.29	0.2859	-821.0	-719.8
79	0	6	0	3	7.79	71.20	16.27	274.17	0.2796	-970.0	-888.4
80	0	3	0	2	9.47	71.07	16.14	280.22	0.2799	-858.0	-849.3
81	0	8	0	4	8.03	70.97	16.04	275.08	0.2758	-1040.0	-889.1
82	0	3	0	2	7.84	70.75	15.82	274.43	0.2722	-1114.0	-1024.1
83	0	6	0	3	7.03	70.64	15.71	271.41	0.2701	-1133.0	-991.9
84	0	7	0	4	7.46	70.54	15.60	273.03	0.2683	-1170.0	-985.6
85	0	3	0	2	14.22	70.61	15.68	296.69	0.2945	-500.0	-449.8
86	0	5	0	2	6.73	70.18	15.25	270.26	0.2625	-947.0	-785.3
87	0	5	0	3	12.03	70.43	15.49	289.71	0.2788	-644.0	-646.7
88	0	36	0	19	15.06	70.25	15.32	299.77	0.2953	-1146.0	-913.1
89	0	5	0	2	13.44	69.19	14.26	296.11	0.2680	-626.0	-431.2
90	0	5	0	3	3.69	68.78	13.85	257.60	0.2457	-771.0	-648.4
91	0	4	0	2	11.45	65.66	10.73	294.04	0.2007	-1021.0	-816.6
92	0	5	0	2	23.20	65.95	11.02	328.14	0.3342	-713.0	-473.5
93	0	9	0	5	21.63	60.19	5.26	341.49	0.2698	-86.0	-192.0

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
