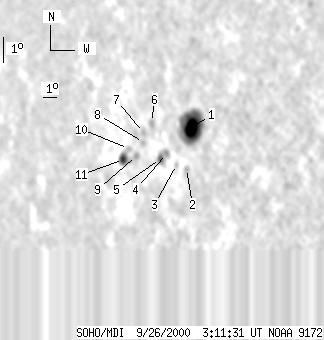

SOHO MDI 2000-09-26 03:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22 | 162 | 19 | 142 | 13.25 | 358.04 | -56.01 | 78.62 | 0.8251 | 579.7 | 147.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-26 03:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17 | 103 | 14 | 88 | 13.70 | 359.15 | -54.90 | 78.07 | 0.8147 | 1126.6 | 315.5 | |
| 0 | 4 | 0 | 3 | 12.09 | 359.32 | -54.73 | 80.05 | 0.8127 | 606.0 | 507.0 | |
| 0 | 2 | 0 | 2 | 12.17 | 358.60 | -55.45 | 79.95 | 0.8199 | 204.0 | 257.5 | |
| 0 | 5 | 0 | 5 | 12.53 | 357.77 | -56.29 | 79.52 | 0.8280 | 626.0 | 447.5 | |
| 0 | 8 | 0 | 7 | 12.29 | 357.41 | -56.64 | 79.80 | 0.8314 | 262.0 | 237.8 | |
| 0 | 8 | 0 | 7 | 13.61 | 356.27 | -57.79 | 78.23 | 0.8421 | 386.0 | 363.9 | |
| 0 | 5 | 0 | 5 | 13.17 | 355.83 | -58.23 | 78.75 | 0.8461 | -277.0 | -298.3 | |
| 0 | 4 | 0 | 4 | 12.79 | 355.97 | -58.08 | 79.21 | 0.8448 | -303.0 | -264.5 | |
| 0 | 6 | 0 | 5 | 12.24 | 355.63 | -58.42 | 79.86 | 0.8479 | -614.0 | -526.1 | |
| 0 | 3 | 0 | 3 | 12.44 | 354.94 | -59.11 | 79.61 | 0.8541 | -707.0 | -684.2 | |
| 5 | 14 | 5 | 13 | 11.98 | 354.71 | -59.34 | 80.14 | 0.8561 | -750.3 | -623.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
