group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	371	3906	208	2163	9.92	79.35	26.18	278.68	0.4413	1402.1	430.4

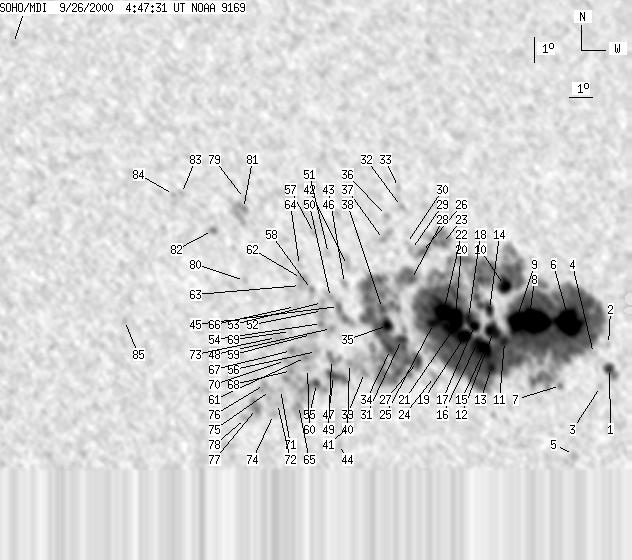

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-26 04:47:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	8	25	5	15	7.86	86.08	32.91	273.82	0.5415	1000.2	609.3
2	0	3	0	2	8.80	86.12	32.95	275.55	0.5422	475.0	401.5
3	0	5	0	3	7.19	85.60	32.43	272.55	0.5347	281.0	340.5
4	0	5	0	3	8.49	85.39	32.22	275.00	0.5314	304.0	349.4
5	0	10	0	6	4.62	84.19	31.02	267.49	0.5162	-880.0	-699.8
6	54	2482	31	1395	9.77	84.40	31.23	277.49	0.5174	1558.8	734.2
7	0	6	0	4	7.34	83.77	30.60	272.76	0.5075	-419.0	-244.4
8	88	-6	50	-6	9.92	82.54	29.37	278.00	0.4898	1784.0	999999
9	-8	-6	-8	-6	9.95	81.95	28.78	278.15	0.4810	999999	999999
10	19	-6	11	-6	11.38	81.60	28.43	281.19	0.4777	1298.3	999999
11	8	-6	4	-6	9.20	81.39	28.22	276.63	0.4718	1435.2	999999
12	24	-6	13	-6	9.62	80.93	27.76	277.58	0.4652	1506.0	999999
13	7	-6	4	-6	8.22	80.73	27.56	274.57	0.4612	276.8	999999
14	7	-6	4	-6	10.48	80.83	27.66	279.46	0.4647	1066.2	999999
15	20	-6	11	-6	8.94	80.47	27.30	276.15	0.4576	1747.4	999999
16	5	-6	3	-6	9.23	80.19	27.01	276.82	0.4534	2035.5	999999
17	8	-6	5	-6	9.90	80.11	26.94	278.31	0.4529	1336.8	999999
18	6	-6	3	-6	10.22	79.87	26.70	279.07	0.4497	1268.2	999999
19	14	-6	8	-6	9.49	79.63	26.46	277.48	0.4451	1959.9	999999
20	9	-6	5	-6	10.37	79.31	26.14	279.51	0.4413	1813.6	999999
21	9	-6	5	-6	9.94	79.27	26.10	278.55	0.4401	2213.0	999999
22	22	-6	12	-6	10.51	78.79	25.62	279.96	0.4335	2099.9	999999
23	0	52	0	29	13.17	79.02	25.85	285.90	0.4433	956.0	626.0
24	0	10	0	5	8.00	78.21	25.04	274.16	0.4220	971.0	803.2
25	11	-6	6	-6	10.07	78.32	25.15	279.03	0.4254	2118.9	999999
26	0	18	0	10	12.86	78.06	24.88	285.63	0.4278	1100.0	894.9
27	8	556	4	300	8.62	77.51	24.34	275.70	0.4113	570.5	339.0
28	3	62	2	34	11.83	77.51	24.34	283.44	0.4166	1211.9	639.4
29	0	6	0	3	13.00	77.63	24.46	286.15	0.4218	744.0	671.7
30	0	4	0	2	13.24	77.44	24.27	286.82	0.4197	249.0	326.8
31	7	-27	4	-27	9.51	76.88	23.71	277.98	0.4022	1440.7	999999
32	0	5	0	3	14.70	77.38	24.21	290.22	0.4245	-659.0	-499.0
33	0	4	0	2	15.46	77.34	24.17	291.94	0.4272	-432.0	-278.7
34	8	-27	4	-27	9.14	76.38	23.21	277.15	0.3939	379.4	999999
35	10	-27	6	-27	10.09	76.32	23.15	279.55	0.3942	1658.3	999999
36	0	5	0	3	14.38	76.68	23.51	289.91	0.4127	-539.0	-407.9
37	0	17	0	9	13.45	76.45	23.28	287.83	0.4055	838.0	496.7
38	4	-27	2	-27	10.76	76.16	22.99	281.31	0.3930	1328.2	999999
39	0	7	0	4	8.30	75.22	22.05	275.11	0.3746	156.0	205.0
40	0	41	0	22	8.68	74.60	21.43	276.21	0.3650	-1014.0	-715.8
41	0	7	0	4	6.27	74.48	21.31	269.55	0.3628	-494.0	-445.8
42	0	19	0	10	12.50	74.80	21.63	286.40	0.3768	26.0	-228.7
43	0	7	0	4	11.80	74.61	21.44	284.67	0.3715	-136.0	-195.0
44	0	7	0	4	5.55	74.03	20.86	267.46	0.3563	-289.0	-405.8
45	0	32	0	17	10.92	74.29	21.12	282.44	0.3639	-1097.0	-770.8
46	0	7	0	4	14.55	74.57	21.40	291.81	0.3820	-791.0	-601.8
47	8	37	4	20	8.24	73.90	20.73	275.08	0.3533	-1031.5	-501.4
48	0	9	0	5	10.07	73.93	20.76	280.25	0.3562	-865.0	-733.2
49	0	20	0	11	8.87	73.86	20.68	276.87	0.3531	-1056.0	-848.9
50	0	13	0	7	11.28	73.98	20.80	283.59	0.3599	-963.0	-825.3
51	0	4	0	2	13.00	74.03	20.86	288.20	0.3668	-577.0	-548.4
52	0	13	0	7	10.79	73.60	20.43	282.39	0.3526	-1014.0	-936.9
53	0	6	0	3	11.10	73.62	20.45	283.26	0.3538	-1102.0	-994.4
54	0	8	0	4	10.29	73.52	20.35	281.00	0.3501	-1074.0	-852.3
55	4	88	2	46	7.96	73.18	20.00	274.34	0.3413	-918.5	-815.5
56	0	16	0	8	9.20	73.24	20.07	277.98	0.3436	-963.0	-910.2
57	0	4	0	2	13.81	73.51	20.33	290.73	0.3624	-921.0	-829.1
58	0	11	0	6	11.63	73.20	20.02	284.96	0.3487	-977.0	-864.9
59	0	10	0	5	9.87	73.07	19.90	279.98	0.3421	-907.0	-871.0
60	0	5	0	3	8.56	72.83	19.66	276.16	0.3361	-903.0	-858.6
61	0	17	0	9	8.99	72.77	19.60	277.46	0.3356	-1177.0	-1019.6
62	0	9	0	5	12.07	72.81	19.64	286.46	0.3442	-1177.0	-1027.6
63	0	7	0	4	11.80	72.74	19.57	285.73	0.3422	-1130.0	-1094.0
64	0	3	0	2	12.59	72.76	19.59	287.94	0.3455	-949.0	-836.2
65	0	24	0	13	7.13	72.39	19.21	271.89	0.3282	-1089.0	-750.9
66	0	6	0	3	10.99	72.48	19.30	283.52	0.3353	-977.0	-915.4
67	0	16	0	8	9.28	72.20	19.03	278.51	0.3268	-736.0	-900.9
68	0	14	0	7	8.51	72.16	18.99	276.13	0.3251	-1316.0	-1183.7
69	0	4	0	2	10.03	72.20	19.03	280.77	0.3283	-880.0	-784.6
70	0	5	0	2	8.90	71.93	18.76	277.42	0.3218	-1052.0	-1013.4
71	0	4	0	2	7.78	71.67	18.50	273.94	0.3165	-792.0	-718.1
72	0	4	0	2	7.24	71.52	18.35	272.22	0.3139	-1042.0	-971.9
73	0	15	0	8	9.81	71.61	18.43	280.36	0.3182	-1052.0	-963.1
74	0	9	0	5	6.82	71.34	18.17	270.86	0.3110	-778.0	-653.1
75	0	5	0	3	7.76	71.25	18.08	273.90	0.3096	-917.0	-933.1
76	0	11	0	6	8.00	71.01	17.84	274.72	0.3058	-964.0	-938.6
77	0	22	0	12	7.08	70.65	17.47	271.68	0.2995	-1117.0	-957.8
78	0	9	0	5	6.71	70.18	17.01	270.38	0.2918	-931.0	-789.1
79	0	5	0	2	15.30	70.66	17.49	297.59	0.3285	-638.0	-591.2
80	0	5	0	2	12.09	70.41	17.24	288.28	0.3066	-736.0	-639.7
81	0	40	0	21	14.91	70.58	17.41	296.58	0.3248	-950.0	-900.6
82	0	6	0	3	14.09	69.22	16.05	295.82	0.2992	-1006.0	-811.0
83	0	6	0	3	15.58	68.03	14.86	302.08	0.2929	-722.0	-655.5
84	0	4	0	2	15.55	67.69	14.52	302.55	0.2879	-908.0	-749.0
85	0	5	0	3	10.67	65.41	12.23	288.22	0.2202	-720.0	-541.6
86	0	5	0	3	21.71	61.39	8.22	332.65	0.2904	-327.0	-333.8

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
