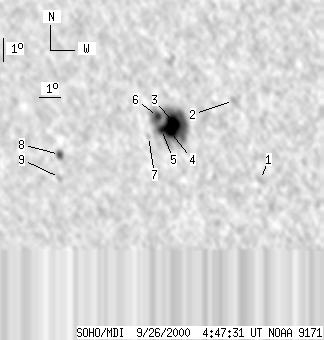

SOHO MDI 2000-09-26 04:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36 | 191 | 21 | 116 | -13.69 | 24.64 | -28.53 | 126.07 | 0.5759 | -1027.5 | -543.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-26 04:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 9 | 0 | 5 | -15.51 | 28.63 | -24.54 | 132.81 | 0.5477 | -200.0 | -281.9 | |
| 0 | 6 | 0 | 4 | -12.27 | 27.81 | -25.36 | 127.14 | 0.5272 | -712.0 | -550.1 | |
| 12 | 161 | 7 | 97 | -13.34 | 25.00 | -28.18 | 125.85 | 0.5690 | -1700.6 | -644.3 | |
| 12 | -3 | 7 | -3 | -13.72 | 24.81 | -28.36 | 126.23 | 0.5743 | -1090.5 | 999999 | |
| 5 | -3 | 3 | -3 | -13.66 | 24.41 | -28.77 | 125.76 | 0.5785 | -698.7 | 999999 | |
| 4 | -3 | 2 | -3 | -13.13 | 24.29 | -28.88 | 124.88 | 0.5756 | -942.0 | 999999 | |
| 0 | 3 | 0 | 2 | -13.99 | 23.76 | -29.41 | 125.63 | 0.5885 | -340.0 | -247.4 | |
| 3 | 7 | 2 | 5 | -15.03 | 19.38 | -33.79 | 123.38 | 0.6455 | 640.2 | 493.9 | |
| 0 | 5 | 0 | 3 | -16.01 | 19.20 | -33.97 | 124.52 | 0.6543 | 442.0 | 366.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
