group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	395	4023	221	2242	9.91	79.33	27.04	278.44	0.4542	1411.7	408.7

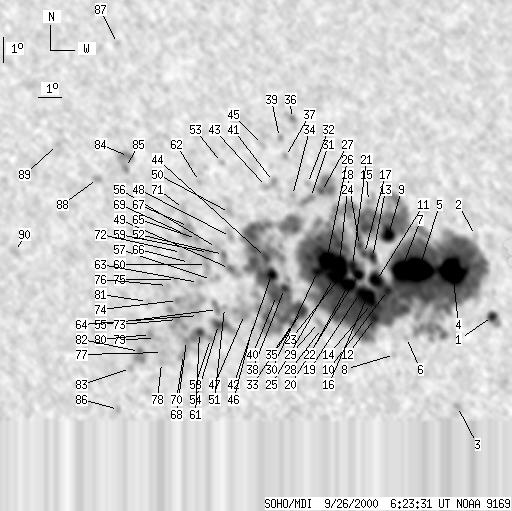

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-26 06:23:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	7	26	4	15	7.88	86.10	33.81	273.87	0.5546	1013.2	547.8
2	0	3	0	2	11.08	85.65	33.35	279.71	0.5496	-348.0	-331.9
3	0	5	0	3	4.49	84.22	31.93	267.40	0.5299	-993.0	-801.3
4	50	2589	29	1465	9.79	84.41	32.12	277.46	0.5305	1542.6	672.8
5	55	-4	32	-4	9.88	82.84	30.55	277.80	0.5075	1638.6	999999
6	0	3	0	2	7.31	82.07	29.78	272.67	0.4951	630.0	515.9
7	32	-4	18	-4	9.89	82.02	29.73	277.91	0.4952	1940.2	999999
8	0	5	0	3	6.68	81.48	29.19	271.35	0.4865	-813.0	-612.5
9	19	-4	11	-4	11.36	81.63	29.34	280.96	0.4913	1278.5	999999
10	8	-4	4	-4	9.19	81.36	29.07	276.54	0.4848	1445.9	999999
11	17	-4	9	-4	9.61	80.90	28.61	277.45	0.4781	1559.1	999999
12	6	-4	3	-4	8.13	80.69	28.40	274.36	0.4741	297.1	999999
13	6	-4	4	-4	10.51	80.81	28.52	279.36	0.4777	1063.3	999999
14	7	-4	4	-4	8.72	80.60	28.31	275.62	0.4730	1440.4	999999
15	0	16	0	9	12.70	80.87	28.58	283.90	0.4828	581.0	351.8
16	23	-4	13	-4	9.04	80.45	28.16	276.31	0.4708	1863.8	999999
17	3	-4	1	-4	10.69	80.47	28.18	279.80	0.4728	1143.2	999999
18	3	-4	2	-4	11.01	80.27	27.98	280.52	0.4704	1150.2	999999
19	-16	-4	-16	-4	9.14	80.10	27.81	276.55	0.4655	999999	999999
20	8	-4	4	-4	9.88	80.12	27.83	278.15	0.4665	1338.9	999999
21	8	-4	5	-4	10.25	79.89	27.59	278.97	0.4634	1134.0	999999
22	15	-4	8	-4	9.52	79.64	27.35	277.42	0.4588	1916.1	999999
23	11	-4	6	-4	9.96	79.41	27.12	278.43	0.4558	1936.1	999999
24	8	-4	5	-4	10.36	79.32	27.02	279.32	0.4548	1782.2	999999
25	15	-4	8	-4	9.79	79.00	26.71	278.11	0.4492	2224.6	999999
26	31	-4	17	-4	10.50	78.75	26.46	279.76	0.4464	2043.7	999999
27	2	46	1	26	13.21	78.81	26.52	285.71	0.4535	1009.3	595.5
28	0	10	0	5	7.87	78.32	26.03	273.83	0.4375	991.0	834.8
29	0	8	0	4	8.11	78.21	25.92	274.39	0.4358	885.0	685.7
30	9	-4	5	-4	10.10	78.32	26.03	278.93	0.4391	2142.3	999999
31	0	16	0	9	13.00	78.30	26.01	285.46	0.4452	847.0	823.3
32	0	5	0	3	13.55	78.23	25.94	286.72	0.4458	621.0	576.8
33	7	673	4	366	8.58	77.50	25.21	275.52	0.4249	618.7	352.4
34	0	4	0	2	13.12	77.51	25.22	286.07	0.4337	719.0	570.1
35	2	-33	1	-33	8.13	77.07	24.78	274.48	0.4180	-358.2	999999
36	0	11	0	6	16.14	77.84	25.55	292.53	0.4505	579.0	420.2
37	0	5	0	3	14.66	77.38	25.09	289.60	0.4373	-536.0	-446.6
38	6	-33	3	-33	9.51	76.83	24.53	277.83	0.4152	1373.5	999999
39	0	4	0	2	15.42	77.21	24.92	291.38	0.4380	-411.0	-336.0
40	13	-33	7	-33	9.25	76.46	24.17	277.27	0.4091	689.5	999999
41	0	8	0	5	13.70	76.74	24.45	287.80	0.4241	311.0	385.3
42	8	-33	4	-33	10.08	76.31	24.01	279.33	0.4078	1653.2	999999
43	0	6	0	3	13.52	76.41	24.12	287.55	0.4185	761.0	565.9
44	6	-33	3	-33	10.76	76.10	23.81	281.04	0.4058	1295.2	999999
45	0	9	0	5	15.18	76.42	24.13	291.35	0.4255	-448.0	-425.5
46	0	3	0	2	8.21	75.40	23.11	274.79	0.3915	386.0	144.1
47	0	53	0	28	8.58	75.04	22.75	275.77	0.3859	-593.0	-686.5
48	0	12	0	6	11.64	74.66	22.37	283.81	0.3856	-101.0	-159.3
49	0	20	0	10	10.40	74.52	22.23	280.64	0.3803	-973.0	-486.2
50	0	8	0	4	12.58	74.70	22.41	286.18	0.3892	10.0	-100.0
51	0	3	0	2	8.89	74.20	21.91	276.71	0.3729	-690.0	-666.6
52	0	13	0	7	10.95	74.31	22.02	282.18	0.3782	-987.0	-769.3
53	0	4	0	2	14.55	74.55	22.26	291.16	0.3949	-695.0	-641.4
54	5	35	3	19	8.24	73.91	21.62	274.99	0.3676	-1026.4	-550.7
55	0	12	0	7	8.82	73.90	21.61	276.59	0.3680	-1076.0	-889.8
56	0	7	0	4	11.24	74.03	21.74	283.05	0.3745	-1034.0	-879.3
57	0	9	0	5	10.00	73.73	21.43	279.84	0.3668	-848.0	-760.7
58	0	7	0	4	7.71	73.54	21.25	273.56	0.3615	-505.0	-388.2
59	0	11	0	6	11.06	73.68	21.38	282.72	0.3684	-1048.0	-1009.2
60	0	12	0	6	10.60	73.56	21.26	281.51	0.3654	-1127.0	-937.6
61	5	25	3	13	7.96	73.09	20.80	274.29	0.3543	-966.4	-734.9
62	0	5	0	3	13.85	73.53	21.24	290.15	0.3763	-802.0	-745.9
63	0	13	0	7	9.91	73.17	20.88	279.76	0.3578	-1006.0	-897.8
64	0	2	0	1	8.63	73.09	20.80	276.17	0.3546	-821.0	-818.8
65	0	4	0	2	11.63	73.21	20.92	284.48	0.3627	-992.0	-866.1
66	0	4	0	2	10.70	72.84	20.55	282.11	0.3543	-928.0	-846.8
67	0	5	0	3	12.11	72.91	20.61	285.96	0.3596	-1048.0	-971.5
68	0	12	0	6	7.67	72.53	20.24	273.50	0.3450	-1132.0	-814.7
69	0	5	0	3	11.80	72.75	20.46	285.21	0.3562	-1262.0	-1137.2
70	0	10	0	5	7.13	72.38	20.09	271.92	0.3425	-1053.0	-854.2
71	0	14	0	8	12.82	72.75	20.46	287.99	0.3599	-779.0	-767.3
72	0	10	0	5	11.11	72.53	20.24	283.38	0.3505	-867.0	-841.6
73	0	66	0	35	8.51	72.20	19.91	275.97	0.3401	-1341.0	-1009.3
74	0	56	0	29	9.25	72.24	19.95	278.14	0.3417	-1095.0	-982.9
75	0	5	0	3	10.07	72.21	19.92	280.54	0.3427	-974.0	-855.0
76	0	2	0	1	9.85	71.86	19.57	280.03	0.3366	-933.0	-908.9
77	0	4	0	2	7.25	71.51	19.22	272.25	0.3282	-900.0	-901.3
78	0	3	0	2	6.86	71.45	19.16	271.06	0.3274	-747.0	-769.7
79	0	7	0	3	7.80	71.24	18.95	273.97	0.3240	-1007.0	-887.8
80	0	17	0	9	7.97	71.04	18.75	274.50	0.3208	-1021.0	-845.3
81	0	9	0	5	9.26	70.99	18.69	278.53	0.3213	-752.0	-696.8
82	0	20	0	11	7.32	70.56	18.27	272.48	0.3126	-1226.0	-1004.7
83	0	6	0	3	6.67	70.16	17.87	270.36	0.3062	-831.0	-763.9
84	0	19	0	10	14.95	70.60	18.30	295.70	0.3382	-1063.0	-942.2
85	0	7	0	4	14.52	70.43	18.14	294.69	0.3332	-1063.0	-913.5
86	0	5	0	3	5.10	69.62	17.33	265.00	0.2991	-780.0	-624.8
87	0	5	0	3	19.43	70.58	18.29	306.98	0.3721	-421.0	-344.3
88	0	9	0	5	14.13	69.22	16.93	294.90	0.3127	-887.0	-761.6
89	0	4	0	2	15.52	67.65	15.36	301.14	0.2995	-877.0	-655.1
90	0	9	0	4	11.38	65.66	13.36	289.77	0.2419	-917.0	-807.7

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
