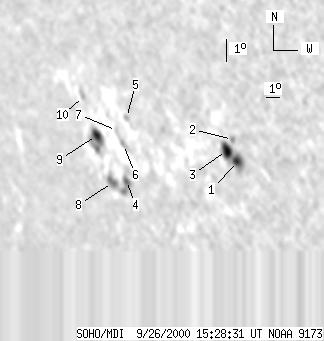

SOHO MDI 2000-09-26 15:28:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25 | 144 | 24 | 144 | -12.27 | 350.32 | -56.98 | 108.62 | 0.8642 | -288.7 | -23.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-26 15:28:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6 | 47 | 5 | 40 | -12.06 | 356.87 | -50.43 | 110.51 | 0.8071 | -945.2 | -560.1 | |
| 0 | 4 | 0 | 4 | -11.17 | 356.78 | -50.52 | 109.42 | 0.8052 | -612.0 | -526.9 | |
| 11 | -1 | 10 | -1 | -11.66 | 356.27 | -51.02 | 109.83 | 0.8116 | -696.4 | 999999 | |
| 1 | 18 | 1 | 19 | -13.67 | 348.64 | -58.65 | 109.57 | 0.8827 | 170.0 | -88.0 | |
| 0 | 4 | 0 | 4 | -10.99 | 349.60 | -57.70 | 106.90 | 0.8693 | -55.0 | -15.0 | |
| 0 | 8 | 0 | 8 | -12.16 | 348.98 | -58.31 | 108.02 | 0.8767 | 557.0 | 473.6 | |
| 0 | 2 | 0 | 2 | -11.62 | 348.63 | -58.67 | 107.33 | 0.8784 | 425.0 | 482.6 | |
| 0 | 17 | 0 | 18 | -13.87 | 347.45 | -59.85 | 109.45 | 0.8922 | 531.0 | 455.1 | |
| 7 | 37 | 8 | 41 | -12.01 | 346.91 | -60.39 | 107.28 | 0.8924 | 498.8 | 171.8 | |
| 0 | 7 | 0 | 8 | -10.48 | 346.39 | -60.91 | 105.48 | 0.8935 | 431.0 | 357.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
