group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	406	3468	248	2085	9.85	79.95	34.69	277.48	0.5672	1189.2	380.6

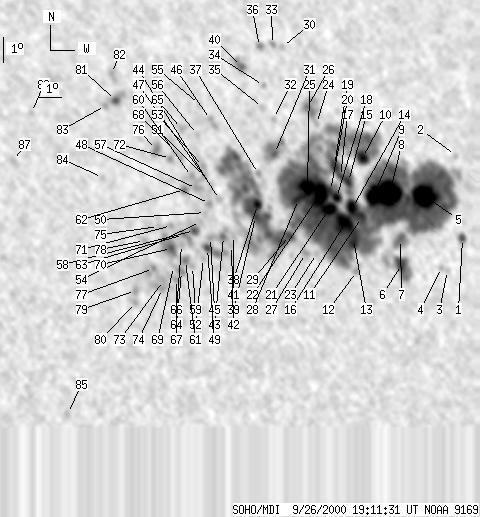

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-26 19:11:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	5	11	3	7	7.91	86.26	41.01	274.15	0.6540	702.2	542.4
2	0	3	0	2	11.16	86.37	41.12	279.13	0.6558	-322.0	-345.6
3	0	3	0	2	6.73	85.36	40.10	272.28	0.6425	566.0	558.6
4	0	4	0	2	6.87	85.06	39.81	272.47	0.6385	730.0	623.1
5	43	2699	28	1643	9.69	84.53	39.28	276.92	0.6309	1395.6	585.2
6	13	79	8	49	7.13	83.07	37.81	272.78	0.6113	246.0	-95.6
7	7	29	4	18	8.11	83.12	37.86	274.38	0.6117	849.7	531.8
8	51	-5	32	-5	9.89	82.79	37.53	277.32	0.6074	1396.4	999999
9	30	-5	19	-5	9.91	82.00	36.74	277.39	0.5965	1713.6	999999
10	14	-5	8	-5	11.42	81.66	36.41	279.97	0.5929	1057.5	999999
11	12	-5	7	-5	9.10	81.30	36.05	276.04	0.5866	1235.0	999999
12	0	6	0	4	7.02	80.85	35.59	272.45	0.5804	-721.0	-514.2
13	18	-5	11	-5	8.27	80.82	35.57	274.62	0.5797	504.4	999999
14	19	-5	12	-5	9.52	80.92	35.66	276.77	0.5812	1359.7	999999
15	7	-5	5	-5	10.54	80.85	35.60	278.54	0.5809	960.6	999999
16	28	-5	17	-5	8.96	80.51	35.26	275.81	0.5753	1563.9	999999
17	3	-5	2	-5	10.76	80.49	35.24	278.96	0.5760	1012.0	999999
18	7	-5	4	-5	9.96	80.19	34.94	277.58	0.5712	1068.5	999999
19	11	-5	7	-5	11.21	80.26	35.00	279.76	0.5732	925.5	999999
20	3	-5	2	-5	10.25	79.94	34.68	278.11	0.5678	995.5	999999
21	19	-5	12	-5	9.52	79.75	34.50	276.83	0.5648	1779.0	999999
22	46	-5	27	-5	10.13	79.40	34.14	277.94	0.5600	1740.6	999999
23	0	4	0	2	7.85	79.01	33.75	273.84	0.5538	911.0	717.1
24	0	4	0	2	12.90	79.64	34.38	282.83	0.5667	569.0	572.4
25	18	-5	11	-5	10.44	78.86	33.61	278.55	0.5526	1938.0	999999
26	0	34	0	20	13.59	79.31	34.06	284.12	0.5635	520.0	581.7
27	0	8	0	5	7.88	78.49	33.24	273.89	0.5463	890.0	816.3
28	14	-5	8	-5	10.00	78.38	33.13	277.80	0.5453	1899.8	999999
29	6	-5	3	-5	8.63	77.81	32.56	275.28	0.5364	1070.0	999999
30	0	5	0	3	16.01	78.53	33.27	288.62	0.5586	412.0	312.3
31	3	48	2	28	11.86	77.48	32.22	281.37	0.5344	1173.7	650.5
32	0	5	0	3	13.22	77.62	32.37	283.88	0.5390	569.0	529.1
33	0	5	0	3	16.12	78.06	32.81	288.98	0.5526	553.0	502.4
34	0	4	0	3	14.54	77.35	32.10	286.38	0.5383	-395.0	-224.5
35	0	5	0	3	13.69	77.17	31.92	284.85	0.5336	342.0	429.3
36	0	8	0	5	16.08	77.43	32.17	289.15	0.5438	-685.0	-478.0
37	0	4	0	2	11.13	76.64	31.38	280.14	0.5211	718.0	630.2
38	6	-5	3	-5	9.92	76.45	31.20	277.84	0.5172	1568.1	999999
39	5	-5	3	-5	9.46	76.31	31.06	276.96	0.5147	736.8	999999
40	0	19	0	11	15.35	76.44	31.19	288.19	0.5278	-985.0	-717.2
41	0	6	0	3	8.78	75.24	29.99	275.69	0.4984	-761.0	-652.1
42	0	4	0	2	8.40	75.12	29.86	274.92	0.4964	-288.0	-211.1
43	0	19	0	11	8.77	74.78	29.53	275.69	0.4915	-1042.0	-766.8
44	0	7	0	4	10.22	74.74	29.49	278.65	0.4920	-293.0	-324.6
45	0	5	0	3	8.77	74.20	28.94	275.71	0.4826	-846.0	-722.9
46	0	13	0	7	13.36	74.70	29.45	284.99	0.4972	-812.0	-372.3
47	0	1	0	1	10.83	74.39	29.14	279.95	0.4876	-680.0	-627.9
48	0	5	0	3	10.09	74.27	29.02	278.45	0.4848	-777.0	-748.9
49	5	31	3	17	8.35	74.03	28.77	274.84	0.4799	-907.6	-272.0
50	0	4	0	2	9.75	74.06	28.81	277.77	0.4813	-722.0	-686.4
51	0	7	0	4	11.16	74.16	28.90	280.67	0.4845	-712.0	-650.1
52	0	4	0	2	7.97	73.82	28.56	274.05	0.4767	-160.0	-207.2
53	0	7	0	4	11.55	74.16	28.90	281.47	0.4852	-712.0	-677.9
54	0	2	0	1	9.41	73.80	28.55	277.10	0.4771	-828.0	-750.5
55	0	5	0	3	13.98	74.28	29.02	286.36	0.4927	-615.0	-573.2
56	0	4	0	2	12.81	74.03	28.78	284.09	0.4860	-611.0	-611.0
57	0	8	0	5	10.71	73.75	28.49	279.82	0.4777	-1178.0	-1001.9
58	5	24	3	13	9.08	73.50	28.25	276.42	0.4723	-1060.3	-881.5
59	0	5	0	3	7.69	73.30	28.05	273.45	0.4688	-474.0	-358.7
60	0	14	0	8	11.19	73.57	28.32	280.86	0.4758	-1091.0	-977.8
61	0	12	0	6	7.94	73.01	27.76	273.99	0.4643	-871.0	-765.0
62	0	7	0	4	10.70	73.21	27.95	279.91	0.4695	-1203.0	-1138.1
63	0	19	0	11	8.95	73.00	27.75	276.19	0.4645	-1116.0	-886.0
64	0	9	0	5	7.52	72.80	27.55	273.09	0.4611	-1001.0	-832.6
65	0	12	0	7	13.08	73.34	28.08	284.89	0.4764	-741.0	-616.1
66	0	1	0	1	8.57	72.88	27.63	275.37	0.4625	-876.0	-848.1
67	0	13	0	7	7.22	72.56	27.31	272.43	0.4574	-816.0	-802.6
68	0	9	0	5	12.16	73.00	27.75	283.06	0.4692	-659.0	-747.5
69	0	5	0	3	7.73	72.46	27.21	273.55	0.4559	-761.0	-776.5
70	4	45	2	25	8.44	72.43	27.17	275.10	0.4554	-1388.0	-1116.6
71	0	5	0	3	9.33	72.50	27.24	277.07	0.4571	-853.0	-826.0
72	0	6	0	3	11.94	72.71	27.45	282.69	0.4643	-987.0	-959.4
73	0	15	0	9	7.21	71.99	26.73	272.39	0.4486	-1020.0	-950.4
74	0	16	0	9	6.90	71.92	26.67	271.69	0.4477	-794.0	-858.2
75	0	9	0	5	9.32	71.92	26.67	277.12	0.4482	-854.0	-826.0
76	0	12	0	7	12.33	72.12	26.87	283.70	0.4564	-1237.0	-1000.8
77	0	23	0	13	7.70	71.58	26.33	273.48	0.4422	-1090.0	-906.6
78	0	6	0	3	8.81	71.26	26.01	276.03	0.4376	-1058.0	-906.5
79	0	8	0	4	6.89	70.74	25.49	271.58	0.4292	-1138.0	-939.9
80	0	7	0	4	6.42	70.72	25.46	270.49	0.4291	-832.0	-729.9
81	4	20	2	11	14.33	70.53	25.27	288.82	0.4389	-1193.0	-937.8
82	0	17	0	9	15.40	70.48	25.23	291.19	0.4426	-878.0	-714.7
83	0	5	0	3	14.16	70.06	24.81	288.68	0.4313	-925.0	-747.2
84	0	4	0	2	11.35	69.64	24.39	282.35	0.4161	-597.0	-556.0
85	0	7	0	4	2.24	67.67	22.41	259.33	0.3894	-625.0	-456.0
86	0	4	0	2	14.03	66.81	21.56	290.43	0.3821	-598.0	-570.5
87	0	10	0	5	12.19	65.88	20.62	286.22	0.3601	-677.0	-607.4

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
