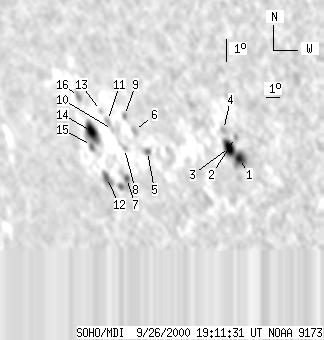

SOHO MDI 2000-09-26 19:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30 | 169 | 28 | 158 | -12.10 | 350.42 | -54.83 | 109.10 | 0.8458 | -130.4 | -10.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-26 19:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5 | 47 | 4 | 38 | -12.01 | 356.81 | -48.44 | 111.22 | 0.7875 | -960.8 | -561.5 | |
| 0 | 5 | 0 | 4 | -11.16 | 356.77 | -48.49 | 110.18 | 0.7850 | -554.0 | -423.3 | |
| 12 | -1 | 10 | -1 | -11.61 | 356.30 | -48.95 | 110.54 | 0.7912 | -726.4 | 999999 | |
| 0 | 5 | 0 | 4 | -10.90 | 356.10 | -49.15 | 109.60 | 0.7908 | -609.0 | -432.3 | |
| 0 | 7 | 0 | 6 | -12.31 | 350.81 | -54.44 | 109.38 | 0.8447 | -270.0 | -116.4 | |
| 0 | 8 | 0 | 7 | -11.52 | 350.15 | -55.11 | 108.27 | 0.8485 | 118.0 | 154.1 | |
| 0 | 19 | 0 | 19 | -13.61 | 348.88 | -56.37 | 110.22 | 0.8644 | -307.0 | -204.4 | |
| 0 | 4 | 0 | 4 | -12.35 | 349.18 | -56.08 | 108.90 | 0.8589 | 522.0 | 456.4 | |
| 0 | 4 | 0 | 4 | -10.96 | 349.60 | -55.65 | 107.47 | 0.8518 | -151.0 | -62.1 | |
| 0 | 2 | 0 | 2 | -11.64 | 348.54 | -56.72 | 107.91 | 0.8625 | 562.0 | 518.5 | |
| 0 | 6 | 0 | 6 | -11.30 | 348.28 | -56.98 | 107.45 | 0.8639 | 674.0 | 610.6 | |
| 0 | 16 | 0 | 16 | -13.73 | 347.35 | -57.91 | 109.87 | 0.8770 | 435.0 | 407.3 | |
| 0 | 2 | 0 | 2 | -10.94 | 347.87 | -57.38 | 106.93 | 0.8665 | 386.0 | 405.1 | |
| 13 | 31 | 14 | 32 | -11.89 | 346.88 | -58.37 | 107.71 | 0.8766 | 490.4 | 318.3 | |
| 0 | 6 | 0 | 6 | -12.49 | 346.67 | -58.58 | 108.30 | 0.8796 | 66.0 | 78.9 | |
| 0 | 7 | 0 | 8 | -10.53 | 346.33 | -58.92 | 106.05 | 0.8782 | 382.0 | 285.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
