group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	388	3120	246	1928	9.81	79.66	37.04	277.28	0.5999	1046.3	406.5

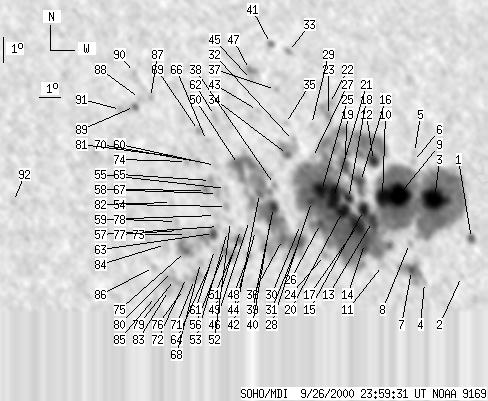

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-26 23:59:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	5	12	4	8	7.96	86.35	43.74	274.35	0.6890	579.3	381.0
2	0	4	0	3	6.53	85.64	43.02	272.21	0.6807	482.0	445.2
3	47	2050	31	1298	9.63	84.60	41.98	276.79	0.6665	1284.9	638.8
4	0	3	0	2	6.46	83.67	41.06	271.94	0.6553	-419.0	-352.5
5	0	4	0	2	11.54	83.85	41.24	279.71	0.6575	-349.0	-203.7
6	0	4	0	2	11.19	83.74	41.12	279.19	0.6559	322.0	296.4
7	5	51	3	33	6.97	83.05	40.43	272.69	0.6468	49.8	68.4
8	0	5	0	4	8.03	83.06	40.45	274.33	0.6466	477.0	460.2
9	54	-3	35	-3	9.93	82.75	40.13	277.29	0.6424	1317.2	999999
10	24	-3	15	-3	9.96	81.93	39.31	277.36	0.6315	1622.4	999999
11	0	8	0	5	7.28	81.60	38.98	273.09	0.6272	-384.0	-216.8
12	13	-3	8	-3	11.39	81.69	39.07	279.65	0.6290	905.0	999999
13	14	-3	9	-3	9.02	81.29	38.68	275.88	0.6227	1128.2	999999
14	19	-3	12	-3	8.20	80.79	38.17	274.54	0.6159	465.1	999999
15	9	-3	6	-3	9.48	80.90	38.28	276.63	0.6174	1339.6	999999
16	7	-3	5	-3	10.62	80.90	38.29	278.48	0.6180	822.4	999999
17	21	-3	13	-3	8.92	80.52	37.91	275.72	0.6123	1546.1	999999
18	6	-3	4	-3	10.00	80.21	37.60	277.51	0.6083	1008.5	999999
19	10	-3	6	-3	11.30	80.20	37.58	279.65	0.6090	901.4	999999
20	15	-3	10	-3	9.52	79.85	37.23	276.73	0.6031	1619.7	999999
21	36	-3	22	-3	10.10	79.48	36.86	277.70	0.5982	1629.5	999999
22	0	9	0	5	13.76	79.87	37.25	283.74	0.6075	324.0	287.9
23	0	16	0	10	13.30	79.73	37.11	283.01	0.6049	951.0	661.2
24	0	8	0	5	7.87	78.78	36.16	273.96	0.5881	1131.0	890.5
25	19	-3	12	-3	10.41	78.93	36.31	278.27	0.5908	1825.9	999999
26	6	-3	4	-3	9.13	78.72	36.10	276.10	0.5873	1433.0	999999
27	0	4	0	2	11.72	78.67	36.06	280.53	0.5884	590.0	452.1
28	10	-3	6	-3	10.01	78.39	35.77	277.63	0.5830	1782.0	999999
29	0	4	0	3	13.01	78.83	36.21	282.68	0.5923	866.0	660.2
30	0	8	0	5	9.16	77.75	35.13	276.18	0.5736	732.0	615.6
31	14	438	8	261	8.47	77.58	34.96	274.97	0.5711	560.9	367.6
32	0	4	0	2	12.45	77.85	35.23	281.89	0.5779	619.0	484.2
33	0	5	0	3	15.93	78.23	35.62	287.74	0.5902	562.0	518.9
34	4	37	2	23	11.92	77.48	34.86	281.04	0.5720	1117.0	593.9
35	0	4	0	2	13.13	77.57	34.95	283.13	0.5751	633.0	518.3
36	7	-31	4	-31	8.63	76.83	34.21	275.27	0.5604	395.6	999999
37	0	4	0	2	14.49	77.31	34.70	285.55	0.5743	-382.0	-209.6
38	0	6	0	4	10.79	76.69	34.08	279.16	0.5597	813.0	710.4
39	8	-31	5	-31	9.90	76.54	33.92	277.57	0.5567	1385.5	999999
40	6	-31	4	-31	9.45	76.34	33.73	276.76	0.5537	865.1	999999
41	0	7	0	4	16.31	77.41	34.80	288.62	0.5802	-534.0	-333.2
42	3	-31	2	-31	10.49	75.94	33.33	278.69	0.5486	1318.2	999999
43	0	3	0	2	13.73	76.31	33.69	284.47	0.5587	519.0	452.0
44	0	5	0	3	9.07	75.59	32.98	276.10	0.5427	-582.0	-518.6
45	0	3	0	2	14.96	76.23	33.61	286.67	0.5604	-542.0	-537.7
46	0	7	0	4	9.47	75.35	32.74	276.87	0.5394	-487.0	-385.7
47	0	13	0	8	15.36	76.20	33.59	287.37	0.5611	-926.0	-775.6
48	0	5	0	3	8.12	75.17	32.55	274.34	0.5364	391.0	273.0
49	0	3	0	2	9.15	74.90	32.28	276.29	0.5326	-761.0	-610.8
50	8	-31	5	-31	11.68	75.10	32.48	281.01	0.5379	-191.6	999999
51	4	13	3	8	8.77	74.76	32.15	275.57	0.5305	-915.0	-819.8
52	0	5	0	3	9.49	74.46	31.85	276.96	0.5264	-593.0	-548.0
53	0	4	0	2	9.11	74.29	31.67	276.25	0.5236	-580.0	-561.8
54	0	6	0	3	10.08	74.34	31.73	278.11	0.5251	-945.0	-725.5
55	0	4	0	2	10.79	74.38	31.76	279.44	0.5263	-635.0	-576.7
56	0	26	0	15	8.38	74.08	31.46	274.85	0.5203	-937.0	-371.0
57	0	1	0	0	9.33	73.89	31.28	276.70	0.5179	-732.0	-748.7
58	0	10	0	6	10.61	73.98	31.37	279.17	0.5203	-1070.0	-978.9
59	0	6	0	3	9.77	73.80	31.18	277.55	0.5168	-842.0	-773.6
60	0	6	0	3	11.71	74.02	31.41	281.26	0.5224	-612.0	-623.6
61	0	6	0	4	8.45	73.62	31.01	274.99	0.5136	-742.0	-606.9
62	0	7	0	4	13.66	74.24	31.63	284.90	0.5294	-717.0	-667.5
63	7	53	4	31	9.07	73.63	31.02	276.21	0.5140	-1050.1	-926.3
64	0	4	0	2	7.99	73.45	30.83	274.10	0.5109	-545.0	-557.0
65	0	8	0	5	11.14	73.72	31.10	280.22	0.5171	-1102.0	-1021.7
66	0	4	0	2	12.71	73.73	31.12	283.24	0.5200	-823.0	-744.7
67	0	9	0	5	10.77	73.44	30.83	279.54	0.5126	-1108.0	-1173.4
68	0	6	0	3	7.98	72.94	30.33	274.08	0.5033	-894.0	-777.7
69	0	7	0	4	13.12	73.42	30.80	284.12	0.5163	-815.0	-667.8
70	0	6	0	3	11.92	73.16	30.55	281.85	0.5102	-834.0	-725.2
71	0	17	0	10	7.34	72.62	30.00	272.78	0.4986	-973.0	-809.2
72	0	4	0	2	7.44	72.26	29.65	272.97	0.4932	-919.0	-711.8
73	0	9	0	5	9.11	72.40	29.79	276.36	0.4956	-896.0	-853.8
74	0	4	0	2	11.95	72.71	30.09	282.01	0.5035	-835.0	-728.4
75	5	35	3	20	8.45	72.30	29.68	275.03	0.4937	-1330.4	-1153.7
76	0	9	0	5	6.98	72.09	29.48	272.03	0.4908	-722.0	-716.3
77	0	6	0	3	9.28	72.05	29.44	276.75	0.4904	-998.0	-856.1
78	0	4	0	2	9.64	72.00	29.38	277.48	0.4899	-892.0	-833.7
79	0	11	0	6	7.39	71.72	29.10	272.86	0.4849	-1072.0	-1063.2
80	0	4	0	2	7.70	71.65	29.04	273.52	0.4839	-971.0	-879.2
81	0	5	0	3	12.18	72.09	29.48	282.62	0.4949	-832.0	-782.6
82	0	4	0	3	10.39	71.84	29.23	279.05	0.4883	-860.0	-778.4
83	0	10	0	5	6.98	71.42	28.80	271.99	0.4805	-953.0	-825.2
84	0	15	0	8	8.77	71.42	28.81	275.74	0.4806	-940.0	-832.9
85	0	8	0	4	6.78	70.83	28.21	271.53	0.4715	-844.0	-733.0
86	0	5	0	3	7.91	70.81	28.20	273.94	0.4711	-991.0	-800.2
87	0	5	0	3	14.54	71.40	28.78	287.60	0.4909	-773.0	-672.7
88	0	6	0	3	14.53	70.89	28.27	287.79	0.4836	-847.0	-789.7
89	2	9	1	5	14.23	70.62	28.00	287.29	0.4787	-1070.5	-836.5
90	0	14	0	8	15.56	70.81	28.19	289.91	0.4861	-534.0	-538.8
91	0	6	0	3	14.14	69.97	27.36	287.40	0.4689	-637.0	-536.5
92	0	5	0	3	10.78	64.92	22.30	281.69	0.3824	-910.0	-741.9

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
