group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	337	2979	223	1942	9.77	80.11	40.76	277.10	0.6499	1016.7	397.6

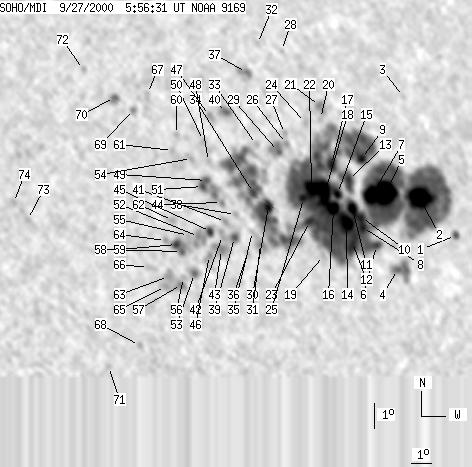

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-27 05:56:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	3	10	2	7	7.95	86.39	47.05	274.48	0.7295	494.0	297.9
2	36	2419	25	1600	9.59	84.60	45.26	276.73	0.7075	1232.8	578.1
3	0	3	0	2	13.58	84.52	45.18	282.38	0.7082	506.0	423.4
4	3	39	2	26	6.91	83.00	43.66	272.81	0.6885	258.5	95.3
5	48	-2	32	-2	9.90	82.77	43.42	277.18	0.6848	1186.1	999999
6	5	-2	4	-2	7.93	81.99	42.65	274.26	0.6752	262.2	999999
7	27	-2	18	-2	9.89	82.01	42.66	277.17	0.6752	1540.0	999999
8	7	-2	5	-2	8.68	81.34	42.00	275.37	0.6667	871.5	999999
9	9	-2	6	-2	11.36	81.72	42.38	279.38	0.6721	791.8	999999
10	8	-2	5	-2	9.08	81.35	42.00	275.96	0.6667	1102.3	999999
11	9	-2	6	-2	9.46	80.92	41.58	276.55	0.6613	1193.3	999999
12	27	-2	18	-2	8.14	80.74	41.40	274.54	0.6590	640.8	999999
13	7	-2	5	-2	10.60	80.89	41.55	278.28	0.6611	829.6	999999
14	19	-2	13	-2	8.94	80.53	41.19	275.76	0.6562	1466.2	999999
15	6	-2	4	-2	10.10	80.23	40.89	277.54	0.6524	970.8	999999
16	13	-2	9	-2	9.54	79.94	40.59	276.68	0.6484	1587.8	999999
17	12	-2	8	-2	11.25	80.10	40.76	279.32	0.6512	969.0	999999
18	31	-2	20	-2	10.15	79.56	40.21	277.65	0.6436	1570.4	999999
19	0	5	0	3	7.75	79.19	39.84	273.89	0.6386	861.0	764.9
20	0	5	0	3	13.08	79.86	40.52	282.16	0.6497	604.0	635.9
21	0	17	0	11	13.59	79.91	40.57	282.93	0.6509	494.0	500.0
22	15	-2	10	-2	10.40	78.92	39.58	278.06	0.6352	1894.3	999999
23	9	-2	5	-2	9.13	78.64	39.30	276.05	0.6311	1335.3	999999
24	0	7	0	5	12.98	79.06	39.71	282.11	0.6391	778.0	675.4
25	5	-2	3	-2	10.04	78.46	39.12	277.51	0.6289	1742.2	999999
26	0	7	0	4	12.24	77.94	38.60	281.07	0.6235	826.0	667.1
27	0	5	0	3	12.64	77.91	38.56	281.71	0.6235	593.0	537.7
28	0	3	0	2	15.88	78.42	39.08	286.76	0.6355	392.0	354.5
29	2	24	1	15	11.96	77.49	38.14	280.67	0.6171	999.8	546.7
30	9	-2	6	-2	9.86	76.67	37.32	277.30	0.6045	1289.9	999999
31	0	16	0	10	8.41	76.10	36.75	274.89	0.5963	-663.0	-489.9
32	0	4	0	2	16.24	77.26	37.91	287.62	0.6212	-524.0	-369.1
33	0	4	0	3	12.31	76.44	37.09	281.38	0.6033	561.0	405.7
34	4	-2	2	-2	10.45	76.00	36.66	278.33	0.5957	1277.2	999999
35	0	7	0	4	8.94	75.76	36.42	275.79	0.5917	-512.0	-409.3
36	0	3	0	2	8.11	75.43	36.08	274.37	0.5870	95.0	161.3
37	0	24	0	15	15.15	76.46	37.11	286.05	0.6083	-762.0	-575.3
38	0	4	0	2	9.66	75.02	35.67	277.04	0.5815	-483.0	-385.4
39	4	13	3	8	8.77	74.87	35.52	275.51	0.5791	-795.4	-625.6
40	0	16	0	10	13.66	75.17	35.83	283.87	0.5881	-468.0	-451.9
41	0	8	0	5	9.42	74.50	35.16	276.66	0.5741	-637.0	-657.8
42	0	12	0	7	8.89	74.30	34.95	275.73	0.5711	-692.0	-684.8
43	0	24	0	14	8.35	74.19	34.85	274.78	0.5695	-588.0	-427.6
44	0	5	0	3	10.17	74.40	35.06	277.97	0.5731	-875.0	-762.8
45	5	16	3	9	9.08	73.74	34.40	276.09	0.5632	-979.4	-851.1
46	0	10	0	6	8.15	73.60	34.25	274.43	0.5610	-807.0	-671.1
47	0	9	0	6	13.60	74.32	34.98	283.94	0.5763	-874.0	-701.2
48	0	4	0	2	11.81	73.99	34.65	280.89	0.5689	-678.0	-623.1
49	3	44	2	27	11.08	73.79	34.45	279.63	0.5653	-1210.1	-987.7
50	0	4	0	2	12.64	73.88	34.53	282.37	0.5685	-652.0	-570.4
51	4	-49	2	-49	10.86	73.57	34.23	279.26	0.5619	-1246.7	999999
52	0	28	0	17	8.93	73.15	33.81	275.83	0.5547	-1076.0	-930.1
53	0	13	0	8	7.50	72.83	33.48	273.24	0.5500	-1068.0	-864.3
54	0	9	0	5	11.98	73.20	33.85	281.32	0.5579	-912.0	-751.2
55	0	5	0	3	9.00	72.69	33.34	275.97	0.5480	-874.0	-898.3
56	0	3	0	2	7.38	72.30	32.95	272.99	0.5423	-762.0	-772.4
57	0	13	0	8	7.11	72.18	32.84	272.50	0.5408	-925.0	-812.0
58	2	32	1	19	8.39	72.30	32.95	274.87	0.5422	-1182.7	-1033.8
59	5	-58	3	-58	8.68	72.09	32.75	275.41	0.5392	-1297.4	999999
60	0	3	0	2	12.96	72.62	33.28	283.20	0.5514	-701.0	-550.4
61	0	4	0	3	12.35	72.34	33.00	282.15	0.5463	-956.0	-790.8
62	0	10	0	6	9.63	72.00	32.66	277.17	0.5383	-822.0	-771.9
63	0	14	0	8	7.46	71.61	32.26	273.12	0.5322	-1119.0	-941.9
64	0	5	0	3	8.87	71.59	32.25	275.78	0.5320	-709.0	-836.7
65	0	7	0	4	7.08	71.44	32.09	272.40	0.5298	-974.0	-908.0
66	0	12	0	7	7.87	70.71	31.37	273.88	0.5189	-821.0	-647.0
67	0	10	0	6	14.65	71.50	32.16	286.58	0.5395	-390.0	-544.9
68	0	4	0	2	4.86	70.10	30.75	267.97	0.5119	-763.0	-568.5
69	0	6	0	4	14.06	70.75	31.40	285.73	0.5272	-806.0	-678.7
70	0	10	0	6	14.58	69.94	30.59	287.00	0.5171	-630.0	-785.1
71	0	4	0	2	4.13	68.66	29.32	266.22	0.4915	-665.0	-644.0
72	0	5	0	3	15.76	68.68	29.33	289.78	0.5031	359.0	324.2
73	0	5	0	3	10.04	65.45	26.11	278.87	0.4404	-688.0	-694.6
74	0	6	0	3	10.74	64.90	25.55	280.58	0.4329	-443.0	-366.8

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
