group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	300	2508	220	1821	10.14	80.23	47.44	277.56	0.7327	813.8	391.6

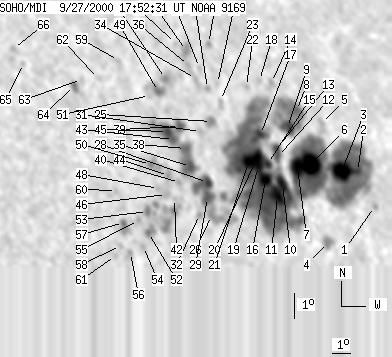

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-27 17:52:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	5	0	4	7.92	86.47	53.69	274.80	0.8032	312.0	259.3
2	7	1659	5	1242	9.38	85.64	52.86	276.59	0.7940	263.8	580.3
3	33	-2	27	-2	9.47	84.62	51.84	276.68	0.7832	895.0	999999
4	0	15	0	11	6.81	83.27	50.48	273.18	0.7695	489.0	228.3
5	0	14	0	11	11.44	83.80	51.02	279.21	0.7742	260.0	212.6
6	43	-2	32	-2	9.92	82.77	49.98	277.22	0.7627	888.1	999999
7	26	-2	19	-2	9.87	81.96	49.18	277.15	0.7537	1189.0	999999
8	8	143	6	107	12.08	82.40	49.62	280.07	0.7588	-117.6	171.4
9	16	-8	12	-8	11.47	81.70	48.92	279.28	0.7508	569.5	999999
10	16	-2	12	-2	9.29	80.95	48.16	276.36	0.7422	921.9	999999
11	19	-2	14	-2	8.85	80.57	47.79	275.76	0.7379	1283.7	999999
12	5	-2	3	-2	10.40	80.87	48.08	277.86	0.7411	693.8	999999
13	4	-2	3	-2	10.71	80.87	48.09	278.29	0.7412	602.2	999999
14	0	6	0	4	13.29	81.19	48.40	281.75	0.7457	-282.0	-307.0
15	7	-2	5	-2	10.18	80.23	47.45	277.56	0.7337	759.3	999999
16	13	-2	10	-2	9.57	80.00	47.21	276.73	0.7310	1413.2	999999
17	7	-2	5	-2	11.34	80.06	47.27	279.15	0.7319	888.2	999999
18	0	4	0	3	13.43	80.50	47.72	281.98	0.7380	384.0	464.0
19	9	-2	7	-2	10.11	79.69	46.91	277.47	0.7274	1438.3	999999
20	13	-2	9	-2	10.50	79.71	46.92	278.01	0.7276	1066.6	999999
21	12	-2	9	-2	10.35	79.16	46.37	277.81	0.7211	1696.6	999999
22	0	4	0	3	13.26	79.69	46.90	281.81	0.7285	554.0	512.2
23	0	8	0	5	12.84	78.08	45.30	281.35	0.7092	658.0	625.4
24	0	3	0	2	13.52	78.07	45.29	282.30	0.7095	505.0	527.9
25	0	15	0	11	12.07	77.40	44.62	280.30	0.7004	576.0	532.1
26	0	54	0	37	8.43	76.76	43.97	275.07	0.6918	519.0	400.1
27	0	6	0	4	15.11	77.97	45.18	284.56	0.7099	462.0	461.8
28	7	68	5	47	9.73	76.74	43.95	276.95	0.6915	1011.4	625.3
29	13	-28	9	-28	9.15	76.64	43.86	276.10	0.6903	683.2	999999
30	0	5	0	3	13.37	77.47	44.68	282.15	0.7021	703.0	614.8
31	0	11	0	7	11.73	76.72	43.93	279.86	0.6918	630.0	537.5
32	0	6	0	4	8.52	76.11	43.33	275.18	0.6838	-422.0	-385.4
33	0	4	0	2	14.22	77.22	44.44	283.39	0.7000	-17.0	0.3
34	0	9	0	6	13.81	76.90	44.11	282.84	0.6956	372.0	500.6
35	7	60	5	40	10.42	75.92	43.14	277.97	0.6814	1035.0	573.5
36	0	12	0	8	14.35	76.63	43.85	283.64	0.6930	-210.0	-141.6
37	0	19	0	13	14.94	76.67	43.89	284.49	0.6942	-51.0	-70.0
38	8	-35	5	-35	11.14	75.78	43.00	279.04	0.6798	130.0	999999
39	7	77	5	51	12.02	75.62	42.84	280.35	0.6783	154.9	-115.5
40	0	5	0	3	9.85	75.23	42.45	277.14	0.6725	251.0	86.4
41	0	5	0	4	15.26	76.14	43.36	285.03	0.6881	-511.0	-409.3
42	0	3	0	2	9.25	74.87	42.09	276.25	0.6679	-559.0	-490.6
43	6	-39	4	-39	11.54	75.20	42.42	279.67	0.6728	-39.5	999999
44	0	10	0	6	10.17	74.70	41.91	277.63	0.6657	-634.0	-485.8
45	11	-39	7	-39	11.88	74.94	42.16	280.18	0.6697	-250.4	999999
46	0	10	0	6	9.44	74.48	41.69	276.53	0.6627	-843.0	-685.1
47	0	15	0	10	13.94	75.27	42.48	283.23	0.6757	-682.0	-530.5
48	0	4	0	3	9.70	74.09	41.31	276.94	0.6578	-766.0	-720.0
49	3	28	2	19	13.46	74.78	42.00	282.58	0.6690	-251.1	-390.9
50	0	20	0	13	10.67	73.82	41.04	278.42	0.6546	-1046.0	-911.4
51	0	1	0	1	13.35	74.27	41.49	282.46	0.6625	-690.0	-688.7
52	0	16	0	11	8.04	73.34	40.56	274.38	0.6480	-901.0	-684.6
53	0	107	0	70	8.86	73.40	40.61	275.65	0.6486	-1167.0	-467.8
54	0	5	0	3	7.51	73.02	40.24	273.56	0.6440	-701.0	-608.0
55	0	5	0	3	8.54	72.89	40.10	275.16	0.6419	-964.0	-834.8
56	0	5	0	3	7.33	72.34	39.55	273.24	0.6349	-901.0	-803.6
57	0	17	0	11	8.52	72.12	39.33	275.12	0.6316	-1171.0	-979.6
58	0	5	0	3	7.64	71.86	39.08	273.71	0.6284	-798.0	-775.7
59	0	4	0	3	14.83	72.95	40.16	284.93	0.6476	-240.0	-350.7
60	0	3	0	2	9.79	71.93	39.14	277.14	0.6292	-735.0	-667.9
61	0	3	0	2	7.27	71.57	38.78	273.10	0.6246	-834.0	-810.4
62	0	6	0	4	14.21	71.76	38.98	284.17	0.6313	-589.0	-408.0
63	0	5	0	3	14.23	70.89	38.11	284.38	0.6198	-424.0	-471.2
64	0	10	0	6	14.02	70.50	37.71	284.12	0.6142	-939.0	-773.5
65	0	4	0	2	15.06	68.14	35.35	286.38	0.5846	-707.0	-662.4
66	0	5	0	3	15.67	67.76	34.98	287.53	0.5810	-708.0	-582.9

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
