group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
9169	265	2512	203	1856	9.99	80.34	48.28	277.34	0.7425	866.0	380.7

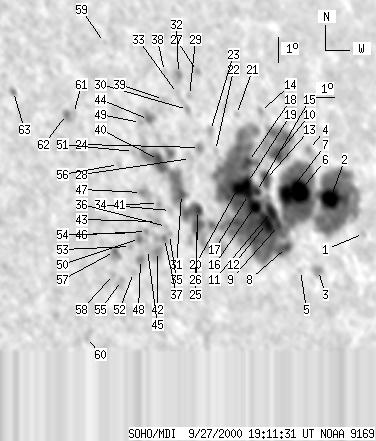

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 2000-09-27 19:11:31 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	4	0	3	7.92	86.56	54.50	274.85	0.8115	462.0	299.5
2	31	2142	25	1603	9.47	84.68	52.62	276.71	0.7915	912.6	489.7
3	0	13	0	10	6.77	83.41	51.35	273.19	0.7791	506.0	262.5
4	0	14	0	11	11.49	83.74	51.68	279.28	0.7813	157.0	209.2
5	0	3	0	2	6.87	82.31	50.25	273.24	0.7668	372.0	264.2
6	42	-2	33	-2	9.92	82.79	50.73	277.25	0.7711	900.5	999999
7	27	-2	21	-2	9.84	81.97	49.91	277.13	0.7619	1212.6	999999
8	5	-2	4	-2	7.83	81.60	49.54	274.47	0.7583	-118.4	999999
9	5	-2	4	-2	8.73	81.26	49.20	275.64	0.7542	506.1	999999
10	13	-2	10	-2	11.47	81.78	49.72	279.28	0.7598	586.4	999999
11	16	-2	12	-2	9.30	80.95	48.89	276.40	0.7505	889.7	999999
12	18	-2	14	-2	8.87	80.57	48.51	275.80	0.7462	1194.2	999999
13	12	-2	9	-2	10.57	80.84	48.78	278.09	0.7492	635.6	999999
14	0	6	0	5	13.23	81.18	49.12	281.62	0.7537	-352.0	-304.7
15	5	-2	4	-2	10.16	80.21	48.15	277.53	0.7420	743.1	999999
16	19	-2	14	-2	9.59	79.98	47.92	276.76	0.7393	1337.4	999999
17	9	-2	6	-2	10.08	79.72	47.66	277.43	0.7363	1368.6	999999
18	5	-2	4	-2	11.36	79.99	47.93	279.16	0.7395	935.7	999999
19	13	-2	10	-2	10.55	79.76	47.70	278.07	0.7367	1017.9	999999
20	14	-2	10	-2	10.37	79.13	47.07	277.83	0.7294	1663.5	999999
21	0	4	0	3	13.23	79.73	47.67	281.72	0.7373	530.0	455.7
22	0	5	0	4	11.94	78.19	46.13	280.04	0.7186	722.0	575.3
23	0	8	0	6	12.74	78.08	46.02	281.16	0.7177	612.0	585.4
24	0	10	0	7	12.14	77.31	45.25	280.35	0.7082	522.0	481.2
25	8	-2	5	-2	9.71	76.73	44.67	276.91	0.7004	961.1	999999
26	8	-2	6	-2	9.13	76.64	44.58	276.08	0.6992	655.1	999999
27	0	5	0	4	15.09	77.93	45.87	284.45	0.7180	477.0	397.7
28	0	9	0	6	11.75	76.72	44.66	279.84	0.7008	622.0	458.5
29	0	5	0	3	14.20	77.23	45.17	283.28	0.7088	16.0	55.8
30	0	7	0	5	13.66	76.98	44.92	282.55	0.7053	242.0	392.4
31	3	-2	2	-2	10.40	75.96	43.90	277.92	0.6910	948.4	999999
32	0	15	0	10	15.10	76.84	44.78	284.60	0.7051	123.0	25.0
33	0	4	0	3	14.33	76.58	44.52	283.54	0.7011	-214.0	-199.0
34	0	4	0	3	9.83	75.26	43.20	277.10	0.6821	172.0	104.1
35	0	5	0	3	8.90	75.07	43.01	275.74	0.6796	-466.0	-452.6
36	0	5	0	3	9.22	74.95	42.89	276.21	0.6781	-445.0	-494.6
37	0	16	0	11	8.77	74.78	42.72	275.53	0.6759	-420.0	-401.8
38	0	4	0	3	15.24	76.09	44.02	284.91	0.6962	-484.0	-396.6
39	0	4	0	3	14.16	75.75	43.69	283.39	0.6909	42.0	-63.0
40	8	-2	6	-2	11.85	74.98	42.91	280.10	0.6792	-245.6	999999
41	0	15	0	10	10.15	74.67	42.61	277.59	0.6746	-649.0	-557.1
42	0	21	0	14	8.29	74.34	42.28	274.82	0.6704	-40.0	-49.2
43	0	20	0	13	9.46	74.45	42.39	276.56	0.6717	-789.0	-697.4
44	2	17	2	11	13.45	74.76	42.70	282.47	0.6779	-245.3	-302.2
45	0	5	0	4	8.41	73.82	41.76	274.99	0.6637	-596.0	-529.0
46	0	5	0	3	9.11	73.87	41.81	276.05	0.6642	-809.0	-702.2
47	0	25	0	17	10.65	73.84	41.78	278.36	0.6642	-1035.0	-833.0
48	0	11	0	7	8.05	73.41	41.35	274.43	0.6584	-841.0	-696.8
49	0	3	0	2	13.36	74.31	42.25	282.40	0.6721	-723.0	-622.8
50	0	11	0	7	8.87	73.46	41.40	275.68	0.6590	-1019.0	-908.3
51	0	3	0	2	12.27	73.71	41.65	280.82	0.6634	-813.0	-830.1
52	0	5	0	3	7.58	72.98	40.92	273.69	0.6530	-677.0	-609.0
53	0	5	0	3	8.60	72.95	40.89	275.25	0.6523	-987.0	-883.4
54	0	3	0	2	9.10	72.97	40.91	276.03	0.6525	-817.0	-803.2
55	0	14	0	9	7.31	72.33	40.27	273.25	0.6445	-820.0	-691.2
56	0	3	0	2	11.82	72.83	40.77	280.22	0.6517	-869.0	-788.9
57	2	15	2	10	8.47	72.10	40.04	275.04	0.6411	-1071.2	-971.2
58	0	4	0	3	7.58	71.95	39.89	273.64	0.6393	-795.0	-742.4
59	0	2	0	2	16.63	73.14	41.08	287.48	0.6624	-504.0	-419.5
60	0	11	0	7	5.23	70.42	38.36	269.78	0.6203	-730.0	-547.1
61	0	3	0	2	13.98	70.89	38.83	283.84	0.6290	-697.0	-691.3
62	0	13	0	8	13.97	70.53	38.47	283.89	0.6242	-764.0	-765.7
63	0	6	0	4	15.05	68.06	36.00	286.20	0.5933	-438.0	-596.7

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
